Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

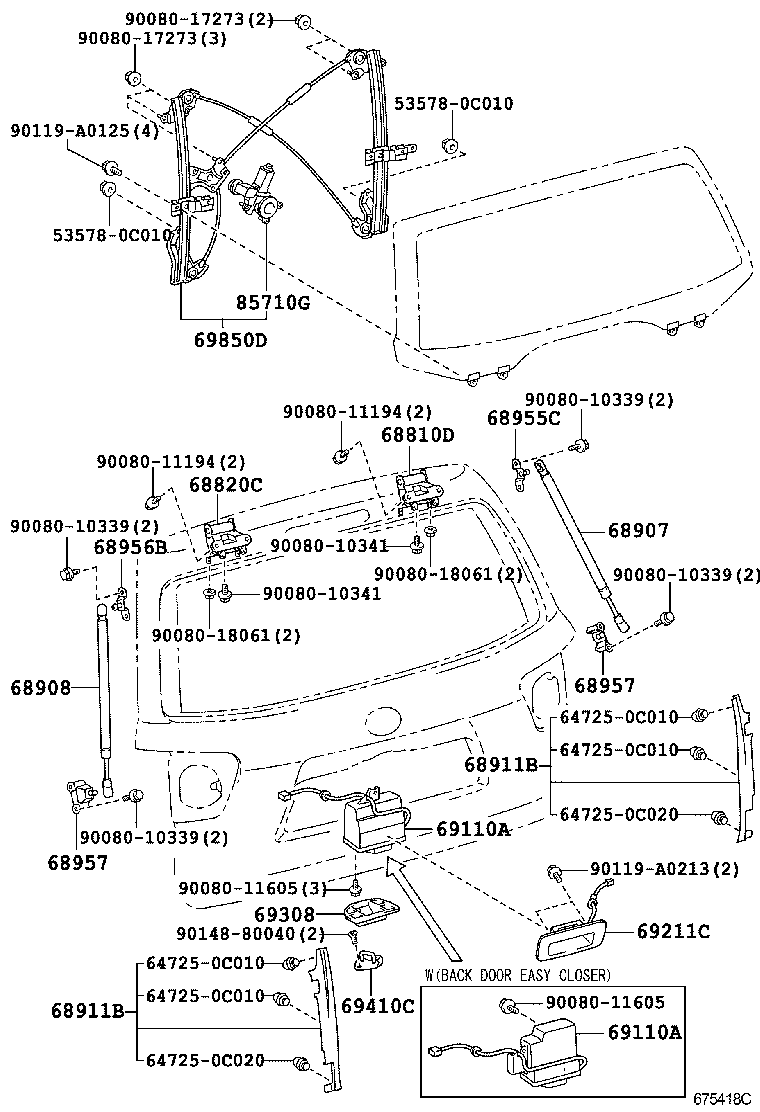

Exploded illustration 675418C 68810D — HINGE ASSY, BACK DOOR, RH (6 parts) 68820C — HINGE ASSY, BACK DOOR, LH (6 parts) 68907 — STAY SUB-ASSY, BACK DOOR DAMPER, RH (12 parts) 68908 — STAY SUB-ASSY, BACK DOOR DAMPER, LH (12 parts) 68955C — BRACKET, BACK WINDOW STAY, UPPER RH (4 parts) 68956B — BRACKET, BACK DOOR STAY, UPPER LH (4 parts) 68957 — BRACKET, BACK DOOR STAY (8 parts) 68957 — BRACKET, BACK DOOR STAY (8 parts) 69110A — LOCK ASSY, BACK DOOR W/MOTOR (13 parts) 69110A — LOCK ASSY, BACK DOOR W/MOTOR (13 parts) 69211C — HANDLE, BACK DOOR OUTSIDE (27 parts) 69308 — PROTECTOR SUB-ASSY, BACK DOOR LOCK (4 parts) 69410C — PLATE ASSY, BACK DOOR LOCK STRIKER (5 parts) 68911B — COVER, BACK DOOR STAY (10 parts) 69850D — REGULATOR ASSY, BACK DOOR POWER WINDOW (6 parts) 85710G — MOTOR ASSY, POWER WINDOW REGULATOR, RH (5 parts) 535780C010 — not listed in this catalogue 535780C010 — not listed in this catalogue 9008010339 — not listed in this catalogue 9008010339 — not listed in this catalogue 9008010339 — not listed in this catalogue 9008010339 — not listed in this catalogue 9008010341 — not listed in this catalogue 9008010341 — not listed in this catalogue 9008011194 — not listed in this catalogue 9008011194 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008018061 — not listed in this catalogue 9008018061 — not listed in this catalogue 9008017273 — not listed in this catalogue 9008017273 — not listed in this catalogue 90119A0125 — not listed in this catalogue 90119A0213 — not listed in this catalogue 9014880040 — not listed in this catalogue 647250C020 — not listed in this catalogue 647250C010 — not listed in this catalogue 647250C010 — not listed in this catalogue 68911B — COVER, BACK DOOR STAY (10 parts) 647250C020 — not listed in this catalogue 647250C010 — not listed in this catalogue 647250C010 — not listed in this catalogue
675418C · 17 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
122 parts on this figure
Part number Description Fitment Price
68810D — Hinge Assy, Back Door, RH
68810-0C030 Hinge Assy, Back Door, RH
2007-11 → 2008-01 ended
UCK6#,USK6# —
68810-0C031 Hinge Assy, Back Door, RH
2008-02 → 2009-04 ended
UCK6# —
68810-0C031 Hinge Assy, Back Door, RH
2008-02 → 2017-08 ended
USK6# —
68810-0C031 Hinge Assy, Back Door, RH
2008-02 → 2012-08 ended
UPK6# —
68810-0C031 Hinge Assy, Back Door, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
68810-0C031 Hinge Assy, Back Door, RH
2017-08 → —
USK6# HTWC —
68820C — Hinge Assy, Back Door, LH
68820-0C040 Hinge Assy, Back Door, LH
2007-11 → 2008-01 ended
UCK6#,USK6# —
68820-0C041 Hinge Assy, Back Door, LH
2008-02 → 2009-04 ended
UCK6# —
68820-0C041 Hinge Assy, Back Door, LH
2008-02 → 2012-08 ended
UPK6# —
68820-0C041 Hinge Assy, Back Door, LH
2008-02 → 2017-08 ended
USK6# —
68820-0C041 Hinge Assy, Back Door, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
68820-0C041 Hinge Assy, Back Door, LH
2017-08 → —
USK6# HTWC —
68907 — Stay Sub-assy, Back Door Damper, RH
68907-0C010 Stay Sub-assy, Back Door Damper, RH
2007-11 → 2008-10 ended
UCK6#,USK6# LIMD,SR5 —
68907-0C011 Stay Sub-assy, Back Door Damper, RH
2008-11 → 2017-06 ended
UCK6#,UPK6#,USK6# LIMD,SR5 —
68907-0C020 Stay Sub-assy, Back Door Damper, RH
2007-11 → 2008-10 ended
USK6# PLAT —
68907-0C020 note Stay Sub-assy, Back Door Damper, RH
2007-11 → 2008-10 ended
UCK6#,USK6# LIMD —
68907-0C021 Stay Sub-assy, Back Door Damper, RH
2008-11 → 2017-06 ended
USK6# PLAT —
68907-0C021 note Stay Sub-assy, Back Door Damper, RH
2008-11 → 2017-06 ended
UCK6#,UPK6#,USK6# LIMD —
68907-0C040 Stay Sub-assy, Back Door Damper, RH
2017-07 → 2017-08 ended
USK6# LIMD,SR5 —
68907-0C050 Stay Sub-assy, Back Door Damper, RH
2017-07 → 2017-08 ended
USK6# PLAT —
68907-0C050 note Stay Sub-assy, Back Door Damper, RH
2017-07 → 2017-08 ended
USK6# LIMD —
68907-0C040 Stay Sub-assy, Back Door Damper, RH
2017-08 → —
USK6# SR5 —
68907-0C050 Stay Sub-assy, Back Door Damper, RH
2017-08 → —
USK6# LIMD,PLAT —
68907-0C050 note Stay Sub-assy, Back Door Damper, RH
2019-08 → —
USK65 SR5 —
68908 — Stay Sub-assy, Back Door Damper, LH
68908-0C010 Stay Sub-assy, Back Door Damper, LH
2007-11 → 2008-10 ended
UCK6#,USK6# LIMD,SR5 —
68908-0C011 Stay Sub-assy, Back Door Damper, LH
2008-11 → 2017-06 ended
UCK6#,UPK6#,USK6# LIMD,SR5 —
68908-0C020 Stay Sub-assy, Back Door Damper, LH
2007-11 → 2008-10 ended
USK6# PLAT —
68908-0C020 note Stay Sub-assy, Back Door Damper, LH
2007-11 → 2008-10 ended
UCK6#,USK6# LIMD —
68908-0C021 Stay Sub-assy, Back Door Damper, LH
2008-11 → 2017-06 ended
USK6# PLAT —
68908-0C021 note Stay Sub-assy, Back Door Damper, LH
2008-11 → 2017-06 ended
UCK6#,UPK6#,USK6# LIMD —
68908-0C040 Stay Sub-assy, Back Door Damper, LH
2017-07 → 2017-08 ended
USK6# LIMD,SR5 —
68908-0C050 note Stay Sub-assy, Back Door Damper, LH
2017-07 → 2017-08 ended
USK6# LIMD —
68908-0C050 Stay Sub-assy, Back Door Damper, LH
2017-07 → 2017-08 ended
USK6# PLAT —
68908-0C040 Stay Sub-assy, Back Door Damper, LH
2017-08 → —
USK6# SR5 —
68908-0C050 Stay Sub-assy, Back Door Damper, LH
2017-08 → —
USK6# LIMD,PLAT —
68908-0C050 note Stay Sub-assy, Back Door Damper, LH
2019-08 → —
USK65 SR5 —
68911B — Cover, Back Door Stay
64457-0C010 note Cover, Back Door Stay
2007-11 → 2009-04 ended
UCK6# —
64457-0C010 note Cover, Back Door Stay
2007-11 → 2012-08 ended
UPK6# —
64457-0C010 note Cover, Back Door Stay
2007-11 → 2017-08 ended
USK6# —
64458-0C010 note Cover, Back Door Stay
2007-11 → 2009-04 ended
UCK6# —
64458-0C010 note Cover, Back Door Stay
2007-11 → 2012-08 ended
UPK6# —
64458-0C010 note Cover, Back Door Stay
2007-11 → 2017-08 ended
USK6# —
64457-0C010 note Cover, Back Door Stay
2017-08 → 2017-09 ended
USK65 HTWCF —
64457-0C010 note Cover, Back Door Stay
2017-08 → —
USK6# HTWC —
64458-0C010 note Cover, Back Door Stay
2017-08 → 2017-09 ended
USK65 HTWCF —
64458-0C010 note Cover, Back Door Stay
2017-08 → —
USK6# HTWC —
68955C — Bracket, Back Window Stay, Upper RH
68955-0C020 Bracket, Back Window Stay, Upper RH
2007-11 → 2012-08 ended
UPK6# —
68955-0C020 Bracket, Back Window Stay, Upper RH
2007-11 → 2017-08 ended
USK6# —
68955-0C020 Bracket, Back Window Stay, Upper RH
2007-11 → 2009-04 ended
UCK6# —
68955-0C020 Bracket, Back Window Stay, Upper RH
2017-08 → —
USK6# —
68956B — Bracket, Back Door Stay, Upper LH
68955-0C020 Bracket, Back Door Stay, Upper LH
2007-11 → 2009-04 ended
UCK6# —
68955-0C020 Bracket, Back Door Stay, Upper LH
2007-11 → 2012-08 ended
UPK6# —
68955-0C020 Bracket, Back Door Stay, Upper LH
2007-11 → 2017-08 ended
USK6# —
68955-0C020 Bracket, Back Door Stay, Upper LH
2017-08 → —
USK6# —
68957 — Bracket, Back Door Stay
68957-0C030 note Bracket, Back Door Stay
2007-11 → 2009-04 ended
UCK6# —
68957-0C030 note Bracket, Back Door Stay
2007-11 → 2012-08 ended
UPK6# —
68957-0C030 note Bracket, Back Door Stay
2007-11 → 2017-08 ended
USK6# —
68957-0C040 note Bracket, Back Door Stay
2007-11 → 2009-04 ended
UCK6# —
68957-0C040 note Bracket, Back Door Stay
2007-11 → 2012-08 ended
UPK6# —
68957-0C040 note Bracket, Back Door Stay
2007-11 → 2017-08 ended
USK6# —
68957-0C030 note Bracket, Back Door Stay
2017-08 → —
USK6# —
68957-0C040 note Bracket, Back Door Stay
2017-08 → —
USK6# —
69110A — Lock Assy, Back Door W/Motor
69110-0C030 Lock Assy, Back Door W/Motor
2007-11 → 2012-08 ended
UPK6# —
69110-0C030 Lock Assy, Back Door W/Motor
2007-11 → 2014-10 ended
USK6# LIMD,SR5 —
69110-0C030 Lock Assy, Back Door W/Motor
2007-11 → 2009-04 ended
UCK6# —
69110-0C031 Lock Assy, Back Door W/Motor
2014-11 → 2017-08 ended
USK6# LIMD,SR5 —
69110-0C040 note Lock Assy, Back Door W/Motor
2007-11 → 2009-04 ended
UCK6# LIMD —
69110-0C040 note Lock Assy, Back Door W/Motor
2007-11 → 2012-08 ended
UPK6# LIMD —
69110-0C040 Lock Assy, Back Door W/Motor
2007-11 → 2014-10 ended
USK6# PLAT —
69110-0C040 note Lock Assy, Back Door W/Motor
2007-11 → 2014-10 ended
USK6# LIMD —
69110-0C041 Lock Assy, Back Door W/Motor
2014-11 → 2017-08 ended
USK6# PLAT —
69110-0C041 note Lock Assy, Back Door W/Motor
2014-11 → 2017-08 ended
USK6# LIMD —
69110-0C031 Lock Assy, Back Door W/Motor
2017-08 → —
USK6# SR5 —
69110-0C041 Lock Assy, Back Door W/Motor
2017-08 → —
USK6# LIMD,PLAT —
69110-0C041 note Lock Assy, Back Door W/Motor
2019-08 → —
USK65 SR5 —
69211C — Handle, Back Door Outside
76802-0C010-A0 note Handle, Back Door Outside
2007-11 → 2017-08 ended
USK65 LIMD,SR5;UCK6#,UPK6#,USK60;USK65 PLAT HTWC —
76802-0C010-A1 note Handle, Back Door Outside
2007-11 → 2009-04 ended
UCK6#,USK60;USK65 PLAT;USK65 (LIMD,SR5) HTWC —
76802-0C010-A2 note Handle, Back Door Outside
2009-04 → 2017-08 ended
USK6# PLAT —
76802-0C010-B0 note Handle, Back Door Outside
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# —
76802-0C010-B1 note Handle, Back Door Outside
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# —
76802-0C010-B2 note Handle, Back Door Outside
2010-08 → 2017-08 ended
UPK6#,USK6# —
76802-0C010-C0 note Handle, Back Door Outside
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# —
76802-0C010-D0 note Handle, Back Door Outside
2007-11 → 2011-06 ended
UCK6#,UPK6#,USK6# —
76802-0C010-D1 note Handle, Back Door Outside
2011-06 → 2017-08 ended
UPK6#,USK6# —
76802-0C010-E0 note Handle, Back Door Outside
2007-11 → 2009-04 ended
UCK6#,USK6# —
76802-0C010-E1 note Handle, Back Door Outside
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# —
76802-0C010-E2 note Handle, Back Door Outside
2009-04 → 2017-08 ended
UPK6#,USK6# —
76802-0C010-G0 note Handle, Back Door Outside
2007-11 → 2009-04 ended
UCK6#,USK6# —
76802-0C010-G1 note Handle, Back Door Outside
2009-04 → 2010-08 ended
UPK6#,USK6# —
76802-0C010-J0 note Handle, Back Door Outside
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# —
76802-0C010-A0 note Handle, Back Door Outside
2017-08 → 2021-08 ended
USK6# LIMD,SR5 —
76802-0C010-A2 note Handle, Back Door Outside
2017-08 → 2021-08 ended
USK65 PLAT;USK60 LIMD,PLAT;USK65 LIMD +1 —
76802-0C010-A3 note Handle, Back Door Outside
2021-08 → —
USK6# —
76802-0C010-B0 note Handle, Back Door Outside
2017-08 → 2019-08 ended
USK6# —
76802-0C010-B2 note Handle, Back Door Outside
2017-08 → —
USK6# —
76802-0C010-B3 note Handle, Back Door Outside
2019-08 → —
USK6# —
76802-0C010-C1 note Handle, Back Door Outside
2017-08 → —
USK6# —
76802-0C010-D1 note Handle, Back Door Outside
2017-08 → 2020-09 ended
USK6# —
76802-0C010-E3 note Handle, Back Door Outside
2017-08 → 2019-08 ended
USK6# —
76802-0C010-G2 note Handle, Back Door Outside
2019-08 → 2020-09 ended
USK65 SR5 —
76802-0C010-G3 note Handle, Back Door Outside
2020-09 → —
USK65 SR5 —
76802-0C010-J1 note Handle, Back Door Outside
2017-08 → —
USK6# —
69308 — Protector Sub-assy, Back Door Lock
69308-0C020 Protector Sub-assy, Back Door Lock
2007-11 → 2009-04 ended
UCK6# —
69308-0C020 Protector Sub-assy, Back Door Lock
2007-11 → 2012-08 ended
UPK6# —
69308-0C020 Protector Sub-assy, Back Door Lock
2007-11 → 2017-08 ended
USK6# —
69308-0C020 Protector Sub-assy, Back Door Lock
2017-08 → —
USK6# —
69410C — Plate Assy, Back Door Lock Striker
69410-0C030 Plate Assy, Back Door Lock Striker
2007-11 → 2009-04 ended
UCK6# —
69410-0C030 Plate Assy, Back Door Lock Striker
2007-11 → 2012-08 ended
UPK6# —
69410-0C030 Plate Assy, Back Door Lock Striker
2007-11 → 2017-08 ended
USK6# —
69410-0C030 Plate Assy, Back Door Lock Striker
2017-08 → —
USK6# HTWC —
69410-0C030 Plate Assy, Back Door Lock Striker
2017-08 → 2017-09 ended
USK65 HTWCF —
69850D — Regulator Assy, Back Door Power Window
69850-0C060 Regulator Assy, Back Door Power Window
2007-11 → 2009-04 ended
UCK6# —
69850-0C060 Regulator Assy, Back Door Power Window
2007-11 → 2009-12 ended
UPK6#,USK6# —
69850-0C062 Regulator Assy, Back Door Power Window
2009-12 → 2012-08 ended
UPK6# —
69850-0C062 Regulator Assy, Back Door Power Window
2009-12 → 2017-08 ended
USK6# —
69850-0C062 Regulator Assy, Back Door Power Window
2017-08 → 2017-09 ended
USK65 HTWCF —
69850-0C062 Regulator Assy, Back Door Power Window
2017-08 → —
USK6# HTWC —
85710G — Motor Assy, Power Window Regulator, RH
85710-0C140 Motor Assy, Power Window Regulator, RH
2007-11 → 2009-04 ended
UCK6# —
85710-0C140 Motor Assy, Power Window Regulator, RH
2007-11 → 2012-08 ended
UPK6# —
85710-0C140 Motor Assy, Power Window Regulator, RH
2007-11 → 2017-08 ended
USK6# —
85710-0C140 Motor Assy, Power Window Regulator, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
85710-0C140 Motor Assy, Power Window Regulator, RH
2017-08 → —
USK6# HTWC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
