Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

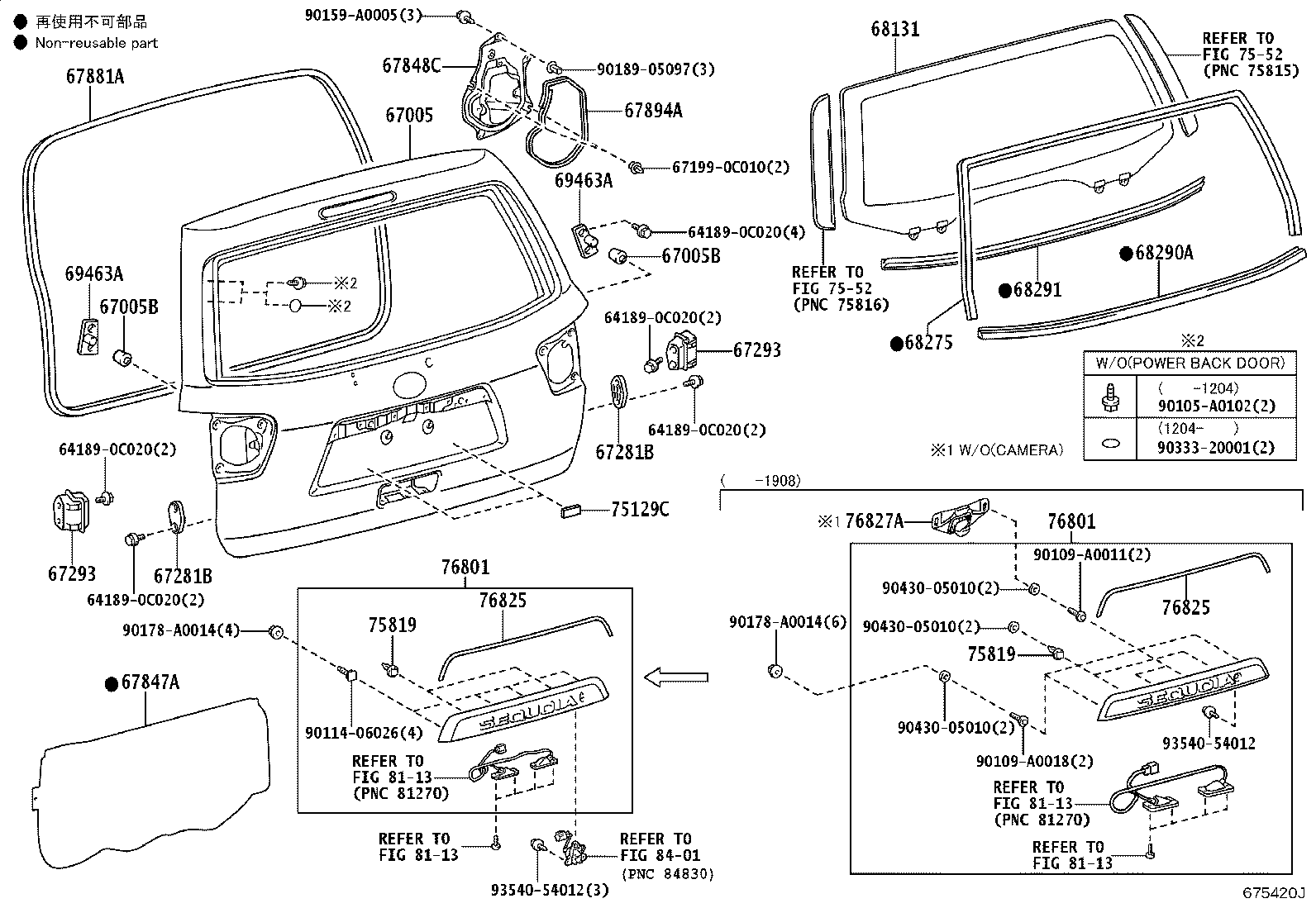

Exploded illustration 675420J 8113 — not listed in this catalogue 67005 — PANEL SUB-ASSY, BACK DOOR (24 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (6 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (6 parts) 67281B — STOPPER, BACK DOOR, LOWER (10 parts) 67281B — STOPPER, BACK DOOR, LOWER (10 parts) 67293 — CUSHION, BACK DOOR LOWER STOPPER (10 parts) 67293 — CUSHION, BACK DOOR LOWER STOPPER (10 parts) 67847A — COVER, BACK DOOR SERVICE HOLE (5 parts) 67848C — COVER, BACK DOOR SERVICE HOLE, NO.2 (5 parts) 67881A — WEATHERSTRIP, BACK DOOR (6 parts) 67894A — PROTECTOR, BACK DOOR PANEL, NO.1 (5 parts) 69463A — STOPPER, BACK DOOR MALE, LOWER (10 parts) 69463A — STOPPER, BACK DOOR MALE, LOWER (10 parts) 75129C — CUSHION, REAR LICENCE PLATE (5 parts) 75819 — CLIP, LUGGAGE COMPARTMENT DOOR MOULDING (4 parts) 76801 — GARNISH SUB-ASSY, BACK DOOR, OUTSIDE (26 parts) 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (5 parts) 641890C020 — not listed in this catalogue 641890C020 — not listed in this catalogue 641890C020 — not listed in this catalogue 641890C020 — not listed in this catalogue 641890C020 — not listed in this catalogue 671990C010 — not listed in this catalogue 90109A0011 — not listed in this catalogue 90109A0018 — not listed in this catalogue 90159A0005 — not listed in this catalogue 90178A0014 — not listed in this catalogue 9018905097 — not listed in this catalogue 9043005010 — not listed in this catalogue 9043005010 — not listed in this catalogue 9043005010 — not listed in this catalogue 76827A — RETAINER, BACK DOOR GARNISH, NO.2 (3 parts) 68131 — GLASS, BACK DOOR (5 parts) 68275 — RUN, BACK DOOR GLASS (5 parts) 68290A — WEATHERSTRIP ASSY, BACK DOOR GLASS, OUTER (5 parts) 90105A0102 — not listed in this catalogue 9033320001 — not listed in this catalogue 68291 — WEATHERSTRIP, BACK DOOR GLASS (3 parts) 8113 — not listed in this catalogue 7552 — not listed in this catalogue 7552 — not listed in this catalogue 9354054012 — not listed in this catalogue 8113 — not listed in this catalogue 75819 — CLIP, LUGGAGE COMPARTMENT DOOR MOULDING (4 parts) 76801 — GARNISH SUB-ASSY, BACK DOOR, OUTSIDE (26 parts) 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (5 parts) 9011406026 — not listed in this catalogue 90178A0014 — not listed in this catalogue 8113 — not listed in this catalogue 8401 — not listed in this catalogue 9354054012 — not listed in this catalogue
675420J · 25 callouts, 27 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
142 parts on this figure
Part number Description Fitment Price
67005 — Panel Sub-assy, Back Door
67005-0C091 Panel Sub-assy, Back Door
2010-02 → 2017-08 ended
USK6# LIMD,SR5 —
67005-0C091 Panel Sub-assy, Back Door
2010-02 → 2012-08 ended
UPK6# —
67005-0C101 note Panel Sub-assy, Back Door
2010-02 → 2017-08 ended
USK6# LIMD,SR5 —
67005-0C101 note Panel Sub-assy, Back Door
2010-02 → 2012-08 ended
UPK6# —
67005-0C111 note Panel Sub-assy, Back Door
2010-02 → 2017-08 ended
USK6# LIMD —
67005-0C111 note Panel Sub-assy, Back Door
2010-02 → 2012-08 ended
UPK6# LIMD —
67005-0C121 note Panel Sub-assy, Back Door
2010-02 → 2017-08 ended
USK6# LIMD —
67005-0C121 Panel Sub-assy, Back Door
2010-02 → 2017-08 ended
USK6# PLAT —
67005-0C121 note Panel Sub-assy, Back Door
2010-02 → 2012-08 ended
UPK6# LIMD —
67005-0C130 Panel Sub-assy, Back Door
2007-11 → 2009-03 ended
UCK6#,USK6# LIMD,SR5 —
67005-0C131 Panel Sub-assy, Back Door
2009-04 → 2010-02 ended
UPK6#,USK6# LIMD,SR5 —
67005-0C140 note Panel Sub-assy, Back Door
2007-11 → 2009-03 ended
UCK6#,USK6# LIMD —
67005-0C141 note Panel Sub-assy, Back Door
2009-04 → 2010-02 ended
UPK6#,USK6# LIMD —
67005-0C150 note Panel Sub-assy, Back Door
2008-08 → 2009-03 ended
UCK6#,USK6# SR5 —
67005-0C150 note Panel Sub-assy, Back Door
2007-11 → 2009-03 ended
UCK6#,USK6# LIMD —
67005-0C150 note Panel Sub-assy, Back Door
2007-11 → 2008-08 ended
UCK6#,USK6# SR5 —
67005-0C151 note Panel Sub-assy, Back Door
2009-04 → 2010-02 ended
UPK6#,USK6# LIMD,SR5 —
67005-0C160 note Panel Sub-assy, Back Door
2007-11 → 2009-03 ended
UCK6#,USK6# LIMD —
67005-0C160 Panel Sub-assy, Back Door
2007-11 → 2009-03 ended
USK6# PLAT —
67005-0C161 note Panel Sub-assy, Back Door
2009-04 → 2010-02 ended
UPK6#,USK6# LIMD —
67005-0C161 Panel Sub-assy, Back Door
2009-04 → 2010-02 ended
USK6# PLAT —
67005-0C101 Panel Sub-assy, Back Door
2017-08 → —
USK6# SR5 —
67005-0C121 Panel Sub-assy, Back Door
2017-08 → —
USK6# LIMD,PLAT —
67005-0C121 note Panel Sub-assy, Back Door
2019-08 → —
USK65 SR5 —
67005B — Cushion(FOR BACK DOOR PANEL)
68391-34010 Cushion(FOR BACK DOOR PANEL)
2008-01 → 2009-04 ended
UCK6# —
68391-34010 Cushion(FOR BACK DOOR PANEL)
2008-01 → 2012-08 ended
UPK6# —
68391-34010 Cushion(FOR BACK DOOR PANEL)
2008-01 → 2017-08 ended
USK6# —
68391-52020 Cushion(FOR BACK DOOR PANEL)
2007-11 → 2007-12 ended
UCK6#,USK6# —
68391-34010 Cushion(FOR BACK DOOR PANEL)
2017-08 → 2017-09 ended
USK65 HTWCF —
68391-34010 Cushion(FOR BACK DOOR PANEL)
2017-08 → —
USK6# HTWC —
67281B — Stopper, Back Door, Lower
67281-0C020 note Stopper, Back Door, Lower
2007-11 → 2009-04 ended
UCK6# —
67281-0C020 note Stopper, Back Door, Lower
2007-11 → 2012-08 ended
UPK6# —
67281-0C020 note Stopper, Back Door, Lower
2007-11 → 2017-08 ended
USK6# —
67282-0C020 note Stopper, Back Door, Lower
2007-11 → 2009-04 ended
UCK6# —
67282-0C020 note Stopper, Back Door, Lower
2007-11 → 2012-08 ended
UPK6# —
67282-0C020 note Stopper, Back Door, Lower
2007-11 → 2017-08 ended
USK6# —
67281-0C020 note Stopper, Back Door, Lower
2017-08 → 2017-09 ended
USK65 HTWCF —
67281-0C020 note Stopper, Back Door, Lower
2017-08 → —
USK6# HTWC —
67282-0C020 note Stopper, Back Door, Lower
2017-08 → —
USK6# HTWC —
67282-0C020 note Stopper, Back Door, Lower
2017-08 → 2017-09 ended
USK65 HTWCF —
67293 — Cushion, Back Door Lower Stopper
67293-0C010 note Cushion, Back Door Lower Stopper
2007-11 → 2009-04 ended
UCK6# —
67293-0C010 note Cushion, Back Door Lower Stopper
2007-11 → 2012-08 ended
UPK6# —
67293-0C010 note Cushion, Back Door Lower Stopper
2007-11 → 2017-08 ended
USK6# —
67294-0C010 note Cushion, Back Door Lower Stopper
2007-11 → 2009-04 ended
UCK6# —
67294-0C010 note Cushion, Back Door Lower Stopper
2007-11 → 2012-08 ended
UPK6# —
67294-0C010 note Cushion, Back Door Lower Stopper
2007-11 → 2017-08 ended
USK6# —
67293-0C010 note Cushion, Back Door Lower Stopper
2017-08 → 2017-09 ended
USK65 HTWCF —
67293-0C010 note Cushion, Back Door Lower Stopper
2017-08 → —
USK6# HTWC —
67294-0C010 note Cushion, Back Door Lower Stopper
2017-08 → 2017-09 ended
USK65 HTWCF —
67294-0C010 note Cushion, Back Door Lower Stopper
2017-08 → —
USK6# HTWC —
67847A — Cover, Back Door Service Hole
67847-0C040 Cover, Back Door Service Hole
2007-11 → 2009-04 ended
UCK6# —
67847-0C040 Cover, Back Door Service Hole
2007-11 → 2012-08 ended
UPK6# —
67847-0C040 Cover, Back Door Service Hole
2007-11 → 2017-08 ended
USK6# —
67847-0C040 Cover, Back Door Service Hole
2017-08 → 2017-09 ended
USK65 HTWCF —
67847-0C040 Cover, Back Door Service Hole
2017-08 → —
USK6# HTWC —
67848C — Cover, Back Door Service Hole, NO.2
67848-0C020 Cover, Back Door Service Hole, NO.2
2007-11 → 2009-04 ended
UCK6# —
67848-0C020 Cover, Back Door Service Hole, NO.2
2007-11 → 2017-08 ended
USK6# —
67848-0C020 Cover, Back Door Service Hole, NO.2
2007-11 → 2012-08 ended
UPK6# —
67848-0C020 Cover, Back Door Service Hole, NO.2
2017-08 → 2017-09 ended
USK65 HTWCF —
67848-0C020 Cover, Back Door Service Hole, NO.2
2017-08 → —
USK6# HTWC —
67881A — Weatherstrip, Back Door
67881-0C020 Weatherstrip, Back Door
2007-11 → 2009-04 ended
UCK6# —
67881-0C020 Weatherstrip, Back Door
2007-11 → 2010-07 ended
UPK6#,USK6# —
67881-0C021 Weatherstrip, Back Door
2010-08 → 2012-08 ended
UPK6# —
67881-0C021 Weatherstrip, Back Door
2010-08 → 2017-08 ended
USK6# —
67881-0C021 Weatherstrip, Back Door
2017-08 → 2017-09 ended
USK65 HTWCF —
67881-0C021 Weatherstrip, Back Door
2017-08 → —
USK6# HTWC —
67894A — Protector, Back Door Panel, NO.1
67894-0C030 Protector, Back Door Panel, NO.1
2007-11 → 2009-04 ended
UCK6# —
67894-0C030 Protector, Back Door Panel, NO.1
2007-11 → 2012-08 ended
UPK6# —
67894-0C030 Protector, Back Door Panel, NO.1
2007-11 → 2017-08 ended
USK6# —
67894-0C030 Protector, Back Door Panel, NO.1
2017-08 → 2017-09 ended
USK65 HTWCF —
67894-0C030 Protector, Back Door Panel, NO.1
2017-08 → —
USK6# HTWC —
68131 — Glass, Back Door
68150-0C050 note Glass, Back Door
2007-11 → 2009-04 ended
UCK6# —
68150-0C050 note Glass, Back Door
2007-11 → 2017-08 ended
USK6# —
68150-0C050 note Glass, Back Door
2007-11 → 2012-08 ended
UPK6# —
68150-0C050 Glass, Back Door
2017-08 → 2017-09 ended
USK65 HTWCF —
68150-0C050 Glass, Back Door
2017-08 → —
USK6# HTWC —
68275 — Run, Back Door Glass
68275-0C040 Run, Back Door Glass
2007-11 → 2009-04 ended
UCK6# —
68275-0C040 Run, Back Door Glass
2007-11 → 2012-08 ended
UPK6# —
68275-0C040 Run, Back Door Glass
2007-11 → 2017-08 ended
USK6# —
68275-0C040 Run, Back Door Glass
2017-08 → 2017-09 ended
USK65 HTWCF —
68275-0C040 Run, Back Door Glass
2017-08 → —
USK6# HTWC —
68290A — Weatherstrip Assy, Back Door Glass, Outer
68292-0C040 Weatherstrip Assy, Back Door Glass, Outer
2007-11 → 2009-03 ended
UCK6#,USK6# —
68292-0C041 Weatherstrip Assy, Back Door Glass, Outer
2009-04 → 2012-08 ended
UPK6# —
68292-0C041 Weatherstrip Assy, Back Door Glass, Outer
2009-04 → 2017-08 ended
USK6# —
68292-0C041 Weatherstrip Assy, Back Door Glass, Outer
2017-08 → 2017-09 ended
USK65 HTWCF —
68292-0C041 Weatherstrip Assy, Back Door Glass, Outer
2017-08 → —
USK6# HTWC —
68291 — Weatherstrip, Back Door Glass
68291-0C040 Weatherstrip, Back Door Glass
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# —
68291-0C040 Weatherstrip, Back Door Glass
2017-08 → 2017-09 ended
USK65 HTWCF —
68291-0C040 Weatherstrip, Back Door Glass
2017-08 → —
USK6# HTWC —
69463A — Stopper, Back Door Male, Lower
67283-0C010 note Stopper, Back Door Male, Lower
2007-11 → 2012-08 ended
UPK6# —
67283-0C010 note Stopper, Back Door Male, Lower
2007-11 → 2017-08 ended
USK6# —
67283-0C010 note Stopper, Back Door Male, Lower
2007-11 → 2009-04 ended
UCK6# —
67284-0C010 note Stopper, Back Door Male, Lower
2007-11 → 2012-08 ended
UPK6# —
67284-0C010 note Stopper, Back Door Male, Lower
2007-11 → 2017-08 ended
USK6# —
67284-0C010 note Stopper, Back Door Male, Lower
2007-11 → 2009-04 ended
UCK6# —
67283-0C010 note Stopper, Back Door Male, Lower
2017-08 → 2017-09 ended
USK65 HTWCF —
67283-0C010 note Stopper, Back Door Male, Lower
2017-08 → —
USK6# HTWC —
67284-0C010 note Stopper, Back Door Male, Lower
2017-08 → 2017-09 ended
USK65 HTWCF —
67284-0C010 note Stopper, Back Door Male, Lower
2017-08 → —
USK6# HTWC —
75129C — Cushion, Rear Licence Plate
75129-02020 Cushion, Rear Licence Plate
2007-11 → 2009-04 ended
UCK6# —
75129-02020 Cushion, Rear Licence Plate
2007-11 → 2017-08 ended
USK6# —
75129-02020 Cushion, Rear Licence Plate
2007-11 → 2012-08 ended
UPK6# —
75129-02020 Cushion, Rear Licence Plate
2017-08 → 2017-09 ended
USK65 HTWCF —
75129-02020 Cushion, Rear Licence Plate
2017-08 → —
USK6# HTWC —
75819 — Clip, Luggage Compartment Door Moulding
75819-33010 Clip, Luggage Compartment Door Moulding
2007-11 → 2009-04 ended
UCK6# —
75819-33010 Clip, Luggage Compartment Door Moulding
2007-11 → 2012-08 ended
UPK6# —
75819-33010 Clip, Luggage Compartment Door Moulding
2007-11 → 2017-08 ended
USK6# —
75819-33010 Clip, Luggage Compartment Door Moulding
2017-08 → —
USK6# —
76801 — Garnish Sub-assy, Back Door, Outside
76801-0C040-A0 note Garnish Sub-assy, Back Door, Outside
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
76801-0C040-B0 note Garnish Sub-assy, Back Door, Outside
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
76801-0C040-B1 note Garnish Sub-assy, Back Door, Outside
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
76801-0C040-B2 note Garnish Sub-assy, Back Door, Outside
2010-08 → 2017-08 ended
UPK6#,USK6# SR5 —
76801-0C040-C0 note Garnish Sub-assy, Back Door, Outside
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
76801-0C040-D0 note Garnish Sub-assy, Back Door, Outside
2007-11 → 2011-06 ended
UCK6#,UPK6#,USK6# SR5 —
76801-0C040-D1 note Garnish Sub-assy, Back Door, Outside
2011-06 → 2017-08 ended
UPK6#,USK6# SR5 —
76801-0C040-E0 note Garnish Sub-assy, Back Door, Outside
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
76801-0C040-E1 note Garnish Sub-assy, Back Door, Outside
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
76801-0C040-E2 note Garnish Sub-assy, Back Door, Outside
2009-04 → 2017-08 ended
UPK6#,USK6# SR5 —
76801-0C040-G0 note Garnish Sub-assy, Back Door, Outside
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
76801-0C040-G1 note Garnish Sub-assy, Back Door, Outside
2009-04 → 2010-08 ended
UPK6#,USK6# SR5 —
76801-0C040-J0 note Garnish Sub-assy, Back Door, Outside
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
76801-0C050 note Garnish Sub-assy, Back Door, Outside
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
76801-0C040-A0 note Garnish Sub-assy, Back Door, Outside
2017-08 → 2019-08 ended
USK6# SR5 —
76801-0C040-B0 note Garnish Sub-assy, Back Door, Outside
2017-08 → 2019-08 ended
USK6# SR5 —
76801-0C040-B2 note Garnish Sub-assy, Back Door, Outside
2017-08 → 2019-08 ended
USK6# SR5 —
76801-0C040-C1 note Garnish Sub-assy, Back Door, Outside
2017-08 → 2019-08 ended
USK6# SR5 —
76801-0C040-D1 note Garnish Sub-assy, Back Door, Outside
2017-08 → 2019-08 ended
USK6# SR5 —
76801-0C040-E3 note Garnish Sub-assy, Back Door, Outside
2017-08 → 2019-08 ended
USK6# SR5 —
76801-0C040-J1 note Garnish Sub-assy, Back Door, Outside
2017-08 → 2019-08 ended
USK6# SR5 —
76801-0C050 note Garnish Sub-assy, Back Door, Outside
2017-08 → 2019-08 ended
USK6# LIMD,PLAT —
76801-0C080 note Garnish Sub-assy, Back Door, Outside
2019-08 → —
USK6# —
76801-0C090-C0 note Garnish Sub-assy, Back Door, Outside
2019-08 → —
USK6# SR5 —
76801-0C100 note Garnish Sub-assy, Back Door, Outside
2019-08 → —
USK65 SR5 —
76801-0C140-C0 note Garnish Sub-assy, Back Door, Outside
2020-09 → —
USK6# LIMD —
76825 — Protector, Back Door Outside Garnish
76825-0C010 Protector, Back Door Outside Garnish
2007-11 → 2009-04 ended
UCK6# —
76825-0C010 Protector, Back Door Outside Garnish
2007-11 → 2012-08 ended
UPK6# —
76825-0C010 Protector, Back Door Outside Garnish
2007-11 → 2017-08 ended
USK6# —
76825-0C010 Protector, Back Door Outside Garnish
2017-08 → 2019-08 ended
USK6# —
76825-0C030 Protector, Back Door Outside Garnish
2019-08 → —
USK6# —
76827A — Retainer, Back Door Garnish, NO.2
76827-0C011 Retainer, Back Door Garnish, NO.2
2008-12 → 2009-04 ended
UCK6# —
76827-0C011 Retainer, Back Door Garnish, NO.2
2008-12 → 2012-08 ended
UPK6#,USK6# —
76827-0C020 Retainer, Back Door Garnish, NO.2
2012-08 → 2014-08 ended
USK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
