Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

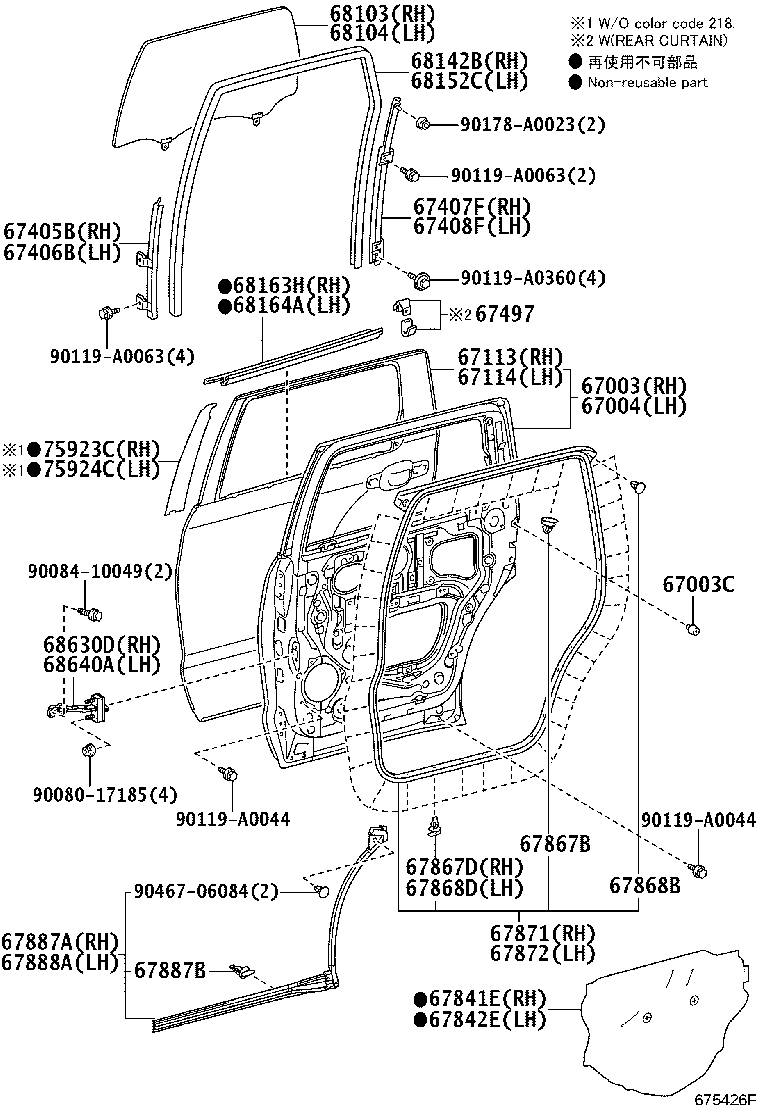

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67003 — Panel Sub-assy, Rear Door, RH | ||||
| 67003-0C151 |
Panel Sub-assy, Rear Door, RH
2010-02 → 2012-08
ended
|
UPK6# | — | |
| 67003-0C151 |
Panel Sub-assy, Rear Door, RH
2010-02 → 2017-08
ended
|
USK6# | — | |
| 67003-0C160 |
Panel Sub-assy, Rear Door, RH
2007-11 → 2010-02
ended
|
UPK6#,USK6# | — | |
| 67003-0C160 |
Panel Sub-assy, Rear Door, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67003-0C151 |
Panel Sub-assy, Rear Door, RH
2017-08 → —
|
USK6# HTWC | — | |
| 67003-0C151 |
Panel Sub-assy, Rear Door, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67003C — Cushion, Rear Door Panel | ||||
| 90541-09117 |
Cushion, Rear Door Panel
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90541-09117 |
Cushion, Rear Door Panel
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90541-09117 |
Cushion, Rear Door Panel
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90541-09117 |
Cushion, Rear Door Panel
2017-08 → —
|
USK6# | — | |
| 67004 — Panel Sub-assy, Rear Door, LH | ||||
| 67004-0C151 |
Panel Sub-assy, Rear Door, LH
2010-02 → 2012-08
ended
|
UPK6# | — | |
| 67004-0C151 |
Panel Sub-assy, Rear Door, LH
2010-02 → 2017-08
ended
|
USK6# | — | |
| 67004-0C160 |
Panel Sub-assy, Rear Door, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67004-0C160 |
Panel Sub-assy, Rear Door, LH
2007-11 → 2010-02
ended
|
UPK6#,USK6# | — | |
| 67004-0C151 |
Panel Sub-assy, Rear Door, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67004-0C151 |
Panel Sub-assy, Rear Door, LH
2017-08 → —
|
USK6# HTWC | — | |
| 67113 — Panel, Rear Door, Outer RH | ||||
| 67113-0C080 |
Panel, Rear Door, Outer RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67113-0C080 |
Panel, Rear Door, Outer RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67113-0C080 |
Panel, Rear Door, Outer RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67113-0C080 |
Panel, Rear Door, Outer RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67113-0C080 |
Panel, Rear Door, Outer RH
2017-08 → —
|
USK6# HTWC | — | |
| 67114 — Panel, Rear Door, Outer LH | ||||
| 67114-0C080 |
Panel, Rear Door, Outer LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67114-0C080 |
Panel, Rear Door, Outer LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67114-0C080 |
Panel, Rear Door, Outer LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67114-0C080 |
Panel, Rear Door, Outer LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67114-0C080 |
Panel, Rear Door, Outer LH
2017-08 → —
|
USK6# HTWC | — | |
| 67405B — Guide Sub-assy, Rear Door Window, Front RH | ||||
| 67405-0C010 |
Guide Sub-assy, Rear Door Window, Front RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67405-0C010 |
Guide Sub-assy, Rear Door Window, Front RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67405-0C010 |
Guide Sub-assy, Rear Door Window, Front RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67405-0C010 |
Guide Sub-assy, Rear Door Window, Front RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67405-0C010 |
Guide Sub-assy, Rear Door Window, Front RH
2017-08 → —
|
USK6# HTWC | — | |
| 67406B — Guide Sub-assy, Rear Door Window, Front LH | ||||
| 67406-0C010 |
Guide Sub-assy, Rear Door Window, Front LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67406-0C010 |
Guide Sub-assy, Rear Door Window, Front LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67406-0C010 |
Guide Sub-assy, Rear Door Window, Front LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67406-0C010 |
Guide Sub-assy, Rear Door Window, Front LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67406-0C010 |
Guide Sub-assy, Rear Door Window, Front LH
2017-08 → —
|
USK6# HTWC | — | |
| 67407F — Frame Sub-assy, Rear Door Window, Rear Lower RH | ||||
| 67407-0C050 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67407-0C050 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67407-0C050 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67407-0C050 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67407-0C050 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2017-08 → —
|
USK6# HTWC | — | |
| 67408F — Frame Sub-assy, Rear Door Window, Rear Lower LH | ||||
| 67408-0C050 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67408-0C050 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67408-0C050 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67408-0C050 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67408-0C050 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2017-08 → —
|
USK6# HTWC | — | |
| 67497 — Bracket, Rear Door Frame | ||||
| 65915-0C010 |
Bracket, Rear Door Frame
2007-11 → 2008-05
ended
|
UCK6#,USK6# LIMD,PLAT | — | |
| 65915-0C011 |
Bracket, Rear Door Frame
2008-06 → 2009-04
ended
|
UCK6# LIMD | — | |
| 65915-0C011 |
Bracket, Rear Door Frame
2008-06 → 2012-08
ended
|
UPK6# LIMD | — | |
| 65915-0C011 |
Bracket, Rear Door Frame
2008-06 → 2017-08
ended
|
USK6# LIMD,PLAT | — | |
| 65915-0C011 |
Bracket, Rear Door Frame
2017-08 → —
|
USK6# LIMD,PLAT | — | |
| 67841E — Cover, Rear Door Service Hole, RH | ||||
| 67841-0C060 |
Cover, Rear Door Service Hole, RH
2007-11 → 2008-06
ended
|
UCK6#,USK6# | — | |
| 67841-0C090 |
Cover, Rear Door Service Hole, RH
2008-06 → 2012-08
ended
|
UPK6# | — | |
| 67841-0C090 |
Cover, Rear Door Service Hole, RH
2008-06 → 2017-08
ended
|
USK6# | — | |
| 67841-0C090 |
Cover, Rear Door Service Hole, RH
2008-06 → 2009-04
ended
|
UCK6# | — | |
| 67841-0C090 |
Cover, Rear Door Service Hole, RH
2017-08 → —
|
USK6# | — | |
| 67842E — Cover, Rear Door Service Hole, LH | ||||
| 67842-0C060 |
Cover, Rear Door Service Hole, LH
2007-11 → 2008-06
ended
|
UCK6#,USK6# | — | |
| 67842-0C090 |
Cover, Rear Door Service Hole, LH
2008-06 → 2009-04
ended
|
UCK6# | — | |
| 67842-0C090 |
Cover, Rear Door Service Hole, LH
2008-06 → 2012-08
ended
|
UPK6# | — | |
| 67842-0C090 |
Cover, Rear Door Service Hole, LH
2008-06 → 2017-08
ended
|
USK6# | — | |
| 67842-0C090 |
Cover, Rear Door Service Hole, LH
2017-08 → —
|
USK6# | — | |
| 67867B — Clip, Door Weatherstrip(FOR REAR DOOR) | ||||
| 90467-A0027 |
Clip, Door Weatherstrip(FOR REAR DOOR)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90467-A0027 |
Clip, Door Weatherstrip(FOR REAR DOOR)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90467-A0027 |
Clip, Door Weatherstrip(FOR REAR DOOR)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90467-A0027 |
Clip, Door Weatherstrip(FOR REAR DOOR)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90467-A0027 |
Clip, Door Weatherstrip(FOR REAR DOOR)
2017-08 → —
|
USK6# HTWC | — | |
| 67867D — Retainer, Rear Door Weatherstrip, RH | ||||
| 67868-02020 |
Retainer, Rear Door Weatherstrip, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67868-02020 |
Retainer, Rear Door Weatherstrip, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67868-02020 |
Retainer, Rear Door Weatherstrip, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
2017-08 → —
|
USK6# HTWC | — | |
| 67868B — Clip, Door Glass Weatherstrip(FOR REAR DOOR) | ||||
| 90467-06084 |
Clip, Door Glass Weatherstrip(FOR REAR DOOR)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90467-06084 |
Clip, Door Glass Weatherstrip(FOR REAR DOOR)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90467-06084 |
Clip, Door Glass Weatherstrip(FOR REAR DOOR)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90467-06084 |
Clip, Door Glass Weatherstrip(FOR REAR DOOR)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90467-06084 |
Clip, Door Glass Weatherstrip(FOR REAR DOOR)
2017-08 → —
|
USK6# HTWC | — | |
| 67868D — Retainer, Rear Door Weatherstrip, LH | ||||
| 67868-02020 |
Retainer, Rear Door Weatherstrip, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67868-02020 |
Retainer, Rear Door Weatherstrip, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67868-02020 |
Retainer, Rear Door Weatherstrip, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
2017-08 → —
|
USK6# HTWC | — | |
| 67871 — Weatherstrip, Rear Door, RH | ||||
| 67871-0C060 |
Weatherstrip, Rear Door, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67871-0C060 |
Weatherstrip, Rear Door, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67871-0C060 |
Weatherstrip, Rear Door, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67871-0C060 |
Weatherstrip, Rear Door, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67871-0C060 |
Weatherstrip, Rear Door, RH
2017-08 → —
|
USK6# HTWC | — | |
| 67872 — Weatherstrip, Rear Door, LH | ||||
| 67872-0C060 |
Weatherstrip, Rear Door, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67872-0C060 |
Weatherstrip, Rear Door, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67872-0C060 |
Weatherstrip, Rear Door, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67872-0C060 |
Weatherstrip, Rear Door, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67872-0C060 |
Weatherstrip, Rear Door, LH
2017-08 → —
|
USK6# HTWC | — | |
| 67887A — Weatherstrip, Rear Door, NO.2 RH | ||||
| 67887-0C060 |
Weatherstrip, Rear Door, NO.2 RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67887-0C060 |
Weatherstrip, Rear Door, NO.2 RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67887-0C060 |
Weatherstrip, Rear Door, NO.2 RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67887-0C060 |
Weatherstrip, Rear Door, NO.2 RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67887-0C060 |
Weatherstrip, Rear Door, NO.2 RH
2017-08 → —
|
USK6# HTWC | — | |
| 67887B — Clip(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-02020 |
Clip(FOR REAR DOOR WEATHERSTRIP)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67868-02020 |
Clip(FOR REAR DOOR WEATHERSTRIP)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67868-02020 |
Clip(FOR REAR DOOR WEATHERSTRIP)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67867-12150 |
Clip(FOR REAR DOOR WEATHERSTRIP)
2017-08 → —
|
USK6# HTWC | — | |
| 67867-12150 |
Clip(FOR REAR DOOR WEATHERSTRIP)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67888A — Weatherstrip, Rear Door, NO.2 LH | ||||
| 67888-0C050 |
Weatherstrip, Rear Door, NO.2 LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 67888-0C050 |
Weatherstrip, Rear Door, NO.2 LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 67888-0C050 |
Weatherstrip, Rear Door, NO.2 LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 67888-0C050 |
Weatherstrip, Rear Door, NO.2 LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 67888-0C050 |
Weatherstrip, Rear Door, NO.2 LH
2017-08 → —
|
USK6# HTWC | — | |
| 68103 — Glass Sub-assy, Rear Door, RH | ||||
| 68103-0C100 |
Glass Sub-assy, Rear Door, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 68103-0C100 |
Glass Sub-assy, Rear Door, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 68103-0C100 |
Glass Sub-assy, Rear Door, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 68103-0C100 |
Glass Sub-assy, Rear Door, RH
2017-08 → —
|
USK6# | — | |
| 68104 — Glass Sub-assy, Rear Door, LH | ||||
| 68104-0C100 |
Glass Sub-assy, Rear Door, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 68104-0C100 |
Glass Sub-assy, Rear Door, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 68104-0C100 |
Glass Sub-assy, Rear Door, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 68104-0C100 |
Glass Sub-assy, Rear Door, LH
2017-08 → —
|
USK6# | — | |
| 68142B — Run, Rear Door Window, RH | ||||
| 68142-0C050 |
Run, Rear Door Window, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 68142-0C050 |
Run, Rear Door Window, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 68142-0C050 |
Run, Rear Door Window, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 68142-0C050 |
Run, Rear Door Window, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 68142-0C050 |
Run, Rear Door Window, RH
2017-08 → —
|
USK6# HTWC | — | |
| 68152C — Run, Rear Door Glass, LH | ||||
| 68152-0C050 |
Run, Rear Door Glass, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 68152-0C050 |
Run, Rear Door Glass, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 68152-0C050 |
Run, Rear Door Glass, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 68152-0C050 |
Run, Rear Door Glass, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 68152-0C050 |
Run, Rear Door Glass, LH
2017-08 → —
|
USK6# HTWC | — | |
| 68163H — Weatherstrip, Rear Door Glass, Outer RH | ||||
| 68163-0C030 |
Weatherstrip, Rear Door Glass, Outer RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 68163-0C030 |
Weatherstrip, Rear Door Glass, Outer RH
2007-11 → 2012-01
ended
|
UPK6#,USK6# | — | |
| 68163-0C031 |
Weatherstrip, Rear Door Glass, Outer RH
2012-02 → 2012-08
ended
|
UPK6# | — | |
| 68163-0C031 |
Weatherstrip, Rear Door Glass, Outer RH
2012-02 → 2017-08
ended
|
USK6# | — | |
| 68163-0C031 |
Weatherstrip, Rear Door Glass, Outer RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 68163-0C031 |
Weatherstrip, Rear Door Glass, Outer RH
2017-08 → —
|
USK6# HTWC | — | |
| 68164A — Weatherstrip, Rear Door Glass, Outer LH | ||||
| 68164-0C030 |
Weatherstrip, Rear Door Glass, Outer LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 68164-0C030 |
Weatherstrip, Rear Door Glass, Outer LH
2007-11 → 2012-01
ended
|
UPK6#,USK6# | — | |
| 68164-0C031 |
Weatherstrip, Rear Door Glass, Outer LH
2012-02 → 2012-08
ended
|
UPK6# | — | |
| 68164-0C031 |
Weatherstrip, Rear Door Glass, Outer LH
2012-02 → 2017-08
ended
|
USK6# | — | |
| 68164-0C031 |
Weatherstrip, Rear Door Glass, Outer LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 68164-0C031 |
Weatherstrip, Rear Door Glass, Outer LH
2017-08 → —
|
USK6# HTWC | — | |
| 68630D — Check Assy, Rear Door, RH | ||||
| 68630-0C032 |
Check Assy, Rear Door, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 68630-0C032 |
Check Assy, Rear Door, RH
2007-11 → 2009-09
ended
|
UPK6#,USK6# | — | |
| 68630-0C050 |
Check Assy, Rear Door, RH
2009-09 → 2017-08
ended
|
USK6# | — | |
| 68630-0C050 |
Check Assy, Rear Door, RH
2009-09 → 2012-08
ended
|
UPK6# | — | |
| 68630-0C050 |
Check Assy, Rear Door, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 68630-0C050 |
Check Assy, Rear Door, RH
2017-08 → —
|
USK6# HTWC | — | |
| 68640A — Check Assy, Rear Door, LH | ||||
| 68640-0C032 |
Check Assy, Rear Door, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 68640-0C032 |
Check Assy, Rear Door, LH
2007-11 → 2009-09
ended
|
UPK6#,USK6# | — | |
| 68640-0C050 |
Check Assy, Rear Door, LH
2009-09 → 2012-08
ended
|
UPK6# | — | |
| 68640-0C050 |
Check Assy, Rear Door, LH
2009-09 → 2017-08
ended
|
USK6# | — | |
| 68640-0C050 |
Check Assy, Rear Door, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 68640-0C050 |
Check Assy, Rear Door, LH
2017-08 → —
|
USK6# HTWC | — | |
| 75923C — Tape, Black Out, NO.2 RH | ||||
| 75923-0C020 |
Tape, Black Out, NO.2 RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 75923-0C020 |
Tape, Black Out, NO.2 RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 75923-0C020 |
Tape, Black Out, NO.2 RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 75923-0C020 |
Tape, Black Out, NO.2 RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 75923-0C020 |
Tape, Black Out, NO.2 RH
2017-08 → —
|
USK6# HTWC | — | |
| 75924C — Tape, Black Out, NO.2 LH | ||||
| 75924-0C020 |
Tape, Black Out, NO.2 LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 75924-0C020 |
Tape, Black Out, NO.2 LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 75924-0C020 |
Tape, Black Out, NO.2 LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 75924-0C020 |
Tape, Black Out, NO.2 LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 75924-0C020 |
Tape, Black Out, NO.2 LH
2017-08 → —
|
USK6# HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
