Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

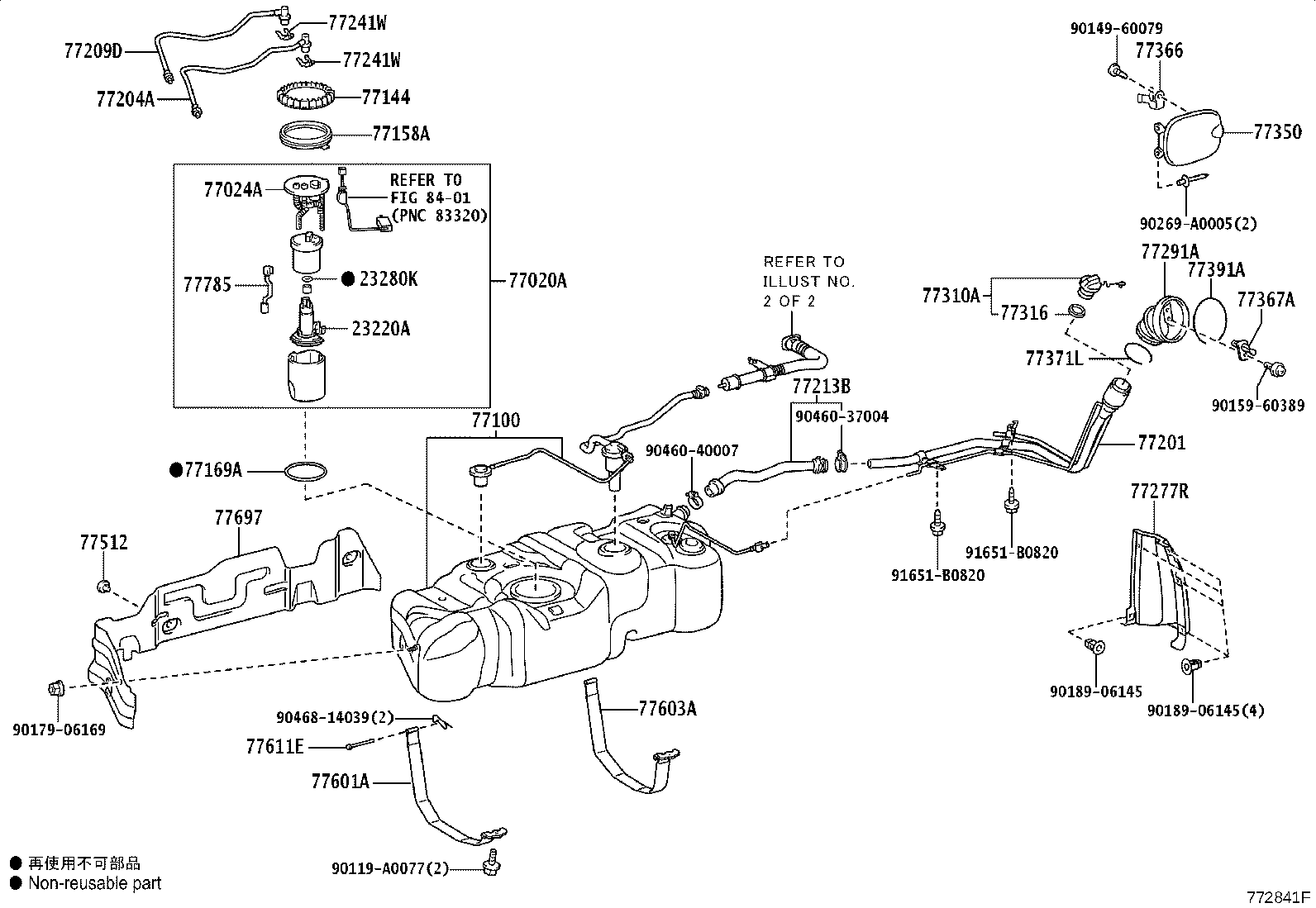

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23220A — Pump Assy, Fuel W/Filter | ||||
| 23220-0F050 |
Pump Assy, Fuel W/Filter
2007-11 → 2008-08
ended
|
2UZFE UCK6# | — | |
| 23220-0F051 |
Pump Assy, Fuel W/Filter
2008-08 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23220-0S010 |
Pump Assy, Fuel W/Filter
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 23220-0S011 |
Pump Assy, Fuel W/Filter
2008-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 23220-0S011 |
Pump Assy, Fuel W/Filter
2008-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23220-0S011 |
Pump Assy, Fuel W/Filter
2017-08 → —
|
3URFE USK6# | — | |
| 23280K — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2008-09 → 2017-08
ended
|
3URFE USK6# | — | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2008-09 → 2017-08
ended
|
3URFE USK6# | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 90301-A0021 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90301-A0021 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-11 → 2017-08
ended
|
3URFE USK6# | — | |
| 90301-A0021 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2017-08 → —
|
3URFE USK6# | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2017-08 → —
|
3URFE USK6# | — | |
| 90301-A0021 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2017-08 → —
|
3URFE USK6# | — | |
| 77020A — Tube Assy, Fuel Suction W/Pump & Gage | ||||
| 77020-0C070 |
Tube Assy, Fuel Suction W/Pump & Gage
2007-11 → 2008-07
ended
|
UCK6# | — | |
| 77020-0C071 |
Tube Assy, Fuel Suction W/Pump & Gage
2008-08 → 2009-04
ended
|
UCK6# | — | |
| 77020-0C080 |
Tube Assy, Fuel Suction W/Pump & Gage
2007-11 → 2008-07
ended
|
USK6# | — | |
| 77020-0C081 |
Tube Assy, Fuel Suction W/Pump & Gage
2008-08 → 2011-03
ended
|
UPK6#,USK6# HTWC | — | |
| 77020-0C082 |
Tube Assy, Fuel Suction W/Pump & Gage
2011-04 → 2017-08
ended
|
USK6# HTWC | — | |
| 77020-0C082 |
Tube Assy, Fuel Suction W/Pump & Gage
2011-04 → 2012-08
ended
|
UPK6# | — | |
| 77020-0C090 |
Tube Assy, Fuel Suction W/Pump & Gage
2008-08 → 2011-07
ended
|
USK65 HTWCF | — | |
| 77020-0C120 |
Tube Assy, Fuel Suction W/Pump & Gage
2011-07 → 2017-08
ended
|
USK65 HTWCF | — | |
| 77020-0C082 |
Tube Assy, Fuel Suction W/Pump & Gage
2017-08 → —
|
USK6# HTWC | — | |
| 77020-0C120 |
Tube Assy, Fuel Suction W/Pump & Gage
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77024A — Plate Sub-assy, Fuel Suction | ||||
| 77024-0C020 |
Plate Sub-assy, Fuel Suction
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77024-0C020 |
Plate Sub-assy, Fuel Suction
2007-11 → 2017-08
ended
|
USK6# HTWC | — | |
| 77024-0C030 |
Plate Sub-assy, Fuel Suction
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77024-0C020 |
Plate Sub-assy, Fuel Suction
2017-08 → —
|
USK6# HTWC | — | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-0C070 |
Tank Assy, Fuel
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77001-0C070 |
Tank Assy, Fuel
2010-02 → 2017-08
ended
|
USK65 HTWCF | — | |
| 77001-0C070 |
Tank Assy, Fuel
2007-11 → 2017-08
ended
|
USK6# HTWC | — | |
| 77001-0C070 |
Tank Assy, Fuel
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77001-0C090 |
Tank Assy, Fuel
2008-08 → 2010-01
ended
|
USK65 HTWCF | — | |
| 77001-0C070 |
Tank Assy, Fuel
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77001-0C070 |
Tank Assy, Fuel
2017-08 → —
|
USK6# HTWC | — | |
| 77144 — Retainer, Fuel Pump Gauge | ||||
| 77144-08010 |
Retainer, Fuel Pump Gauge
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77144-08010 |
Retainer, Fuel Pump Gauge
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77144-08010 |
Retainer, Fuel Pump Gauge
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77144-08010 |
Retainer, Fuel Pump Gauge
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77144-08010 |
Retainer, Fuel Pump Gauge
2017-08 → —
|
USK6# HTWC | — | |
| 77158A — Support, Tank Suction Tube | ||||
| 77158-08010 |
Support, Tank Suction Tube
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77158-08010 |
Support, Tank Suction Tube
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77158-08010 |
Support, Tank Suction Tube
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77158-08010 |
Support, Tank Suction Tube
2017-08 → —
|
USK6# HTWC | — | |
| 77158-08010 |
Support, Tank Suction Tube
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77169A — Gasket, Fuel Suction Tube Set | ||||
| 77169-0C010 |
Gasket, Fuel Suction Tube Set
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77169-0C010 |
Gasket, Fuel Suction Tube Set
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77169-0C010 |
Gasket, Fuel Suction Tube Set
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77169-0C010 |
Gasket, Fuel Suction Tube Set
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77169-0C010 |
Gasket, Fuel Suction Tube Set
2017-08 → —
|
USK6# HTWC | — | |
| 77201 — Pipe Sub-assy, Fuel Tank Inlet | ||||
| 77201-0C090 |
Pipe Sub-assy, Fuel Tank Inlet
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77201-0C090 |
Pipe Sub-assy, Fuel Tank Inlet
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77201-0C090 |
Pipe Sub-assy, Fuel Tank Inlet
2007-11 → 2015-06
ended
|
USK6# | — | |
| 77201-0C140 |
Pipe Sub-assy, Fuel Tank Inlet
2015-06 → 2015-07
ended
|
USK6# | — | |
| 77201-0C141 |
Pipe Sub-assy, Fuel Tank Inlet
2015-08 → 2017-08
ended
|
USK6# | — | |
| 77201-0C141 |
Pipe Sub-assy, Fuel Tank Inlet
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77201-0C141 |
Pipe Sub-assy, Fuel Tank Inlet
2017-08 → —
|
USK6# HTWC | — | |
| 77204A — Tube, Fuel Tank Return | ||||
| 77204-0C030 |
Tube, Fuel Tank Return
2007-11 → 2008-08
ended
|
UCK6#,USK6# | — | |
| 77204-0C060 |
Tube, Fuel Tank Return
2008-09 → 2009-04
ended
|
UCK6# | — | |
| 77204-0C060 |
Tube, Fuel Tank Return
2008-08 → 2009-05
ended
|
UPK6#;USK65 HTWCF | — | |
| 77204-0C060 |
Tube, Fuel Tank Return
2008-09 → 2009-05
ended
|
USK6# HTWC | — | |
| 77204-0C070 |
Tube, Fuel Tank Return
2009-06 → 2012-08
ended
|
UPK6# | — | |
| 77204-0C070 |
Tube, Fuel Tank Return
2009-06 → 2017-08
ended
|
USK6# | — | |
| 77204-0C070 |
Tube, Fuel Tank Return
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77204-0C070 |
Tube, Fuel Tank Return
2017-08 → —
|
USK6# HTWC | — | |
| 77209D — Tube Sub-assy, Fuel Tank Main | ||||
| 77209-0C060 |
Tube Sub-assy, Fuel Tank Main
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77209-0C060 |
Tube Sub-assy, Fuel Tank Main
2007-11 → 2009-05
ended
|
UPK6#,USK6# HTWC | — | |
| 77209-0C070 note |
Tube Sub-assy, Fuel Tank Main
2008-08 → 2009-06
ended
|
USK65 HTWCF | — | |
| 77209-0C080 note |
Tube Sub-assy, Fuel Tank Main
2008-08 → 2017-08
ended
|
USK65 HTWCF | — | |
| 77209-0C090 note |
Tube Sub-assy, Fuel Tank Main
2008-08 → 2009-05
ended
|
USK65 HTWCF | — | |
| 77209-0C110 |
Tube Sub-assy, Fuel Tank Main
2009-06 → 2012-08
ended
|
UPK6# | — | |
| 77209-0C110 |
Tube Sub-assy, Fuel Tank Main
2009-06 → 2017-08
ended
|
USK6# HTWC | — | |
| 77209-0C120 note |
Tube Sub-assy, Fuel Tank Main
2009-06 → 2017-08
ended
|
USK65 HTWCF | — | |
| 77209-0C130 note |
Tube Sub-assy, Fuel Tank Main
2009-06 → 2017-08
ended
|
USK65 HTWCF | — | |
| 77209-0C080 note |
Tube Sub-assy, Fuel Tank Main
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77209-0C110 |
Tube Sub-assy, Fuel Tank Main
2017-08 → —
|
USK6# HTWC | — | |
| 77209-0C120 note |
Tube Sub-assy, Fuel Tank Main
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77209-0C130 note |
Tube Sub-assy, Fuel Tank Main
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77213B — Hose, Fuel Tank TO Filler Pipe | ||||
| 77213-0C090 |
Hose, Fuel Tank TO Filler Pipe
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77213-0C090 |
Hose, Fuel Tank TO Filler Pipe
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77213-0C090 |
Hose, Fuel Tank TO Filler Pipe
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77213-0C090 |
Hose, Fuel Tank TO Filler Pipe
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77213-0C090 |
Hose, Fuel Tank TO Filler Pipe
2017-08 → —
|
USK6# HTWC | — | |
| 77241W — Clip, Tube Joint | ||||
| 77241-02010 |
Clip, Tube Joint
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77241-02010 |
Clip, Tube Joint
2007-11 → 2010-01
ended
|
UPK6#,USK6# HTWC | — | |
| 77241-02010 |
Clip, Tube Joint
2008-08 → 2010-01
ended
|
USK65 HTWCF | — | |
| 77241-06020 |
Clip, Tube Joint
2010-02 → 2017-08
ended
|
USK65 HTWCF | — | |
| 77241-06020 |
Clip, Tube Joint
2010-02 → 2012-08
ended
|
UPK6# | — | |
| 77241-06020 |
Clip, Tube Joint
2010-02 → 2017-08
ended
|
USK6# HTWC | — | |
| 77241-06020 |
Clip, Tube Joint
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77241-06020 |
Clip, Tube Joint
2017-08 → —
|
USK6# HTWC | — | |
| 77277R — Protector, Fuel Tank Filler Pipe | ||||
| 77277-0C020 |
Protector, Fuel Tank Filler Pipe
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77277-0C020 |
Protector, Fuel Tank Filler Pipe
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77277-0C020 |
Protector, Fuel Tank Filler Pipe
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77277-0C020 |
Protector, Fuel Tank Filler Pipe
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77277-0C020 |
Protector, Fuel Tank Filler Pipe
2017-08 → —
|
USK6# HTWC | — | |
| 77291A — Shield, Fuel Tank Filler Pipe | ||||
| 77291-0C080 |
Shield, Fuel Tank Filler Pipe
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77291-0C080 |
Shield, Fuel Tank Filler Pipe
2007-11 → 2010-08
ended
|
UPK6#,USK6# | — | |
| 77291-0C100 |
Shield, Fuel Tank Filler Pipe
2010-08 → 2012-08
ended
|
UPK6# | — | |
| 77291-0C100 |
Shield, Fuel Tank Filler Pipe
2010-08 → 2017-08
ended
|
USK6# | — | |
| 77291-0C100 |
Shield, Fuel Tank Filler Pipe
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77291-0C100 |
Shield, Fuel Tank Filler Pipe
2017-08 → —
|
USK6# HTWC | — | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77300-06030 |
Cap Assy, Fuel Tank
2015-06 → 2017-08
ended
|
USK65 HTWCF | — | |
| 77300-06040 |
Cap Assy, Fuel Tank
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77300-06040 |
Cap Assy, Fuel Tank
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77300-06040 |
Cap Assy, Fuel Tank
2007-11 → 2015-06
ended
|
USK6# HTWC | — | |
| 77300-07030 |
Cap Assy, Fuel Tank
2015-06 → 2017-08
ended
|
USK6# HTWC | — | |
| 77300-0C010 |
Cap Assy, Fuel Tank
2008-08 → 2015-06
ended
|
USK65 HTWCF | — | |
| 77300-06030 |
Cap Assy, Fuel Tank
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77300-07030 |
Cap Assy, Fuel Tank
2017-08 → —
|
USK6# HTWC | — | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-06070 |
Gasket, Fuel Tank Cap
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77316-06070 |
Gasket, Fuel Tank Cap
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77316-06070 |
Gasket, Fuel Tank Cap
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77316-06070 |
Gasket, Fuel Tank Cap
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77316-06070 |
Gasket, Fuel Tank Cap
2017-08 → —
|
USK6# HTWC | — | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-0C020 |
Lid Assy, Fuel Filler Opening
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77350-0C020 |
Lid Assy, Fuel Filler Opening
2007-11 → 2009-12
ended
|
UPK6#,USK6# | — | |
| 77350-0C021 |
Lid Assy, Fuel Filler Opening
2010-01 → 2010-08
ended
|
UPK6#,USK6# | — | |
| 77350-0C030 |
Lid Assy, Fuel Filler Opening
2010-08 → 2012-08
ended
|
UPK6# | — | |
| 77350-0C030 |
Lid Assy, Fuel Filler Opening
2010-08 → 2017-08
ended
|
USK6# | — | |
| 77350-0C030 |
Lid Assy, Fuel Filler Opening
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77350-0C030 |
Lid Assy, Fuel Filler Opening
2017-08 → —
|
USK6# HTWC | — | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77366-35030 |
Spring, Fuel Filler Opening Lid Hinge
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77366-35030 |
Spring, Fuel Filler Opening Lid Hinge
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77366-35030 |
Spring, Fuel Filler Opening Lid Hinge
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77366-35030 |
Spring, Fuel Filler Opening Lid Hinge
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77366-35030 |
Spring, Fuel Filler Opening Lid Hinge
2017-08 → —
|
USK6# HTWC | — | |
| 77367A — Clamp, Fuel Filler Lid Pin, NO.1 | ||||
| 77367-0C010 |
Clamp, Fuel Filler Lid Pin, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77367-0C010 |
Clamp, Fuel Filler Lid Pin, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77367-0C010 |
Clamp, Fuel Filler Lid Pin, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77367-0C010 |
Clamp, Fuel Filler Lid Pin, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77367-0C010 |
Clamp, Fuel Filler Lid Pin, NO.1
2017-08 → —
|
USK6# HTWC | — | |
| 77371L — Ring, Fuel Tank Filler Pipe Shield | ||||
| 77371-35010 |
Ring, Fuel Tank Filler Pipe Shield
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77371-35010 |
Ring, Fuel Tank Filler Pipe Shield
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77371-35010 |
Ring, Fuel Tank Filler Pipe Shield
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77371-35010 |
Ring, Fuel Tank Filler Pipe Shield
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77371-35010 |
Ring, Fuel Tank Filler Pipe Shield
2017-08 → —
|
USK6# HTWC | — | |
| 77391A — Ring, Fuel Inlet Box | ||||
| 77391-0C010 |
Ring, Fuel Inlet Box
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77391-0C010 |
Ring, Fuel Inlet Box
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77391-0C010 |
Ring, Fuel Inlet Box
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77391-0C010 |
Ring, Fuel Inlet Box
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77391-0C010 |
Ring, Fuel Inlet Box
2017-08 → —
|
USK6# HTWC | — | |
| 77512 — Bracket, Fuel Tank, Rear | ||||
| 77512-35140 |
Bracket, Fuel Tank, Rear
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77512-35140 |
Bracket, Fuel Tank, Rear
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77512-35140 |
Bracket, Fuel Tank, Rear
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77512-35140 |
Bracket, Fuel Tank, Rear
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77512-35140 |
Bracket, Fuel Tank, Rear
2017-08 → —
|
USK6# HTWC | — | |
| 77601A — Band Sub-assy, Fuel Tank, NO.1 | ||||
| 77601-0C040 |
Band Sub-assy, Fuel Tank, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77601-0C040 |
Band Sub-assy, Fuel Tank, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77601-0C040 |
Band Sub-assy, Fuel Tank, NO.1
2007-11 → 2012-09
ended
|
USK6# | — | |
| 77601-0C040 |
Band Sub-assy, Fuel Tank, NO.1
2013-07 → 2015-05
ended
|
USK6# | — | |
| 77601-0C080 |
Band Sub-assy, Fuel Tank, NO.1
2012-09 → 2013-07
ended
|
USK6# | — | |
| 77601-0C130 |
Band Sub-assy, Fuel Tank, NO.1
2015-06 → 2017-08
ended
|
USK6# | — | |
| 77601-0C130 |
Band Sub-assy, Fuel Tank, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77601-0C130 |
Band Sub-assy, Fuel Tank, NO.1
2017-08 → —
|
USK6# HTWC | — | |
| 77603A — Band Sub-assy, Fuel Tank, NO.2 | ||||
| 77602-0C022 |
Band Sub-assy, Fuel Tank, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77602-0C022 |
Band Sub-assy, Fuel Tank, NO.2
2013-07 → 2015-05
ended
|
USK6# | — | |
| 77602-0C022 |
Band Sub-assy, Fuel Tank, NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77602-0C022 |
Band Sub-assy, Fuel Tank, NO.2
2007-11 → 2012-09
ended
|
USK6# | — | |
| 77602-0C110 |
Band Sub-assy, Fuel Tank, NO.2
2012-09 → 2013-07
ended
|
USK6# | — | |
| 77602-0C140 |
Band Sub-assy, Fuel Tank, NO.2
2015-08 → 2017-08
ended
|
USK6# | — | |
| 77602-0C160 |
Band Sub-assy, Fuel Tank, NO.2
2015-06 → 2015-07
ended
|
USK6# | — | |
| 77602-0C140 |
Band Sub-assy, Fuel Tank, NO.2
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77602-0C140 |
Band Sub-assy, Fuel Tank, NO.2
2017-08 → —
|
USK6# HTWC | — | |
| 77611E — Pin, Fuel Tank Band | ||||
| 77653-34040 |
Pin, Fuel Tank Band
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77653-34040 |
Pin, Fuel Tank Band
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77653-34040 |
Pin, Fuel Tank Band
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77653-34040 |
Pin, Fuel Tank Band
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77653-34040 |
Pin, Fuel Tank Band
2017-08 → —
|
USK6# HTWC | — | |
| 77697 — Insulator, Fuel Tank Heat, NO.1 | ||||
| 77697-0C020 |
Insulator, Fuel Tank Heat, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77697-0C020 |
Insulator, Fuel Tank Heat, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77697-0C020 |
Insulator, Fuel Tank Heat, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77697-0C020 |
Insulator, Fuel Tank Heat, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77697-0C020 |
Insulator, Fuel Tank Heat, NO.1
2017-08 → —
|
USK6# HTWC | — | |
| 77785 — Harness, Fuel Pump | ||||
| 77785-0C030 |
Harness, Fuel Pump
2007-11 → 2008-08
ended
|
USK6# | — | |
| 77785-0C030 |
Harness, Fuel Pump
2007-11 → 2009-04
ended
|
UCK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
