Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

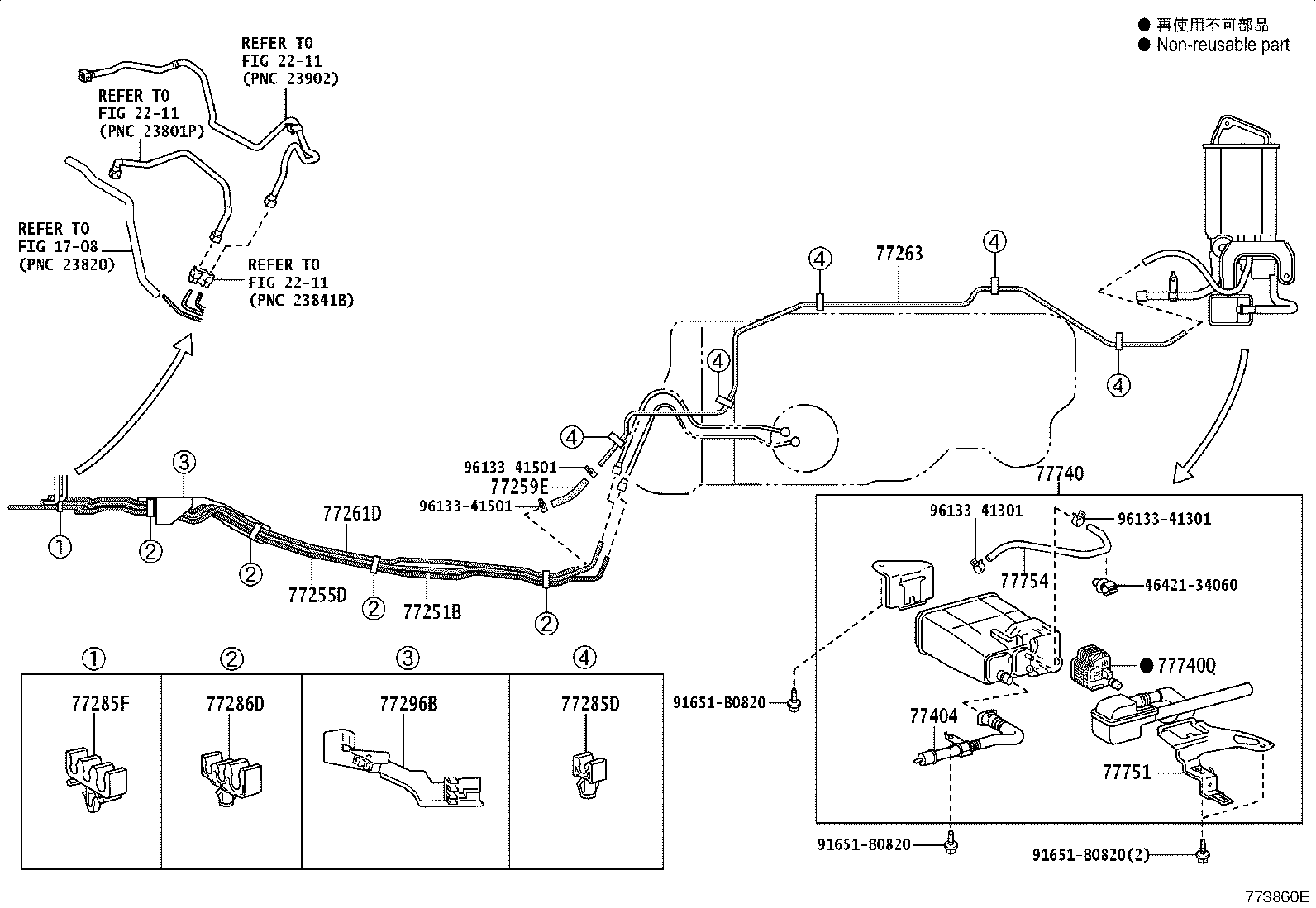

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77251B — Tube, Fuel Main | ||||
| 77251-0C100 |
Tube, Fuel Main
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77251-0C100 |
Tube, Fuel Main
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77251-0C100 |
Tube, Fuel Main
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77251-0C100 |
Tube, Fuel Main
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77251-0C100 |
Tube, Fuel Main
2017-08 → —
|
USK6# HTWC | — | |
| 77255D — Tube, Fuel Return | ||||
| 77255-0C130 |
Tube, Fuel Return
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77255-0C130 |
Tube, Fuel Return
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77255-0C130 |
Tube, Fuel Return
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77255-0C130 |
Tube, Fuel Return
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77255-0C130 |
Tube, Fuel Return
2017-08 → —
|
USK6# HTWC | — | |
| 77259E — Hose, Fuel | ||||
| 77259-0C200 |
Hose, Fuel
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77259-0C200 |
Hose, Fuel
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77259-0C200 |
Hose, Fuel
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77259-0C200 |
Hose, Fuel
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77259-0C200 |
Hose, Fuel
2017-08 → —
|
USK6# HTWC | — | |
| 77261D — Tube, Fuel Tank TO Canister | ||||
| 77262-0C140 |
Tube, Fuel Tank TO Canister
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77262-0C140 |
Tube, Fuel Tank TO Canister
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77262-0C140 |
Tube, Fuel Tank TO Canister
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77262-0C140 |
Tube, Fuel Tank TO Canister
2017-08 → —
|
USK6# HTWC | — | |
| 77262-0C140 |
Tube, Fuel Tank TO Canister
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77263 — Tube, Fuel Tank TO Canister, NO.3 | ||||
| 77263-0C040 |
Tube, Fuel Tank TO Canister, NO.3
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77263-0C040 |
Tube, Fuel Tank TO Canister, NO.3
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77263-0C040 |
Tube, Fuel Tank TO Canister, NO.3
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77263-0C040 |
Tube, Fuel Tank TO Canister, NO.3
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77263-0C040 |
Tube, Fuel Tank TO Canister, NO.3
2017-08 → —
|
USK6# HTWC | — | |
| 77285D — Clamp, Fuel Tube, NO.1 | ||||
| 77285-34380 |
Clamp, Fuel Tube, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77285-34380 |
Clamp, Fuel Tube, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77285-34380 |
Clamp, Fuel Tube, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77285-34380 |
Clamp, Fuel Tube, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77285-34380 |
Clamp, Fuel Tube, NO.1
2017-08 → —
|
USK6# HTWC | — | |
| 77285F — Clamp, Fuel Tube, NO.1 | ||||
| 77289-26010 |
Clamp, Fuel Tube, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77289-26010 |
Clamp, Fuel Tube, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77289-26010 |
Clamp, Fuel Tube, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77289-26010 |
Clamp, Fuel Tube, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77289-26010 |
Clamp, Fuel Tube, NO.1
2017-08 → —
|
USK6# HTWC | — | |
| 77286D — Clamp, Fuel Tube, NO.2 | ||||
| 77285-34370 |
Clamp, Fuel Tube, NO.2
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77285-34370 |
Clamp, Fuel Tube, NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77285-34370 |
Clamp, Fuel Tube, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77285-34370 |
Clamp, Fuel Tube, NO.2
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77285-34370 |
Clamp, Fuel Tube, NO.2
2017-08 → —
|
USK6# HTWC | — | |
| 77296B — Support, Fuel Tube Protector, NO.1 | ||||
| 77296-0C010 |
Support, Fuel Tube Protector, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77296-0C010 |
Support, Fuel Tube Protector, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77296-0C010 |
Support, Fuel Tube Protector, NO.1
2007-11 → 2014-10
ended
|
USK6# | — | |
| 77296-0C020 |
Support, Fuel Tube Protector, NO.1
2014-11 → 2017-08
ended
|
USK6# | — | |
| 77296-0C020 |
Support, Fuel Tube Protector, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77296-0C020 |
Support, Fuel Tube Protector, NO.1
2017-08 → —
|
USK6# HTWC | — | |
| 77404 — Hose Sub-assy, Fuel Tank Vent | ||||
| 77404-0C040 |
Hose Sub-assy, Fuel Tank Vent
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77404-0C040 |
Hose Sub-assy, Fuel Tank Vent
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77404-0C040 |
Hose Sub-assy, Fuel Tank Vent
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77404-0C040 |
Hose Sub-assy, Fuel Tank Vent
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77404-0C040 |
Hose Sub-assy, Fuel Tank Vent
2017-08 → —
|
USK6# HTWC | — | |
| 77740 — Canister Assy, Charcoal | ||||
| 77740-0C060 |
Canister Assy, Charcoal
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77740-0C060 |
Canister Assy, Charcoal
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77740-0C060 |
Canister Assy, Charcoal
2007-11 → 2013-08
ended
|
USK6# | — | |
| 77740-0C100 |
Canister Assy, Charcoal
2013-08 → 2017-08
ended
|
USK6# | — | |
| 77740-0C100 |
Canister Assy, Charcoal
2017-08 → —
|
USK6# HTWC | — | |
| 77740-0C100 |
Canister Assy, Charcoal
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77740Q — Leak Detection Pump Sub-assy, Charcoal Canister | ||||
| 90910-AF002 |
Leak Detection Pump Sub-assy, Charcoal Canister
2007-11 → 2013-03
ended
|
UCK6#,UPK6#,USK6# | — | |
| 90910-AF004 |
Leak Detection Pump Sub-assy, Charcoal Canister
2013-08 → 2015-11
ended
|
USK6# | — | |
| 90910-AF005 |
Leak Detection Pump Sub-assy, Charcoal Canister
2013-03 → 2013-08
ended
|
USK6# | — | |
| 90910-AF006 |
Leak Detection Pump Sub-assy, Charcoal Canister
2015-12 → 2017-08
ended
|
USK6# | — | |
| 90910-AF006 |
Leak Detection Pump Sub-assy, Charcoal Canister
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90910-AF006 |
Leak Detection Pump Sub-assy, Charcoal Canister
2017-08 → —
|
USK6# HTWC | — | |
| 77751 — Bracket, Charcoal Canister Base | ||||
| 77751-0C050 |
Bracket, Charcoal Canister Base
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77751-0C050 |
Bracket, Charcoal Canister Base
2007-11 → 2013-08
ended
|
USK6# | — | |
| 77751-0C050 |
Bracket, Charcoal Canister Base
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77751-0C080 |
Bracket, Charcoal Canister Base
2013-08 → 2017-08
ended
|
USK6# | — | |
| 77754 — Hose, Charcoal Canister Outlet, NO.1 | ||||
| 77754-0C090 |
Hose, Charcoal Canister Outlet, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 77754-0C090 |
Hose, Charcoal Canister Outlet, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 77754-0C090 |
Hose, Charcoal Canister Outlet, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 77754-0C090 |
Hose, Charcoal Canister Outlet, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 77754-0C090 |
Hose, Charcoal Canister Outlet, NO.1
2017-08 → —
|
USK6# HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
