Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

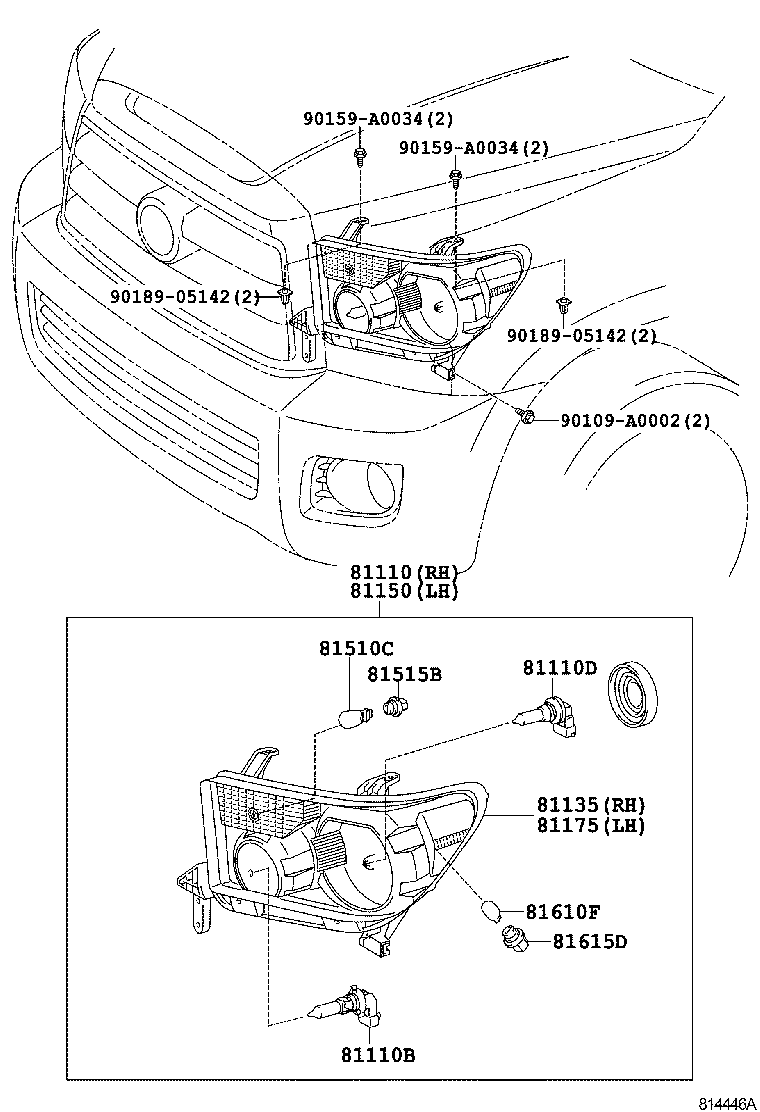

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81110 — Headlamp Assy, RH | ||||
| 81110-0C050 |
Headlamp Assy, RH
2007-11 → 2008-04
ended
|
UCK6#,USK6# | — | |
| 81110-0C051 |
Headlamp Assy, RH
2008-05 → 2009-04
ended
|
UCK6# | — | |
| 81110-0C051 |
Headlamp Assy, RH
2008-05 → 2017-08
ended
|
USK6# | — | |
| 81110-0C051 |
Headlamp Assy, RH
2008-05 → 2012-08
ended
|
UPK6# | — | |
| 81110-0C190 |
Headlamp Assy, RH
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 81110-0C190 |
Headlamp Assy, RH
2017-08 → —
|
USK6# PLAT HTWC | — | |
| 81110-0C200 |
Headlamp Assy, RH
2017-08 → 2017-09
ended
|
USK65 (LIMD,SR5) HTWCF | — | |
| 81110-0C200 |
Headlamp Assy, RH
2017-08 → —
|
USK6# (LIMD,SR5) HTWC | — | |
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 note |
Bulb(FOR HEADLAMP, NO.1)
2007-11 → 2008-05
ended
|
UCK6#,USK6# | — | |
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
2008-05 → 2009-04
ended
|
UCK6# | — | |
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
2008-05 → 2012-08
ended
|
UPK6# | — | |
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
2008-05 → 2017-08
ended
|
USK6# | — | |
| 81110D — Bulb(FOR HEADLAMP, NO.2) | ||||
| 90981-AD001 note |
Bulb(FOR HEADLAMP, NO.2)
2008-05 → 2009-04
ended
|
UCK6# | — | |
| 90981-AD001 note |
Bulb(FOR HEADLAMP, NO.2)
2008-05 → 2017-08
ended
|
USK6# | — | |
| 90981-AD001 note |
Bulb(FOR HEADLAMP, NO.2)
2008-05 → 2012-08
ended
|
UPK6# | — | |
| 90981-AD001 note |
Bulb(FOR HEADLAMP, NO.2)
2007-11 → 2008-05
ended
|
UCK6#,USK6# | — | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81130-0C050 |
Unit Assy, Headlamp, RH
2007-11 → 2008-05
ended
|
UCK6#,USK6# | — | |
| 81130-0C051 |
Unit Assy, Headlamp, RH
2008-05 → 2009-04
ended
|
UCK6# | — | |
| 81130-0C051 |
Unit Assy, Headlamp, RH
2008-05 → 2012-08
ended
|
UPK6# | — | |
| 81130-0C051 |
Unit Assy, Headlamp, RH
2008-05 → 2017-08
ended
|
USK6# | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-0C050 |
Headlamp Assy, LH
2007-11 → 2008-04
ended
|
UCK6#,USK6# | — | |
| 81150-0C051 |
Headlamp Assy, LH
2008-05 → 2017-08
ended
|
USK6# | — | |
| 81150-0C051 |
Headlamp Assy, LH
2008-05 → 2012-08
ended
|
UPK6# | — | |
| 81150-0C051 |
Headlamp Assy, LH
2008-05 → 2009-04
ended
|
UCK6# | — | |
| 81150-0C150 |
Headlamp Assy, LH
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 81150-0C150 |
Headlamp Assy, LH
2017-08 → —
|
USK6# PLAT HTWC | — | |
| 81150-0C160 |
Headlamp Assy, LH
2017-08 → 2017-09
ended
|
USK65 (LIMD,SR5) HTWCF | — | |
| 81150-0C160 |
Headlamp Assy, LH
2017-08 → —
|
USK6# (LIMD,SR5) HTWC | — | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81170-0C050 |
Unit Assy, Headlamp, LH
2007-11 → 2008-05
ended
|
UCK6#,USK6# | — | |
| 81170-0C051 |
Unit Assy, Headlamp, LH
2008-05 → 2009-04
ended
|
UCK6# | — | |
| 81170-0C051 |
Unit Assy, Headlamp, LH
2008-05 → 2012-08
ended
|
UPK6# | — | |
| 81170-0C051 |
Unit Assy, Headlamp, LH
2008-05 → 2017-08
ended
|
USK6# | — | |
| 81510C — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90084-98062 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90084-98062 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90084-98062 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 81515B — Socket, Front Turn Signal Lamp | ||||
| 90075-60060 |
Socket, Front Turn Signal Lamp
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90075-60060 |
Socket, Front Turn Signal Lamp
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90075-60060 |
Socket, Front Turn Signal Lamp
2007-11 → 2017-08
ended
|
USK6# | — | |
| 81610F — Bulb(FOR CLEARANCE LAMP) | ||||
| 90080-81059 note |
Bulb(FOR CLEARANCE LAMP)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90080-81059 note |
Bulb(FOR CLEARANCE LAMP)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90080-81059 note |
Bulb(FOR CLEARANCE LAMP)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 81615D — Socket, Clearance Lamp | ||||
| 99159-10228 |
Socket, Clearance Lamp
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 99159-10228 |
Socket, Clearance Lamp
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 99159-10228 |
Socket, Clearance Lamp
2007-11 → 2017-08
ended
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
