Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

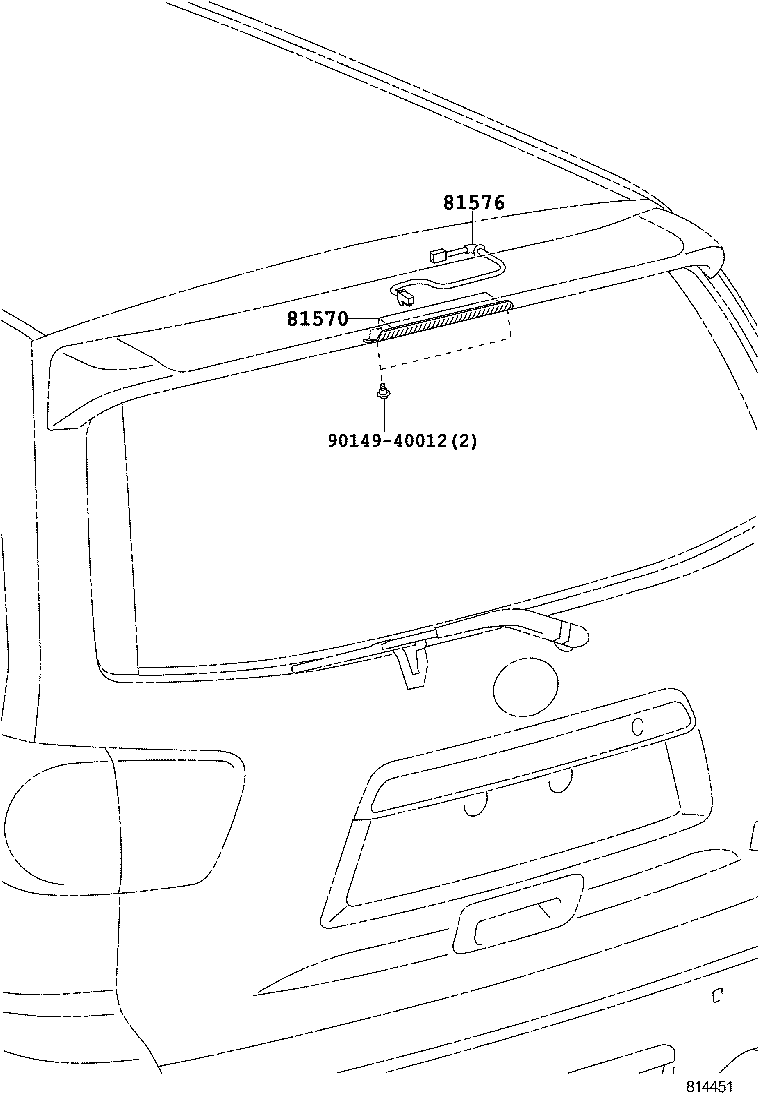

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-0C060 |
Lamp Assy, Center Stop
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# LIMD,SR5 | — | |
| 81570-0T010 note |
Lamp Assy, Center Stop
2010-01 → 2017-08
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 81570-0T010 note |
Lamp Assy, Center Stop
2010-01 → 2017-08
ended
|
USK6# PLAT | — | |
| 81570-42071 note |
Lamp Assy, Center Stop
2008-08 → 2009-04
ended
|
UCK6#,USK6# SR5 | — | |
| 81570-42071 note |
Lamp Assy, Center Stop
2010-01 → 2017-08
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 81570-42071 note |
Lamp Assy, Center Stop
2010-01 → 2017-08
ended
|
USK6# PLAT | — | |
| 81570-42071 note |
Lamp Assy, Center Stop
2009-04 → 2010-01
ended
|
USK6# SR5 | — | |
| 81570-42071 note |
Lamp Assy, Center Stop
2007-11 → 2010-01
ended
|
UPK6#;UCK6#,USK6# LIMD | — | |
| 81570-42071 |
Lamp Assy, Center Stop
2007-11 → 2010-01
ended
|
USK6# PLAT | — | |
| 81570-42071 note |
Lamp Assy, Center Stop
2007-11 → 2008-08
ended
|
UCK6#,USK6# SR5 | — | |
| 81570-0T010 note |
Lamp Assy, Center Stop
2017-08 → —
|
USK6# | — | |
| 81570-42071 note |
Lamp Assy, Center Stop
2017-08 → —
|
USK6# | — | |
| 81576 — Socket & Wire, Center Stop Lamp | ||||
| 81935-0C010 note |
Socket & Wire, Center Stop Lamp
2007-11 → 2008-08
ended
|
UCK6#,USK6# SR5 | — | |
| 81935-0C010 note |
Socket & Wire, Center Stop Lamp
2008-08 → 2009-04
ended
|
UCK6#,USK6# SR5 | — | |
| 81935-0C010 |
Socket & Wire, Center Stop Lamp
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 81935-0C010 note |
Socket & Wire, Center Stop Lamp
2007-11 → 2017-08
ended
|
UPK6#;UCK6#,USK6# LIMD | — | |
| 81935-0C010 note |
Socket & Wire, Center Stop Lamp
2009-04 → 2017-08
ended
|
USK6# SR5 | — | |
| 81935-0C010 |
Socket & Wire, Center Stop Lamp
2017-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
