Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

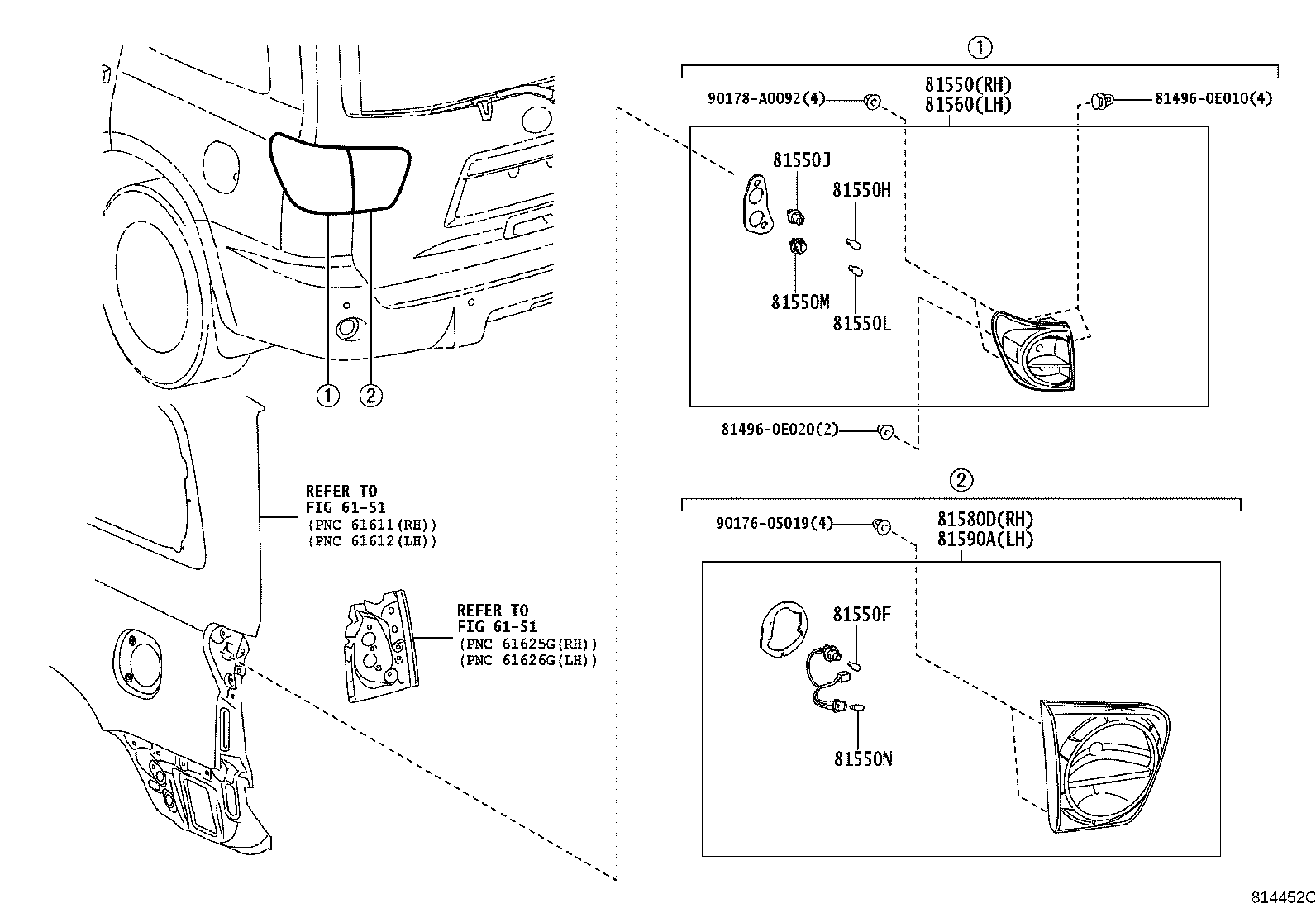

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81550 — Lamp Assy, Rear Combination, RH | ||||
| 81550-0C080 |
Lamp Assy, Rear Combination, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 81550-0C080 |
Lamp Assy, Rear Combination, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 81550-0C080 |
Lamp Assy, Rear Combination, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 81550-0C110 |
Lamp Assy, Rear Combination, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 81550-0C110 |
Lamp Assy, Rear Combination, RH
2017-08 → —
|
USK6# HTWC | — | |
| 81550F — Bulb, Taillamp | ||||
| 99132-11038 |
Bulb, Taillamp
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 99132-11038 |
Bulb, Taillamp
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 99132-11038 |
Bulb, Taillamp
2007-11 → 2017-08
ended
|
USK6# | — | |
| 99132-11038 |
Bulb, Taillamp
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 99132-11038 |
Bulb, Taillamp
2017-08 → —
|
USK6# HTWC | — | |
| 81550H — Bulb, Tail & Stop Lamp | ||||
| 90981-13044 note |
Bulb, Tail & Stop Lamp
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90981-13044 note |
Bulb, Tail & Stop Lamp
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90981-13044 note |
Bulb, Tail & Stop Lamp
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90981-13044 note |
Bulb, Tail & Stop Lamp
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90981-13044 note |
Bulb, Tail & Stop Lamp
2017-08 → —
|
USK6# HTWC | — | |
| 81550J — Socket, Tail & Stop Lamp | ||||
| 90075-60002 |
Socket, Tail & Stop Lamp
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90075-60002 |
Socket, Tail & Stop Lamp
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90075-60002 |
Socket, Tail & Stop Lamp
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90075-60002 |
Socket, Tail & Stop Lamp
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90075-60002 |
Socket, Tail & Stop Lamp
2017-08 → —
|
USK6# HTWC | — | |
| 81550L — Bulb, Rear Turn Signal Lamp | ||||
| 90981-15011 note |
Bulb, Rear Turn Signal Lamp
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90981-15011 note |
Bulb, Rear Turn Signal Lamp
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90981-15011 note |
Bulb, Rear Turn Signal Lamp
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90981-15011 note |
Bulb, Rear Turn Signal Lamp
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90981-15011 note |
Bulb, Rear Turn Signal Lamp
2017-08 → —
|
USK6# HTWC | — | |
| 81550M — Socket, Rear Turn Signal Lamp | ||||
| 90075-60026 |
Socket, Rear Turn Signal Lamp
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90075-60026 |
Socket, Rear Turn Signal Lamp
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90075-60026 |
Socket, Rear Turn Signal Lamp
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90075-60026 |
Socket, Rear Turn Signal Lamp
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90075-60026 |
Socket, Rear Turn Signal Lamp
2017-08 → —
|
USK6# HTWC | — | |
| 81550N — Bulb, Back UP Lamp | ||||
| 90981-11059 note |
Bulb, Back UP Lamp
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90981-11059 note |
Bulb, Back UP Lamp
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90981-11059 note |
Bulb, Back UP Lamp
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90981-11059 note |
Bulb, Back UP Lamp
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90981-11059 note |
Bulb, Back UP Lamp
2017-08 → —
|
USK6# HTWC | — | |
| 81560 — Lamp Assy, Rear Combination, LH | ||||
| 81560-0C080 |
Lamp Assy, Rear Combination, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 81560-0C080 |
Lamp Assy, Rear Combination, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 81560-0C080 |
Lamp Assy, Rear Combination, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 81560-0C110 |
Lamp Assy, Rear Combination, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 81560-0C110 |
Lamp Assy, Rear Combination, LH
2017-08 → —
|
USK6# HTWC | — | |
| 81580D — Lamp Assy, Rear, RH | ||||
| 81580-0C030 |
Lamp Assy, Rear, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 81580-0C030 |
Lamp Assy, Rear, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 81580-0C030 |
Lamp Assy, Rear, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 81580-0C050 |
Lamp Assy, Rear, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 81580-0C050 |
Lamp Assy, Rear, RH
2017-08 → —
|
USK6# HTWC | — | |
| 81590A — Lamp Assy, Rear, LH | ||||
| 81590-0C030 |
Lamp Assy, Rear, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 81590-0C030 |
Lamp Assy, Rear, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 81590-0C030 |
Lamp Assy, Rear, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 81590-0C040 |
Lamp Assy, Rear, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 81590-0C040 |
Lamp Assy, Rear, LH
2017-08 → —
|
USK6# HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
