Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

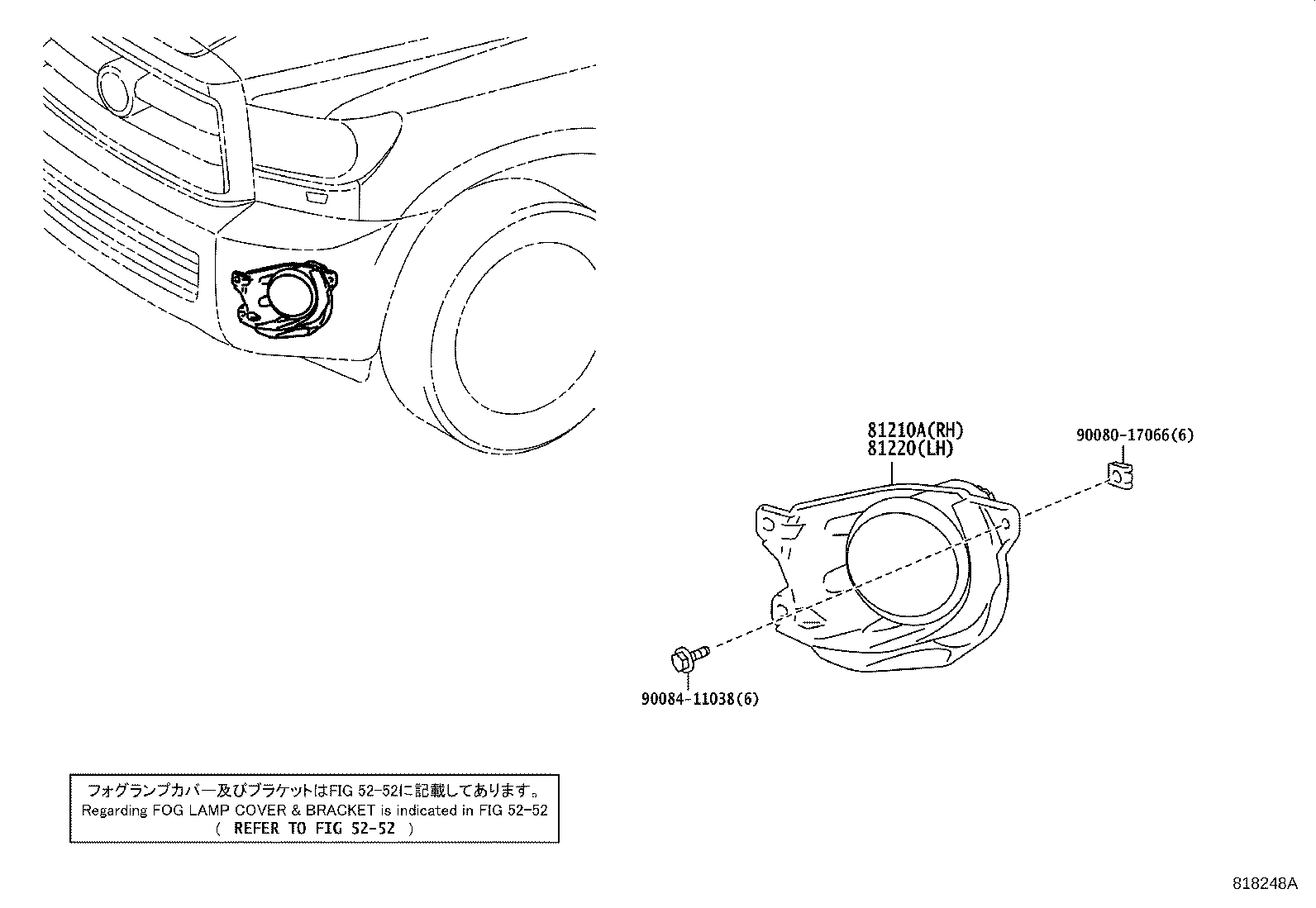

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81210A — Lamp Assy, Fog, RH | ||||
| 81210-AA030 |
Lamp Assy, Fog, RH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# LIMD,PLAT | — | |
| 81210-AA030 note |
Lamp Assy, Fog, RH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# SR5 | — | |
| 81210-0C030 note |
Lamp Assy, Fog, RH
2017-08 → 2021-12
ended
|
USK65 SR5 HTWC | — | |
| 81210-0C030 |
Lamp Assy, Fog, RH
2017-08 → —
|
USK6# | — | |
| 81220 — Lamp Assy, Fog, LH | ||||
| 81210-AA030 |
Lamp Assy, Fog, LH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# LIMD,PLAT | — | |
| 81210-AA030 note |
Lamp Assy, Fog, LH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# SR5 | — | |
| 81220-0C030 note |
Lamp Assy, Fog, LH
2017-08 → 2021-12
ended
|
USK65 SR5 HTWC | — | |
| 81220-0C030 |
Lamp Assy, Fog, LH
2017-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
