Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

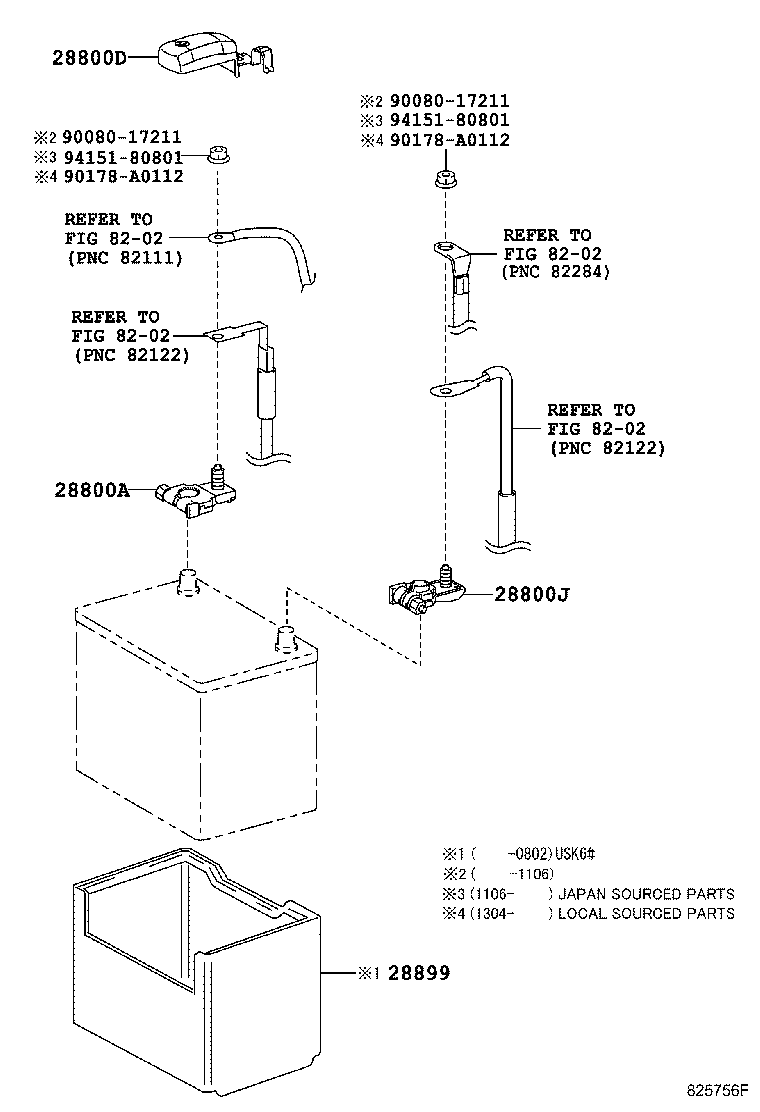

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800A — Terminal, Battery Positive | ||||
| 90982-05054 |
Terminal, Battery Positive
2007-11 → 2009-11
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 90982-05054 |
Terminal, Battery Positive
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90982-05061 |
Terminal, Battery Positive
2009-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90982-05061 |
Terminal, Battery Positive
2009-12 → 2017-08
ended
|
3UR# USK6# | — | |
| 90982-05061 |
Terminal, Battery Positive
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90982-05061 |
Terminal, Battery Positive
2017-08 → —
|
3URFE USK6# | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-0C060 |
Cover, Connector(FOR BATTERY TERMINAL)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 82821-0C060 |
Cover, Connector(FOR BATTERY TERMINAL)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 82821-0C060 |
Cover, Connector(FOR BATTERY TERMINAL)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 82821-0C060 |
Cover, Connector(FOR BATTERY TERMINAL)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 82821-0C060 |
Cover, Connector(FOR BATTERY TERMINAL)
2017-08 → —
|
3URFE USK6# | — | |
| 28800J — Terminal, Battery Negative | ||||
| 90982-06059 |
Terminal, Battery Negative
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90982-06059 |
Terminal, Battery Negative
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90982-06059 |
Terminal, Battery Negative
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90982-06059 |
Terminal, Battery Negative
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90982-06059 |
Terminal, Battery Negative
2017-08 → —
|
3URFE USK6# | — | |
| 28899 — Insulator, Battery | ||||
| 28899-54050 |
Insulator, Battery
2007-11 → 2008-02
ended
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
