Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

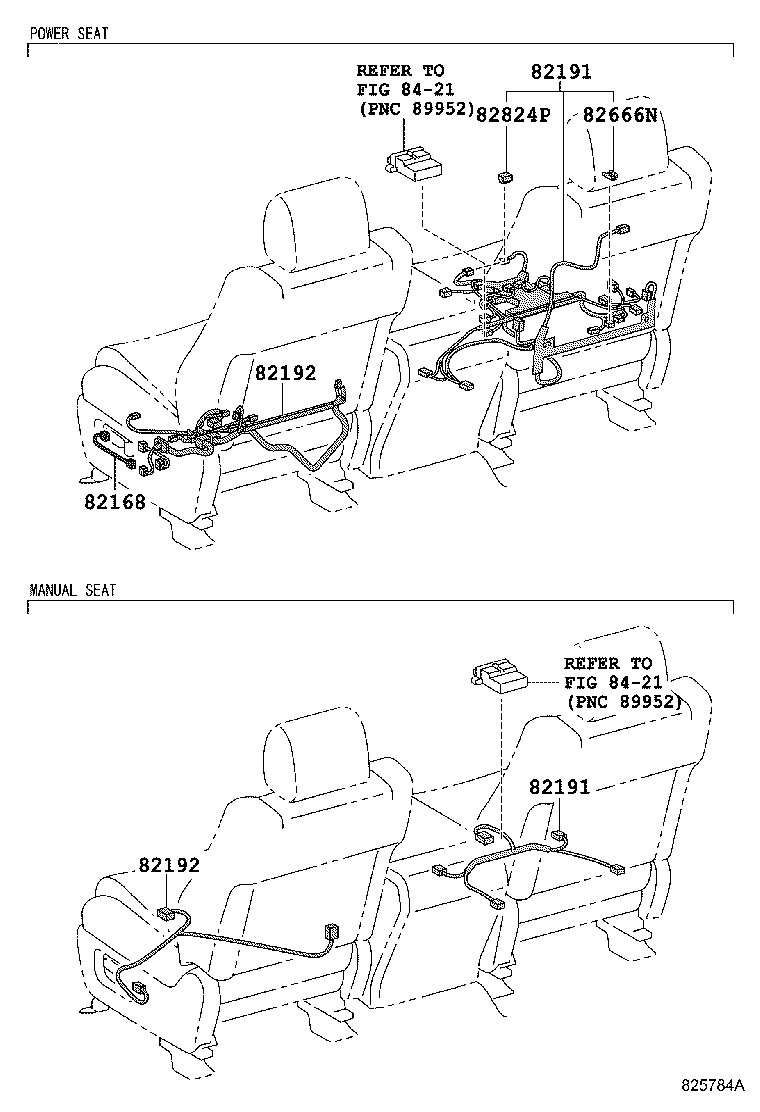

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82168 — Wire, Seat, NO.2 | ||||
| 82168-AC050 note |
Wire, Seat, NO.2
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 82168-AC050 |
Wire, Seat, NO.2
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 82168-AC050 note |
Wire, Seat, NO.2
2007-11 → 2017-08
ended
|
USK6# SR5 | — | |
| 82168-AC050 |
Wire, Seat, NO.2
2007-11 → 2017-08
ended
|
USK6# LIMD,PLAT | — | |
| 82168-AC050 note |
Wire, Seat, NO.2
2007-11 → 2012-08
ended
|
UPK6# SR5 | — | |
| 82168-AC050 |
Wire, Seat, NO.2
2007-11 → 2012-08
ended
|
UPK6# LIMD | — | |
| 82168-AC050 |
Wire, Seat, NO.2
2017-08 → —
|
USK6# LIMD,PLAT | — | |
| 82168-AC050 note |
Wire, Seat, NO.2
2017-08 → —
|
USK6# SR5 | — | |
| 82168-AC050 note |
Wire, Seat, NO.2
2019-08 → —
|
USK65 SR5 | — | |
| 82191 — Wire, Front Seat, RH | ||||
| 82191-0C010 |
Wire, Front Seat, RH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# SR5 | — | |
| 82191-0C020 |
Wire, Front Seat, RH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# LIMD | — | |
| 82191-0C020 note |
Wire, Front Seat, RH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# SR5 | — | |
| 82191-0C050 |
Wire, Front Seat, RH
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 82191-0C010 |
Wire, Front Seat, RH
2017-08 → —
|
USK6# SR5 | — | |
| 82191-0C020 |
Wire, Front Seat, RH
2017-08 → —
|
USK6# LIMD | — | |
| 82191-0C020 note |
Wire, Front Seat, RH
2017-08 → —
|
USK6# SR5 | — | |
| 82191-0C020 note |
Wire, Front Seat, RH
2019-08 → —
|
USK65 SR5 | — | |
| 82191-0C050 |
Wire, Front Seat, RH
2017-08 → 2019-02
ended
|
USK6# PLAT | — | |
| 82191-0C051 |
Wire, Front Seat, RH
2019-03 → —
|
USK6# PLAT | — | |
| 82192 — Wire, Front Seat, LH | ||||
| 82192-0C010 |
Wire, Front Seat, LH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# SR5 | — | |
| 82192-0C020 note |
Wire, Front Seat, LH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# SR5 | — | |
| 82192-0C020 |
Wire, Front Seat, LH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# LIMD | — | |
| 82192-0C030 note |
Wire, Front Seat, LH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# LIMD | — | |
| 82192-0C040 note |
Wire, Front Seat, LH
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# SR5 | — | |
| 82192-0C050 |
Wire, Front Seat, LH
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 82192-0C020 note |
Wire, Front Seat, LH
2019-08 → —
|
USK65 SR5 | — | |
| 82192-0C020 |
Wire, Front Seat, LH
2017-08 → —
|
USK6# LIMD | — | |
| 82192-0C020 note |
Wire, Front Seat, LH
2017-08 → —
|
USK6# SR5 | — | |
| 82192-0C040 |
Wire, Front Seat, LH
2017-08 → —
|
USK6# SR5 | — | |
| 82192-0C120 note |
Wire, Front Seat, LH
2017-08 → —
|
USK6# LIMD | — | |
| 82192-0C130 |
Wire, Front Seat, LH
2017-08 → 2019-02
ended
|
USK6# PLAT | — | |
| 82192-0C131 |
Wire, Front Seat, LH
2019-03 → —
|
USK6# PLAT | — | |
| 82666N — Holder, Connector NO.10 | ||||
| 82666-21040 |
Holder, Connector NO.10
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 82666-21040 |
Holder, Connector NO.10
2017-08 → —
|
USK6# PLAT | — | |
| 82824P — Connector, Wiring Harness | ||||
| 82824-22070 |
Connector, Wiring Harness
2007-11 → 2008-11
ended
|
UCK6#,USK6# LIMD | — | |
| 82824-22070 note |
Connector, Wiring Harness
2007-11 → 2008-11
ended
|
UCK6#,USK6# SR5 | — | |
| 82824-22070 |
Connector, Wiring Harness
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 82824-22070 |
Connector, Wiring Harness
2017-08 → —
|
USK6# PLAT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
