Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

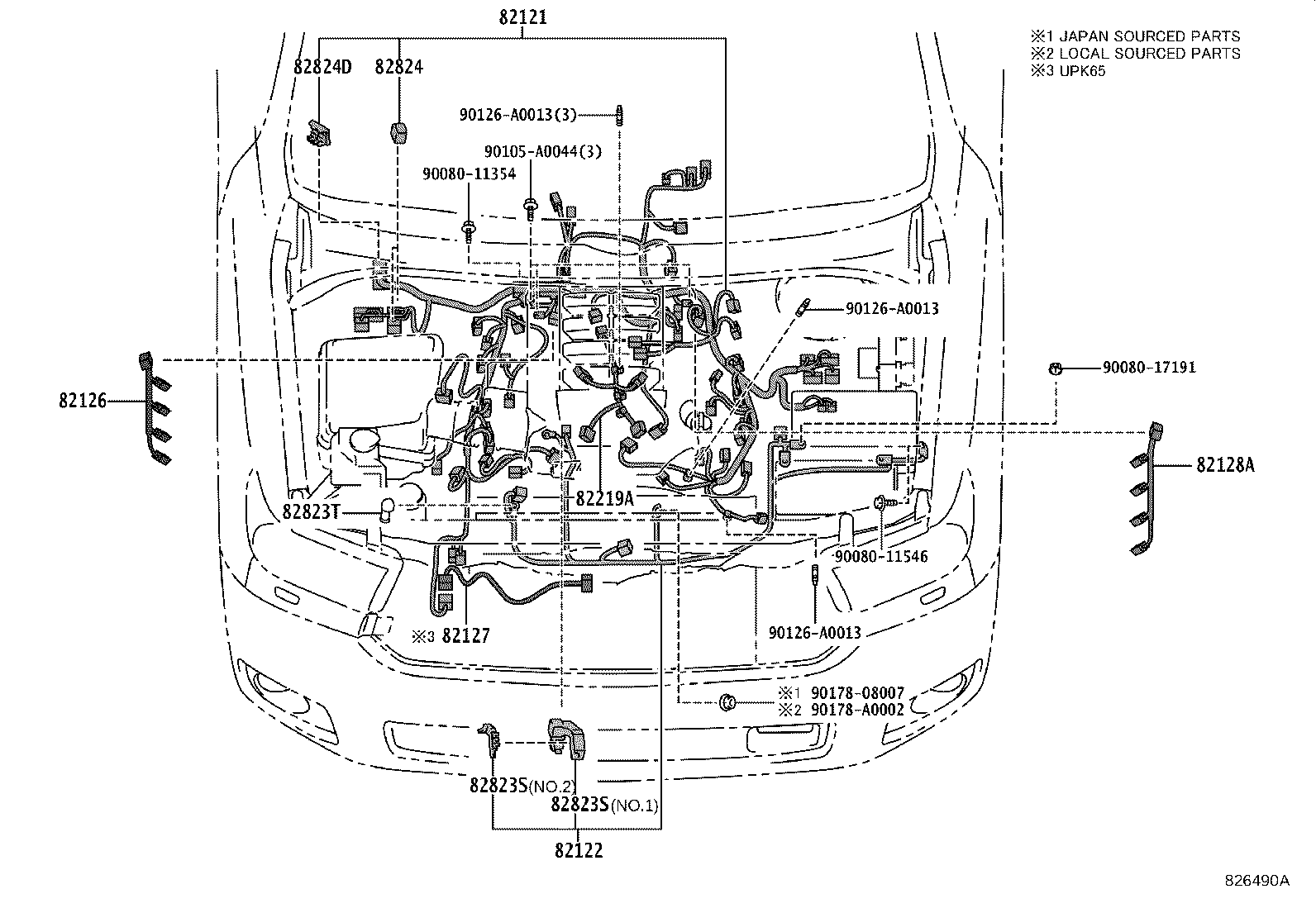

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-0C180 |
Wire, Engine
2007-11 → 2011-07
ended
|
USK60 | — | |
| 82121-0C181 |
Wire, Engine
2011-07 → 2013-08
ended
|
USK60 | — | |
| 82121-0C182 |
Wire, Engine
2013-08 → 2017-08
ended
|
USK60 | — | |
| 82121-0C190 |
Wire, Engine
2007-11 → 2011-07
ended
|
USK65 HTWC | — | |
| 82121-0C191 |
Wire, Engine
2011-07 → 2013-08
ended
|
USK65 HTWC | — | |
| 82121-0C192 |
Wire, Engine
2013-08 → 2017-08
ended
|
USK65 HTWC | — | |
| 82121-0C200 |
Wire, Engine
2007-11 → 2009-04
ended
|
UCK60 | — | |
| 82121-0C210 |
Wire, Engine
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 82121-0C230 |
Wire, Engine
2008-08 → 2011-07
ended
|
USK65 HTWCF | — | |
| 82121-0C231 |
Wire, Engine
2011-07 → 2013-08
ended
|
USK65 HTWCF | — | |
| 82121-0C232 |
Wire, Engine
2013-08 → 2017-08
ended
|
USK65 HTWCF | — | |
| 82121-0C300 |
Wire, Engine
2009-04 → 2011-06
ended
|
UPK60 | — | |
| 82121-0C301 |
Wire, Engine
2011-06 → 2012-08
ended
|
UPK60 | — | |
| 82121-0C310 |
Wire, Engine
2009-04 → 2011-06
ended
|
UPK65 | — | |
| 82121-0C311 |
Wire, Engine
2011-06 → 2012-08
ended
|
UPK65 | — | |
| 82121-0C460 |
Wire, Engine
2017-08 → —
|
USK65 | — | |
| 82121-0C470 |
Wire, Engine
2017-08 → —
|
USK60 | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-0C141 |
Wire, Engine, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 82122-0C190 note |
Wire, Engine, NO.2
2007-11 → 2011-07
ended
|
USK6# SR5 | — | |
| 82122-0C190 |
Wire, Engine, NO.2
2013-08 → 2017-08
ended
|
USK65 HTWCF | — | |
| 82122-0C190 note |
Wire, Engine, NO.2
2007-11 → 2017-08
ended
|
USK6# HTWC | — | |
| 82122-0C190 note |
Wire, Engine, NO.2
2007-11 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 82122-0C190 note |
Wire, Engine, NO.2
2007-11 → 2013-08
ended
|
USK65 HTWCF | — | |
| 82122-0C190 note |
Wire, Engine, NO.2
2007-11 → 2013-08
ended
|
USK65 SR5 HTWCF | — | |
| 82122-0C190 note |
Wire, Engine, NO.2
2007-11 → 2011-07
ended
|
USK6# SR5 | — | |
| 82122-0C200 note |
Wire, Engine, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 82122-0C210 |
Wire, Engine, NO.2
2007-11 → 2013-08
ended
|
USK65 SR5 HTWCF | — | |
| 82122-0C210 |
Wire, Engine, NO.2
2007-11 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 82122-0C220 note |
Wire, Engine, NO.2
2007-11 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 82122-0C220 |
Wire, Engine, NO.2
2007-11 → 2017-08
ended
|
USK6# (LIMD,PLAT) HTWC | — | |
| 82122-0C220 note |
Wire, Engine, NO.2
2007-11 → 2011-07
ended
|
USK6# SR5 | — | |
| 82122-0C220 note |
Wire, Engine, NO.2
2007-11 → 2011-07
ended
|
USK6# SR5 | — | |
| 82122-0C220 note |
Wire, Engine, NO.2
2007-11 → 2013-08
ended
|
USK65 SR5 HTWCF | — | |
| 82122-0C220 |
Wire, Engine, NO.2
2007-11 → 2013-08
ended
|
USK65 (LIMD,PLAT) HTWCF | — | |
| 82122-0C270 note |
Wire, Engine, NO.2
2009-04 → 2010-08
ended
|
UPK6# SR5 | — | |
| 82122-0C270 note |
Wire, Engine, NO.2
2009-04 → 2010-08
ended
|
UPK6# SR5 | — | |
| 82122-0C270 note |
Wire, Engine, NO.2
2009-04 → 2010-08
ended
|
UPK6# SR5 | — | |
| 82122-0C270 note |
Wire, Engine, NO.2
2010-08 → 2012-08
ended
|
UPK60 SR5 | — | |
| 82122-0C270 note |
Wire, Engine, NO.2
2010-08 → 2012-08
ended
|
UPK60 LIMD | — | |
| 82122-0C270 note |
Wire, Engine, NO.2
2010-08 → 2011-07
ended
|
UPK60 SR5 | — | |
| 82122-0C270 note |
Wire, Engine, NO.2
2010-08 → 2011-07
ended
|
UPK60 SR5 | — | |
| 82122-0C270 |
Wire, Engine, NO.2
2009-04 → 2010-08
ended
|
UPK6# LIMD | — | |
| 82122-0C310 note |
Wire, Engine, NO.2
2010-08 → 2012-08
ended
|
UPK60 SR5 | — | |
| 82122-0C310 |
Wire, Engine, NO.2
2009-04 → 2010-08
ended
|
UPK6# SR5 | — | |
| 82122-0C320 note |
Wire, Engine, NO.2
2009-04 → 2010-08
ended
|
UPK6# | — | |
| 82122-0C320 |
Wire, Engine, NO.2
2010-08 → 2012-08
ended
|
UPK6# | — | |
| 82122-0C320 note |
Wire, Engine, NO.2
2009-04 → 2010-08
ended
|
UPK6# SR5 | — | |
| 82122-0C320 note |
Wire, Engine, NO.2
2009-04 → 2010-08
ended
|
UPK6# SR5 | — | |
| 82122-0C320 note |
Wire, Engine, NO.2
2009-04 → 2010-08
ended
|
UPK6# SR5 | — | |
| 82122-0C250 |
Wire, Engine, NO.2
2017-08 → —
|
USK6# HTWC | — | |
| 82122-0C300 |
Wire, Engine, NO.2
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 82122-0C300 note |
Wire, Engine, NO.2
2017-08 → —
|
USK6# HTWC | — | |
| 82126 — Wire, Engine | ||||
| 82126-0C010 note |
Wire, Engine
2015-11 → 2017-08
ended
|
USK6# | — | |
| 82126-34020 |
Wire, Engine
2007-11 → 2008-07
ended
|
USK6# | — | |
| 82126-34021 |
Wire, Engine
2008-07 → 2015-11
ended
|
USK6# | — | |
| 82126-34021 note |
Wire, Engine
2015-11 → 2017-08
ended
|
USK6# | — | |
| 82126-34021 |
Wire, Engine
2008-07 → 2012-08
ended
|
UPK6# | — | |
| 82126-0C010 note |
Wire, Engine
2017-08 → —
|
USK6# | — | |
| 82126-34021 note |
Wire, Engine
2017-08 → —
|
USK6# | — | |
| 82127 — Wire, Differential | ||||
| 82127-0C030 |
Wire, Differential
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 82127-0C040 |
Wire, Differential
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 82127-0C040 |
Wire, Differential
2007-11 → 2017-08
ended
|
USK65 | — | |
| 82127-0C040 |
Wire, Differential
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 82127-0C040 |
Wire, Differential
2017-08 → —
|
USK65 HTWC | — | |
| 82128A — Wire, Engine, NO.8 | ||||
| 82127-0C060 note |
Wire, Engine, NO.8
2015-11 → 2017-08
ended
|
USK6# | — | |
| 82127-34040 |
Wire, Engine, NO.8
2007-11 → 2008-07
ended
|
USK6# | — | |
| 82127-34041 |
Wire, Engine, NO.8
2008-07 → 2009-05
ended
|
UPK6#,USK6# | — | |
| 82127-34050 |
Wire, Engine, NO.8
2009-05 → 2012-08
ended
|
UPK6# | — | |
| 82127-34050 |
Wire, Engine, NO.8
2009-05 → 2015-11
ended
|
USK6# | — | |
| 82127-34050 note |
Wire, Engine, NO.8
2015-11 → 2017-08
ended
|
USK6# | — | |
| 82127-0C060 note |
Wire, Engine, NO.8
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 82127-0C060 note |
Wire, Engine, NO.8
2017-08 → —
|
USK6# HTWC | — | |
| 82127-34050 note |
Wire, Engine, NO.8
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 82127-34050 note |
Wire, Engine, NO.8
2017-08 → —
|
USK6# HTWC | — | |
| 82219A — Wire, Sensor | ||||
| 82219-0C020 |
Wire, Sensor
2007-11 → 2017-08
ended
|
USK6# | — | |
| 82219-0C040 |
Wire, Sensor
2009-04 → 2012-08
ended
|
UPK6# | — | |
| 82219-0C020 |
Wire, Sensor
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 82219-0C020 |
Wire, Sensor
2017-08 → —
|
USK6# HTWC | — | |
| 82823S — Cap, Starter Terminal | ||||
| 82823-0C020 |
Cap, Starter Terminal
2007-11 → 2017-08
ended
|
USK6# | — | |
| 82823-0C030 note |
Cap, Starter Terminal
2009-04 → 2012-08
ended
|
UPK6# | — | |
| 82823-0C040 note |
Cap, Starter Terminal
2009-04 → 2012-08
ended
|
UPK6# | — | |
| 82823-0C020 |
Cap, Starter Terminal
2017-08 → —
|
USK6# HTWC | — | |
| 82823-0C020 |
Cap, Starter Terminal
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-34010 note |
Cap, Alternator Terminal
2007-11 → 2010-08
ended
|
UPK6# SR5 | — | |
| 82823-34010 |
Cap, Alternator Terminal
2013-08 → 2017-08
ended
|
USK65 HTWCF | — | |
| 82823-34010 |
Cap, Alternator Terminal
2010-08 → 2017-08
ended
|
UPK6# | — | |
| 82823-34010 note |
Cap, Alternator Terminal
2007-11 → 2017-08
ended
|
USK6# HTWC | — | |
| 82823-34010 note |
Cap, Alternator Terminal
2007-11 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 82823-34010 note |
Cap, Alternator Terminal
2007-11 → 2013-08
ended
|
USK65 HTWCF | — | |
| 82823-34010 note |
Cap, Alternator Terminal
2007-11 → 2013-08
ended
|
USK65 SR5 HTWCF | — | |
| 82823-34010 note |
Cap, Alternator Terminal
2007-11 → 2010-08
ended
|
UPK6# SR5 | — | |
| 82823-34010 note |
Cap, Alternator Terminal
2007-11 → 2010-08
ended
|
UPK6# | — | |
| 82823-34010 note |
Cap, Alternator Terminal
2007-11 → 2011-07
ended
|
USK6# SR5 | — | |
| 82823-34010 note |
Cap, Alternator Terminal
2007-11 → 2011-07
ended
|
USK6# SR5 | — | |
| 82823-34010 note |
Cap, Alternator Terminal
2007-11 → 2010-08
ended
|
UPK6# SR5 | — | |
| 82823-60040 note |
Cap, Alternator Terminal
2010-08 → 2011-07
ended
|
UPK60 SR5 | — | |
| 82823-60040 |
Cap, Alternator Terminal
2007-11 → 2017-08
ended
|
UCK6#,USK6# HTWC | — | |
| 82823-60040 |
Cap, Alternator Terminal
2007-11 → 2010-08
ended
|
UPK6# | — | |
| 82823-60040 |
Cap, Alternator Terminal
2007-11 → 2013-08
ended
|
USK65 HTWCF | — | |
| 82823-60040 note |
Cap, Alternator Terminal
2010-08 → 2012-08
ended
|
UPK60 SR5 | — | |
| 82823-60040 note |
Cap, Alternator Terminal
2010-08 → 2012-08
ended
|
UPK60 | — | |
| 82823-60040 note |
Cap, Alternator Terminal
2010-08 → 2011-07
ended
|
UPK60 SR5 | — | |
| 82823-34010 |
Cap, Alternator Terminal
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 82823-34010 note |
Cap, Alternator Terminal
2017-08 → —
|
USK6# HTWC | — | |
| 82823-60040 |
Cap, Alternator Terminal
2017-08 → —
|
USK6# HTWC | — | |
| 82824 — Connector, Wiring Harness | ||||
| 82824-30220 |
Connector, Wiring Harness
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 82824-30220 |
Connector, Wiring Harness
2007-11 → 2011-07
ended
|
USK6# | — | |
| 82824-30220 |
Connector, Wiring Harness
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 82824D — Connector, Wiring Harness | ||||
| 82824-34100 |
Connector, Wiring Harness
2009-04 → 2012-08
ended
|
UPK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
