Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

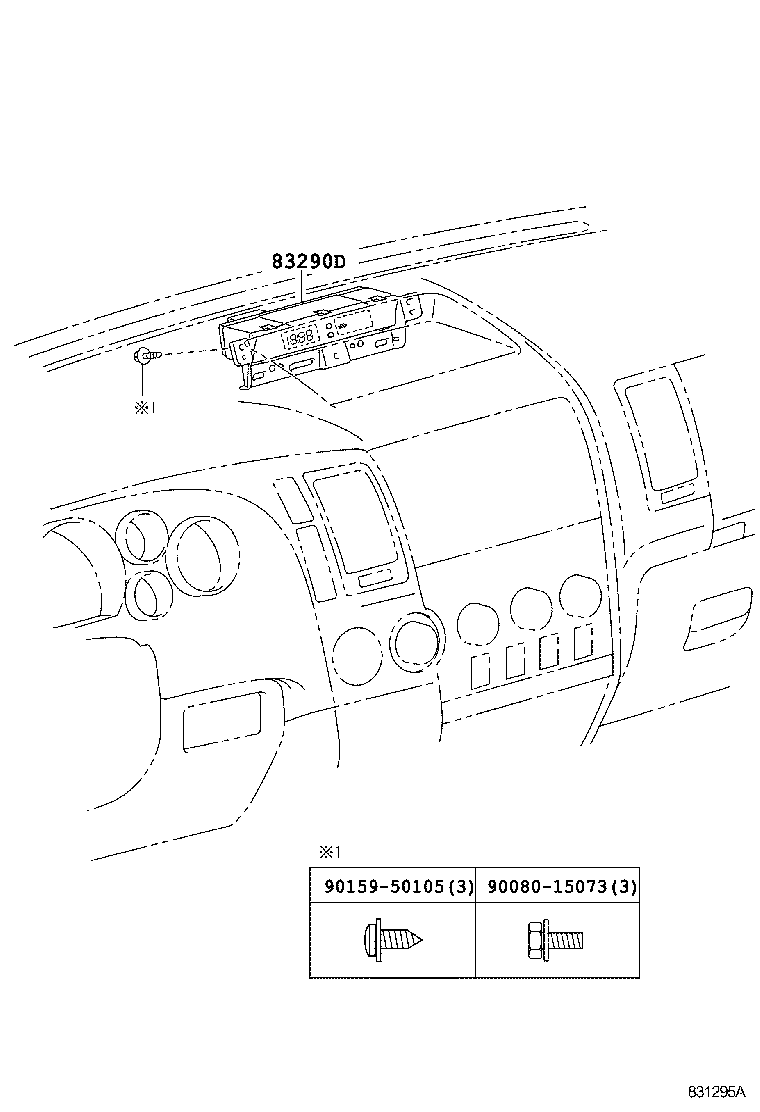

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83290D — Meter Assy, Accessory | ||||
| 83290-0C090 |
Meter Assy, Accessory
2007-11 → 2008-08
ended
|
UCK6#,USK6# SR5 | — | |
| 83290-0C100 |
Meter Assy, Accessory
2007-11 → 2008-08
ended
|
UCK6#,USK6# LIMD,PLAT | — | |
| 83290-0C100 note |
Meter Assy, Accessory
2007-11 → 2008-08
ended
|
UCK6#,USK6# SR5 | — | |
| 83290-0C110 |
Meter Assy, Accessory
2008-08 → 2009-04
ended
|
UCK6# LIMD | — | |
| 83290-0C110 note |
Meter Assy, Accessory
2008-08 → 2009-04
ended
|
UCK6# SR5 | — | |
| 83290-0C110 |
Meter Assy, Accessory
2008-08 → 2012-08
ended
|
UPK6# LIMD | — | |
| 83290-0C110 note |
Meter Assy, Accessory
2008-08 → 2012-08
ended
|
UPK6# SR5 | — | |
| 83290-0C110 |
Meter Assy, Accessory
2008-08 → 2017-08
ended
|
USK6# LIMD,PLAT | — | |
| 83290-0C110 note |
Meter Assy, Accessory
2008-08 → 2017-08
ended
|
USK6# SR5 | — | |
| 83290-0C120 |
Meter Assy, Accessory
2008-08 → 2009-04
ended
|
UCK6# SR5 | — | |
| 83290-0C120 |
Meter Assy, Accessory
2008-08 → 2012-08
ended
|
UPK6# SR5 | — | |
| 83290-0C120 |
Meter Assy, Accessory
2008-08 → 2017-08
ended
|
USK6# SR5 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
