Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

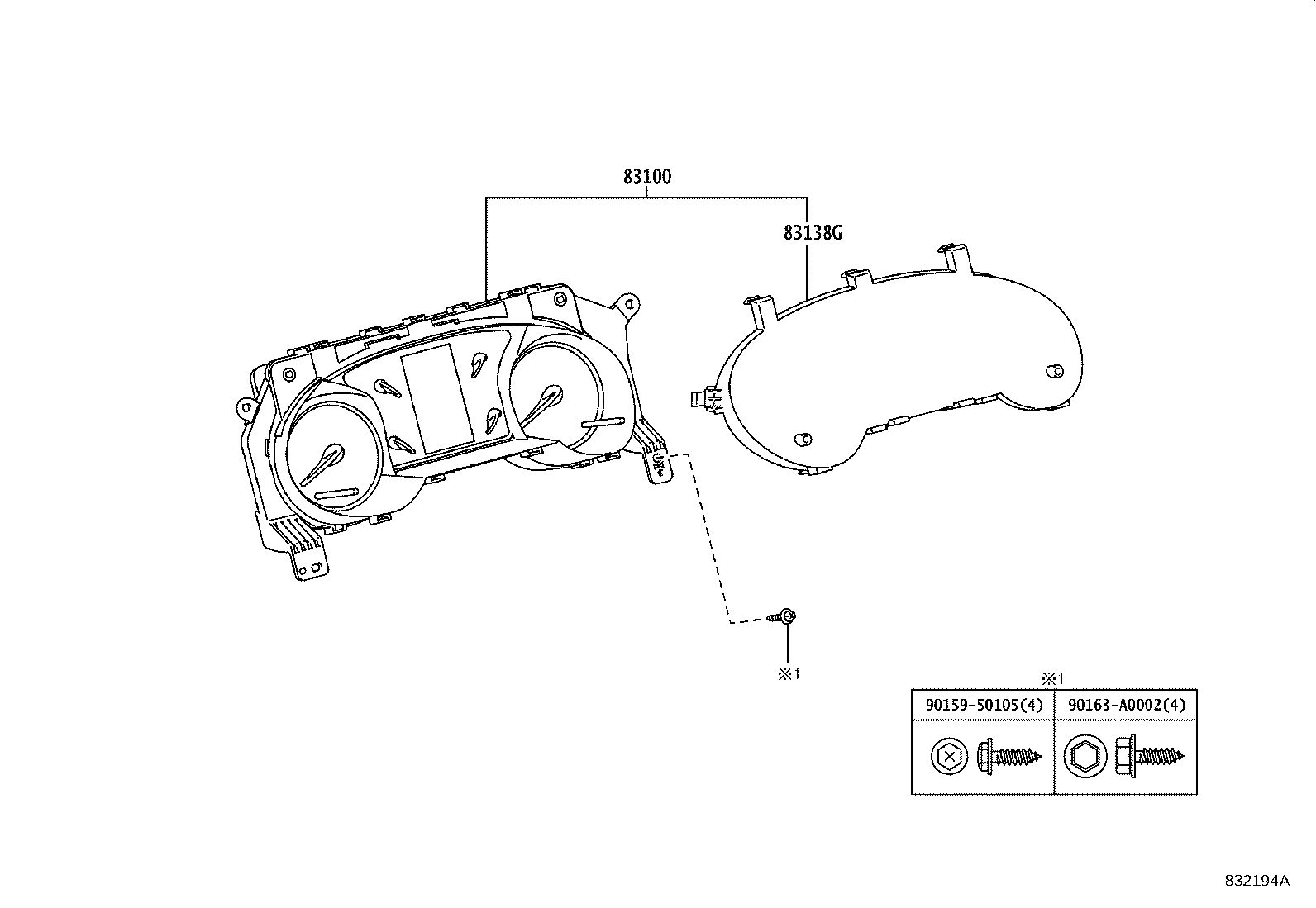

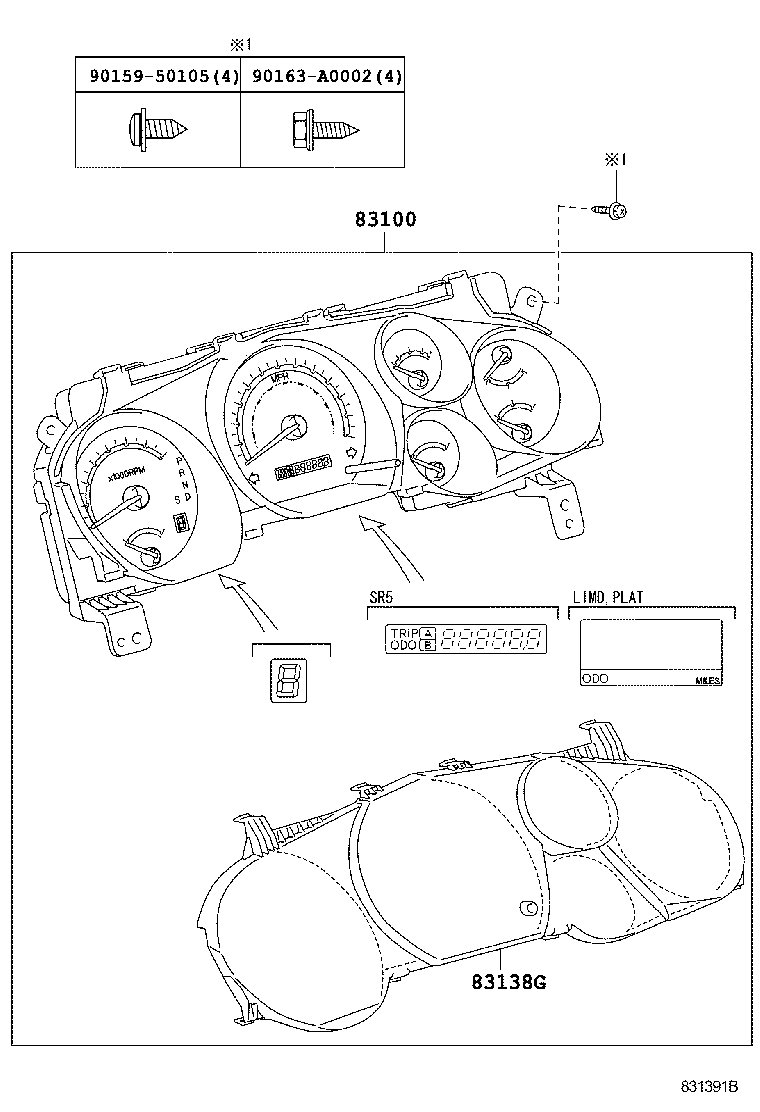

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-0C660 note |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
UCK6# SR5 | — | |
| 83800-0C670 |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
UCK6# SR5 | — | |
| 83800-0C680 note |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
UCK65 SR5 | — | |
| 83800-0C690 note |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
UCK65 SR5 | — | |
| 83800-0C690 note |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
UCK60 SR5 | — | |
| 83800-0C700 |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
UCK6# LIMD | — | |
| 83800-0C710 note |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
UCK65 LIMD | — | |
| 83800-0C710 note |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
UCK60 LIMD | — | |
| 83800-0C720 note |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
USK6# SR5 | — | |
| 83800-0C730 |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
USK6# SR5 | — | |
| 83800-0C740 note |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
USK65 SR5 | — | |
| 83800-0C750 note |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
USK65 SR5 | — | |
| 83800-0C760 |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
USK6# LIMD,PLAT | — | |
| 83800-0C770 note |
Meter Assy, Combination
2007-11 → 2008-08
ended
|
USK65 LIMD,PLAT | — | |
| 83800-0CB30 note |
Meter Assy, Combination
2008-08 → 2009-04
ended
|
UCK6# SR5 | — | |
| 83800-0CB40 |
Meter Assy, Combination
2008-08 → 2009-04
ended
|
UCK6# SR5 | — | |
| 83800-0CB50 note |
Meter Assy, Combination
2008-08 → 2009-04
ended
|
UCK65 SR5 | — | |
| 83800-0CB60 note |
Meter Assy, Combination
2008-08 → 2009-04
ended
|
UCK65 SR5 | — | |
| 83800-0CB60 note |
Meter Assy, Combination
2008-08 → 2009-04
ended
|
UCK60 SR5 | — | |
| 83800-0CB70 |
Meter Assy, Combination
2008-08 → 2009-04
ended
|
UCK6# LIMD | — | |
| 83800-0CB80 note |
Meter Assy, Combination
2008-08 → 2009-04
ended
|
UCK60 LIMD | — | |
| 83800-0CB80 note |
Meter Assy, Combination
2008-08 → 2009-04
ended
|
UCK65 LIMD | — | |
| 83800-0CC10 note |
Meter Assy, Combination
2008-08 → 2009-03
ended
|
USK6# SR5 | — | |
| 83800-0CC11 note |
Meter Assy, Combination
2009-04 → 2009-11
ended
|
UPK65,USK65 SR5 HTWC | — | |
| 83800-0CC20 |
Meter Assy, Combination
2008-08 → 2009-03
ended
|
USK6# SR5 | — | |
| 83800-0CC21 note |
Meter Assy, Combination
2009-04 → 2009-11
ended
|
UPK60,USK60 SR5 | — | |
| 83800-0CC21 note |
Meter Assy, Combination
2009-04 → 2009-11
ended
|
UPK65,USK65 SR5 HTWC | — | |
| 83800-0CC40 |
Meter Assy, Combination
2008-08 → 2009-03
ended
|
USK6# LIMD,PLAT | — | |
| 83800-0CC41 note |
Meter Assy, Combination
2009-04 → 2009-11
ended
|
UPK60,USK60 LIMD | — | |
| 83800-0CC41 note |
Meter Assy, Combination
2009-04 → 2009-11
ended
|
UPK65,USK65 LIMD HTWC | — | |
| 83800-0CC41 note |
Meter Assy, Combination
2009-04 → 2010-08
ended
|
USK60 PLAT | — | |
| 83800-0CC41 note |
Meter Assy, Combination
2009-04 → 2010-08
ended
|
USK65 PLAT HTWC | — | |
| 83800-0CC50 note |
Meter Assy, Combination
2008-08 → 2009-03
ended
|
USK65 SR5 HTWC | — | |
| 83800-0CC51 note |
Meter Assy, Combination
2009-04 → 2009-08
ended
|
UPK6#,USK6# SR5 | — | |
| 83800-0CC52 note |
Meter Assy, Combination
2009-09 → 2009-11
ended
|
UPK6#,USK6# SR5 | — | |
| 83800-0CC60 note |
Meter Assy, Combination
2008-08 → 2009-03
ended
|
USK60 SR5 | — | |
| 83800-0CC60 note |
Meter Assy, Combination
2008-08 → 2009-03
ended
|
USK65 SR5 HTWC | — | |
| 83800-0CC61 note |
Meter Assy, Combination
2009-04 → 2009-08
ended
|
UPK6#,USK6# SR5 | — | |
| 83800-0CC62 note |
Meter Assy, Combination
2009-09 → 2009-11
ended
|
UPK6#,USK6# SR5 | — | |
| 83800-0CC70 note |
Meter Assy, Combination
2008-08 → 2009-03
ended
|
USK60 PLAT | — | |
| 83800-0CC70 note |
Meter Assy, Combination
2008-08 → 2009-03
ended
|
USK65 (LIMD,PLAT) HTWC | — | |
| 83800-0CC71 note |
Meter Assy, Combination
2009-04 → 2009-08
ended
|
UPK6#,USK6# LIMD | — | |
| 83800-0CC71 |
Meter Assy, Combination
2009-04 → 2009-08
ended
|
USK6# PLAT | — | |
| 83800-0CC72 |
Meter Assy, Combination
2009-09 → 2010-08
ended
|
USK6# PLAT | — | |
| 83800-0CC72 note |
Meter Assy, Combination
2009-09 → 2009-11
ended
|
UPK6#,USK6# LIMD | — | |
| 83800-0CG40 note |
Meter Assy, Combination
2009-04 → 2010-08
ended
|
UPK65,USK65 SR5 HTWC | — | |
| 83800-0CG50 note |
Meter Assy, Combination
2009-04 → 2010-08
ended
|
UPK65,USK65 SR5 HTWC | — | |
| 83800-0CG50 note |
Meter Assy, Combination
2009-04 → 2010-08
ended
|
UPK60,USK60 SR5 | — | |
| 83800-0CG60 note |
Meter Assy, Combination
2009-04 → 2010-08
ended
|
UPK65,USK65 LIMD HTWC | — | |
| 83800-0CG60 note |
Meter Assy, Combination
2009-04 → 2010-08
ended
|
UPK60,USK60 LIMD | — | |
| 83800-0CG70 note |
Meter Assy, Combination
2009-04 → 2009-08
ended
|
UPK6#,USK6# SR5 | — | |
| 83800-0CG71 note |
Meter Assy, Combination
2009-09 → 2010-08
ended
|
UPK6#,USK6# SR5 | — | |
| 83800-0CG80 |
Meter Assy, Combination
2009-04 → 2009-08
ended
|
UPK6#,USK6# SR5 | — | |
| 83800-0CG81 |
Meter Assy, Combination
2009-09 → 2010-08
ended
|
UPK6#,USK6# SR5 | — | |
| 83800-0CG90 |
Meter Assy, Combination
2009-04 → 2009-08
ended
|
UPK6#,USK6# LIMD | — | |
| 83800-0CG91 |
Meter Assy, Combination
2009-09 → 2010-08
ended
|
UPK6#,USK6# LIMD | — | |
| 83800-0CJ20 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
USK65 PLAT HTWC | — | |
| 83800-0CJ20 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
USK60 PLAT | — | |
| 83800-0CJ21 note |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK65 PLAT HTWC | — | |
| 83800-0CJ21 note |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK60 PLAT | — | |
| 83800-0CJ30 |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
USK6# PLAT | — | |
| 83800-0CJ31 |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK6# PLAT HTWC | — | |
| 83800-0CJ40 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
USK65 SR5 HTWC | — | |
| 83800-0CJ40 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
UPK65 SR5 | — | |
| 83800-0CJ41 note |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK65 SR5 HTWC | — | |
| 83800-0CJ41 note |
Meter Assy, Combination
2011-07 → 2012-08
ended
|
UPK65 SR5 | — | |
| 83800-0CJ50 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
USK65 SR5 HTWC | — | |
| 83800-0CJ50 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
UPK60 SR5 | — | |
| 83800-0CJ50 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
USK60 SR5 | — | |
| 83800-0CJ51 note |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK60 SR5 | — | |
| 83800-0CJ51 note |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK65 SR5 HTWC | — | |
| 83800-0CJ51 note |
Meter Assy, Combination
2011-07 → 2012-08
ended
|
UPK60 SR5 | — | |
| 83800-0CJ60 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
UPK60 LIMD | — | |
| 83800-0CJ60 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
USK60 LIMD | — | |
| 83800-0CJ60 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
UPK65,USK65 LIMD HTWC | — | |
| 83800-0CJ61 note |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK60 LIMD | — | |
| 83800-0CJ61 note |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK65 LIMD HTWC | — | |
| 83800-0CJ61 note |
Meter Assy, Combination
2011-07 → 2012-08
ended
|
UPK60 LIMD | — | |
| 83800-0CJ61 note |
Meter Assy, Combination
2011-07 → 2012-08
ended
|
UPK65 LIMD | — | |
| 83800-0CJ70 note |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
USK6# SR5 | — | |
| 83800-0CJ70 |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
UPK6# SR5 | — | |
| 83800-0CJ71 |
Meter Assy, Combination
2011-07 → 2012-08
ended
|
UPK6# SR5 | — | |
| 83800-0CJ71 note |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK6# SR5 HTWC | — | |
| 83800-0CJ80 |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
USK6# SR5 | — | |
| 83800-0CJ81 |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK6# SR5 HTWC | — | |
| 83800-0CJ90 |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
UPK6#,USK6# LIMD | — | |
| 83800-0CJ91 |
Meter Assy, Combination
2011-07 → 2012-08
ended
|
UPK6# LIMD | — | |
| 83800-0CJ91 |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK6# LIMD HTWC | — | |
| 83800-0CK00 note |
Meter Assy, Combination
2011-07 → 2013-08
ended
|
USK65 SR5 HTWCF | — | |
| 83800-0CK00 |
Meter Assy, Combination
2013-08 → 2014-08
ended
|
USK65 SR5 HTWCF | — | |
| 83800-0CK10 |
Meter Assy, Combination
2011-07 → 2013-08
ended
|
USK65 SR5 HTWCF | — | |
| 83800-0CK20 |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK65 PLAT HTWCF | — | |
| 83800-0CK30 |
Meter Assy, Combination
2011-07 → 2014-08
ended
|
USK65 LIMD HTWCF | — | |
| 83800-0CL60 |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK6# PLAT HTWC | — | |
| 83800-0CL70 note |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK65 PLAT HTWC | — | |
| 83800-0CL70 note |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK60 PLAT | — | |
| 83800-0CP60 note |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK65 SR5 HTWC | — | |
| 83800-0CP70 note |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK65 SR5 HTWC | — | |
| 83800-0CP70 note |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK60 SR5 | — | |
| 83800-0CP80 note |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK65 LIMD HTWC | — | |
| 83800-0CP80 note |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK60 LIMD | — | |
| 83800-0CP90 note |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 83800-0CQ00 |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 83800-0CQ10 |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK6# LIMD HTWC | — | |
| 83800-0CQ40 |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK65 SR5 HTWCF | — | |
| 83800-0CQ50 |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK65 PLAT HTWCF | — | |
| 83800-0CQ60 |
Meter Assy, Combination
2014-08 → 2017-08
ended
|
USK65 LIMD HTWCF | — | |
| 83800-0CU70 note |
Meter Assy, Combination
2017-08 → 2018-01
ended
|
USK6# SR5 HTWC | — | |
| 83800-0CU70 note |
Meter Assy, Combination
2018-01 → 2019-08
ended
|
USK6# SR5 | — | |
| 83800-0CU70 note |
Meter Assy, Combination
2017-08 → 2019-08
ended
|
USK6# (LIMD,PLAT) HTWC | — | |
| 83800-0CU71 note |
Meter Assy, Combination
2019-08 → —
|
USK6# | — | |
| 83800-0CU80 note |
Meter Assy, Combination
2017-08 → 2017-09
ended
|
USK65 SR5 HTWCF | — | |
| 83800-0CU80 note |
Meter Assy, Combination
2017-08 → 2017-09
ended
|
USK65 (LIMD,PLAT) HTWCF | — | |
| 83800-0CU90 note |
Meter Assy, Combination
2017-08 → 2018-01
ended
|
USK65 SR5 HTWC | — | |
| 83800-0CU90 note |
Meter Assy, Combination
2017-08 → 2019-08
ended
|
USK65 (LIMD,PLAT) HTWC | — | |
| 83800-0CU90 note |
Meter Assy, Combination
2018-01 → 2019-08
ended
|
USK65 SR5 | — | |
| 83800-0CU91 note |
Meter Assy, Combination
2019-08 → —
|
USK65 | — | |
| 83800-0CV00 note |
Meter Assy, Combination
2017-08 → 2018-01
ended
|
USK6# SR5 HTWC | — | |
| 83800-0CV10 note |
Meter Assy, Combination
2017-08 → 2017-09
ended
|
USK65 SR5 HTWCF | — | |
| 83800-0CV20 note |
Meter Assy, Combination
2017-08 → 2018-01
ended
|
USK65 SR5 HTWC | — | |
| 83800-0CV20 note |
Meter Assy, Combination
2018-01 → 2019-08
ended
|
USK65 SR5 | — | |
| 83800-0CV21 note |
Meter Assy, Combination
2019-08 → —
|
USK65 SR5 | — | |
| 83800-0CV40 note |
Meter Assy, Combination
2018-01 → 2019-08
ended
|
USK60 SR5 | — | |
| 83800-0CV40 note |
Meter Assy, Combination
2017-08 → 2018-01
ended
|
USK60 SR5 | — | |
| 83800-0CV40 note |
Meter Assy, Combination
2017-08 → 2019-08
ended
|
USK60 LIMD,PLAT | — | |
| 83800-0CV41 note |
Meter Assy, Combination
2019-08 → —
|
USK60 | — | |
| 83800-0CV50 note |
Meter Assy, Combination
2018-01 → 2019-08
ended
|
USK60 SR5 | — | |
| 83800-0CV50 note |
Meter Assy, Combination
2017-08 → 2018-01
ended
|
USK60 SR5 | — | |
| 83800-0CV51 note |
Meter Assy, Combination
2019-08 → —
|
USK60 SR5 | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-0C880 |
Glass, Combination Meter
2010-08 → 2012-08
ended
|
UPK6# SR5 | — | |
| 83852-0C880 |
Glass, Combination Meter
2014-08 → 2017-08
ended
|
USK6# LIMD HTWC;USK65 (LIMD,PLAT) +1 | — | |
| 83852-0C880 |
Glass, Combination Meter
2007-11 → 2017-08
ended
|
USK6# PLAT HTWC | — | |
| 83852-0C880 |
Glass, Combination Meter
2013-08 → 2014-08
ended
|
USK65 SR5 HTWCF | — | |
| 83852-0C880 note |
Glass, Combination Meter
2010-08 → 2014-08
ended
|
USK6# SR5 HTWC | — | |
| 83852-0C880 note |
Glass, Combination Meter
2010-08 → 2014-08
ended
|
USK65 SR5 HTWC | — | |
| 83852-0C880 note |
Glass, Combination Meter
2010-08 → 2013-08
ended
|
USK65 SR5 HTWCF | — | |
| 83852-0C880 |
Glass, Combination Meter
2007-11 → 2011-07
ended
|
USK65 PLAT HTWCF | — | |
| 83852-0C880 |
Glass, Combination Meter
2007-11 → 2010-08
ended
|
UPK6#,USK6# LIMD | — | |
| 83852-0C880 note |
Glass, Combination Meter
2009-09 → 2009-11
ended
|
UPK6#,USK6# SR5 | — | |
| 83852-0C880 |
Glass, Combination Meter
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 83852-0C890 |
Glass, Combination Meter
2010-08 → 2012-08
ended
|
UPK6# LIMD | — | |
| 83852-0C890 note |
Glass, Combination Meter
2010-08 → 2012-08
ended
|
UPK60 SR5 | — | |
| 83852-0C890 |
Glass, Combination Meter
2007-11 → 2013-08
ended
|
USK65 SR5 HTWCF | — | |
| 83852-0C890 |
Glass, Combination Meter
2007-11 → 2010-08
ended
|
UPK6# SR5 | — | |
| 83852-0C890 |
Glass, Combination Meter
2010-08 → 2014-08
ended
|
USK6# LIMD | — | |
| 83852-0C890 |
Glass, Combination Meter
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 83852-0C890 |
Glass, Combination Meter
2007-11 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 83852-0C890 |
Glass, Combination Meter
2014-08 → 2017-08
ended
|
USK65 SR5 HTWCF | — | |
| 83852-0CU70 |
Glass, Combination Meter
2017-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
