Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

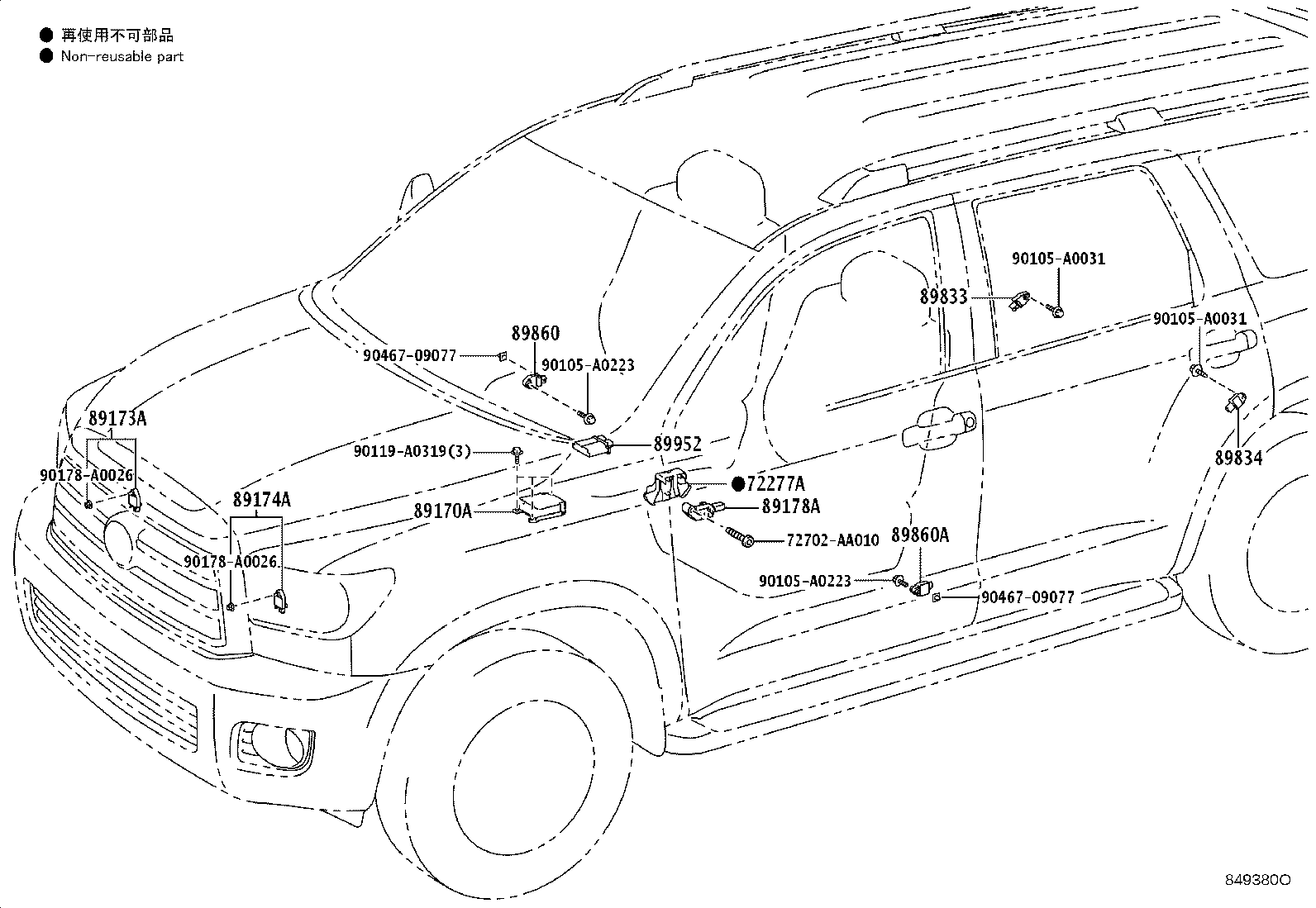

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 72277A — Protector, Seat Slide Position Sensor | ||||
| 72277-06010 |
Protector, Seat Slide Position Sensor
2007-11 → 2012-08
ended
|
UPK6# SR5 | — | |
| 72277-06010 |
Protector, Seat Slide Position Sensor
2007-11 → 2017-08
ended
|
USK6# SR5 | — | |
| 72277-06010 |
Protector, Seat Slide Position Sensor
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 72277-06020 |
Protector, Seat Slide Position Sensor
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 72277-06020 note |
Protector, Seat Slide Position Sensor
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 72277-06020 note |
Protector, Seat Slide Position Sensor
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 72277-06020 |
Protector, Seat Slide Position Sensor
2007-11 → 2012-08
ended
|
UPK6# LIMD | — | |
| 72277-06020 note |
Protector, Seat Slide Position Sensor
2007-11 → 2012-08
ended
|
UPK6# SR5 | — | |
| 72277-06020 note |
Protector, Seat Slide Position Sensor
2007-11 → 2012-08
ended
|
UPK6# SR5 | — | |
| 72277-06020 |
Protector, Seat Slide Position Sensor
2007-11 → 2017-08
ended
|
USK6# LIMD,PLAT | — | |
| 72277-06020 note |
Protector, Seat Slide Position Sensor
2007-11 → 2017-08
ended
|
USK6# SR5 | — | |
| 72277-06020 note |
Protector, Seat Slide Position Sensor
2007-11 → 2017-08
ended
|
USK6# SR5 | — | |
| 72277-06020 |
Protector, Seat Slide Position Sensor
2017-08 → —
|
USK6# | — | |
| 89170A — Computer Assy, Airbag | ||||
| 89170-0C380 |
Computer Assy, Airbag
2009-04 → 2012-03
ended
|
UPK6#,USK6# | — | |
| 89170-0C410 |
Computer Assy, Airbag
2007-11 → 2009-04
ended
|
UCK6#,USK6# | — | |
| 89170-0C450 |
Computer Assy, Airbag
2012-03 → 2012-05
ended
|
UPK6#,USK6# | — | |
| 89170-0C451 |
Computer Assy, Airbag
2012-06 → 2012-07
ended
|
UPK6#,USK6# | — | |
| 89170-0C452 |
Computer Assy, Airbag
2012-08 → 2013-07
ended
|
USK6# | — | |
| 89170-0C490 |
Computer Assy, Airbag
2013-08 → 2014-08
ended
|
USK6# | — | |
| 89170-0C500 |
Computer Assy, Airbag
2014-08 → 2017-08
ended
|
USK6# | — | |
| 89170-0C540 |
Computer Assy, Airbag
2019-08 → —
|
USK6# | — | |
| 89170-0C590 |
Computer Assy, Airbag
2017-08 → 2017-11
ended
|
USK6# | — | |
| 89170-0C591 |
Computer Assy, Airbag
2017-12 → 2018-01
ended
|
USK6# | — | |
| 89170-0C592 |
Computer Assy, Airbag
2018-02 → 2018-08
ended
|
USK6# | — | |
| 89170-0C593 |
Computer Assy, Airbag
2018-09 → 2019-08
ended
|
USK6# | — | |
| 89173A — Sensor, Airbag, Front RH | ||||
| 89173-09480 |
Sensor, Airbag, Front RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89173-09480 |
Sensor, Airbag, Front RH
2007-11 → 2012-03
ended
|
UPK6#,USK6# | — | |
| 89173-09730 |
Sensor, Airbag, Front RH
2012-03 → 2012-08
ended
|
UPK6# | — | |
| 89173-09730 |
Sensor, Airbag, Front RH
2012-03 → 2017-08
ended
|
USK6# | — | |
| 89173-09C70 |
Sensor, Airbag, Front RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89173-09C70 |
Sensor, Airbag, Front RH
2017-08 → —
|
USK6# HTWC | — | |
| 89174A — Sensor, Airbag, Front LH | ||||
| 89173-09480 |
Sensor, Airbag, Front LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89173-09480 |
Sensor, Airbag, Front LH
2007-11 → 2012-03
ended
|
UPK6#,USK6# | — | |
| 89173-09730 |
Sensor, Airbag, Front LH
2012-03 → 2017-08
ended
|
USK6# | — | |
| 89173-09730 |
Sensor, Airbag, Front LH
2012-03 → 2012-08
ended
|
UPK6# | — | |
| 89173-09C70 |
Sensor, Airbag, Front LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89173-09C70 |
Sensor, Airbag, Front LH
2017-08 → —
|
USK6# HTWC | — | |
| 89178A — Sensor, Seat Position Airbag | ||||
| 89178-06030 |
Sensor, Seat Position Airbag
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 89178-06030 |
Sensor, Seat Position Airbag
2007-11 → 2012-08
ended
|
UPK6# SR5 | — | |
| 89178-06030 |
Sensor, Seat Position Airbag
2007-11 → 2017-08
ended
|
USK6# SR5 | — | |
| 89178-06040 |
Sensor, Seat Position Airbag
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 89178-06040 note |
Sensor, Seat Position Airbag
2007-11 → 2017-08
ended
|
USK6# SR5 | — | |
| 89178-06040 note |
Sensor, Seat Position Airbag
2007-11 → 2017-08
ended
|
USK6# SR5 | — | |
| 89178-06040 |
Sensor, Seat Position Airbag
2007-11 → 2017-08
ended
|
USK6# LIMD,PLAT | — | |
| 89178-06040 note |
Sensor, Seat Position Airbag
2007-11 → 2012-08
ended
|
UPK6# SR5 | — | |
| 89178-06040 note |
Sensor, Seat Position Airbag
2007-11 → 2012-08
ended
|
UPK6# SR5 | — | |
| 89178-06040 note |
Sensor, Seat Position Airbag
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 89178-06040 note |
Sensor, Seat Position Airbag
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 89178-06040 |
Sensor, Seat Position Airbag
2007-11 → 2012-08
ended
|
UPK6# LIMD | — | |
| 89178-06040 |
Sensor, Seat Position Airbag
2017-08 → —
|
USK6# | — | |
| 89833 — Sensor, Airbag, Rear RH | ||||
| 89831-0C060 |
Sensor, Airbag, Rear RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89831-0C060 |
Sensor, Airbag, Rear RH
2007-11 → 2012-03
ended
|
UPK6#,USK6# | — | |
| 89831-0C100 |
Sensor, Airbag, Rear RH
2012-03 → 2012-08
ended
|
UPK6# | — | |
| 89831-0C100 |
Sensor, Airbag, Rear RH
2012-03 → 2017-08
ended
|
USK6# | — | |
| 89831-0C140 |
Sensor, Airbag, Rear RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89831-0C140 |
Sensor, Airbag, Rear RH
2017-08 → —
|
USK6# HTWC | — | |
| 89834 — Sensor, Airbag, Rear LH | ||||
| 89831-0C060 |
Sensor, Airbag, Rear LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89831-0C060 |
Sensor, Airbag, Rear LH
2007-11 → 2012-03
ended
|
UPK6#,USK6# | — | |
| 89831-0C100 |
Sensor, Airbag, Rear LH
2012-03 → 2012-08
ended
|
UPK6# | — | |
| 89831-0C100 |
Sensor, Airbag, Rear LH
2012-03 → 2017-08
ended
|
USK6# | — | |
| 89831-0C140 |
Sensor, Airbag, Rear LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89831-0C140 |
Sensor, Airbag, Rear LH
2017-08 → —
|
USK6# HTWC | — | |
| 89860 — Sensor Assy, Side Airbag, RH | ||||
| 89831-0C050 |
Sensor Assy, Side Airbag, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89831-0C050 |
Sensor Assy, Side Airbag, RH
2007-11 → 2012-03
ended
|
UPK6#,USK6# | — | |
| 89831-0C090 |
Sensor Assy, Side Airbag, RH
2012-03 → 2012-08
ended
|
UPK6# | — | |
| 89831-0C090 |
Sensor Assy, Side Airbag, RH
2012-03 → 2017-08
ended
|
USK6# | — | |
| 89831-0C130 |
Sensor Assy, Side Airbag, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89831-0C130 |
Sensor Assy, Side Airbag, RH
2017-08 → —
|
USK6# HTWC | — | |
| 89860A — Sensor Assy, Side Airbag, LH | ||||
| 89831-0C050 |
Sensor Assy, Side Airbag, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89831-0C050 |
Sensor Assy, Side Airbag, LH
2007-11 → 2012-03
ended
|
UPK6#,USK6# | — | |
| 89831-0C090 |
Sensor Assy, Side Airbag, LH
2012-03 → 2012-08
ended
|
UPK6# | — | |
| 89831-0C090 |
Sensor Assy, Side Airbag, LH
2012-03 → 2017-08
ended
|
USK6# | — | |
| 89831-0C130 |
Sensor Assy, Side Airbag, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89831-0C130 |
Sensor Assy, Side Airbag, LH
2017-08 → —
|
USK6# HTWC | — | |
| 89952 — Computer, Occupant Detection | ||||
| 89952-35011 |
Computer, Occupant Detection
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# | — | |
| 89952-35011 |
Computer, Occupant Detection
2017-08 → 2020-11
ended
|
USK6# | — | |
| 89952-35020 |
Computer, Occupant Detection
2020-12 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
