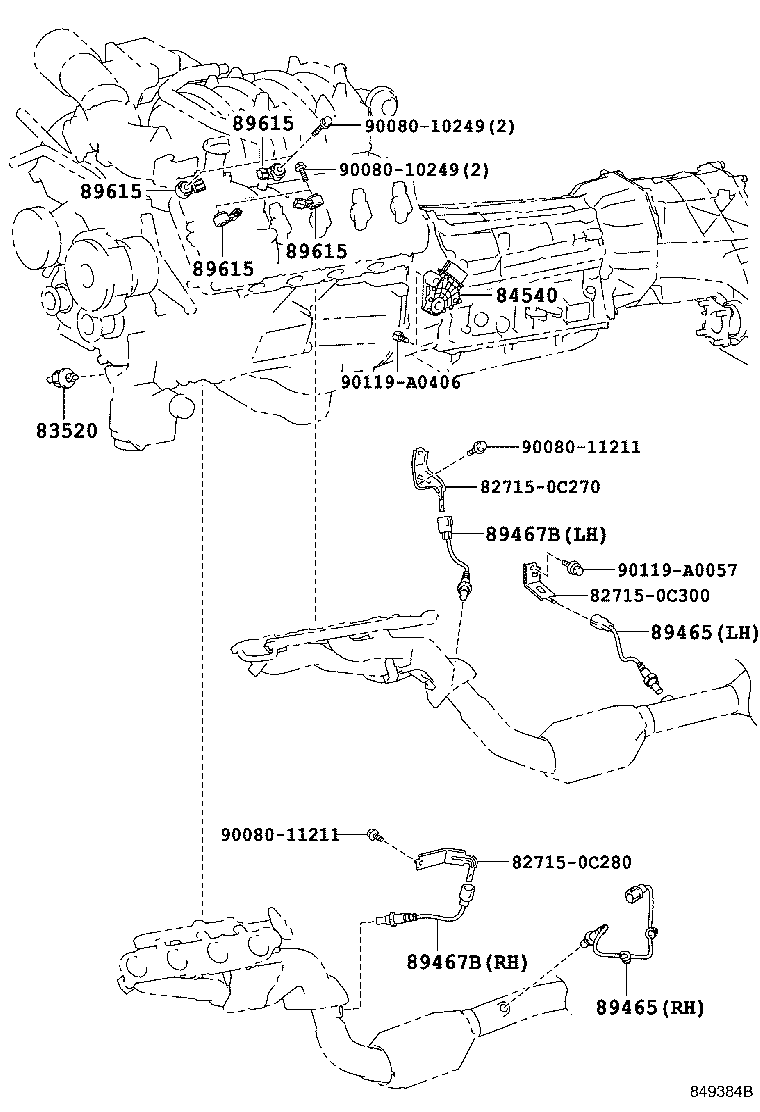

Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83520 — Gage Assy,Oil Pressure Sender | ||||
| 83520-60050 |
Gage Assy,Oil Pressure Sender
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 83520-60050 |
Gage Assy,Oil Pressure Sender
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 83520-60050 |
Gage Assy,Oil Pressure Sender
2007-11 → 2015-07
ended
|
USK6# | — | |
| 83520-60051 |
Gage Assy,Oil Pressure Sender
2015-08 → 2017-08
ended
|
USK6# | — | |
| 83520-60051 |
Gage Assy,Oil Pressure Sender
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 83520-60051 |
Gage Assy,Oil Pressure Sender
2017-08 → —
|
USK6# HTWC | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-0C010 |
Switch Assy, Neutral Start
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# | — | |
| 84540-0C010 |
Switch Assy, Neutral Start
2017-08 → —
|
USK6# | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-0C180 note |
Sensor, Oxygen
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89465-0C180 note |
Sensor, Oxygen
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 89465-0C180 note |
Sensor, Oxygen
2007-11 → 2015-08
ended
|
USK65 HTWCF | — | |
| 89465-0C180 note |
Sensor, Oxygen
2007-11 → 2013-08
ended
|
USK6# HTWC | — | |
| 89465-0C190 note |
Sensor, Oxygen
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 89465-0C190 note |
Sensor, Oxygen
2007-11 → 2015-08
ended
|
USK65 HTWCF | — | |
| 89465-0C190 note |
Sensor, Oxygen
2007-11 → 2013-08
ended
|
USK6# HTWC | — | |
| 89465-0C190 note |
Sensor, Oxygen
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89465-0C290 note |
Sensor, Oxygen
2014-11 → 2017-08
ended
|
USK6# HTWC | — | |
| 89465-0C290 note |
Sensor, Oxygen
2015-08 → 2017-08
ended
|
USK65 HTWCF | — | |
| 89465-0C300 note |
Sensor, Oxygen
2015-08 → 2017-08
ended
|
USK65 HTWCF | — | |
| 89465-0C300 note |
Sensor, Oxygen
2014-11 → 2017-08
ended
|
USK6# HTWC | — | |
| 89465-34160 note |
Sensor, Oxygen
2013-08 → 2014-10
ended
|
USK6# HTWC | — | |
| 89465-34170 note |
Sensor, Oxygen
2013-08 → 2014-10
ended
|
USK6# HTWC | — | |
| 89465-0C250 note |
Sensor, Oxygen
2017-08 → —
|
USK6# | — | |
| 89465-0C260 note |
Sensor, Oxygen
2017-08 → —
|
USK6# | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-04060 |
Sensor, Air Fuel Ratio
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 89467-04060 note |
Sensor, Air Fuel Ratio
2007-11 → 2009-06
ended
|
USK6# | — | |
| 89467-04060 note |
Sensor, Air Fuel Ratio
2009-06 → 2011-06
ended
|
USK6# | — | |
| 89467-04060 |
Sensor, Air Fuel Ratio
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89467-04090 note |
Sensor, Air Fuel Ratio
2012-03 → 2013-08
ended
|
USK6# HTWC | — | |
| 89467-04090 note |
Sensor, Air Fuel Ratio
2012-03 → 2015-08
ended
|
USK65 HTWCF | — | |
| 89467-0C030 note |
Sensor, Air Fuel Ratio
2009-06 → 2011-06
ended
|
USK6# | — | |
| 89467-0C050 note |
Sensor, Air Fuel Ratio
2012-03 → 2013-08
ended
|
USK6# HTWC | — | |
| 89467-0C050 note |
Sensor, Air Fuel Ratio
2012-03 → 2015-08
ended
|
USK65 HTWCF | — | |
| 89467-0C060 note |
Sensor, Air Fuel Ratio
2015-08 → 2017-08
ended
|
USK65 HTWCF | — | |
| 89467-0C060 note |
Sensor, Air Fuel Ratio
2013-08 → 2017-08
ended
|
USK6# HTWC | — | |
| 89467-0C070 note |
Sensor, Air Fuel Ratio
2015-08 → 2017-08
ended
|
USK65 HTWCF | — | |
| 89467-0C070 note |
Sensor, Air Fuel Ratio
2013-08 → 2017-08
ended
|
USK6# HTWC | — | |
| 89467-22030 note |
Sensor, Air Fuel Ratio
2011-06 → 2012-03
ended
|
USK6# | — | |
| 89467-34030 note |
Sensor, Air Fuel Ratio
2011-06 → 2012-03
ended
|
USK6# | — | |
| 89467-0C060 note |
Sensor, Air Fuel Ratio
2017-08 → —
|
USK6# | — | |
| 89467-0C070 note |
Sensor, Air Fuel Ratio
2017-08 → —
|
USK6# | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-06010 note |
Sensor, Knock Control
2010-08 → 2012-08
ended
|
UPK6# | — | |
| 89615-06010 note |
Sensor, Knock Control
2010-08 → 2017-08
ended
|
USK6# | — | |
| 89615-20090 |
Sensor, Knock Control
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89615-20090 |
Sensor, Knock Control
2007-11 → 2010-08
ended
|
UPK6#,USK6# | — | |
| 89615-20090 note |
Sensor, Knock Control
2010-08 → 2012-08
ended
|
UPK6# | — | |
| 89615-20090 note |
Sensor, Knock Control
2010-08 → 2017-08
ended
|
USK6# | — | |
| 89615-06010 note |
Sensor, Knock Control
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89615-06010 note |
Sensor, Knock Control
2017-08 → —
|
USK6# HTWC | — | |
| 89615-20090 note |
Sensor, Knock Control
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89615-20090 note |
Sensor, Knock Control
2017-08 → —
|
USK6# HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
