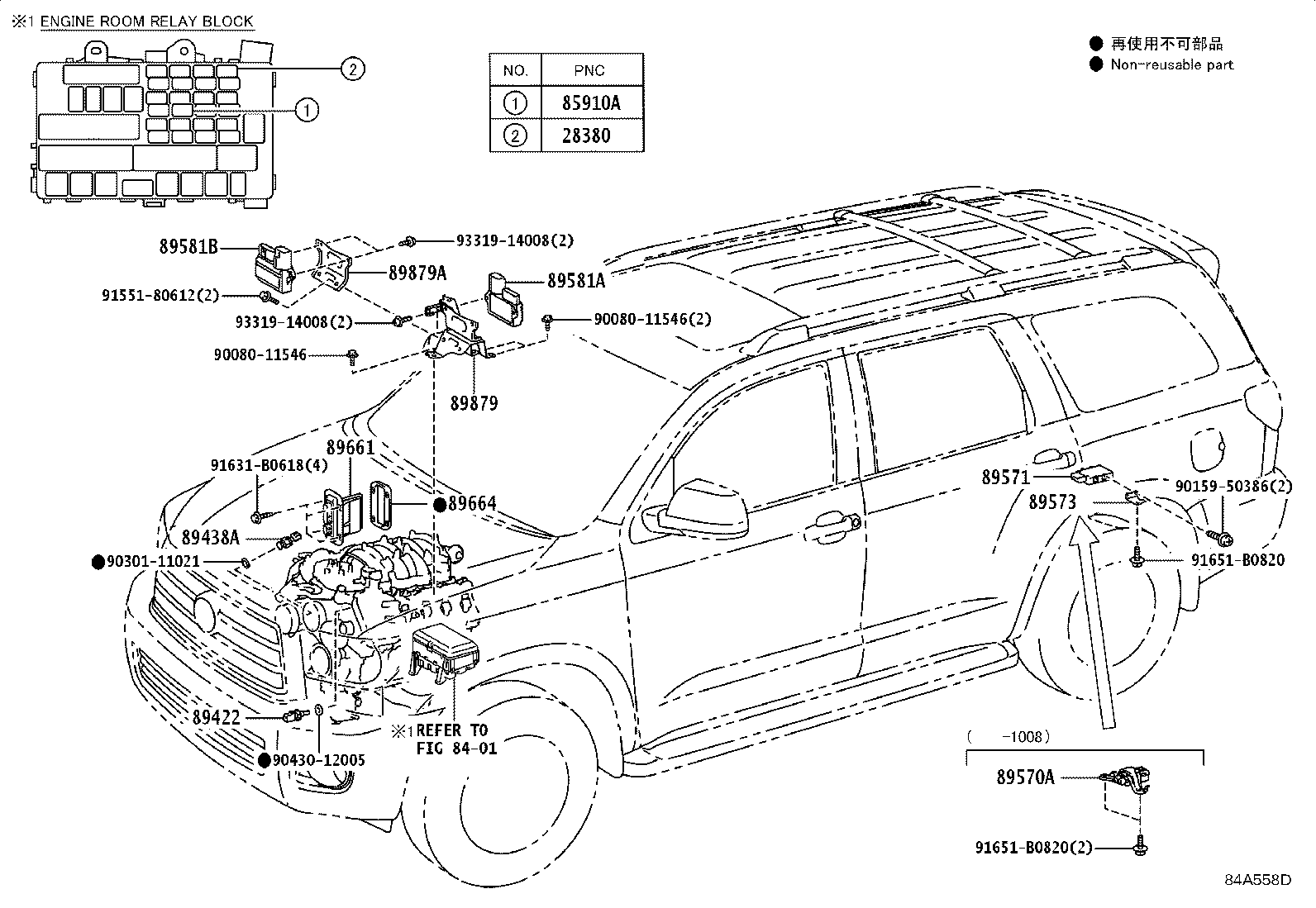

Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28380 — Relay Assy, Fuel Pump | ||||
| 90080-87026 |
Relay Assy, Fuel Pump
2008-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 90080-87026 |
Relay Assy, Fuel Pump
2007-11 → 2017-08
ended
|
1URFE,3URFE UPK6#,USK6# | — | |
| 90080-87026 |
Relay Assy, Fuel Pump
2017-08 → —
|
3URFE USK6# | — | |
| 90080-87026 |
Relay Assy, Fuel Pump
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 85910A — Relay Assy, Circuit Opening (FOR EFI) | ||||
| 90080-87026 |
Relay Assy, Circuit Opening (FOR EFI)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90080-87026 |
Relay Assy, Circuit Opening (FOR EFI)
2007-11 → 2010-08
ended
|
UPK6#,USK6# HTWC | — | |
| 90080-87026 |
Relay Assy, Circuit Opening (FOR EFI)
2007-11 → 2017-08
ended
|
USK65 HTWCF | — | |
| 90080-87024 |
Relay Assy, Circuit Opening (FOR EFI)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-06010 |
Sensor, Water Temperature (FOR E.F.I.)
2007-11 → 2008-08
ended
|
UCK6# | — | |
| 89422-06010 note |
Sensor, Water Temperature (FOR E.F.I.)
2008-08 → 2009-04
ended
|
UCK6# | — | |
| 89422-33030 note |
Sensor, Water Temperature (FOR E.F.I.)
2008-08 → 2009-04
ended
|
UCK6# | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2017-08 → —
|
USK6# HTWC | — | |
| 89438A — Switch, Power Steering Oil Pressure | ||||
| 89448-34010 |
Switch, Power Steering Oil Pressure
2007-11 → 2007-12
ended
|
UCK6#,USK6# | — | |
| 89448-34020 |
Switch, Power Steering Oil Pressure
2008-01 → 2017-08
ended
|
UCK6#,UPK6#,USK6# | — | |
| 89448-34020 |
Switch, Power Steering Oil Pressure
2017-08 → —
|
USK6# | — | |
| 89570A — Computer Assy, Fuel Pump Control | ||||
| 89570-34030 |
Computer Assy, Fuel Pump Control
2007-11 → 2010-08
ended
|
USK6# HTWC | — | |
| 89570-34040 |
Computer Assy, Fuel Pump Control
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89570-34040 |
Computer Assy, Fuel Pump Control
2007-11 → 2010-08
ended
|
UPK6# | — | |
| 89570-34050 |
Computer Assy, Fuel Pump Control
2008-08 → 2017-08
ended
|
USK65 HTWCF | — | |
| 89570-34050 |
Computer Assy, Fuel Pump Control
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89571 — Computer, Fuel Pump Control | ||||
| 89571-34070 |
Computer, Fuel Pump Control
2010-08 → 2012-08
ended
|
UPK6# | — | |
| 89571-34070 |
Computer, Fuel Pump Control
2010-08 → 2017-08
ended
|
USK6# HTWC | — | |
| 89571-34070 |
Computer, Fuel Pump Control
2017-08 → —
|
USK6# HTWC | — | |
| 89573 — Bracket, Fuel Pump Control Computer | ||||
| 89573-34040 |
Bracket, Fuel Pump Control Computer
2010-08 → 2012-08
ended
|
UPK6# | — | |
| 89573-34040 |
Bracket, Fuel Pump Control Computer
2010-08 → 2017-08
ended
|
USK6# HTWC | — | |
| 89573-34040 |
Bracket, Fuel Pump Control Computer
2017-08 → —
|
USK6# HTWC | — | |
| 89581A — Driver, Air Injection Control | ||||
| 89581-34041 |
Driver, Air Injection Control
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89581-34041 |
Driver, Air Injection Control
2007-11 → 2011-09
ended
|
USK6# | — | |
| 89581-34041 |
Driver, Air Injection Control
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 89581-60010 |
Driver, Air Injection Control
2011-09 → 2017-08
ended
|
USK6# | — | |
| 89581-60010 |
Driver, Air Injection Control
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89581-60010 |
Driver, Air Injection Control
2017-08 → —
|
USK6# HTWC | — | |
| 89581B — Driver, Air Injection Control | ||||
| 89581-34051 |
Driver, Air Injection Control
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89581-34051 |
Driver, Air Injection Control
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 89581-34051 |
Driver, Air Injection Control
2007-11 → 2011-09
ended
|
USK6# | — | |
| 89581-34080 |
Driver, Air Injection Control
2011-09 → 2017-08
ended
|
USK6# | — | |
| 89581-34080 |
Driver, Air Injection Control
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89581-34080 |
Driver, Air Injection Control
2017-08 → —
|
USK6# HTWC | — | |
| 89661 — Computer, Engine Control | ||||
| 89661-0CA20 note |
Computer, Engine Control
2007-11 → 2008-06
ended
|
UCK60 | — | |
| 89661-0CA21 note |
Computer, Engine Control
2008-06 → 2008-08
ended
|
UCK60 | — | |
| 89661-0CA30 note |
Computer, Engine Control
2007-11 → 2008-06
ended
|
UCK65 | — | |
| 89661-0CA31 note |
Computer, Engine Control
2008-06 → 2008-08
ended
|
UCK65 | — | |
| 89661-0CA40 note |
Computer, Engine Control
2007-11 → 2008-06
ended
|
UCK60 | — | |
| 89661-0CA40 |
Computer, Engine Control
2007-11 → 2008-06
ended
|
UCK60 | — | |
| 89661-0CA41 |
Computer, Engine Control
2008-06 → 2008-08
ended
|
UCK60 | — | |
| 89661-0CA41 note |
Computer, Engine Control
2008-06 → 2008-08
ended
|
UCK60 | — | |
| 89661-0CA50 |
Computer, Engine Control
2007-11 → 2008-06
ended
|
UCK65 | — | |
| 89661-0CA51 |
Computer, Engine Control
2008-06 → 2008-08
ended
|
UCK65 | — | |
| 89661-0CA60 note |
Computer, Engine Control
2007-11 → 2009-02
ended
|
UCK60 | — | |
| 89661-0CA70 note |
Computer, Engine Control
2007-11 → 2008-03
ended
|
USK65 | — | |
| 89661-0CA71 note |
Computer, Engine Control
2008-03 → 2008-08
ended
|
USK65 | — | |
| 89661-0CA80 note |
Computer, Engine Control
2007-11 → 2008-03
ended
|
USK60 | — | |
| 89661-0CA81 note |
Computer, Engine Control
2008-03 → 2008-08
ended
|
USK60 | — | |
| 89661-0CA90 |
Computer, Engine Control
2007-11 → 2008-03
ended
|
USK65 | — | |
| 89661-0CA91 |
Computer, Engine Control
2008-03 → 2008-08
ended
|
USK65 | — | |
| 89661-0CB00 |
Computer, Engine Control
2007-11 → 2008-03
ended
|
USK60 | — | |
| 89661-0CB01 |
Computer, Engine Control
2008-03 → 2008-08
ended
|
USK60 | — | |
| 89661-0CC40 |
Computer, Engine Control
2011-07 → 2012-08
ended
|
UPK6# | — | |
| 89661-0CC70 |
Computer, Engine Control
2008-08 → 2009-04
ended
|
USK65 HTWCF | — | |
| 89661-0CC80 note |
Computer, Engine Control
2008-08 → 2009-04
ended
|
USK65 HTWCF | — | |
| 89661-0CD30 note |
Computer, Engine Control
2008-08 → 2009-01
ended
|
USK65 HTWC | — | |
| 89661-0CD31 note |
Computer, Engine Control
2009-02 → 2009-04
ended
|
USK65 HTWC | — | |
| 89661-0CD40 note |
Computer, Engine Control
2008-08 → 2009-01
ended
|
USK60 | — | |
| 89661-0CD41 note |
Computer, Engine Control
2009-02 → 2009-04
ended
|
USK60 | — | |
| 89661-0CD50 |
Computer, Engine Control
2008-08 → 2009-01
ended
|
USK65 HTWC | — | |
| 89661-0CD51 |
Computer, Engine Control
2009-02 → 2009-04
ended
|
USK65 HTWC | — | |
| 89661-0CD60 |
Computer, Engine Control
2008-08 → 2009-01
ended
|
USK60 | — | |
| 89661-0CD61 |
Computer, Engine Control
2009-02 → 2009-04
ended
|
USK60 | — | |
| 89661-0CE20 note |
Computer, Engine Control
2008-08 → 2009-04
ended
|
USK60 | — | |
| 89661-0CE70 note |
Computer, Engine Control
2008-08 → 2009-02
ended
|
UCK60 | — | |
| 89661-0CE80 note |
Computer, Engine Control
2008-08 → 2009-02
ended
|
UCK65 | — | |
| 89661-0CE90 |
Computer, Engine Control
2008-08 → 2009-02
ended
|
UCK60 | — | |
| 89661-0CE90 note |
Computer, Engine Control
2008-08 → 2009-02
ended
|
UCK60 | — | |
| 89661-0CF00 |
Computer, Engine Control
2008-08 → 2009-02
ended
|
UCK65 | — | |
| 89661-0CG80 |
Computer, Engine Control
2009-04 → 2010-04
ended
|
USK65 HTWCF | — | |
| 89661-0CG81 |
Computer, Engine Control
2010-04 → 2010-08
ended
|
USK65 HTWCF | — | |
| 89661-0CG90 note |
Computer, Engine Control
2009-04 → 2010-04
ended
|
USK65 HTWCF | — | |
| 89661-0CG91 note |
Computer, Engine Control
2010-04 → 2010-08
ended
|
USK65 HTWCF | — | |
| 89661-0CJ00 note |
Computer, Engine Control
2009-04 → 2010-05
ended
|
USK65 HTWC | — | |
| 89661-0CJ01 note |
Computer, Engine Control
2010-05 → 2010-08
ended
|
USK65 HTWC | — | |
| 89661-0CJ10 note |
Computer, Engine Control
2009-04 → 2010-05
ended
|
USK60 | — | |
| 89661-0CJ11 note |
Computer, Engine Control
2010-05 → 2010-08
ended
|
USK60 | — | |
| 89661-0CJ20 |
Computer, Engine Control
2009-04 → 2010-05
ended
|
USK65 HTWC | — | |
| 89661-0CJ21 |
Computer, Engine Control
2010-05 → 2010-08
ended
|
USK65 HTWC | — | |
| 89661-0CJ30 |
Computer, Engine Control
2009-04 → 2010-05
ended
|
USK60 | — | |
| 89661-0CJ31 |
Computer, Engine Control
2010-05 → 2010-08
ended
|
USK60 | — | |
| 89661-0CJ40 note |
Computer, Engine Control
2009-04 → 2010-08
ended
|
USK60 | — | |
| 89661-0CJ50 note |
Computer, Engine Control
2009-04 → 2009-07
ended
|
UPK60 | — | |
| 89661-0CJ51 note |
Computer, Engine Control
2009-08 → 2010-05
ended
|
UPK60 | — | |
| 89661-0CJ52 note |
Computer, Engine Control
2010-05 → 2010-08
ended
|
UPK60 | — | |
| 89661-0CJ60 note |
Computer, Engine Control
2009-04 → 2009-07
ended
|
UPK65 | — | |
| 89661-0CJ61 note |
Computer, Engine Control
2009-08 → 2010-05
ended
|
UPK65 | — | |
| 89661-0CJ62 note |
Computer, Engine Control
2010-05 → 2010-08
ended
|
UPK65 | — | |
| 89661-0CJ70 |
Computer, Engine Control
2009-04 → 2010-05
ended
|
UPK60 | — | |
| 89661-0CJ71 |
Computer, Engine Control
2010-05 → 2010-08
ended
|
UPK60 | — | |
| 89661-0CJ80 |
Computer, Engine Control
2009-04 → 2010-05
ended
|
UPK65 | — | |
| 89661-0CJ81 |
Computer, Engine Control
2010-05 → 2010-08
ended
|
UPK65 | — | |
| 89661-0CJ90 note |
Computer, Engine Control
2009-04 → 2010-08
ended
|
UPK60 | — | |
| 89661-0CL20 note |
Computer, Engine Control
2013-08 → 2014-07
ended
|
USK6# HTWC | — | |
| 89661-0CL21 note |
Computer, Engine Control
2014-07 → 2014-10
ended
|
USK6# HTWC | — | |
| 89661-0CL22 note |
Computer, Engine Control
2014-11 → 2015-08
ended
|
USK6# HTWC | — | |
| 89661-0CL23 note |
Computer, Engine Control
2015-09 → 2017-08
ended
|
USK6# HTWC | — | |
| 89661-0CL30 |
Computer, Engine Control
2010-08 → 2010-10
ended
|
UPK6# | — | |
| 89661-0CL31 |
Computer, Engine Control
2010-11 → 2011-07
ended
|
UPK6# | — | |
| 89661-0CL50 note |
Computer, Engine Control
2010-08 → 2011-06
ended
|
USK6# HTWC | — | |
| 89661-0CL60 |
Computer, Engine Control
2010-08 → 2011-06
ended
|
USK6# HTWC | — | |
| 89661-0CL70 note |
Computer, Engine Control
2010-08 → 2011-06
ended
|
USK60 | — | |
| 89661-0CL80 |
Computer, Engine Control
2010-08 → 2011-06
ended
|
USK65 HTWCF | — | |
| 89661-0CL90 note |
Computer, Engine Control
2010-08 → 2011-06
ended
|
USK65 HTWCF | — | |
| 89661-0CM00 note |
Computer, Engine Control
2010-08 → 2012-08
ended
|
UPK60 | — | |
| 89661-0CM80 note |
Computer, Engine Control
2011-06 → 2012-01
ended
|
USK6# HTWC | — | |
| 89661-0CM81 note |
Computer, Engine Control
2012-02 → 2012-08
ended
|
USK6# HTWC | — | |
| 89661-0CM82 note |
Computer, Engine Control
2012-09 → 2013-01
ended
|
USK6# HTWC | — | |
| 89661-0CM83 note |
Computer, Engine Control
2013-02 → 2013-08
ended
|
USK6# HTWC | — | |
| 89661-0CM90 |
Computer, Engine Control
2011-06 → 2012-01
ended
|
USK6# HTWC | — | |
| 89661-0CM91 |
Computer, Engine Control
2012-02 → 2012-08
ended
|
USK6# HTWC | — | |
| 89661-0CM92 |
Computer, Engine Control
2012-09 → 2013-01
ended
|
USK6# HTWC | — | |
| 89661-0CM93 |
Computer, Engine Control
2013-02 → 2013-08
ended
|
USK6# HTWC | — | |
| 89661-0CN00 note |
Computer, Engine Control
2011-06 → 2013-08
ended
|
USK60 | — | |
| 89661-0CN20 |
Computer, Engine Control
2011-06 → 2012-01
ended
|
USK65 HTWCF | — | |
| 89661-0CN21 |
Computer, Engine Control
2012-02 → 2012-08
ended
|
USK65 HTWCF | — | |
| 89661-0CN22 |
Computer, Engine Control
2012-09 → 2013-01
ended
|
USK65 HTWCF | — | |
| 89661-0CN23 |
Computer, Engine Control
2013-02 → 2013-03
ended
|
USK65 HTWCF | — | |
| 89661-0CN24 |
Computer, Engine Control
2013-04 → 2013-08
ended
|
USK65 HTWCF | — | |
| 89661-0CN30 note |
Computer, Engine Control
2011-06 → 2012-01
ended
|
USK65 HTWCF | — | |
| 89661-0CN31 note |
Computer, Engine Control
2012-02 → 2012-08
ended
|
USK65 HTWCF | — | |
| 89661-0CN32 note |
Computer, Engine Control
2012-09 → 2013-01
ended
|
USK65 HTWCF | — | |
| 89661-0CN33 note |
Computer, Engine Control
2013-02 → 2013-03
ended
|
USK65 HTWCF | — | |
| 89661-0CN34 note |
Computer, Engine Control
2013-04 → 2013-08
ended
|
USK65 HTWCF | — | |
| 89661-0CN80 |
Computer, Engine Control
2013-08 → 2014-07
ended
|
USK6# HTWC | — | |
| 89661-0CN81 |
Computer, Engine Control
2014-07 → 2014-10
ended
|
USK6# HTWC | — | |
| 89661-0CN82 |
Computer, Engine Control
2014-11 → 2015-08
ended
|
USK6# HTWC | — | |
| 89661-0CN83 |
Computer, Engine Control
2015-09 → 2017-08
ended
|
USK6# HTWC | — | |
| 89661-0CN90 note |
Computer, Engine Control
2013-08 → 2017-08
ended
|
USK60 | — | |
| 89661-0CP70 |
Computer, Engine Control
2013-08 → 2014-07
ended
|
USK65 HTWCF | — | |
| 89661-0CP71 |
Computer, Engine Control
2014-07 → 2014-10
ended
|
USK65 HTWCF | — | |
| 89661-0CP72 |
Computer, Engine Control
2014-11 → 2014-12
ended
|
USK65 HTWCF | — | |
| 89661-0CP73 |
Computer, Engine Control
2015-01 → 2015-08
ended
|
USK65 HTWCF | — | |
| 89661-0CQ30 |
Computer, Engine Control
2015-08 → 2015-09
ended
|
USK65 HTWCF | — | |
| 89661-0CQ31 |
Computer, Engine Control
2015-09 → 2017-08
ended
|
USK65 HTWCF | — | |
| 89661-0CR80 note |
Computer, Engine Control
2017-08 → 2018-08
ended
|
USK6# HTWC | — | |
| 89661-0CR90 note |
Computer, Engine Control
2017-08 → 2018-08
ended
|
USK6# HTWC | — | |
| 89661-0CS00 note |
Computer, Engine Control
2017-08 → 2019-08
ended
|
USK60 | — | |
| 89661-0CS10 note |
Computer, Engine Control
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89661-0CS90 note |
Computer, Engine Control
2018-08 → 2019-08
ended
|
USK6# | — | |
| 89661-0CT00 note |
Computer, Engine Control
2018-08 → 2019-08
ended
|
USK6# | — | |
| 89661-0CT10 note |
Computer, Engine Control
2019-08 → 2020-09
ended
|
USK6# | — | |
| 89661-0CT20 note |
Computer, Engine Control
2019-08 → 2020-09
ended
|
USK6# | — | |
| 89661-0CT30 note |
Computer, Engine Control
2019-08 → —
|
USK60 | — | |
| 89661-0CV90 note |
Computer, Engine Control
2020-09 → —
|
USK6# | — | |
| 89661-0CW00 note |
Computer, Engine Control
2020-09 → —
|
USK6# | — | |
| 89664 — Plate, Engine Control Computer | ||||
| 89664-34010 |
Plate, Engine Control Computer
2007-11 → 2009-02
ended
|
UCK6# | — | |
| 89664-34010 |
Plate, Engine Control Computer
2008-08 → 2017-08
ended
|
USK65 HTWCF | — | |
| 89664-34010 |
Plate, Engine Control Computer
2007-11 → 2017-08
ended
|
USK6# HTWC | — | |
| 89664-34010 |
Plate, Engine Control Computer
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 89664-34010 |
Plate, Engine Control Computer
2017-08 → —
|
USK6# | — | |
| 89879 — Bracket, Injector Driver | ||||
| 89589-34020 |
Bracket, Injector Driver
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89589-34020 |
Bracket, Injector Driver
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 89589-34020 |
Bracket, Injector Driver
2007-11 → 2017-08
ended
|
USK6# | — | |
| 89589-34020 |
Bracket, Injector Driver
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89589-34020 |
Bracket, Injector Driver
2017-08 → —
|
USK6# HTWC | — | |
| 89879A — Bracket, Injector Driver | ||||
| 89589-34030 |
Bracket, Injector Driver
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89589-34030 |
Bracket, Injector Driver
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 89589-34030 |
Bracket, Injector Driver
2007-11 → 2017-08
ended
|
USK6# | — | |
| 89589-34030 |
Bracket, Injector Driver
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 89589-34030 |
Bracket, Injector Driver
2017-08 → —
|
USK6# HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
