Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

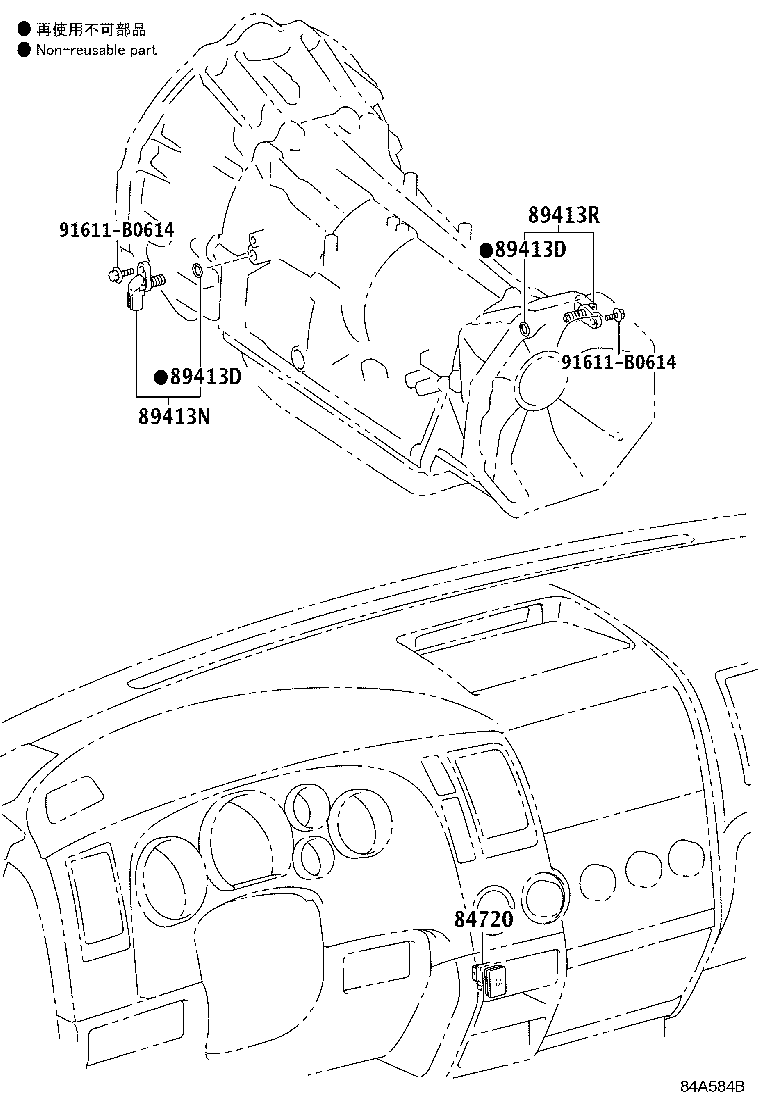

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84720 — Switch Assy, Pattern Select | ||||
| 84720-0C010 note |
Switch Assy, Pattern Select
2007-11 → 2010-08
ended
|
UPK6# | — | |
| 84720-0C010 |
Switch Assy, Pattern Select
2010-08 → 2012-08
ended
|
UPK6# | — | |
| 84720-0C010 note |
Switch Assy, Pattern Select
2010-08 → 2012-08
ended
|
UPK60 | — | |
| 84720-0C010 note |
Switch Assy, Pattern Select
2007-11 → 2013-08
ended
|
USK65 HTWCF | — | |
| 84720-0C010 note |
Switch Assy, Pattern Select
2007-11 → 2015-02
ended
|
USK6# HTWC | — | |
| 84720-0C010 |
Switch Assy, Pattern Select
2013-08 → 2015-02
ended
|
USK65 HTWCF | — | |
| 84720-0C010 note |
Switch Assy, Pattern Select
2007-11 → 2009-11
ended
|
UPK60,USK60 LIMD,SR5 | — | |
| 84720-0C011 |
Switch Assy, Pattern Select
2015-03 → 2017-08
ended
|
USK65 HTWCF | — | |
| 84720-0C011 note |
Switch Assy, Pattern Select
2015-03 → 2017-08
ended
|
USK6# HTWC | — | |
| 84720-0C011 |
Switch Assy, Pattern Select
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 84720-0C011 note |
Switch Assy, Pattern Select
2017-08 → —
|
USK6# HTWC | — | |
| 89413D — Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2017-08 → —
|
USK6# | — | |
| 89413N — Sensor, Transmission Revolution, (NT) | ||||
| 89413-0C010 |
Sensor, Transmission Revolution, (NT)
2007-11 → 2012-08
ended
|
UCK6#,UPK6# | — | |
| 89413-0C020 |
Sensor, Transmission Revolution, (NT)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 89413-0C020 |
Sensor, Transmission Revolution, (NT)
2017-08 → 2018-07
ended
|
USK6# | — | |
| 89413-0C021 |
Sensor, Transmission Revolution, (NT)
2018-08 → —
|
USK6# | — | |
| 89413R — Sensor, Transmission Revolution (SP2) | ||||
| 89413-0C010 |
Sensor, Transmission Revolution (SP2)
2007-11 → 2012-08
ended
|
UCK6#,UPK6# | — | |
| 89413-0C020 |
Sensor, Transmission Revolution (SP2)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 89413-0C020 |
Sensor, Transmission Revolution (SP2)
2017-08 → 2018-07
ended
|
USK6# | — | |
| 89413-0C021 |
Sensor, Transmission Revolution (SP2)
2018-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
