Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

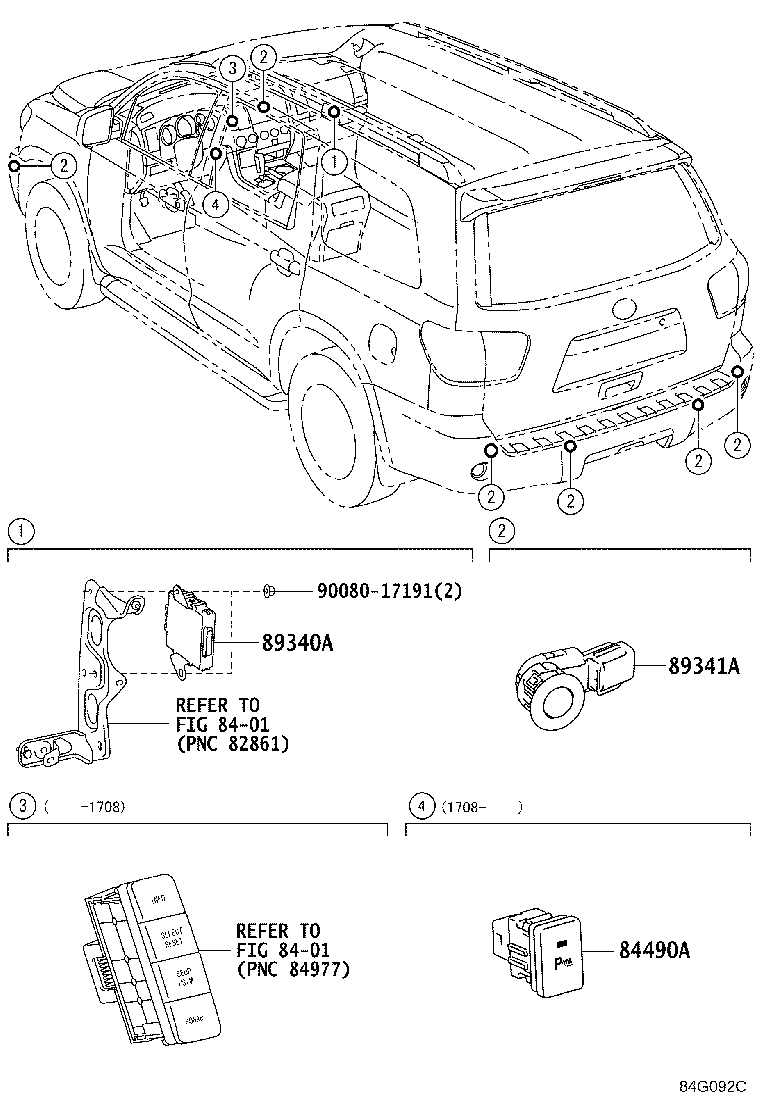

Exploded illustration 84G092C 8401 — not listed in this catalogue 89340A — COMPUTER ASSY, CLEARANCE WARNING (8 parts) 89341A — SENSOR, ULTRASONIC, NO.1 (96 parts) 9008017191 — not listed in this catalogue 84490A — SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR (3 parts) 8401 — not listed in this catalogue
84G092C · 3 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
107 parts on this figure
Part number Description Fitment Price
84490A — Switch Assy, Back Sonar OR Clearance Sonar
84490-35020 Switch Assy, Back Sonar OR Clearance Sonar
2017-08 → —
USK6# LIMD,PLAT —
84490-35020 Switch Assy, Back Sonar OR Clearance Sonar
2018-01 → —
USK6# SR5 —
84490-35020 note Switch Assy, Back Sonar OR Clearance Sonar
2017-08 → 2018-01 ended
USK6# SR5 —
89340A — Computer Assy, Clearance Warning
89340-0C010 Computer Assy, Clearance Warning
2014-08 → 2017-08 ended
USK6# LIMD,PLAT —
89340-0C010 note Computer Assy, Clearance Warning
2014-08 → 2017-08 ended
USK6# SR5 —
89340-34010 Computer Assy, Clearance Warning
2007-11 → 2014-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
89340-34010 note Computer Assy, Clearance Warning
2007-11 → 2014-08 ended
UCK6#,UPK6#,USK6# SR5 —
89340-0C010 note Computer Assy, Clearance Warning
2017-08 → 2018-01 ended
USK6# SR5 —
89340-0C010 note Computer Assy, Clearance Warning
2018-01 → 2021-12 ended
USK6# SR5 —
89340-0C010 Computer Assy, Clearance Warning
2017-08 → —
USK6# LIMD,PLAT —
89340-0C010 Computer Assy, Clearance Warning
2018-01 → —
USK6# SR5 —
89341A — Sensor, Ultrasonic, NO.1
89341-04010-A0 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# LIMD —
89341-04010-A0 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# SR5 —
89341-04010-A1 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# PLAT —
89341-04010-B0 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# SR5 —
89341-04010-B0 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# LIMD,PLAT —
89341-04010-B1 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# SR5 —
89341-04010-B1 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# LIMD,PLAT —
89341-04010-C0 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# SR5 —
89341-04010-C0 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# LIMD,PLAT —
89341-04010-D0 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# SR5 —
89341-04010-D0 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# LIMD,PLAT —
89341-04010-E0 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# SR5 —
89341-04010-E0 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# LIMD,PLAT —
89341-04010-E1 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# SR5 —
89341-04010-E1 note Sensor, Ultrasonic, NO.1
2014-08 → 2016-11 ended
USK6# LIMD,PLAT —
89341-0R050-A0 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# LIMD —
89341-0R050-A0 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# SR5 —
89341-0R050-A1 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# PLAT —
89341-0R050-B0 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# SR5 —
89341-0R050-B0 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# LIMD,PLAT —
89341-0R050-B1 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# SR5 —
89341-0R050-B1 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# LIMD,PLAT —
89341-0R050-C0 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# SR5 —
89341-0R050-C0 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# LIMD,PLAT —
89341-0R050-D1 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# SR5 —
89341-0R050-D1 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# LIMD,PLAT —
89341-0R050-E0 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# SR5 —
89341-0R050-E0 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# LIMD,PLAT —
89341-0R050-E1 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# SR5 —
89341-0R050-E1 note Sensor, Ultrasonic, NO.1
2016-12 → 2017-08 ended
USK6# LIMD,PLAT —
89341-33160-A0 note Sensor, Ultrasonic, NO.1
2007-11 → 2014-08 ended
UCK6#,UPK6#,USK6# SR5 —
89341-33160-A0 note Sensor, Ultrasonic, NO.1
2007-11 → 2014-08 ended
USK65 LIMD;USK65 PLAT HTWC;UCK6#,UPK6#,USK60 +1 —
89341-33160-A1 note Sensor, Ultrasonic, NO.1
2007-11 → 2009-04 ended
USK65 PLAT;USK65 LIMD HTWC;UCK6#,USK60 +1 —
89341-33160-A1 note Sensor, Ultrasonic, NO.1
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 HTWC —
89341-33160-A2 note Sensor, Ultrasonic, NO.1
2009-04 → 2014-08 ended
USK6# PLAT —
89341-33160-B1 note Sensor, Ultrasonic, NO.1
2007-11 → 2014-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
89341-33160-B1 note Sensor, Ultrasonic, NO.1
2007-11 → 2014-08 ended
UCK6#,UPK6#,USK6# SR5 —
89341-33160-B2 note Sensor, Ultrasonic, NO.1
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
89341-33160-B2 note Sensor, Ultrasonic, NO.1
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
89341-33160-B5 note Sensor, Ultrasonic, NO.1
2010-08 → 2014-08 ended
UPK6#,USK6# LIMD,PLAT —
89341-33160-B5 note Sensor, Ultrasonic, NO.1
2010-08 → 2014-08 ended
UPK6#,USK6# SR5 —
89341-33160-C0 note Sensor, Ultrasonic, NO.1
2007-11 → 2014-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
89341-33160-C0 note Sensor, Ultrasonic, NO.1
2007-11 → 2014-08 ended
UCK6#,UPK6#,USK6# SR5 —
89341-33160-D1 note Sensor, Ultrasonic, NO.1
2007-11 → 2011-07 ended
UCK6#,UPK6#,USK6# SR5 —
89341-33160-D1 note Sensor, Ultrasonic, NO.1
2007-11 → 2011-07 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
89341-33160-D6 note Sensor, Ultrasonic, NO.1
2011-07 → 2014-08 ended
UPK6#,USK6# LIMD,PLAT —
89341-33160-D6 note Sensor, Ultrasonic, NO.1
2011-07 → 2014-08 ended
UPK6#,USK6# SR5 —
89341-33160-E1 note Sensor, Ultrasonic, NO.1
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
89341-33160-E1 note Sensor, Ultrasonic, NO.1
2007-11 → 2009-04 ended
UCK6#,USK6# LIMD,PLAT —
89341-33160-E2 note Sensor, Ultrasonic, NO.1
2007-11 → 2014-08 ended
UCK6#,UPK6#,USK6# SR5 —
89341-33160-E2 note Sensor, Ultrasonic, NO.1
2007-11 → 2014-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
89341-33160-E8 note Sensor, Ultrasonic, NO.1
2009-04 → 2014-08 ended
UPK6#,USK6# SR5 —
89341-33160-E8 note Sensor, Ultrasonic, NO.1
2009-04 → 2014-08 ended
UPK6#,USK6# LIMD,PLAT —
89341-33160-G1 note Sensor, Ultrasonic, NO.1
2007-11 → 2009-04 ended
UCK6#,USK6# LIMD,PLAT —
89341-33160-G1 note Sensor, Ultrasonic, NO.1
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
89341-33160-G6 note Sensor, Ultrasonic, NO.1
2009-04 → 2010-08 ended
UPK6#,USK6# SR5 —
89341-33160-G6 note Sensor, Ultrasonic, NO.1
2009-04 → 2010-08 ended
UPK6#,USK6# LIMD,PLAT —
89341-33160-J2 note Sensor, Ultrasonic, NO.1
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
89341-33160-J2 note Sensor, Ultrasonic, NO.1
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
89341-0R050-A0 note Sensor, Ultrasonic, NO.1
2017-08 → 2018-01 ended
USK6# SR5 —
89341-0R050-A0 note Sensor, Ultrasonic, NO.1
2018-01 → 2021-08 ended
USK6# SR5 —
89341-0R050-A0 note Sensor, Ultrasonic, NO.1
2018-01 → 2021-08 ended
USK6# SR5 —
89341-0R050-A0 note Sensor, Ultrasonic, NO.1
2017-08 → 2021-08 ended
USK6# LIMD —
89341-0R050-A1 note Sensor, Ultrasonic, NO.1
2017-08 → 2021-08 ended
USK65 PLAT;USK60 LIMD,PLAT;USK65 LIMD +1 —
89341-0R050-A2 note Sensor, Ultrasonic, NO.1
2021-08 → —
USK6# —
89341-0R050-A2 note Sensor, Ultrasonic, NO.1
2021-08 → 2021-12 ended
USK6# SR5 —
89341-0R050-B0 note Sensor, Ultrasonic, NO.1
2017-08 → 2018-01 ended
USK6# SR5 —
89341-0R050-B0 note Sensor, Ultrasonic, NO.1
2018-01 → 2019-08 ended
USK6# SR5 —
89341-0R050-B0 note Sensor, Ultrasonic, NO.1
2018-01 → 2019-08 ended
USK6# SR5 —
89341-0R050-B0 note Sensor, Ultrasonic, NO.1
2017-08 → 2019-08 ended
USK6# LIMD,PLAT —
89341-0R050-B1 note Sensor, Ultrasonic, NO.1
2018-01 → 2021-12 ended
USK6# SR5 —
89341-0R050-B1 note Sensor, Ultrasonic, NO.1
2018-01 → —
USK6# SR5 —
89341-0R050-B1 note Sensor, Ultrasonic, NO.1
2017-08 → —
USK6# LIMD,PLAT —
89341-0R050-B1 note Sensor, Ultrasonic, NO.1
2017-08 → 2018-01 ended
USK6# SR5 —
89341-0R050-B2 note Sensor, Ultrasonic, NO.1
2019-08 → —
USK6# —
89341-0R050-B2 note Sensor, Ultrasonic, NO.1
2019-08 → 2021-12 ended
USK6# SR5 —
89341-0R050-C2 note Sensor, Ultrasonic, NO.1
2017-08 → 2018-01 ended
USK6# SR5 —
89341-0R050-C2 note Sensor, Ultrasonic, NO.1
2018-01 → 2021-12 ended
USK6# SR5 —
89341-0R050-C2 note Sensor, Ultrasonic, NO.1
2018-01 → —
USK6# SR5 —
89341-0R050-C2 note Sensor, Ultrasonic, NO.1
2017-08 → —
USK6# LIMD,PLAT —
89341-0R050-D1 note Sensor, Ultrasonic, NO.1
2018-01 → 2020-09 ended
USK6# SR5 —
89341-0R050-D1 note Sensor, Ultrasonic, NO.1
2017-08 → 2018-01 ended
USK6# SR5 —
89341-0R050-D1 note Sensor, Ultrasonic, NO.1
2018-01 → 2020-09 ended
USK6# SR5 —
89341-0R050-D1 note Sensor, Ultrasonic, NO.1
2017-08 → 2020-09 ended
USK6# LIMD,PLAT —
89341-0R050-E2 note Sensor, Ultrasonic, NO.1
2017-08 → 2019-08 ended
USK6# LIMD,PLAT —
89341-0R050-E2 note Sensor, Ultrasonic, NO.1
2017-08 → 2018-01 ended
USK6# SR5 —
89341-0R050-E2 note Sensor, Ultrasonic, NO.1
2018-01 → 2019-08 ended
USK6# SR5 —
89341-0R050-E2 note Sensor, Ultrasonic, NO.1
2018-01 → 2019-08 ended
USK6# SR5 —
89341-0R050-G0 note Sensor, Ultrasonic, NO.1
2019-08 → 2020-09 ended
USK65 SR5 —
89341-0R050-G0 note Sensor, Ultrasonic, NO.1
2019-08 → 2020-09 ended
USK65 SR5 —
89341-0R050-G1 note Sensor, Ultrasonic, NO.1
2020-09 → 2021-12 ended
USK65 SR5 —
89341-0R050-G1 note Sensor, Ultrasonic, NO.1
2020-09 → —
USK65 SR5 —
89341-0R050-J1 note Sensor, Ultrasonic, NO.1
2017-08 → —
USK6# LIMD,PLAT —
89341-0R050-J1 note Sensor, Ultrasonic, NO.1
2018-01 → 2021-12 ended
USK6# SR5 —
89341-0R050-J1 note Sensor, Ultrasonic, NO.1
2018-01 → —
USK6# SR5 —
89341-0R050-J1 note Sensor, Ultrasonic, NO.1
2017-08 → 2018-01 ended
USK6# SR5 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
