Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

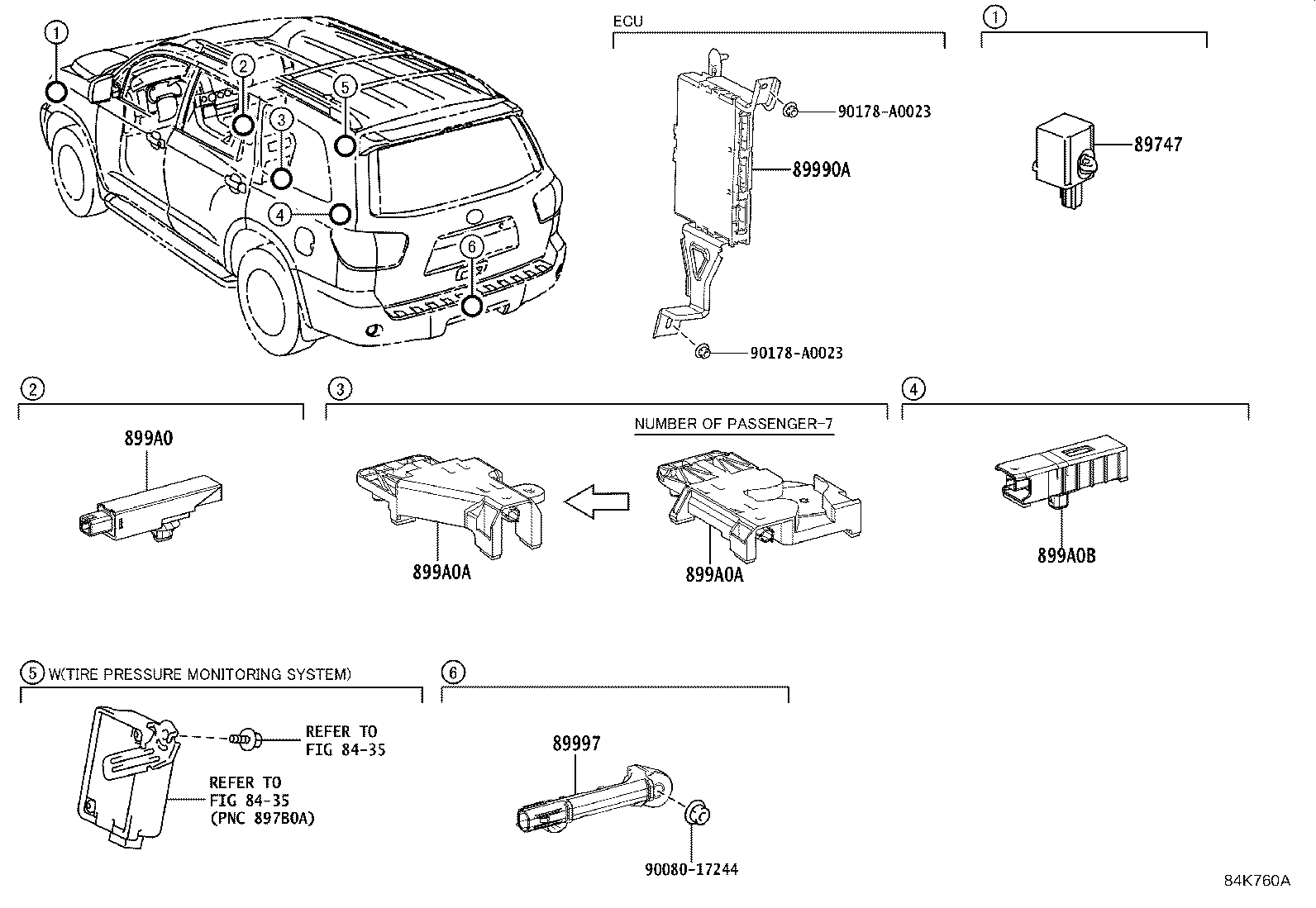

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-02010 |
Buzzer, Wireless Door Lock
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 89747-02010 |
Buzzer, Wireless Door Lock
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 89747-02010 |
Buzzer, Wireless Door Lock
2007-11 → 2017-08
ended
|
USK6# | — | |
| 89747-0R020 |
Buzzer, Wireless Door Lock
2017-08 → —
|
USK6# | — | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-0C030 |
Computer Assy, Smart Key
2019-08 → 2021-01
ended
|
USK6# | — | |
| 89990-0C030 note |
Computer Assy, Smart Key
2021-01 → 2021-04
ended
|
USK60 | — | |
| 89990-0C030 note |
Computer Assy, Smart Key
2021-01 → —
|
USK65 LIMD,PLAT | — | |
| 89990-0C110 |
Computer Assy, Smart Key
2021-01 → —
|
USK6# | — | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-0E050 |
Antenna, Electrical Key
2019-08 → —
|
USK6# | — | |
| 899A0 — Antenna Assy, Indoor Electrical Key, NO.1 | ||||
| 899A0-0R010 |
Antenna Assy, Indoor Electrical Key, NO.1
2019-08 → —
|
USK6# | — | |
| 899A0A — Antenna Assy, Indoor Electrical Key, NO.2 | ||||
| 899A0-0C050 |
Antenna Assy, Indoor Electrical Key, NO.2
2019-08 → —
|
USK6# LIMD,SR5 | — | |
| 899A0-0C060 |
Antenna Assy, Indoor Electrical Key, NO.2
2019-08 → —
|
USK6# PLAT | — | |
| 899A0-0C060 note |
Antenna Assy, Indoor Electrical Key, NO.2
2019-08 → —
|
USK6# LIMD,SR5 | — | |
| 899A0B — Antenna Assy, Indoor Electrical Key, NO.3 | ||||
| 899A0-0C070 |
Antenna Assy, Indoor Electrical Key, NO.3
2019-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
