Factory parts data · Europe

Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11

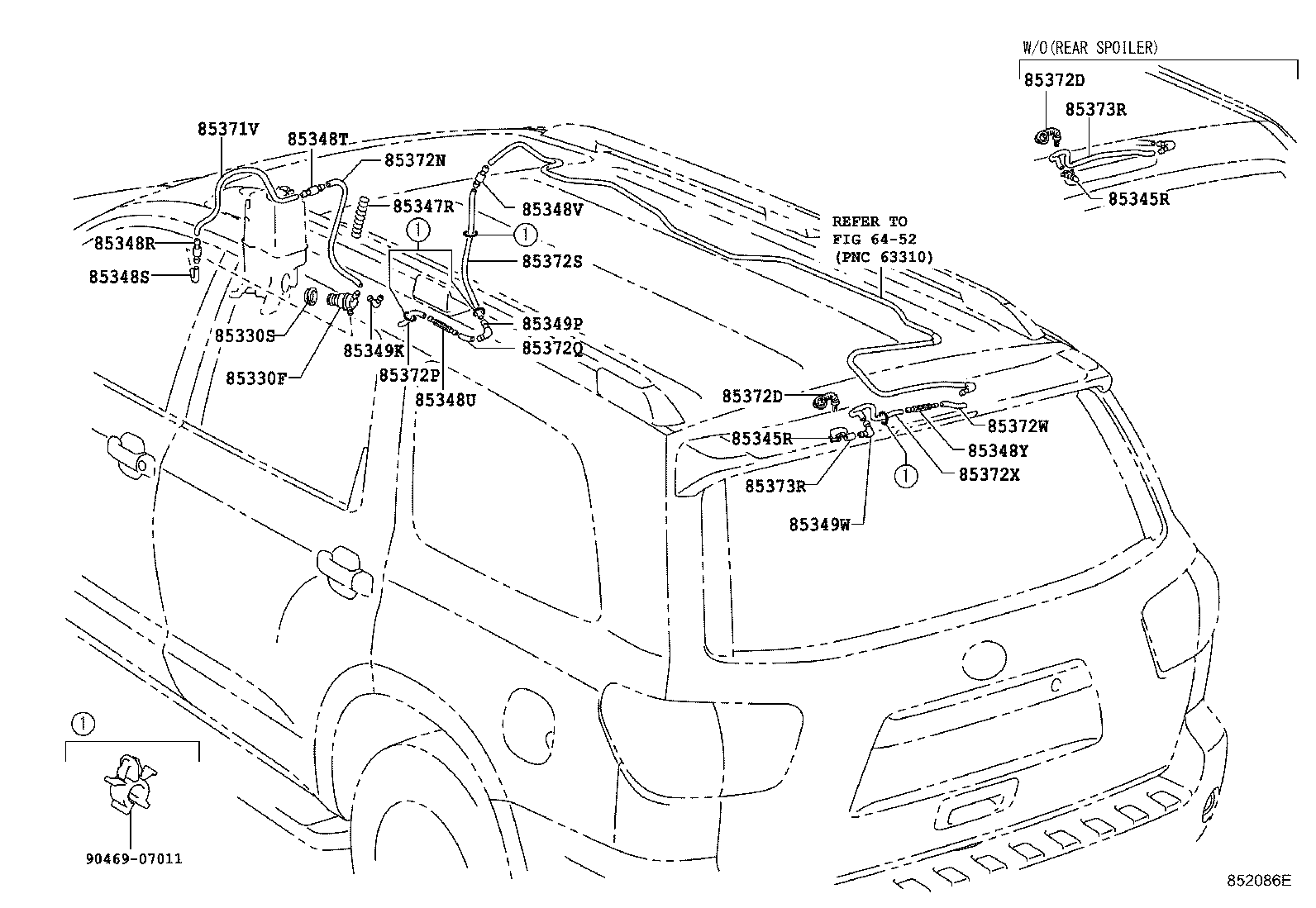

852086E · 25 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
164 parts on this figure
Part number Description Fitment Price
85330F — Motor & Pump Assy, RR Washer
85330-60180 Motor & Pump Assy, RR Washer
2007-11 → 2012-08 ended
UPK6# —
85330-60180 Motor & Pump Assy, RR Washer
2007-11 → 2009-04 ended
UCK6# —
85330-60180 Motor & Pump Assy, RR Washer
2007-11 → 2017-08 ended
USK6# —
85330-60180 Motor & Pump Assy, RR Washer
2017-08 → —
USK6# —
85330S — Bush, Rear Washer Jar
85336-60300 Bush, Rear Washer Jar
2007-11 → 2012-08 ended
UPK6# —
85336-60300 Bush, Rear Washer Jar
2007-11 → 2017-08 ended
USK6# —
85336-60300 Bush, Rear Washer Jar
2007-11 → 2009-04 ended
UCK6# —
85336-60300 Bush, Rear Washer Jar
2017-08 → —
USK6# —
85345R — Nozzle, Rear Washer
85391-0C030 Nozzle, Rear Washer
2007-11 → 2012-08 ended
UPK6# —
85391-0C030 Nozzle, Rear Washer
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
85391-0C030 Nozzle, Rear Washer
2007-11 → 2009-04 ended
UCK6# —
85391-0C040 note Nozzle, Rear Washer
2007-11 → 2009-04 ended
UCK6# LIMD —
85391-0C040 note Nozzle, Rear Washer
2008-08 → 2009-04 ended
UCK6#,USK6# SR5 —
85391-0C040 note Nozzle, Rear Washer
2007-11 → 2012-08 ended
UPK6# —
85391-0C040 note Nozzle, Rear Washer
2007-11 → 2008-08 ended
UCK6#,USK6# SR5 —
85391-0C040 Nozzle, Rear Washer
2007-11 → 2017-08 ended
USK6# PLAT —
85391-0C040 note Nozzle, Rear Washer
2007-11 → 2017-08 ended
USK6# LIMD —
85391-0C040 note Nozzle, Rear Washer
2009-04 → 2017-08 ended
USK6# SR5 —
85391-0C040 Nozzle, Rear Washer
2017-08 → 2017-09 ended
USK65 HTWCF —
85391-0C040 Nozzle, Rear Washer
2017-08 → —
USK6# HTWC —
85347R — Spring
85388-0C070 Spring
2007-11 → 2017-08 ended
USK6# —
85388-0C070 Spring
2007-11 → 2012-08 ended
UPK6# —
85388-0C070 Spring
2007-11 → 2009-04 ended
UCK6# —
85388-0C070 Spring
2017-08 → —
USK6# —
85348R — Joint, Rear Washer Hose, NO.1
85375-0E010 Joint, Rear Washer Hose, NO.1
2007-11 → 2009-04 ended
UCK6# —
85375-0E010 Joint, Rear Washer Hose, NO.1
2007-11 → 2012-08 ended
UPK6# —
85375-0E010 Joint, Rear Washer Hose, NO.1
2007-11 → 2017-08 ended
USK6# —
85375-0E010 Joint, Rear Washer Hose, NO.1
2017-08 → —
USK6# —
85348S — Joint, Rear Washer Elbow, NO.1
85336-12230 Joint, Rear Washer Elbow, NO.1
2007-11 → 2009-04 ended
UCK6# —
85336-12230 Joint, Rear Washer Elbow, NO.1
2007-11 → 2012-08 ended
UPK6# —
85336-12230 Joint, Rear Washer Elbow, NO.1
2007-11 → 2017-08 ended
USK6# —
85336-12230 Joint, Rear Washer Elbow, NO.1
2017-08 → —
USK6# —
85348T — Joint, Rear Washer Hose, NO.2
85375-0E010 Joint, Rear Washer Hose, NO.2
2007-11 → 2009-04 ended
UCK6# —
85375-0E010 Joint, Rear Washer Hose, NO.2
2007-11 → 2017-08 ended
USK6# —
85375-0E010 Joint, Rear Washer Hose, NO.2
2007-11 → 2012-08 ended
UPK6# —
85375-0E010 Joint, Rear Washer Hose, NO.2
2017-08 → —
USK6# —
85348U — Joint, Rear Washer Hose, NO.3
85349-32150 Joint, Rear Washer Hose, NO.3
2007-11 → 2009-04 ended
UCK6# —
85349-32150 Joint, Rear Washer Hose, NO.3
2007-11 → 2012-08 ended
UPK6# —
85349-32150 Joint, Rear Washer Hose, NO.3
2007-11 → 2017-08 ended
USK6# —
85349-32150 Joint, Rear Washer Hose, NO.3
2017-08 → 2017-09 ended
USK65 HTWCF —
85349-32150 Joint, Rear Washer Hose, NO.3
2017-08 → —
USK6# HTWC —
85348V — Joint, Rear Washer Hose, NO.4
85375-0E010 Joint, Rear Washer Hose, NO.4
2007-11 → 2017-08 ended
USK6# —
85375-0E010 Joint, Rear Washer Hose, NO.4
2007-11 → 2009-04 ended
UCK6# —
85375-0E010 Joint, Rear Washer Hose, NO.4
2007-11 → 2012-08 ended
UPK6# —
85375-0E010 Joint, Rear Washer Hose, NO.4
2017-08 → 2017-09 ended
USK65 HTWCF —
85375-0E010 Joint, Rear Washer Hose, NO.4
2017-08 → —
USK6# HTWC —
85348Y — Joint, Rear Washer Hose, NO.5
85349-32150 note Joint, Rear Washer Hose, NO.5
2007-11 → 2008-08 ended
UCK6#,USK6# SR5 —
85349-32150 note Joint, Rear Washer Hose, NO.5
2007-11 → 2009-04 ended
UCK6# LIMD —
85349-32150 note Joint, Rear Washer Hose, NO.5
2008-08 → 2009-04 ended
UCK6#,USK6# SR5 —
85349-32150 note Joint, Rear Washer Hose, NO.5
2007-11 → 2012-08 ended
UPK6# —
85349-32150 Joint, Rear Washer Hose, NO.5
2007-11 → 2017-08 ended
USK6# PLAT —
85349-32150 note Joint, Rear Washer Hose, NO.5
2007-11 → 2017-08 ended
USK6# LIMD —
85349-32150 note Joint, Rear Washer Hose, NO.5
2009-04 → 2017-08 ended
USK6# SR5 —
85349-32150 Joint, Rear Washer Hose, NO.5
2017-08 → —
USK6# HTWC —
85349-32150 Joint, Rear Washer Hose, NO.5
2017-08 → 2017-09 ended
USK65 HTWCF —
85349K — Joint, Rear Washer Elbow, NO.2
85375-02260 Joint, Rear Washer Elbow, NO.2
2007-11 → 2009-04 ended
UCK6# —
85375-02260 Joint, Rear Washer Elbow, NO.2
2007-11 → 2012-08 ended
UPK6# —
85375-02260 Joint, Rear Washer Elbow, NO.2
2007-11 → 2017-08 ended
USK6# —
85375-02260 Joint, Rear Washer Elbow, NO.2
2017-08 → —
USK6# —
85349P — Joint, Rear Washer Elbow, NO.3
85375-02260 Joint, Rear Washer Elbow, NO.3
2007-11 → 2009-04 ended
UCK6# —
85375-02260 Joint, Rear Washer Elbow, NO.3
2007-11 → 2012-08 ended
UPK6# —
85375-02260 Joint, Rear Washer Elbow, NO.3
2007-11 → 2017-08 ended
USK6# —
85375-02260 Joint, Rear Washer Elbow, NO.3
2017-08 → 2017-09 ended
USK65 HTWCF —
85375-02260 Joint, Rear Washer Elbow, NO.3
2017-08 → —
USK6# HTWC —
85349W — Joint, Rear Washer Elbow, NO.4
85375-02260 note Joint, Rear Washer Elbow, NO.4
2007-11 → 2008-08 ended
UCK6#,USK6# SR5 —
85375-02260 note Joint, Rear Washer Elbow, NO.4
2007-11 → 2009-04 ended
UCK6# LIMD —
85375-02260 note Joint, Rear Washer Elbow, NO.4
2008-08 → 2009-04 ended
UCK6#,USK6# SR5 —
85375-02260 note Joint, Rear Washer Elbow, NO.4
2007-11 → 2012-08 ended
UPK6# —
85375-02260 Joint, Rear Washer Elbow, NO.4
2007-11 → 2017-08 ended
USK6# PLAT —
85375-02260 note Joint, Rear Washer Elbow, NO.4
2007-11 → 2017-08 ended
USK6# LIMD —
85375-02260 note Joint, Rear Washer Elbow, NO.4
2009-04 → 2017-08 ended
USK6# SR5 —
85375-02260 Joint, Rear Washer Elbow, NO.4
2017-08 → —
USK6# HTWC —
85375-02260 Joint, Rear Washer Elbow, NO.4
2017-08 → 2017-09 ended
USK65 HTWCF —
85371V — Hose, Rear Washer (FROM JOINT TO JOINT)
90068-33086 note Hose, Rear Washer (FROM JOINT TO JOINT)
2007-11 → 2009-04 ended
UCK6# —
90068-33086 note Hose, Rear Washer (FROM JOINT TO JOINT)
2007-11 → 2009-04 ended
UCK6# —
90068-33086 note Hose, Rear Washer (FROM JOINT TO JOINT)
2007-11 → 2012-08 ended
UPK6# —
90068-33086 note Hose, Rear Washer (FROM JOINT TO JOINT)
2007-11 → 2012-08 ended
UPK6# —
90068-33086 note Hose, Rear Washer (FROM JOINT TO JOINT)
2007-11 → 2017-08 ended
USK6# —
90068-33086 note Hose, Rear Washer (FROM JOINT TO JOINT)
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
90068-33086 note Hose, Rear Washer (FROM JOINT TO JOINT)
2017-08 → —
USK6# —
85372D — Grommet, Rear Washer Hose
85373-35030 Grommet, Rear Washer Hose
2007-11 → 2017-08 ended
USK6# —
85373-35030 Grommet, Rear Washer Hose
2007-11 → 2009-04 ended
UCK6# —
85373-35030 Grommet, Rear Washer Hose
2007-11 → 2012-08 ended
UPK6# —
85373-35030 Grommet, Rear Washer Hose
2017-08 → 2017-09 ended
USK65 HTWCF —
85373-35030 Grommet, Rear Washer Hose
2017-08 → —
USK6# HTWC —
85372N — Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
90068-33087 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2007-11 → 2012-08 ended
UPK6# —
90068-33087 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2009-04 → 2017-08 ended
USK6# SR5 —
90068-33087 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2007-11 → 2017-08 ended
USK6# LIMD —
90068-33087 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2007-11 → 2017-08 ended
USK6# —
90068-33087 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2007-11 → 2012-08 ended
UPK6# —
90068-33087 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2008-08 → 2009-04 ended
UCK6#,USK6# SR5 —
90068-33087 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2007-11 → 2009-04 ended
UCK6# LIMD —
90068-33087 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2007-11 → 2009-04 ended
UCK6# —
90068-33087 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2007-11 → 2008-08 ended
UCK6#,USK6# SR5 —
90068-33087 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2017-08 → —
USK6# —
85372P — Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
90068-33171 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2011-05 → 2012-08 ended
UPK6# —
90068-33171 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2011-05 → 2017-08 ended
USK6# LIMD,SR5 —
90068-33171 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2011-05 → 2017-08 ended
USK6# —
90068-33171 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2011-05 → 2012-08 ended
UPK6# —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2007-11 → 2011-05 ended
UPK6#;USK6# LIMD —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2009-04 → 2011-05 ended
USK6# SR5 —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2008-08 → 2009-04 ended
UCK6#,USK6# SR5 —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2007-11 → 2008-08 ended
UCK6#,USK6# SR5 —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2007-11 → 2009-04 ended
UCK6# LIMD —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2007-11 → 2009-04 ended
UCK6# —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2007-11 → 2011-05 ended
UPK6#,USK6# —
90068-33171 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2017-08 → 2017-09 ended
USK65 HTWCF —
90068-33171 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2017-08 → —
USK6# HTWC —
85372Q — Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
90068-33170 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2011-05 → 2017-08 ended
USK6# LIMD,SR5 —
90068-33170 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2011-05 → 2017-08 ended
USK6# —
90068-33170 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2011-05 → 2012-08 ended
UPK6# —
90068-33170 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2011-05 → 2012-08 ended
UPK6# —
90068-45010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2007-11 → 2011-05 ended
UPK6#,USK6# —
90068-45010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2009-04 → 2011-05 ended
USK6# SR5 —
90068-45010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2007-11 → 2011-05 ended
UPK6#;USK6# LIMD —
90068-45010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2008-08 → 2009-04 ended
UCK6#,USK6# SR5 —
90068-45010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2007-11 → 2009-04 ended
UCK6# LIMD —
90068-45010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2007-11 → 2009-04 ended
UCK6# —
90068-45010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2007-11 → 2008-08 ended
UCK6#,USK6# SR5 —
90068-33170 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2017-08 → 2017-09 ended
USK65 HTWCF —
90068-33170 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2017-08 → —
USK6# HTWC —
85372S — Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
90068-33073 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2009-04 → 2011-05 ended
USK6# SR5 —
90068-33073 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2007-11 → 2009-04 ended
UCK6# —
90068-33073 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2007-11 → 2011-05 ended
UPK6#;USK6# LIMD —
90068-33073 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2007-11 → 2011-05 ended
UPK6#,USK6# —
90068-33073 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2007-11 → 2009-04 ended
UCK6# LIMD —
90068-33073 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2007-11 → 2008-08 ended
UCK6#,USK6# SR5 —
90068-33073 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2008-08 → 2009-04 ended
UCK6#,USK6# SR5 —
90068-33169 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2011-05 → 2012-08 ended
UPK6# —
90068-33169 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2011-05 → 2012-08 ended
UPK6# —
90068-33169 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2011-05 → 2017-08 ended
USK6# —
90068-33169 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2011-05 → 2017-08 ended
USK6# LIMD,SR5 —
90068-33169 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2017-08 → 2017-09 ended
USK65 HTWCF —
90068-33169 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2017-08 → —
USK6# HTWC —
85372W — Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2008-08 → 2009-04 ended
UCK6#,USK6# SR5 —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2009-04 → 2017-08 ended
USK6# SR5 —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2007-11 → 2017-08 ended
USK6# LIMD —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2007-11 → 2017-08 ended
USK6# PLAT —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2007-11 → 2012-08 ended
UPK6# —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2007-11 → 2009-04 ended
UCK6# LIMD —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2007-11 → 2008-08 ended
UCK6#,USK6# SR5 —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2017-08 → 2017-09 ended
USK65 HTWCF —
90068-45007 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2017-08 → —
USK6# HTWC —
85372X — Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
90068-33065 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
2008-01 → 2009-04 ended
UCK6# LIMD —
90068-33065 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
2009-04 → 2017-08 ended
USK6# SR5 —
90068-33065 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
2008-01 → 2017-08 ended
USK6# LIMD —
90068-33065 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
2008-01 → 2017-08 ended
USK6# PLAT —
90068-33065 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
2008-08 → 2009-04 ended
UCK6#,USK6# SR5 —
90068-33065 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
2008-01 → 2008-08 ended
UCK6#,USK6# SR5 —
90068-33065 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
2008-01 → 2012-08 ended
UPK6# —
90068-33065 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
2017-08 → 2017-09 ended
USK65 HTWCF —
90068-33065 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
2017-08 → —
USK6# HTWC —
85373R — Hose, Rear Washer (FROM JOINT TO NOZZLE)
90068-33053 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2007-11 → 2009-04 ended
UCK6# —
90068-33053 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2007-11 → 2012-08 ended
UPK6# —
90068-33053 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
90068-45010 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2008-08 → 2009-04 ended
UCK6#,USK6# SR5 —
90068-45010 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2009-04 → 2017-08 ended
USK6# SR5 —
90068-45010 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2007-11 → 2017-08 ended
USK6# LIMD —
90068-45010 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2007-11 → 2017-08 ended
USK6# PLAT —
90068-45010 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2007-11 → 2012-08 ended
UPK6# —
90068-45010 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2007-11 → 2009-04 ended
UCK6# LIMD —
90068-45010 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2007-11 → 2008-08 ended
UCK6#,USK6# SR5 —
90068-45010 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2017-08 → 2017-09 ended
USK65 HTWCF —
90068-45010 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2017-08 → —
USK6# HTWC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
