Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

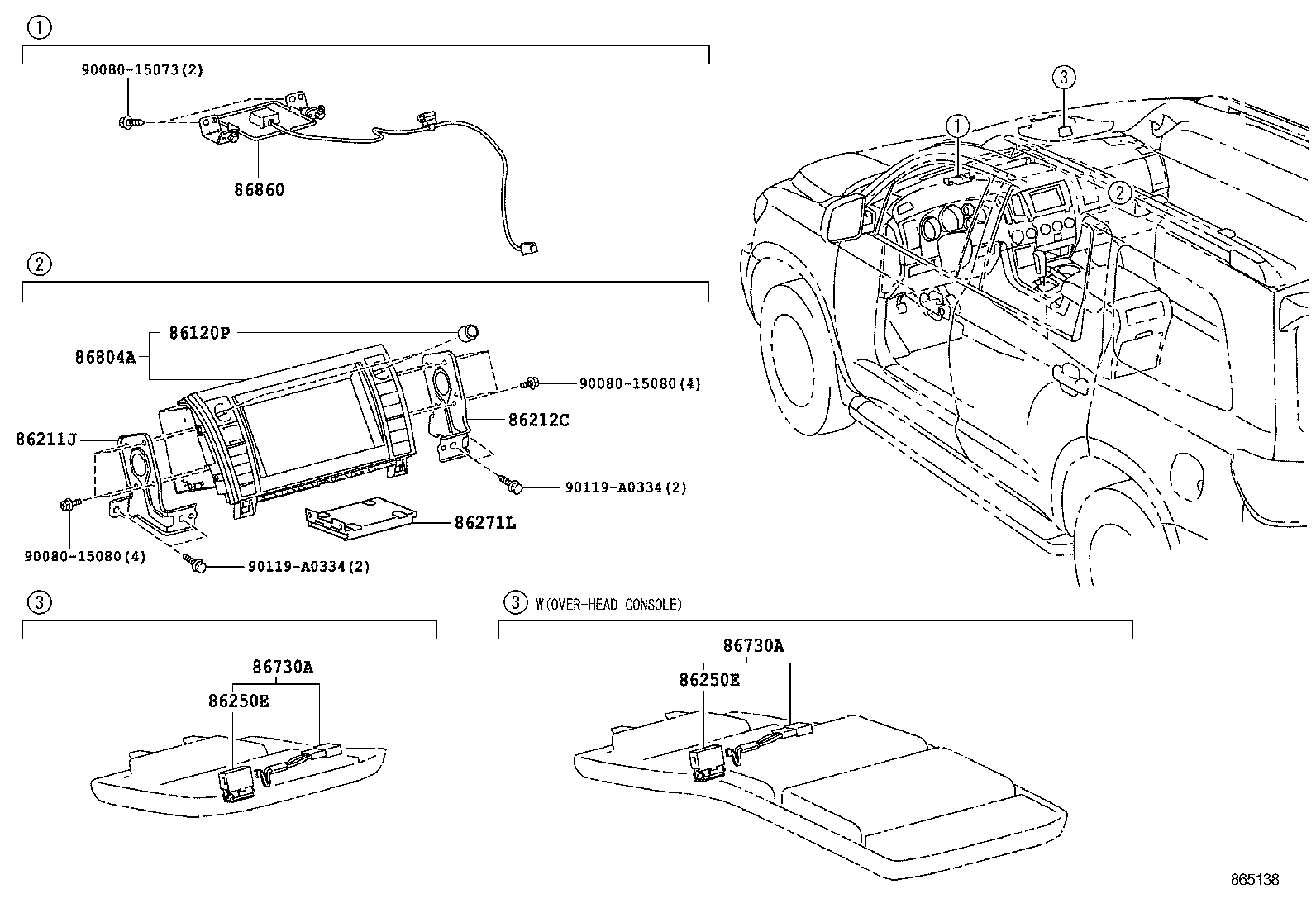

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120P — Knob, Navigation Receiver Switch | ||||
| 90010-26001 note |
Knob, Navigation Receiver Switch
2009-04 → 2011-07
ended
|
UPK6#,USK6# SR5 | — | |
| 90010-26003 note |
Knob, Navigation Receiver Switch
2007-11 → 2009-04
ended
|
UCK6#,USK6# | — | |
| 90010-26007 note |
Knob, Navigation Receiver Switch
2009-04 → 2012-08
ended
|
UPK65,USK65 (LIMD,PLAT) HTWC | — | |
| 90010-26007 note |
Knob, Navigation Receiver Switch
2009-04 → 2012-08
ended
|
UPK6#,USK6# LIMD,PLAT | — | |
| 90010-26007 note |
Knob, Navigation Receiver Switch
2012-08 → 2013-08
ended
|
USK65 (LIMD,PLAT) HTWC | — | |
| 90010-26007 note |
Knob, Navigation Receiver Switch
2012-08 → 2013-08
ended
|
USK6# LIMD,PLAT | — | |
| 90011-25243 |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK6# PLAT | — | |
| 90011-25243 note |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK6# PLAT | — | |
| 90011-25243 note |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK6# LIMD | — | |
| 90011-25243 note |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK65 LIMD HTWC | — | |
| 90011-25243 note |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK65 LIMD HTWC | — | |
| 90011-25243 note |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK60 LIMD | — | |
| 90011-25243 note |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK60 LIMD | — | |
| 90011-25243 note |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK6# SR5 | — | |
| 90011-25243 note |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK6# LIMD | — | |
| 90011-25243 note |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK6# LIMD HTWC | — | |
| 90011-25243 note |
Knob, Navigation Receiver Switch
2013-08 → 2017-08
ended
|
USK6# LIMD HTWC | — | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-0C040 note |
Bracket, Radio Receiver, NO.1
2007-11 → 2009-04
ended
|
UCK6#;USK6# SR5 | — | |
| 86211-0C040 note |
Bracket, Radio Receiver, NO.1
2012-08 → 2013-08
ended
|
USK6# LIMD,PLAT | — | |
| 86211-0C040 note |
Bracket, Radio Receiver, NO.1
2007-11 → 2012-08
ended
|
UPK6#,USK6# LIMD,PLAT | — | |
| 86211-0C050 note |
Bracket, Radio Receiver, NO.1
2011-07 → 2013-08
ended
|
USK6# SR5 | — | |
| 86211-0C050 note |
Bracket, Radio Receiver, NO.1
2011-07 → 2012-08
ended
|
UPK6# SR5 | — | |
| 86211-0C050 note |
Bracket, Radio Receiver, NO.1
2009-04 → 2011-07
ended
|
UPK6#,USK6# SR5 | — | |
| 86211-0C090 |
Bracket, Radio Receiver, NO.1
2013-08 → 2017-08
ended
|
USK6# | — | |
| 86211-0C090 note |
Bracket, Radio Receiver, NO.1
2013-08 → 2017-08
ended
|
USK6# | — | |
| 86211-0C090 |
Bracket, Radio Receiver, NO.1
2017-08 → 2019-08
ended
|
USK6# | — | |
| 86211-0C140 |
Bracket, Radio Receiver, NO.1
2019-08 → —
|
USK6# | — | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-0C040 note |
Bracket, Radio Receiver, NO.2
2007-11 → 2009-04
ended
|
UCK6#;USK6# SR5 | — | |
| 86212-0C040 note |
Bracket, Radio Receiver, NO.2
2007-11 → 2012-08
ended
|
UPK6#,USK6# LIMD,PLAT | — | |
| 86212-0C040 note |
Bracket, Radio Receiver, NO.2
2012-08 → 2013-08
ended
|
USK6# LIMD,PLAT | — | |
| 86212-0C050 note |
Bracket, Radio Receiver, NO.2
2009-04 → 2011-07
ended
|
UPK6#,USK6# SR5 | — | |
| 86212-0C050 note |
Bracket, Radio Receiver, NO.2
2011-07 → 2012-08
ended
|
UPK6# SR5 | — | |
| 86212-0C050 note |
Bracket, Radio Receiver, NO.2
2011-07 → 2013-08
ended
|
USK6# SR5 | — | |
| 86212-0C090 |
Bracket, Radio Receiver, NO.2
2013-08 → 2017-08
ended
|
USK6# | — | |
| 86212-0C090 note |
Bracket, Radio Receiver, NO.2
2013-08 → 2017-08
ended
|
USK6# | — | |
| 86212-0C090 |
Bracket, Radio Receiver, NO.2
2017-08 → 2019-08
ended
|
USK6# | — | |
| 86212-0C140 |
Bracket, Radio Receiver, NO.2
2019-08 → —
|
USK6# | — | |
| 86250E — Microphone Assy, Amplifier | ||||
| 86250-52020 note |
Microphone Assy, Amplifier
2011-07 → 2013-08
ended
|
USK6# SR5 | — | |
| 86250-52020 |
Microphone Assy, Amplifier
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 86250-52020 |
Microphone Assy, Amplifier
2013-08 → 2017-08
ended
|
USK6# SR5 | — | |
| 86250-52020 |
Microphone Assy, Amplifier
2007-11 → 2017-08
ended
|
USK6# LIMD,PLAT | — | |
| 86250-52020 note |
Microphone Assy, Amplifier
2009-04 → 2013-08
ended
|
USK6# SR5 | — | |
| 86250-52020 note |
Microphone Assy, Amplifier
2011-07 → 2012-08
ended
|
UPK6# SR5 | — | |
| 86250-52020 note |
Microphone Assy, Amplifier
2009-04 → 2012-08
ended
|
UPK6# SR5 | — | |
| 86250-52020 |
Microphone Assy, Amplifier
2007-11 → 2012-08
ended
|
UPK6# LIMD | — | |
| 86250-52020 note |
Microphone Assy, Amplifier
2007-11 → 2011-07
ended
|
UPK6#,USK6# SR5 | — | |
| 86250-52020 note |
Microphone Assy, Amplifier
2007-11 → 2009-04
ended
|
UCK6#,USK6# SR5 | — | |
| 86250-52020 note |
Microphone Assy, Amplifier
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 86250-52020 |
Microphone Assy, Amplifier
2017-08 → 2019-08
ended
|
USK6# | — | |
| 86271L — Hard Disc | ||||
| 86271-06061 note |
Hard Disc
2012-08 → 2013-08
ended
|
USK6# LIMD,PLAT | — | |
| 86271-06061 note |
Hard Disc
2012-08 → 2013-08
ended
|
USK65 (LIMD,PLAT) HTWC | — | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-52010 note |
Microphone Assy, Telephone
2009-04 → 2013-08
ended
|
UPK6#,USK6# SR5 | — | |
| 86730-52010 |
Microphone Assy, Telephone
2013-08 → 2017-08
ended
|
USK6# SR5 | — | |
| 86730-52010 |
Microphone Assy, Telephone
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# LIMD,PLAT | — | |
| 86730-52010 note |
Microphone Assy, Telephone
2011-07 → 2013-08
ended
|
UPK6#,USK6# SR5 | — | |
| 86730-52010 note |
Microphone Assy, Telephone
2007-11 → 2011-07
ended
|
UCK6#,UPK6#,USK6# SR5 | — | |
| 86730-52010 note |
Microphone Assy, Telephone
2007-11 → 2009-04
ended
|
UCK6#,USK6# SR5 | — | |
| 86730-45030 |
Microphone Assy, Telephone
2021-06 → —
|
USK6# | — | |
| 86730-48100 |
Microphone Assy, Telephone
2019-08 → 2021-05
ended
|
USK6# | — | |
| 86730-52010 |
Microphone Assy, Telephone
2017-08 → 2019-08
ended
|
USK6# | — | |
| 86804A — Sub-assy, Navigation Computer | ||||
| 86804-0C010 note |
Sub-assy, Navigation Computer
2012-08 → 2013-08
ended
|
USK6# LIMD,PLAT | — | |
| 86804-0C020 note |
Sub-assy, Navigation Computer
2012-08 → 2013-08
ended
|
USK65 (LIMD,PLAT) HTWC | — | |
| 86804-0C030 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK6# LIMD,PLAT | — | |
| 86804-0C030 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK6# SR5 | — | |
| 86804-0C040 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK65 (LIMD,PLAT) HTWC | — | |
| 86804-0C040 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK60 LIMD,PLAT | — | |
| 86804-0C040 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK6# (LIMD,PLAT) HTWC | — | |
| 86804-0C050 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK6# LIMD | — | |
| 86804-0C050 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK6# PLAT | — | |
| 86804-0C050 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK65 PLAT HTWC | — | |
| 86804-0C050 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK6# PLAT HTWC | — | |
| 86804-0C050 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK60 PLAT | — | |
| 86804-0C050 |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK6# PLAT | — | |
| 86804-0C060 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK6# PLAT HTWC | — | |
| 86804-0C060 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK65 PLAT HTWC | — | |
| 86804-0C060 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK60 PLAT | — | |
| 86804-0C060 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK65 LIMD HTWC | — | |
| 86804-0C060 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK60 LIMD | — | |
| 86804-0C060 note |
Sub-assy, Navigation Computer
2013-08 → 2015-08
ended
|
USK6# LIMD HTWC | — | |
| 86804-0C160 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK6# LIMD,PLAT | — | |
| 86804-0C160 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK6# SR5 | — | |
| 86804-0C170 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK65 (LIMD,PLAT) HTWC | — | |
| 86804-0C170 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK60 LIMD,PLAT | — | |
| 86804-0C170 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK6# (LIMD,PLAT) HTWC | — | |
| 86804-0C180 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK6# PLAT | — | |
| 86804-0C180 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK6# LIMD | — | |
| 86804-0C180 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK60 PLAT | — | |
| 86804-0C180 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK6# PLAT HTWC | — | |
| 86804-0C180 |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK6# PLAT | — | |
| 86804-0C180 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK65 PLAT HTWC | — | |
| 86804-0C190 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK6# PLAT HTWC | — | |
| 86804-0C190 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK65 PLAT HTWC | — | |
| 86804-0C190 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK60 PLAT | — | |
| 86804-0C190 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK65 LIMD HTWC | — | |
| 86804-0C190 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK60 LIMD | — | |
| 86804-0C190 note |
Sub-assy, Navigation Computer
2015-08 → 2017-08
ended
|
USK6# LIMD HTWC | — | |
| 86804-0C230 note |
Sub-assy, Navigation Computer
2017-08 → 2018-06
ended
|
USK6# SR5 | — | |
| 86804-0C230 note |
Sub-assy, Navigation Computer
2017-08 → 2018-06
ended
|
USK6# LIMD,PLAT | — | |
| 86804-0C231 note |
Sub-assy, Navigation Computer
2018-06 → 2019-08
ended
|
USK6# SR5 | — | |
| 86804-0C231 note |
Sub-assy, Navigation Computer
2018-06 → 2019-08
ended
|
USK6# LIMD,PLAT | — | |
| 86804-0C240 |
Sub-assy, Navigation Computer
2017-08 → 2018-06
ended
|
USK6# PLAT | — | |
| 86804-0C240 note |
Sub-assy, Navigation Computer
2017-08 → 2018-06
ended
|
USK6# PLAT | — | |
| 86804-0C240 note |
Sub-assy, Navigation Computer
2017-08 → 2018-06
ended
|
USK6# LIMD | — | |
| 86804-0C241 note |
Sub-assy, Navigation Computer
2018-06 → 2019-08
ended
|
USK6# LIMD | — | |
| 86804-0C241 note |
Sub-assy, Navigation Computer
2018-06 → 2019-08
ended
|
USK6# PLAT | — | |
| 86804-0C241 |
Sub-assy, Navigation Computer
2018-06 → 2019-08
ended
|
USK6# PLAT | — | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-0C030 note |
Antenna Assy, Navigation
2015-08 → 2017-08
ended
|
USK60 SR5 | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2015-08 → 2017-08
ended
|
USK65 SR5 HTWC | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2015-08 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 86860-0C030 |
Antenna Assy, Navigation
2015-08 → 2017-08
ended
|
USK6# SR5 | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2013-08 → 2017-08
ended
|
USK65 PLAT HTWC | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2013-08 → 2017-08
ended
|
USK60 PLAT | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2013-08 → 2017-08
ended
|
USK65 PLAT HTWC | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2013-08 → 2017-08
ended
|
USK6# PLAT HTWC | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2013-08 → 2017-08
ended
|
USK65 LIMD HTWC | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2013-08 → 2017-08
ended
|
USK60 LIMD | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2013-08 → 2017-08
ended
|
USK65 LIMD HTWC | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2013-08 → 2017-08
ended
|
USK6# LIMD HTWC | — | |
| 86860-0C030 |
Antenna Assy, Navigation
2013-08 → 2017-08
ended
|
USK6# LIMD,PLAT | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2013-08 → 2015-08
ended
|
USK6# SR5 | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2013-08 → 2015-08
ended
|
USK6# SR5 | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2015-08 → 2017-08
ended
|
USK65 SR5 HTWC | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2015-08 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2015-08 → 2017-08
ended
|
USK65 SR5 HTWC | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2015-08 → 2017-08
ended
|
USK60 SR5 | — | |
| 86860-0C030 note |
Antenna Assy, Navigation
2015-08 → 2017-08
ended
|
USK65 SR5 HTWC | — | |
| 86860-34020 note |
Antenna Assy, Navigation
2007-11 → 2009-04
ended
|
UCK6#;USK6# SR5 | — | |
| 86860-34020 note |
Antenna Assy, Navigation
2012-08 → 2013-08
ended
|
USK6# LIMD,PLAT | — | |
| 86860-34020 note |
Antenna Assy, Navigation
2011-07 → 2013-08
ended
|
USK6# SR5 | — | |
| 86860-34020 note |
Antenna Assy, Navigation
2011-07 → 2012-08
ended
|
UPK6# SR5 | — | |
| 86860-34020 note |
Antenna Assy, Navigation
2007-11 → 2012-08
ended
|
UPK6#,USK6# LIMD,PLAT | — | |
| 86860-34020 note |
Antenna Assy, Navigation
2009-04 → 2011-07
ended
|
UPK6#,USK6# SR5 | — | |
| 86860-0C030 |
Antenna Assy, Navigation
2017-08 → 2019-08
ended
|
USK6# | — | |
| 86860-0E070 note |
Antenna Assy, Navigation
2019-08 → —
|
USK6# | — | |
| 86860-0E070 note |
Antenna Assy, Navigation
2019-08 → —
|
USK60 | — | |
| 86860-0E070 note |
Antenna Assy, Navigation
2019-08 → —
|
USK65 LIMD | — | |
| 86860-0E070 note |
Antenna Assy, Navigation
2019-08 → —
|
USK65 PLAT | — | |
| 86880-0E010 |
Antenna Assy, Navigation
2019-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
