Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

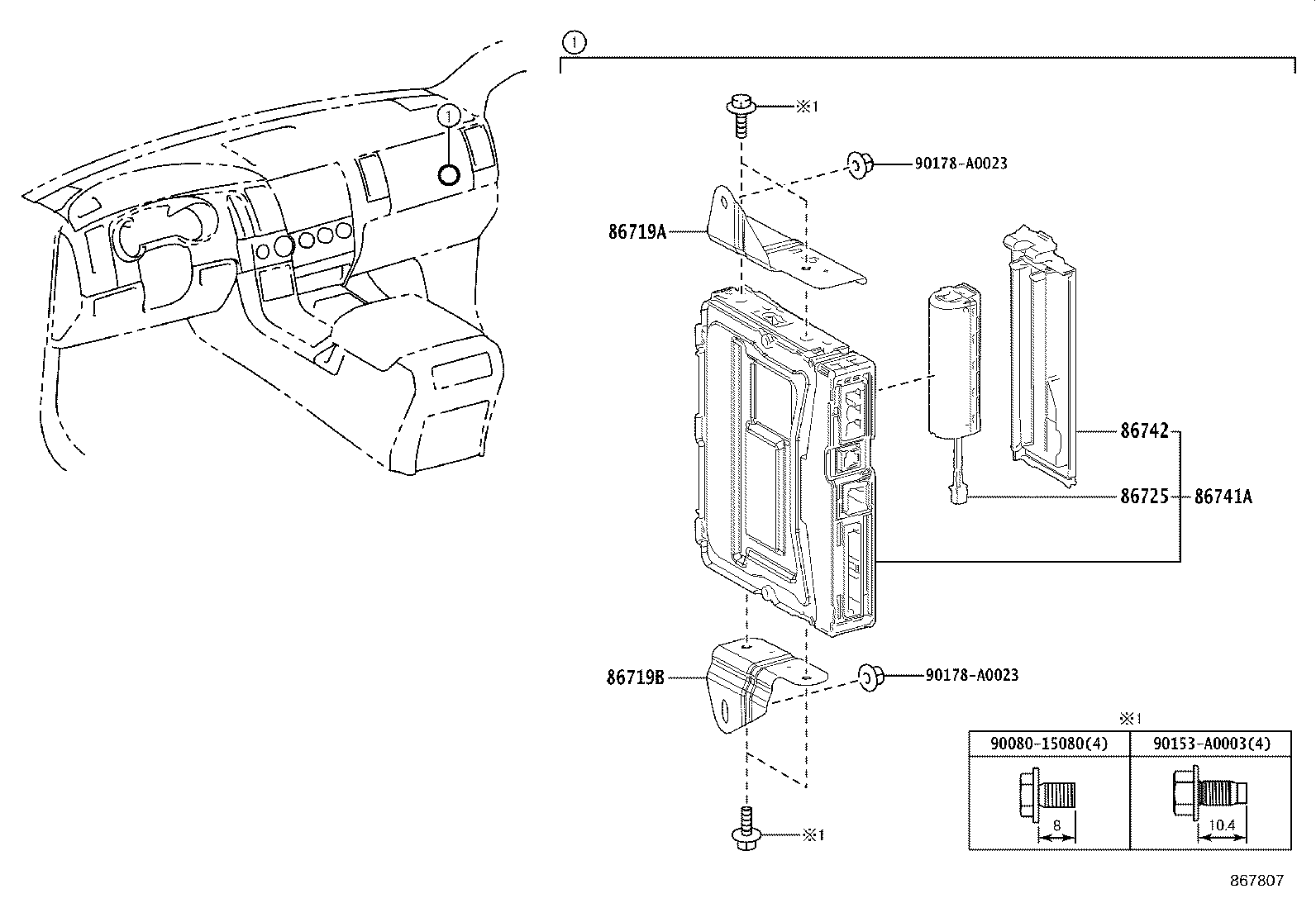

Exploded illustration 867807 86742 — COVER, TRANSCEIVER (4 parts) 86725 — BATTERY, MOBILEPHONE (4 parts) 86741A — TRANSCEIVER, TELEMATICS (9 parts) 86719A — BRACKET, TELEPHONE NO.1 (9 parts) 86719B — BRACKET, TELEPHONE NO.2 (9 parts) 90178A0023 — not listed in this catalogue 90178A0023 — not listed in this catalogue 9008015080 — not listed in this catalogue 90153A0003 — not listed in this catalogue
867807 · 5 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
86719A — Bracket, Telephone NO.1
86719-0C030 note Bracket, Telephone NO.1
2019-08 → 2019-09 ended
USK60 —
86719-0C030 note Bracket, Telephone NO.1
2019-08 → 2019-09 ended
USK65 LIMD —
86719-0C030 note Bracket, Telephone NO.1
2019-08 → 2019-09 ended
USK65 PLAT —
86719-0C030 note Bracket, Telephone NO.1
2019-08 → 2021-12 ended
USK6# —
86719-0C030 note Bracket, Telephone NO.1
2019-08 → 2021-12 ended
USK60 —
86719-0C030 note Bracket, Telephone NO.1
2019-08 → 2021-12 ended
USK65 LIMD —
86719-0C030 note Bracket, Telephone NO.1
2019-08 → 2021-12 ended
USK65 PLAT —
86719-0C030 Bracket, Telephone NO.1
2019-08 → —
USK6# —
86719-0C030 note Bracket, Telephone NO.1
2019-08 → 2019-09 ended
USK6# —
86719B — Bracket, Telephone NO.2
86719-0C040 Bracket, Telephone NO.2
2019-08 → —
USK6# —
86719-0C040 note Bracket, Telephone NO.2
2019-08 → 2021-12 ended
USK65 PLAT —
86719-0C040 note Bracket, Telephone NO.2
2019-08 → 2021-12 ended
USK65 LIMD —
86719-0C040 note Bracket, Telephone NO.2
2019-08 → 2021-12 ended
USK60 —
86719-0C040 note Bracket, Telephone NO.2
2019-08 → 2019-09 ended
USK65 PLAT —
86719-0C040 note Bracket, Telephone NO.2
2019-08 → 2019-09 ended
USK65 LIMD —
86719-0C040 note Bracket, Telephone NO.2
2019-08 → 2019-09 ended
USK60 —
86719-0C040 note Bracket, Telephone NO.2
2019-08 → 2019-09 ended
USK6# —
86719-0C040 note Bracket, Telephone NO.2
2019-08 → 2021-12 ended
USK6# —
86725 — Battery, Mobilephone
86725-0E010 note Battery, Mobilephone
2019-08 → 2021-12 ended
USK6# —
86725-0E010 note Battery, Mobilephone
2019-08 → 2021-12 ended
USK60 —
86725-0E010 note Battery, Mobilephone
2019-08 → 2021-12 ended
USK65 LIMD,PLAT —
86725-0E010 Battery, Mobilephone
2019-08 → —
USK6# —
86741A — Transceiver, Telematics
86741-0E061 note Transceiver, Telematics
2019-08 → 2019-09 ended
USK65 LIMD —
86741-0E061 Transceiver, Telematics
2019-08 → —
USK6# —
86741-0E061 note Transceiver, Telematics
2019-08 → 2021-12 ended
USK65 PLAT —
86741-0E061 note Transceiver, Telematics
2019-08 → 2021-12 ended
USK65 LIMD —
86741-0E061 note Transceiver, Telematics
2019-08 → 2021-12 ended
USK60 —
86741-0E061 note Transceiver, Telematics
2019-08 → 2021-12 ended
USK6# —
86741-0E061 note Transceiver, Telematics
2019-08 → 2019-09 ended
USK65 PLAT —
86741-0E061 note Transceiver, Telematics
2019-08 → 2019-09 ended
USK60 —
86741-0E061 note Transceiver, Telematics
2019-08 → 2019-09 ended
USK6# —
86742 — Cover, Transceiver
86742-0E020 note Cover, Transceiver
2019-08 → 2021-12 ended
USK6# —
86742-0E020 note Cover, Transceiver
2019-08 → 2021-12 ended
USK60 —
86742-0E020 note Cover, Transceiver
2019-08 → 2021-12 ended
USK65 LIMD,PLAT —
86742-0E020 Cover, Transceiver
2019-08 → —
USK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
