Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

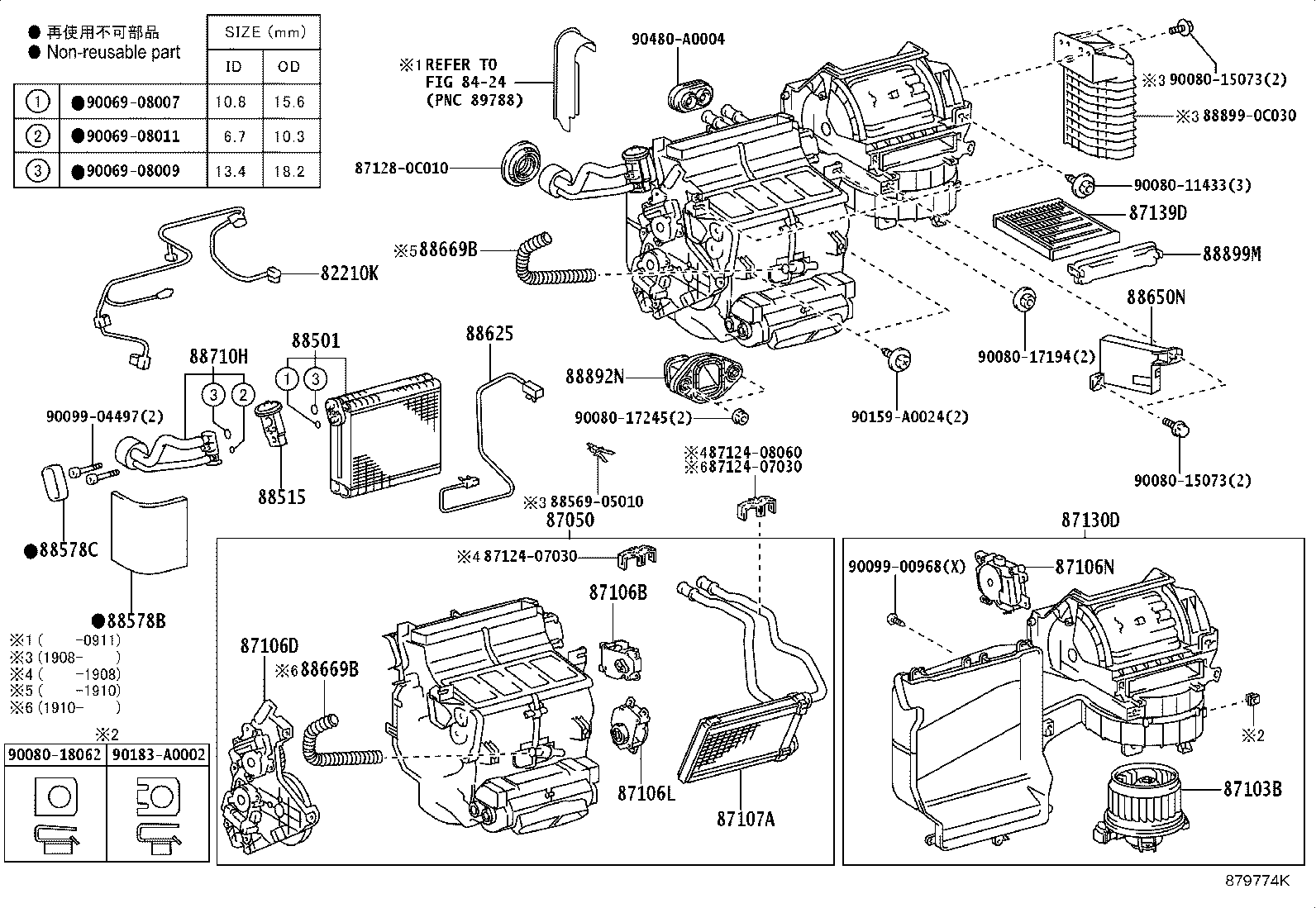

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210K — Harness Assy, Air Conditioner | ||||
| 82210-0C020 |
Harness Assy, Air Conditioner
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# | — | |
| 82210-0C020 |
Harness Assy, Air Conditioner
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 82210-0C020 |
Harness Assy, Air Conditioner
2017-08 → —
|
USK6# HTWC | — | |
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-0C030 |
Radiator Assy, Air Conditioner
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87050-0C030 |
Radiator Assy, Air Conditioner
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87050-0C030 |
Radiator Assy, Air Conditioner
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87050-0C030 |
Radiator Assy, Air Conditioner
2017-08 → —
|
USK6# | — | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-0C050 |
Motor Sub-assy, Blower W/Fan
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87103-0C050 |
Motor Sub-assy, Blower W/Fan
2007-11 → 2010-12
ended
|
UPK6#,USK6# | — | |
| 87103-0C051 |
Motor Sub-assy, Blower W/Fan
2011-01 → 2012-08
ended
|
UPK6# | — | |
| 87103-0C051 |
Motor Sub-assy, Blower W/Fan
2011-01 → 2017-08
ended
|
USK6# | — | |
| 87103-0C051 |
Motor Sub-assy, Blower W/Fan
2017-08 → —
|
USK6# | — | |
| 87106B — Servo Sub-assy, Damper(FOR COOLING UNIT) | ||||
| 87106-0C100 |
Servo Sub-assy, Damper(FOR COOLING UNIT)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87106-0C100 |
Servo Sub-assy, Damper(FOR COOLING UNIT)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87106-0C100 |
Servo Sub-assy, Damper(FOR COOLING UNIT)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87106-0C100 |
Servo Sub-assy, Damper(FOR COOLING UNIT)
2017-08 → —
|
USK6# | — | |
| 87106D — Servo Sub-assy, Damper, NO.1 | ||||
| 87106-0C140 |
Servo Sub-assy, Damper, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87106-0C140 |
Servo Sub-assy, Damper, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87106-0C140 |
Servo Sub-assy, Damper, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87106-0C140 |
Servo Sub-assy, Damper, NO.1
2017-08 → —
|
USK6# | — | |
| 87106L — Servo Sub-assy, Damper | ||||
| 87106-0C090 |
Servo Sub-assy, Damper
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87106-0C090 |
Servo Sub-assy, Damper
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87106-0C090 |
Servo Sub-assy, Damper
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87106-0C090 |
Servo Sub-assy, Damper
2017-08 → —
|
USK6# | — | |
| 87106N — Servo Sub-assy, Damper(FOR RECIRCULATION) | ||||
| 87106-07140 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87106-07140 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87106-07140 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87106-07140 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2017-08 → —
|
USK6# | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-0C050 |
Unit Sub-assy, Heater Radiator
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87107-0C050 |
Unit Sub-assy, Heater Radiator
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87107-0C050 |
Unit Sub-assy, Heater Radiator
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87107-0C050 |
Unit Sub-assy, Heater Radiator
2017-08 → —
|
USK6# | — | |
| 87130D — Blower Assy | ||||
| 87130-0C060 |
Blower Assy
2007-11 → 2008-11
ended
|
UCK6#,USK6# | — | |
| 87130-0C061 |
Blower Assy
2008-12 → 2009-04
ended
|
UCK6# | — | |
| 87130-0C061 |
Blower Assy
2008-12 → 2012-08
ended
|
UPK6# | — | |
| 87130-0C061 |
Blower Assy
2008-12 → 2017-08
ended
|
USK6# | — | |
| 87130-0C061 |
Blower Assy
2017-08 → 2018-02
ended
|
USK6# | — | |
| 87130-0C062 |
Blower Assy
2018-02 → —
|
USK6# | — | |
| 87139D — Element, Air Refiner | ||||
| 87139-07010 note |
Element, Air Refiner
2007-11 → 2013-08
ended
|
UCK6#,UPK6#,USK6# | — | |
| 87139-07020 note |
Element, Air Refiner
2013-08 → 2017-08
ended
|
USK6# | — | |
| 87139-50060 note |
Element, Air Refiner
2007-11 → 2013-08
ended
|
UPK6#,USK6# HTWC | — | |
| 87139-50060 note |
Element, Air Refiner
2009-04 → 2013-08
ended
|
USK65 HTWCF | — | |
| 87139-50100 note |
Element, Air Refiner
2013-08 → 2017-08
ended
|
USK6# | — | |
| 87139-07020 note |
Element, Air Refiner
2017-08 → —
|
USK6# | — | |
| 87139-50100 note |
Element, Air Refiner
2017-08 → —
|
USK6# | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-0C070 |
Evaporator Sub-assy, Cooler, NO.1
2007-11 → 2011-08
ended
|
UPK6#,USK6# | — | |
| 88501-0C071 |
Evaporator Sub-assy, Cooler, NO.1
2011-08 → 2012-08
ended
|
UPK6# | — | |
| 88501-0C071 |
Evaporator Sub-assy, Cooler, NO.1
2011-08 → 2017-08
ended
|
USK6# | — | |
| 88501-0C071 |
Evaporator Sub-assy, Cooler, NO.1
2017-08 → 2018-02
ended
|
USK6# | — | |
| 88501-0C073 |
Evaporator Sub-assy, Cooler, NO.1
2019-08 → —
|
USK6# | — | |
| 88501-0C110 |
Evaporator Sub-assy, Cooler, NO.1
2018-02 → 2019-08
ended
|
USK6# | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-0C090 |
Valve, Cooler Expansion
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88515-0C090 |
Valve, Cooler Expansion
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88515-0C090 |
Valve, Cooler Expansion
2007-11 → 2012-12
ended
|
USK6# | — | |
| 88515-0C120 |
Valve, Cooler Expansion
2013-01 → 2017-08
ended
|
USK6# | — | |
| 88515-0C120 |
Valve, Cooler Expansion
2017-08 → 2019-08
ended
|
USK6# | — | |
| 88515-64010 |
Valve, Cooler Expansion
2019-08 → —
|
USK6# | — | |
| 88578B — Packing, Cooling Unit, NO.1 | ||||
| 88578-0C100 |
Packing, Cooling Unit, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88578-0C100 |
Packing, Cooling Unit, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88578-0C100 |
Packing, Cooling Unit, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88578-0C100 |
Packing, Cooling Unit, NO.1
2017-08 → —
|
USK6# | — | |
| 88578C — Packing, Cooling Unit, NO.2 | ||||
| 88578-0C120 |
Packing, Cooling Unit, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88578-0C120 |
Packing, Cooling Unit, NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88578-0C120 |
Packing, Cooling Unit, NO.2
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88578-0C120 |
Packing, Cooling Unit, NO.2
2017-08 → —
|
USK6# | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88620-0C010 |
Thermistor, Cooler, NO.1
2009-02 → 2009-04
ended
|
UCK6# | — | |
| 88620-0C010 |
Thermistor, Cooler, NO.1
2009-02 → 2012-08
ended
|
UPK6# | — | |
| 88620-0C010 |
Thermistor, Cooler, NO.1
2009-02 → 2017-08
ended
|
USK6# | — | |
| 88625-0C030 |
Thermistor, Cooler, NO.1
2007-11 → 2009-01
ended
|
UCK6#,USK6# | — | |
| 88620-0C010 |
Thermistor, Cooler, NO.1
2017-08 → —
|
USK6# | — | |
| 88650N — Amplifier Assy, Air Conditioner | ||||
| 88650-0C080 |
Amplifier Assy, Air Conditioner
2007-11 → 2008-01
ended
|
UCK6#,USK6# | — | |
| 88650-0C081 |
Amplifier Assy, Air Conditioner
2008-02 → 2008-07
ended
|
UCK6#,USK6# | — | |
| 88650-0C082 |
Amplifier Assy, Air Conditioner
2008-08 → 2009-03
ended
|
UCK6#,USK6# | — | |
| 88650-0C083 |
Amplifier Assy, Air Conditioner
2009-04 → 2013-08
ended
|
USK6# | — | |
| 88650-0C380 |
Amplifier Assy, Air Conditioner
2013-08 → 2017-08
ended
|
USK6# | — | |
| 88650-0C450 |
Amplifier Assy, Air Conditioner
2017-08 → 2019-08
ended
|
USK6# | — | |
| 88650-0C480 |
Amplifier Assy, Air Conditioner
2019-08 → —
|
USK6# | — | |
| 88669B — Hose, Cooler Air | ||||
| 88669-0C030 |
Hose, Cooler Air
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88669-0C030 |
Hose, Cooler Air
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88669-0C030 |
Hose, Cooler Air
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88669-0C030 |
Hose, Cooler Air
2017-08 → —
|
USK6# | — | |
| 88710H — Tube & Accessory Assy, Air Conditioner | ||||
| 88710-0C110 |
Tube & Accessory Assy, Air Conditioner
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88710-0C110 |
Tube & Accessory Assy, Air Conditioner
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88710-0C110 |
Tube & Accessory Assy, Air Conditioner
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88710-0C110 |
Tube & Accessory Assy, Air Conditioner
2017-08 → —
|
USK6# | — | |
| 88892N — Cover, Cooler, NO.2 | ||||
| 88892-0C020 |
Cover, Cooler, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88892-0C020 |
Cover, Cooler, NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88892-0C020 |
Cover, Cooler, NO.2
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88892-0C020 |
Cover, Cooler, NO.2
2017-08 → —
|
USK6# | — | |
| 88899M — Plate, Cover(FOR AIR FILTER) | ||||
| 88899-07010 |
Plate, Cover(FOR AIR FILTER)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88899-07010 |
Plate, Cover(FOR AIR FILTER)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88899-07010 |
Plate, Cover(FOR AIR FILTER)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88899-07010 |
Plate, Cover(FOR AIR FILTER)
2017-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
