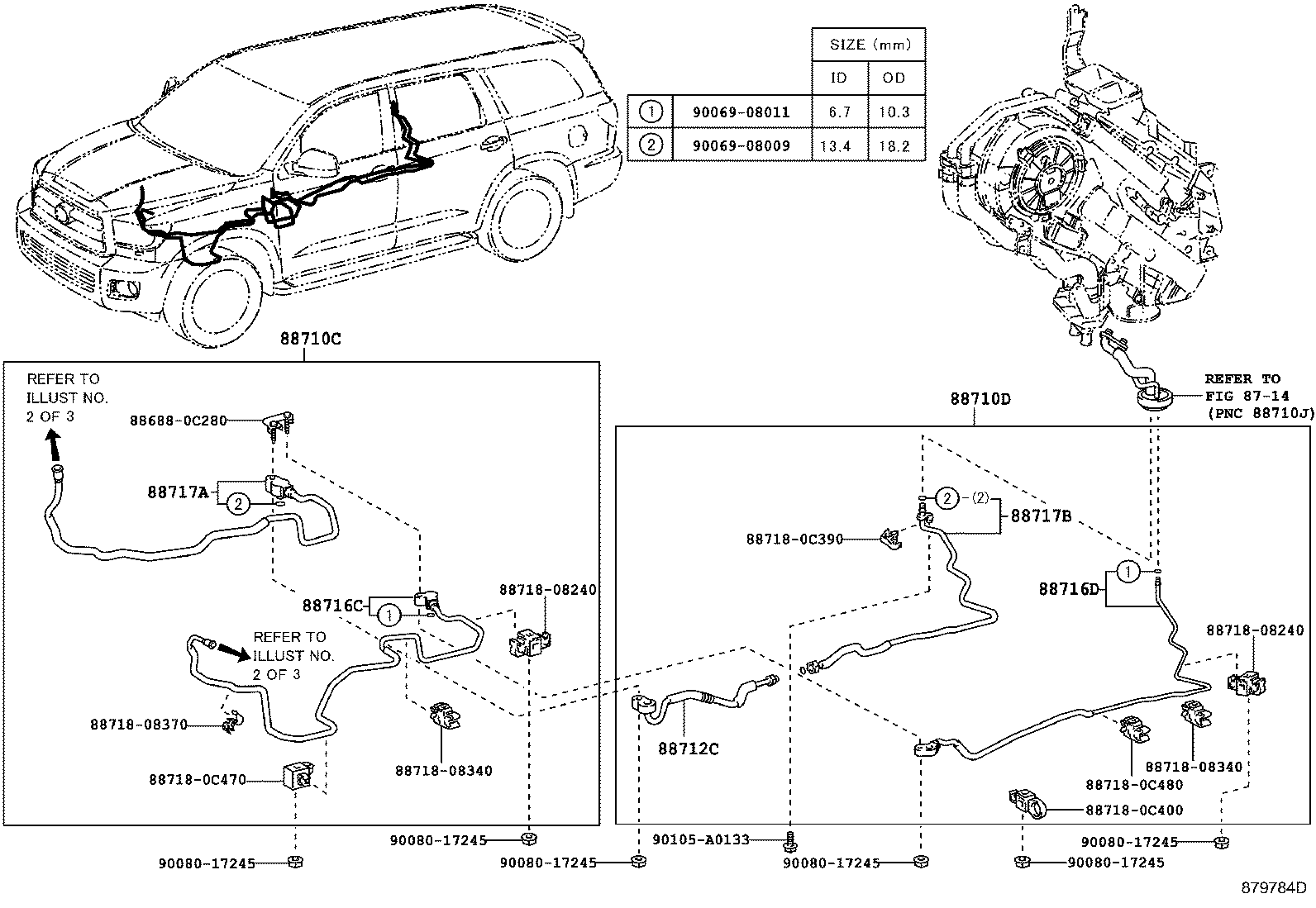

Exploded illustration 879784D 88716D — PIPE, COOLER REFRIGERANT LIQUID, D (4 parts) 88716C — PIPE, COOLER REFRIGERANT LIQUID, C (4 parts) 88717B — PIPE, COOLER REFRIGERANT SUCTION, B (4 parts) 88717A — PIPE, COOLER REFRIGERANT SUCTION, A (4 parts) 88710C — TUBE ASSY, AIR CONDITIONER (4 parts) 88712C — HOSE, SUCTION (4 parts) 8714 — not listed in this catalogue 887180C390 — not listed in this catalogue 887180C470 — not listed in this catalogue 8871808340 — not listed in this catalogue 8871808340 — not listed in this catalogue 8871808240 — not listed in this catalogue 8871808240 — not listed in this catalogue 887180C400 — not listed in this catalogue 887180C480 — not listed in this catalogue 8871808370 — not listed in this catalogue 886880C280 — not listed in this catalogue 90105A0133 — not listed in this catalogue 9008017245 — not listed in this catalogue 9008017245 — not listed in this catalogue 9008017245 — not listed in this catalogue 9008017245 — not listed in this catalogue 9008017245 — not listed in this catalogue 9008017245 — not listed in this catalogue 88710D — TUBE ASSY, AIR CONDITIONER (4 parts) 9006908011 — not listed in this catalogue 9006908009 — not listed in this catalogue
879784D · 7 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
88710C — Tube Assy, Air Conditioner
88710-0C140 Tube Assy, Air Conditioner
2007-11 → 2012-08 ended
UPK6# —
88710-0C140 Tube Assy, Air Conditioner
2007-11 → 2017-08 ended
USK6# —
88710-0C140 Tube Assy, Air Conditioner
2007-11 → 2009-04 ended
UCK6# —
88710-0C140 Tube Assy, Air Conditioner
2017-08 → —
USK6# —
88710D — Tube Assy, Air Conditioner
88710-0C150 Tube Assy, Air Conditioner
2007-11 → 2009-04 ended
UCK6# —
88710-0C150 Tube Assy, Air Conditioner
2007-11 → 2012-08 ended
UPK6# —
88710-0C150 Tube Assy, Air Conditioner
2007-11 → 2017-08 ended
USK6# —
88710-0C150 Tube Assy, Air Conditioner
2017-08 → —
USK6# —
88712C — Hose, Suction
88712-0C150 Hose, Suction
2007-11 → 2009-04 ended
UCK6# —
88712-0C150 Hose, Suction
2007-11 → 2012-08 ended
UPK6# —
88712-0C150 Hose, Suction
2007-11 → 2017-08 ended
USK6# —
88712-0C150 Hose, Suction
2017-08 → —
USK6# —
88716C — Pipe, Cooler Refrigerant Liquid, C
88716-0C280 Pipe, Cooler Refrigerant Liquid, C
2007-11 → 2017-08 ended
USK6# —
88716-0C280 Pipe, Cooler Refrigerant Liquid, C
2007-11 → 2012-08 ended
UPK6# —
88716-0C280 Pipe, Cooler Refrigerant Liquid, C
2007-11 → 2009-04 ended
UCK6# —
88716-0C280 Pipe, Cooler Refrigerant Liquid, C
2017-08 → —
USK6# —
88716D — Pipe, Cooler Refrigerant Liquid, D
88716-0C290 Pipe, Cooler Refrigerant Liquid, D
2007-11 → 2009-04 ended
UCK6# —
88716-0C290 Pipe, Cooler Refrigerant Liquid, D
2007-11 → 2012-08 ended
UPK6# —
88716-0C290 Pipe, Cooler Refrigerant Liquid, D
2007-11 → 2017-08 ended
USK6# —
88716-0C290 Pipe, Cooler Refrigerant Liquid, D
2017-08 → —
USK6# —
88717A — Pipe, Cooler Refrigerant Suction, A
88717-0C120 Pipe, Cooler Refrigerant Suction, A
2007-11 → 2009-04 ended
UCK6# —
88717-0C120 Pipe, Cooler Refrigerant Suction, A
2007-11 → 2012-08 ended
UPK6# —
88717-0C120 Pipe, Cooler Refrigerant Suction, A
2007-11 → 2017-08 ended
USK6# —
88717-0C120 Pipe, Cooler Refrigerant Suction, A
2017-08 → —
USK6# —
88717B — Pipe, Cooler Refrigerant Suction, B
88717-0C130 Pipe, Cooler Refrigerant Suction, B
2007-11 → 2009-04 ended
UCK6# —
88717-0C130 Pipe, Cooler Refrigerant Suction, B
2007-11 → 2012-08 ended
UPK6# —
88717-0C130 Pipe, Cooler Refrigerant Suction, B
2007-11 → 2017-08 ended
USK6# —
88717-0C130 Pipe, Cooler Refrigerant Suction, B
2017-08 → —
USK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
