Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

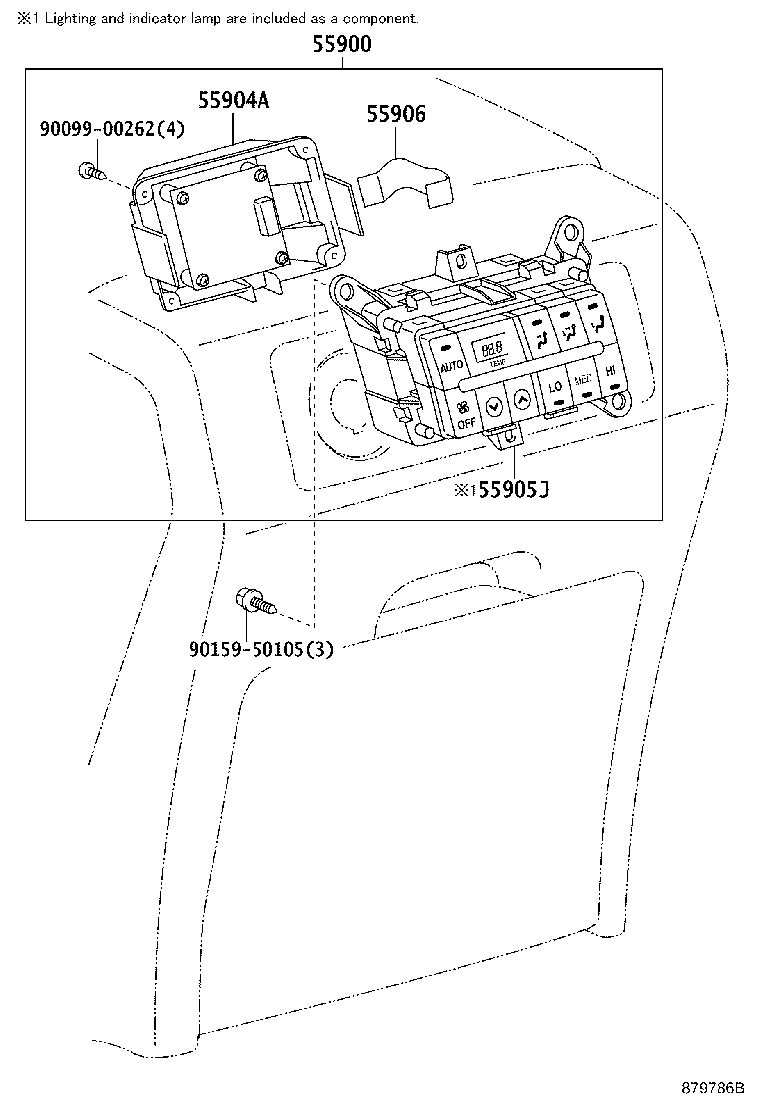

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55900 — Control Assy, Air Conditioner | ||||
| 55900-0C050 |
Control Assy, Air Conditioner
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55900-0C050 |
Control Assy, Air Conditioner
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55900-0C050 |
Control Assy, Air Conditioner
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55900-0C050 |
Control Assy, Air Conditioner
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55900-0C050 |
Control Assy, Air Conditioner
2017-08 → —
|
USK6# HTWC | — | |
| 55904A — Housing Sub-assy, Heater Control | ||||
| 55904-0C010 |
Housing Sub-assy, Heater Control
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55904-0C010 |
Housing Sub-assy, Heater Control
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55904-0C010 |
Housing Sub-assy, Heater Control
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55904-0C010 |
Housing Sub-assy, Heater Control
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55904-0C010 |
Housing Sub-assy, Heater Control
2017-08 → —
|
USK6# HTWC | — | |
| 55905J — Knob Sub-assy, Control | ||||
| 55905-0C070 |
Knob Sub-assy, Control
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55905-0C070 |
Knob Sub-assy, Control
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55905-0C070 |
Knob Sub-assy, Control
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55905-0C070 |
Knob Sub-assy, Control
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55905-0C070 |
Knob Sub-assy, Control
2017-08 → —
|
USK6# HTWC | — | |
| 55906 — Cable Sub-assy, Heater Control | ||||
| 55905-0C080 |
Cable Sub-assy, Heater Control
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55905-0C080 |
Cable Sub-assy, Heater Control
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55905-0C080 |
Cable Sub-assy, Heater Control
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55905-0C080 |
Cable Sub-assy, Heater Control
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55905-0C080 |
Cable Sub-assy, Heater Control
2017-08 → —
|
USK6# HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
