Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

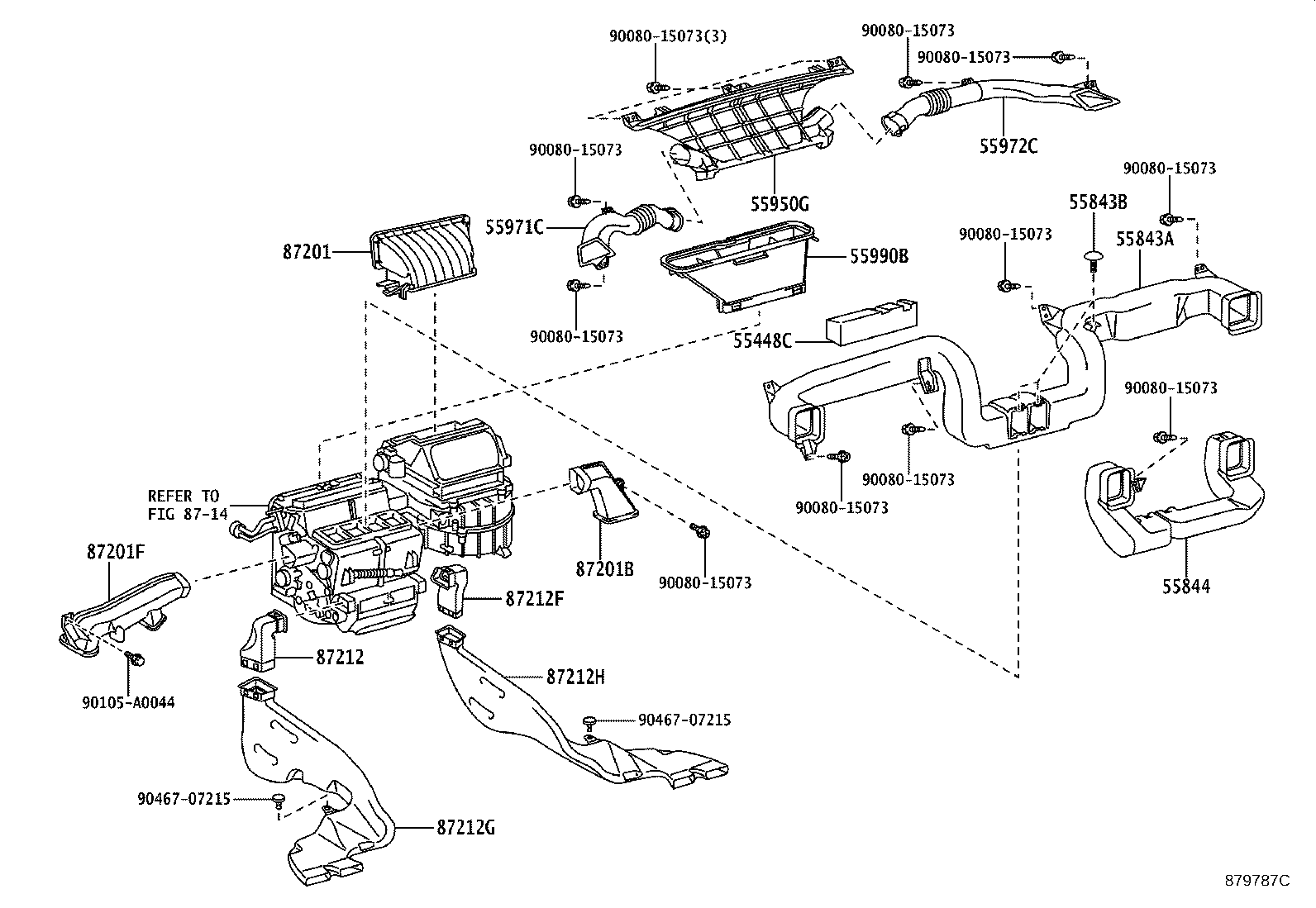

Exploded illustration 879787C 55843A — DUCT, HEATER TO REGISTER, NO.1 (5 parts) 55448C — CUSHION, INSTRUMENT PANEL, NO.1 (4 parts) 55843B — CLIP, HEATER TO REGISTER DUCT (4 parts) 55844 — DUCT, HEATER TO REGISTER, NO.2 (4 parts) 55950G — NOZZLE ASSY, DEFROSTER (5 parts) 55971C — DUCT, SIDE DEFROSTER NOZZLE, NO.1 (5 parts) 55972C — DUCT, SIDE DEFROSTER NOZZLE, NO.2 (5 parts) 55990B — NOZZLE ASSY, DEFROSTER, LOWER (5 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (4 parts) 87201F — DUCT SUB-ASSY, AIR, NO.3 (4 parts) 87201B — DUCT SUB-ASSY, AIR, NO.2 (4 parts) 87212 — DUCT, AIR, REAR NO.1 (5 parts) 87212G — DUCT, AIR, REAR NO.3 (5 parts) 87212F — DUCT, AIR, REAR NO.2 (5 parts) 87212H — DUCT, AIR, REAR NO.4 (5 parts) 9008015073 — not listed in this catalogue 90105A0044 — not listed in this catalogue 8714 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue
879787C · 15 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
55448C — Cushion, Instrument Panel, NO.1
55448-0C010 Cushion, Instrument Panel, NO.1
2007-11 → 2012-08 ended
UPK6# —
55448-0C010 Cushion, Instrument Panel, NO.1
2007-11 → 2009-04 ended
UCK6# —
55448-0C010 Cushion, Instrument Panel, NO.1
2007-11 → 2017-08 ended
USK6# —
55448-0C010 Cushion, Instrument Panel, NO.1
2017-08 → —
USK6# —
55843A — Duct, Heater TO Register, NO.1
55843-0C020 Duct, Heater TO Register, NO.1
2007-11 → 2009-04 ended
UCK6# —
55843-0C020 Duct, Heater TO Register, NO.1
2007-11 → 2012-08 ended
UPK6# —
55843-0C020 Duct, Heater TO Register, NO.1
2007-11 → 2013-01 ended
USK6# —
55843-0C050 Duct, Heater TO Register, NO.1
2013-02 → 2017-08 ended
USK6# —
55843-0C050 Duct, Heater TO Register, NO.1
2017-08 → —
USK6# —
55843B — Clip, Heater TO Register Duct
90467-A0001-C0 note Clip, Heater TO Register Duct
2007-11 → 2017-06 ended
UCK6#,UPK6#,USK6# —
90467-A0001-C1 note Clip, Heater TO Register Duct
2017-06 → 2017-08 ended
USK6# —
90467-A0001-C1 note Clip, Heater TO Register Duct
2017-08 → 2017-09 ended
USK65 HTWCF —
90467-A0001-C1 note Clip, Heater TO Register Duct
2017-08 → —
USK6# HTWC —
55844 — Duct, Heater TO Register, NO.2
55844-0C030 Duct, Heater TO Register, NO.2
2007-11 → 2009-04 ended
UCK6# —
55844-0C030 Duct, Heater TO Register, NO.2
2007-11 → 2012-08 ended
UPK6# —
55844-0C030 Duct, Heater TO Register, NO.2
2007-11 → 2017-08 ended
USK6# —
55844-0C030 Duct, Heater TO Register, NO.2
2017-08 → —
USK6# —
55950G — Nozzle Assy, Defroster
55950-0C020 Nozzle Assy, Defroster
2007-11 → 2009-04 ended
UCK6# —
55950-0C020 Nozzle Assy, Defroster
2007-11 → 2017-08 ended
USK6# —
55950-0C020 Nozzle Assy, Defroster
2007-11 → 2012-08 ended
UPK6# —
55950-0C020 Nozzle Assy, Defroster
2017-08 → 2017-09 ended
USK65 HTWCF —
55950-0C020 Nozzle Assy, Defroster
2017-08 → —
USK6# HTWC —
55971C — Duct, Side Defroster Nozzle, NO.1
55971-0C020 Duct, Side Defroster Nozzle, NO.1
2007-11 → 2009-04 ended
UCK6# —
55971-0C020 Duct, Side Defroster Nozzle, NO.1
2007-11 → 2012-08 ended
UPK6# —
55971-0C020 Duct, Side Defroster Nozzle, NO.1
2007-11 → 2017-08 ended
USK6# —
55971-0C020 Duct, Side Defroster Nozzle, NO.1
2017-08 → 2017-09 ended
USK65 HTWCF —
55971-0C020 Duct, Side Defroster Nozzle, NO.1
2017-08 → —
USK6# HTWC —
55972C — Duct, Side Defroster Nozzle, NO.2
55972-0C010 Duct, Side Defroster Nozzle, NO.2
2007-11 → 2009-04 ended
UCK6# —
55972-0C010 Duct, Side Defroster Nozzle, NO.2
2007-11 → 2012-08 ended
UPK6# —
55972-0C010 Duct, Side Defroster Nozzle, NO.2
2007-11 → 2017-08 ended
USK6# —
55972-0C010 Duct, Side Defroster Nozzle, NO.2
2017-08 → 2017-09 ended
USK65 HTWCF —
55972-0C010 Duct, Side Defroster Nozzle, NO.2
2017-08 → —
USK6# HTWC —
55990B — Nozzle Assy, Defroster, Lower
55990-0C010 Nozzle Assy, Defroster, Lower
2007-11 → 2017-08 ended
USK6# —
55990-0C010 Nozzle Assy, Defroster, Lower
2007-11 → 2009-04 ended
UCK6# —
55990-0C010 Nozzle Assy, Defroster, Lower
2007-11 → 2012-08 ended
UPK6# —
55990-0C010 Nozzle Assy, Defroster, Lower
2017-08 → 2017-09 ended
USK65 HTWCF —
55990-0C010 Nozzle Assy, Defroster, Lower
2017-08 → —
USK6# HTWC —
87201 — Duct Sub-assy, Air, NO.1
87201-0C030 Duct Sub-assy, Air, NO.1
2007-11 → 2009-04 ended
UCK6# —
87201-0C030 Duct Sub-assy, Air, NO.1
2007-11 → 2012-08 ended
UPK6# —
87201-0C030 Duct Sub-assy, Air, NO.1
2007-11 → 2017-08 ended
USK6# —
87201-0C030 Duct Sub-assy, Air, NO.1
2017-08 → —
USK6# —
87201B — Duct Sub-assy, Air, NO.2
87201-0C050 Duct Sub-assy, Air, NO.2
2007-11 → 2009-04 ended
UCK6# —
87201-0C050 Duct Sub-assy, Air, NO.2
2007-11 → 2012-08 ended
UPK6# —
87201-0C050 Duct Sub-assy, Air, NO.2
2007-11 → 2017-08 ended
USK6# —
87201-0C050 Duct Sub-assy, Air, NO.2
2017-08 → —
USK6# —
87201F — Duct Sub-assy, Air, NO.3
87201-0C040 Duct Sub-assy, Air, NO.3
2007-11 → 2009-04 ended
UCK6#,USK6# —
87201-0C070 Duct Sub-assy, Air, NO.3
2009-04 → 2012-08 ended
UPK6# —
87201-0C070 Duct Sub-assy, Air, NO.3
2009-04 → 2017-08 ended
USK6# —
87201-0C070 Duct Sub-assy, Air, NO.3
2017-08 → —
USK6# —
87212 — Duct, Air, Rear NO.1
87213-0C040 Duct, Air, Rear NO.1
2007-11 → 2017-08 ended
USK6# —
87213-0C040 Duct, Air, Rear NO.1
2007-11 → 2009-04 ended
UCK6# —
87213-0C040 Duct, Air, Rear NO.1
2007-11 → 2012-08 ended
UPK6# —
87213-0C040 Duct, Air, Rear NO.1
2017-08 → 2017-09 ended
USK65 HTWCF —
87213-0C040 Duct, Air, Rear NO.1
2017-08 → —
USK6# HTWC —
87212F — Duct, Air, Rear NO.2
87212-0C040 Duct, Air, Rear NO.2
2007-11 → 2009-04 ended
UCK6# —
87212-0C040 Duct, Air, Rear NO.2
2007-11 → 2012-08 ended
UPK6# —
87212-0C040 Duct, Air, Rear NO.2
2007-11 → 2017-08 ended
USK6# —
87212-0C040 Duct, Air, Rear NO.2
2017-08 → 2017-09 ended
USK65 HTWCF —
87212-0C040 Duct, Air, Rear NO.2
2017-08 → —
USK6# HTWC —
87212G — Duct, Air, Rear NO.3
87216-0C070 Duct, Air, Rear NO.3
2007-11 → 2009-04 ended
UCK6# —
87216-0C070 Duct, Air, Rear NO.3
2007-11 → 2017-08 ended
USK6# —
87216-0C070 Duct, Air, Rear NO.3
2007-11 → 2012-08 ended
UPK6# —
87216-0C070 Duct, Air, Rear NO.3
2017-08 → 2017-09 ended
USK65 HTWCF —
87216-0C070 Duct, Air, Rear NO.3
2017-08 → —
USK6# HTWC —
87212H — Duct, Air, Rear NO.4
87215-0C060 Duct, Air, Rear NO.4
2007-11 → 2009-04 ended
UCK6# —
87215-0C060 Duct, Air, Rear NO.4
2007-11 → 2012-08 ended
UPK6# —
87215-0C060 Duct, Air, Rear NO.4
2007-11 → 2017-08 ended
USK6# —
87215-0C060 Duct, Air, Rear NO.4
2017-08 → 2017-09 ended
USK65 HTWCF —
87215-0C060 Duct, Air, Rear NO.4
2017-08 → —
USK6# HTWC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
