Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

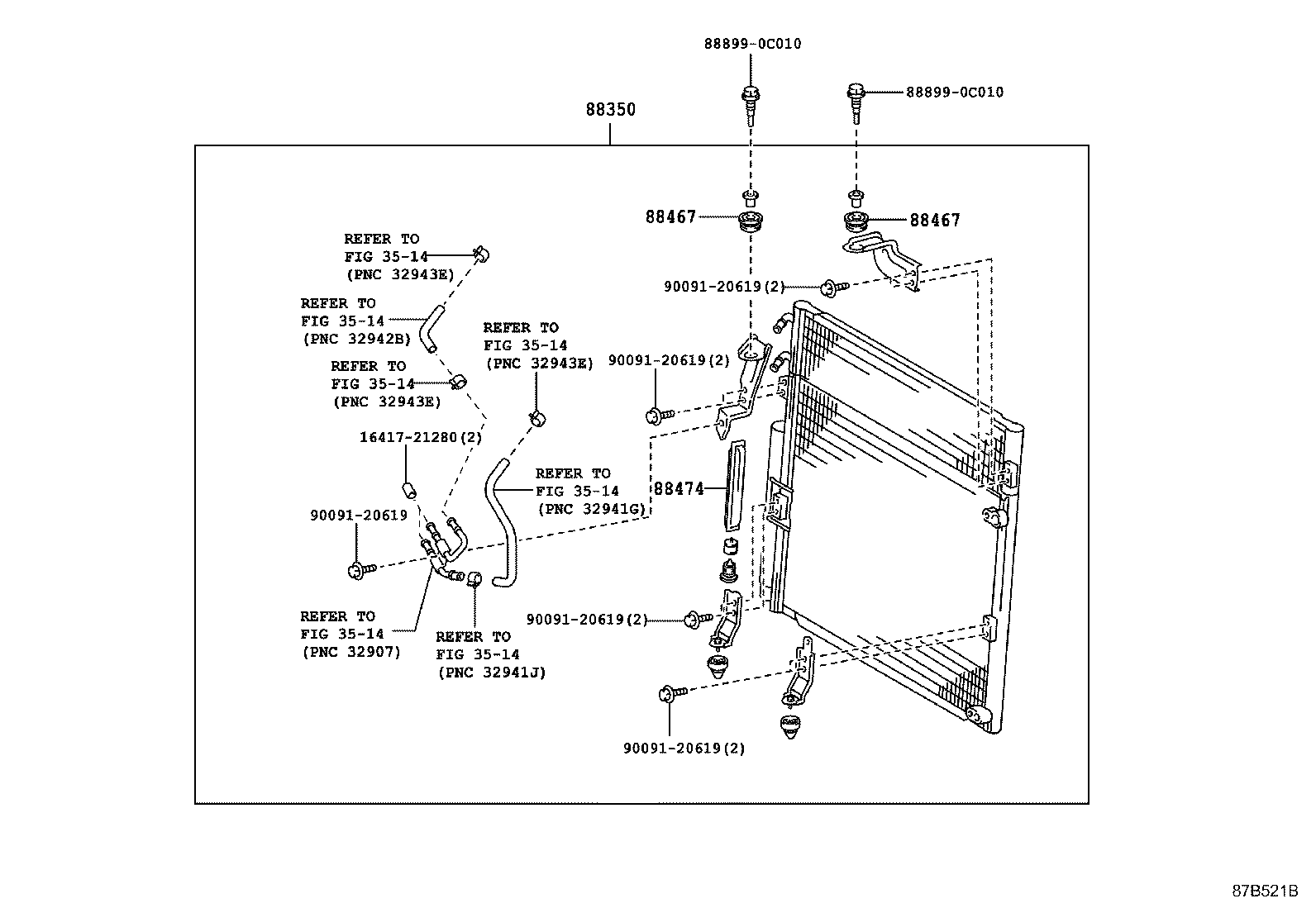

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88350 — Unit Assy, Cooler | ||||
| 88350-0C010 note |
Unit Assy, Cooler
2009-11 → 2010-11
ended
|
USK6# | — | |
| 88467 — Cushion, Cooler Condenser, NO.1 | ||||
| 88467-12180 |
Cushion, Cooler Condenser, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88467-12180 |
Cushion, Cooler Condenser, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88467-12180 |
Cushion, Cooler Condenser, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88467-12180 |
Cushion, Cooler Condenser, NO.1
2017-08 → —
|
USK6# | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-08010 note |
Dryer, Cooler
2009-11 → 2010-11
ended
|
USK6# | — | |
| 88474-17010 |
Dryer, Cooler
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88474-17010 |
Dryer, Cooler
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88474-17010 |
Dryer, Cooler
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88474-12010 |
Dryer, Cooler
2019-08 → —
|
USK6# | — | |
| 88474-17010 |
Dryer, Cooler
2017-08 → 2019-08
ended
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
