Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

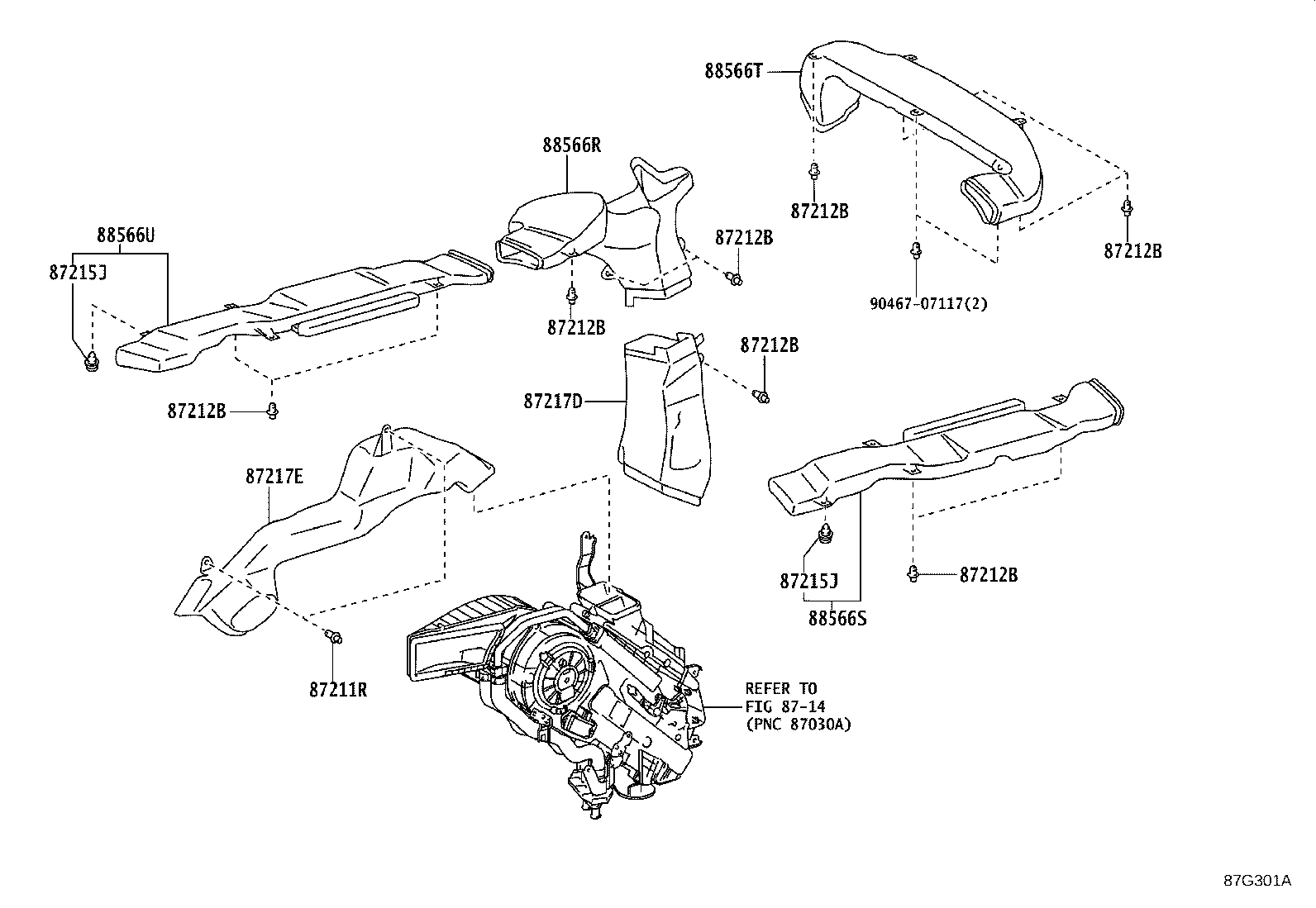

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87211R — Clip, Air Duct | ||||
| 90467-07117 |
Clip, Air Duct
2007-11 → 2009-11
ended
|
UCK6#,UPK6#,USK6# | — | |
| 90467-A0016-C0 note |
Clip, Air Duct
2009-11 → 2017-06
ended
|
UPK6#,USK6# | — | |
| 90467-A0016-C3 note |
Clip, Air Duct
2017-06 → 2017-08
ended
|
USK6# | — | |
| 90467-A0016-C3 note |
Clip, Air Duct
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90467-A0016-C3 note |
Clip, Air Duct
2017-08 → —
|
USK6# HTWC | — | |
| 87212B — Clip, Air Duct | ||||
| 90467-07117 |
Clip, Air Duct
2007-11 → 2009-11
ended
|
UPK6#,USK6# | — | |
| 90467-07117 note |
Clip, Air Duct
2009-04 → 2009-11
ended
|
USK6# SR5 HTWC | — | |
| 90467-A0016-C0 note |
Clip, Air Duct
2009-11 → 2017-06
ended
|
UPK6#,USK6# | — | |
| 90467-A0016-C0 note |
Clip, Air Duct
2009-11 → 2017-06
ended
|
USK6# SR5 HTWC | — | |
| 90467-A0016-C3 note |
Clip, Air Duct
2017-06 → 2017-08
ended
|
USK6# | — | |
| 90467-A0016-C3 note |
Clip, Air Duct
2017-06 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 90467-A0016-C3 note |
Clip, Air Duct
2017-08 → —
|
USK6# | — | |
| 87215J — Clip (FOR AIR REAR DUCT) | ||||
| 90467-A0006 |
Clip (FOR AIR REAR DUCT)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90467-A0006 note |
Clip (FOR AIR REAR DUCT)
2009-04 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 90467-A0006 |
Clip (FOR AIR REAR DUCT)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90467-A0006 |
Clip (FOR AIR REAR DUCT)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90467-A0006 |
Clip (FOR AIR REAR DUCT)
2017-08 → —
|
USK6# | — | |
| 87217D — Duct, Air, Rear Side NO.1 | ||||
| 87218-0C030 |
Duct, Air, Rear Side NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87218-0C030 |
Duct, Air, Rear Side NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87218-0C030 |
Duct, Air, Rear Side NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87218-0C030 note |
Duct, Air, Rear Side NO.1
2009-04 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 87218-0C030 |
Duct, Air, Rear Side NO.1
2017-08 → —
|
USK6# | — | |
| 87217E — Duct, Air, Rear Side NO.2 | ||||
| 87214-0C020 |
Duct, Air, Rear Side NO.2
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87214-0C020 |
Duct, Air, Rear Side NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87214-0C020 |
Duct, Air, Rear Side NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87214-0C020 |
Duct, Air, Rear Side NO.2
2017-08 → 2019-08
ended
|
USK6# | — | |
| 87214-0C030 |
Duct, Air, Rear Side NO.2
2019-08 → —
|
USK6# | — | |
| 88566R — Duct, Air, Rear Roof NO.1 | ||||
| 87218-0C020 |
Duct, Air, Rear Roof NO.1
2007-11 → 2014-08
ended
|
USK6# | — | |
| 87218-0C020 note |
Duct, Air, Rear Roof NO.1
2009-04 → 2014-08
ended
|
USK6# SR5 HTWC | — | |
| 87218-0C040 |
Duct, Air, Rear Roof NO.1
2014-08 → 2017-08
ended
|
USK6# | — | |
| 87218-0C040 note |
Duct, Air, Rear Roof NO.1
2014-08 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 87218-0C040 |
Duct, Air, Rear Roof NO.1
2017-08 → —
|
USK6# | — | |
| 88566S — Duct, Air, Rear Roof NO.2 | ||||
| 87216-0C080 note |
Duct, Air, Rear Roof NO.2
2009-04 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 87216-0C080 |
Duct, Air, Rear Roof NO.2
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87216-0C080 |
Duct, Air, Rear Roof NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87216-0C080 |
Duct, Air, Rear Roof NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87216-0C080 |
Duct, Air, Rear Roof NO.2
2017-08 → —
|
USK6# | — | |
| 88566T — Duct, Air, Rear Roof NO.3 | ||||
| 87217-0C040 |
Duct, Air, Rear Roof NO.3
2007-11 → 2009-04
ended
|
UCK6#,USK6# | — | |
| 87217-0C050 |
Duct, Air, Rear Roof NO.3
2009-04 → 2012-08
ended
|
UPK6# | — | |
| 87217-0C050 |
Duct, Air, Rear Roof NO.3
2009-04 → 2017-08
ended
|
USK6# | — | |
| 87217-0C050 note |
Duct, Air, Rear Roof NO.3
2009-04 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 87217-0C050 |
Duct, Air, Rear Roof NO.3
2017-08 → 2018-06
ended
|
USK6# | — | |
| 87217-0C080 |
Duct, Air, Rear Roof NO.3
2018-07 → —
|
USK6# | — | |
| 88566U — Duct, Air, Rear Roof NO.4 | ||||
| 87215-0C070 |
Duct, Air, Rear Roof NO.4
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87215-0C070 |
Duct, Air, Rear Roof NO.4
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87215-0C070 |
Duct, Air, Rear Roof NO.4
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87215-0C070 note |
Duct, Air, Rear Roof NO.4
2009-04 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 87215-0C070 |
Duct, Air, Rear Roof NO.4
2017-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
