Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

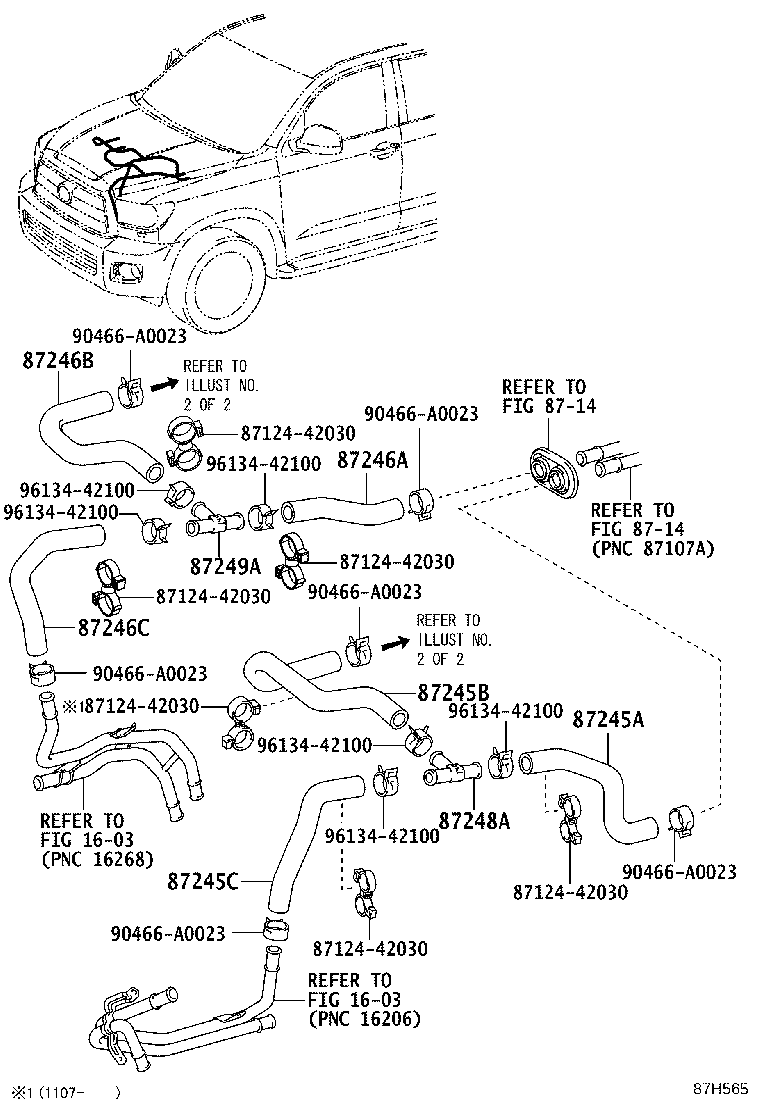

Exploded illustration 87H565 90466A0023 — not listed in this catalogue 90466A0023 — not listed in this catalogue 90466A0023 — not listed in this catalogue 90466A0023 — not listed in this catalogue 90466A0023 — not listed in this catalogue 90466A0023 — not listed in this catalogue 9613442100 — not listed in this catalogue 9613442100 — not listed in this catalogue 9613442100 — not listed in this catalogue 9613442100 — not listed in this catalogue 9613442100 — not listed in this catalogue 8714 — not listed in this catalogue 8714 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 87246B — HOSE, HEATER WATER, OUTLET B (5 parts) 87246A — HOSE, HEATER WATER, OUTLET A (5 parts) 87245A — HOSE, HEATER WATER, INLET A (5 parts) 87248A — PIPE, HEATER WATER INLET, A (5 parts) 87245C — HOSE, HEATER WATER ,INLET C (5 parts) 87245B — HOSE, HEATER WATER, INLET B (5 parts) 87246C — HOSE, HEATER WATER, OUTLET C (5 parts) 87249A — PIPE, HEATER WATER OUTLET, A (5 parts) 8712442030 — not listed in this catalogue 8712442030 — not listed in this catalogue 8712442030 — not listed in this catalogue 9613442100 — not listed in this catalogue 8712442030 — not listed in this catalogue 8712442030 — not listed in this catalogue 8712442030 — not listed in this catalogue
87H565 · 8 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
87245A — Hose, Heater Water, Inlet A
87245-0C260 Hose, Heater Water, Inlet A
2007-11 → 2009-04 ended
UCK6# —
87245-0C420 Hose, Heater Water, Inlet A
2007-11 → 2011-06 ended
UPK6#,USK6# —
87245-0C421 Hose, Heater Water, Inlet A
2011-07 → 2017-08 ended
USK6# —
87245-0C421 Hose, Heater Water, Inlet A
2011-07 → 2012-08 ended
UPK6# —
87245-0C421 Hose, Heater Water, Inlet A
2017-08 → —
USK6# —
87245B — Hose, Heater Water, Inlet B
87245-0C360 Hose, Heater Water, Inlet B
2007-11 → 2009-04 ended
UCK6# —
87245-0C430 Hose, Heater Water, Inlet B
2007-11 → 2011-06 ended
UPK6#,USK6# —
87245-0C431 Hose, Heater Water, Inlet B
2011-07 → 2012-08 ended
UPK6# —
87245-0C431 Hose, Heater Water, Inlet B
2011-07 → 2017-08 ended
USK6# —
87245-0C431 Hose, Heater Water, Inlet B
2017-08 → —
USK6# —
87245C — Hose, Heater Water ,Inlet C
87245-0C370 Hose, Heater Water ,Inlet C
2007-11 → 2009-04 ended
UCK6# —
87245-0C440 Hose, Heater Water ,Inlet C
2007-11 → 2011-06 ended
UPK6#,USK6# —
87245-0C441 Hose, Heater Water ,Inlet C
2011-07 → 2012-08 ended
UPK6# —
87245-0C441 Hose, Heater Water ,Inlet C
2011-07 → 2017-08 ended
USK6# —
87245-0C441 Hose, Heater Water ,Inlet C
2017-08 → —
USK6# —
87246A — Hose, Heater Water, Outlet A
87245-0C270 Hose, Heater Water, Outlet A
2007-11 → 2009-04 ended
UCK6# —
87245-0C390 Hose, Heater Water, Outlet A
2007-11 → 2011-06 ended
UPK6#,USK6# —
87245-0C391 Hose, Heater Water, Outlet A
2011-07 → 2012-08 ended
UPK6# —
87245-0C391 Hose, Heater Water, Outlet A
2011-07 → 2017-08 ended
USK6# —
87245-0C391 Hose, Heater Water, Outlet A
2017-08 → —
USK6# —
87246B — Hose, Heater Water, Outlet B
87245-0C330 Hose, Heater Water, Outlet B
2007-11 → 2009-04 ended
UCK6# —
87245-0C400 Hose, Heater Water, Outlet B
2007-11 → 2011-06 ended
UPK6#,USK6# —
87245-0C401 Hose, Heater Water, Outlet B
2011-07 → 2012-08 ended
UPK6# —
87245-0C401 Hose, Heater Water, Outlet B
2011-07 → 2017-08 ended
USK6# —
87245-0C401 Hose, Heater Water, Outlet B
2017-08 → —
USK6# —
87246C — Hose, Heater Water, Outlet C
87245-0C340 Hose, Heater Water, Outlet C
2007-11 → 2009-04 ended
UCK6# —
87245-0C410 Hose, Heater Water, Outlet C
2007-11 → 2011-06 ended
UPK6#,USK6# —
87245-0C411 Hose, Heater Water, Outlet C
2011-07 → 2012-08 ended
UPK6# —
87245-0C411 Hose, Heater Water, Outlet C
2011-07 → 2017-08 ended
USK6# —
87245-0C411 Hose, Heater Water, Outlet C
2017-08 → —
USK6# —
87248A — Pipe, Heater Water Inlet, A
87248-08030 Pipe, Heater Water Inlet, A
2007-11 → 2012-02 ended
UPK6#,USK6# —
87248-0C090 Pipe, Heater Water Inlet, A
2007-11 → 2009-04 ended
UCK6# —
87248-26880 Pipe, Heater Water Inlet, A
2012-03 → 2012-08 ended
UPK6# —
87248-26880 Pipe, Heater Water Inlet, A
2012-03 → 2017-08 ended
USK6# —
87248-26880 Pipe, Heater Water Inlet, A
2017-08 → —
USK6# —
87249A — Pipe, Heater Water Outlet, A
87248-08030 Pipe, Heater Water Outlet, A
2007-11 → 2012-02 ended
UPK6#,USK6# —
87248-0C080 Pipe, Heater Water Outlet, A
2007-11 → 2009-04 ended
UCK6# —
87248-26880 Pipe, Heater Water Outlet, A
2012-03 → 2012-08 ended
UPK6# —
87248-26880 Pipe, Heater Water Outlet, A
2012-03 → 2017-08 ended
USK6# —
87248-26880 Pipe, Heater Water Outlet, A
2017-08 → —
USK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
