Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

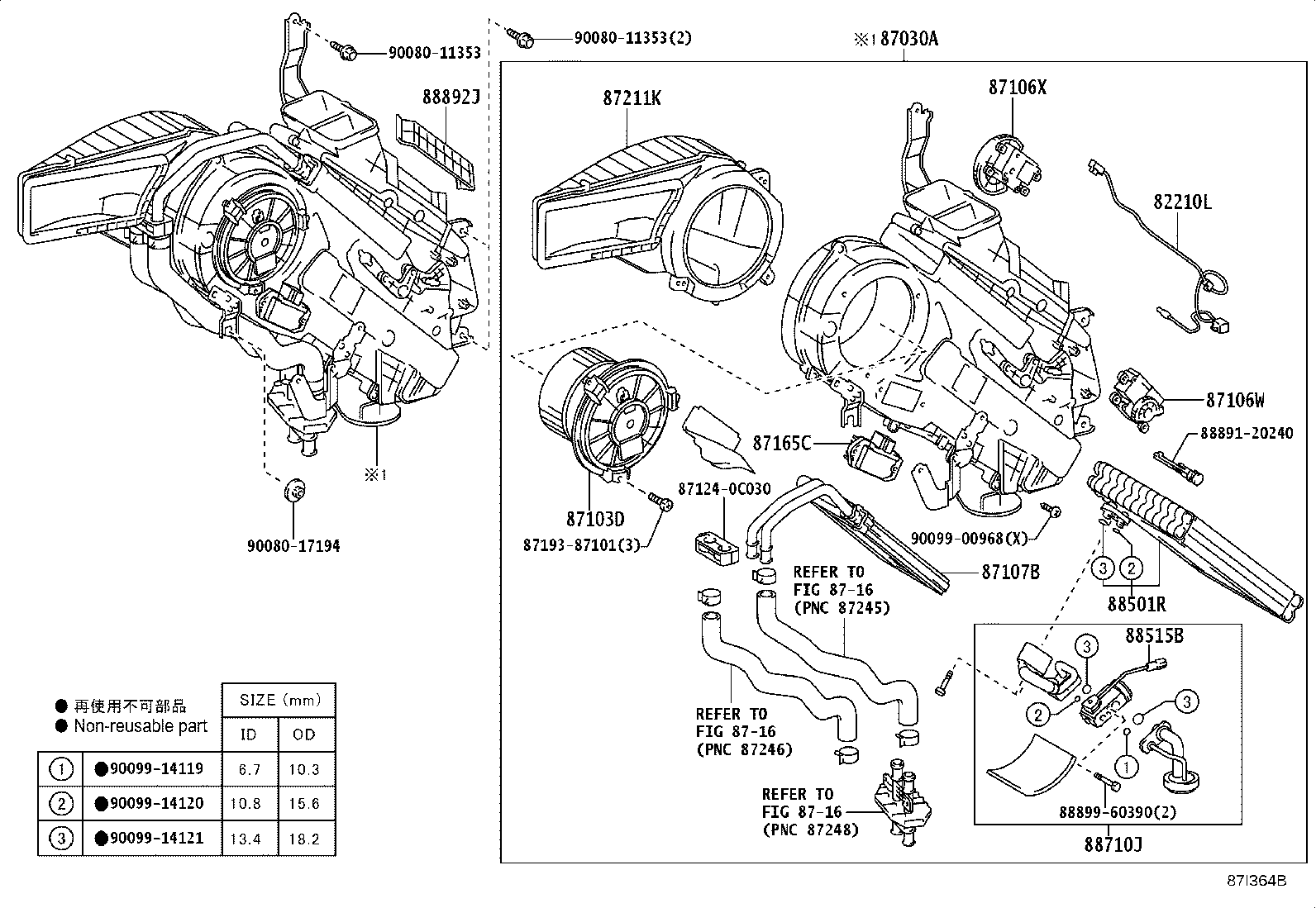

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210L — Harness Assy, Air Conditioner, NO.2 | ||||
| 82210-0C030 |
Harness Assy, Air Conditioner, NO.2
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# | — | |
| 82210-0C030 |
Harness Assy, Air Conditioner, NO.2
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 82210-0C030 |
Harness Assy, Air Conditioner, NO.2
2017-08 → —
|
USK6# HTWC | — | |
| 87030A — Unit Assy, Cooling, Rear | ||||
| 87030-0C030 |
Unit Assy, Cooling, Rear
2007-11 → 2008-07
ended
|
UCK6#,USK6# | — | |
| 87030-0C031 |
Unit Assy, Cooling, Rear
2008-08 → 2009-04
ended
|
UCK6# | — | |
| 87030-0C031 |
Unit Assy, Cooling, Rear
2008-08 → 2012-08
ended
|
UPK6# | — | |
| 87030-0C031 |
Unit Assy, Cooling, Rear
2008-08 → 2017-08
ended
|
USK6# | — | |
| 87030-0C031 |
Unit Assy, Cooling, Rear
2017-08 → 2019-08
ended
|
USK6# | — | |
| 87030-0C060 |
Unit Assy, Cooling, Rear
2019-08 → —
|
USK6# | — | |
| 87103D — Motor Sub-assy, Blower W/Fan(FOR REAR) | ||||
| 87103-0C060 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87103-0C060 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2007-11 → 2010-11
ended
|
UPK6#,USK6# | — | |
| 87103-0C061 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2010-12 → 2012-08
ended
|
UPK6# | — | |
| 87103-0C061 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2010-12 → 2017-08
ended
|
USK6# | — | |
| 87103-0C061 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2017-08 → —
|
USK6# | — | |
| 87106W — Servo Sub-assy, Damper(FOR AIRMIX REAR) | ||||
| 87106-0C130 |
Servo Sub-assy, Damper(FOR AIRMIX REAR)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87106-0C130 |
Servo Sub-assy, Damper(FOR AIRMIX REAR)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87106-0C130 |
Servo Sub-assy, Damper(FOR AIRMIX REAR)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87106-0C130 |
Servo Sub-assy, Damper(FOR AIRMIX REAR)
2017-08 → —
|
USK6# | — | |
| 87106X — Servo Sub-assy, Damper(FOR MODE REAR) | ||||
| 87106-0C120 |
Servo Sub-assy, Damper(FOR MODE REAR)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 87106-0C120 |
Servo Sub-assy, Damper(FOR MODE REAR)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 87106-0C120 |
Servo Sub-assy, Damper(FOR MODE REAR)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 87106-0C120 |
Servo Sub-assy, Damper(FOR MODE REAR)
2017-08 → —
|
USK6# | — | |
| 87107B — Unit Sub-assy, Heater Radiator | ||||
| 87107-0C060 |
Unit Sub-assy, Heater Radiator
2007-11 → 2008-08
ended
|
UCK6#,USK6# | — | |
| 87107-0C061 |
Unit Sub-assy, Heater Radiator
2008-08 → 2009-04
ended
|
UCK6# | — | |
| 87107-0C061 |
Unit Sub-assy, Heater Radiator
2008-08 → 2012-08
ended
|
UPK6# | — | |
| 87107-0C061 |
Unit Sub-assy, Heater Radiator
2008-08 → 2017-08
ended
|
USK6# | — | |
| 87107-0C061 |
Unit Sub-assy, Heater Radiator
2017-08 → —
|
USK6# | — | |
| 87165C — Control, Blower Motor | ||||
| 87165-28010 |
Control, Blower Motor
2007-11 → 2008-11
ended
|
UCK6#,USK6# | — | |
| 87165-28020 |
Control, Blower Motor
2008-12 → 2017-08
ended
|
UCK6#,UPK6#,USK6# | — | |
| 87165-28020 |
Control, Blower Motor
2017-08 → 2019-10
ended
|
USK6# | — | |
| 87165-36010 |
Control, Blower Motor
2019-10 → —
|
USK6# | — | |
| 87211K — Duct, Air | ||||
| 87201-0C060 |
Duct, Air
2019-08 → —
|
USK6# | — | |
| 88501R — Evaporator Sub-assy (REAR) | ||||
| 88501-0C080 |
Evaporator Sub-assy (REAR)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88501-0C080 |
Evaporator Sub-assy (REAR)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88501-0C080 |
Evaporator Sub-assy (REAR)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88501-0C080 |
Evaporator Sub-assy (REAR)
2017-08 → 2019-08
ended
|
USK6# | — | |
| 88501-0C120 |
Evaporator Sub-assy (REAR)
2019-08 → —
|
USK6# | — | |
| 88515B — Valve, Rear Cooling Unit Expansion | ||||
| 88515-0C100 |
Valve, Rear Cooling Unit Expansion
2007-11 → 2016-01
ended
|
USK6# | — | |
| 88515-0C100 |
Valve, Rear Cooling Unit Expansion
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88515-0C100 |
Valve, Rear Cooling Unit Expansion
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88515-0C160 |
Valve, Rear Cooling Unit Expansion
2016-01 → 2017-08
ended
|
USK6# | — | |
| 88515-0C150 |
Valve, Rear Cooling Unit Expansion
2019-08 → —
|
USK6# | — | |
| 88515-0C160 |
Valve, Rear Cooling Unit Expansion
2017-08 → 2019-08
ended
|
USK6# | — | |
| 88710J — Tube, Air Conditioner Connector | ||||
| 88710-0C160 |
Tube, Air Conditioner Connector
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88710-0C160 |
Tube, Air Conditioner Connector
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88710-0C160 |
Tube, Air Conditioner Connector
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88710-0C160 |
Tube, Air Conditioner Connector
2017-08 → 2019-08
ended
|
USK6# | — | |
| 88710-0C790 |
Tube, Air Conditioner Connector
2019-08 → —
|
USK6# | — | |
| 88892J — Cover Sub-assy | ||||
| 88892-0C030 |
Cover Sub-assy
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 88892-0C030 |
Cover Sub-assy
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 88892-0C030 |
Cover Sub-assy
2007-11 → 2017-08
ended
|
USK6# | — | |
| 88892-0C030 |
Cover Sub-assy
2017-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
