Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

102 part groups · 17 illustrations

Illustrations

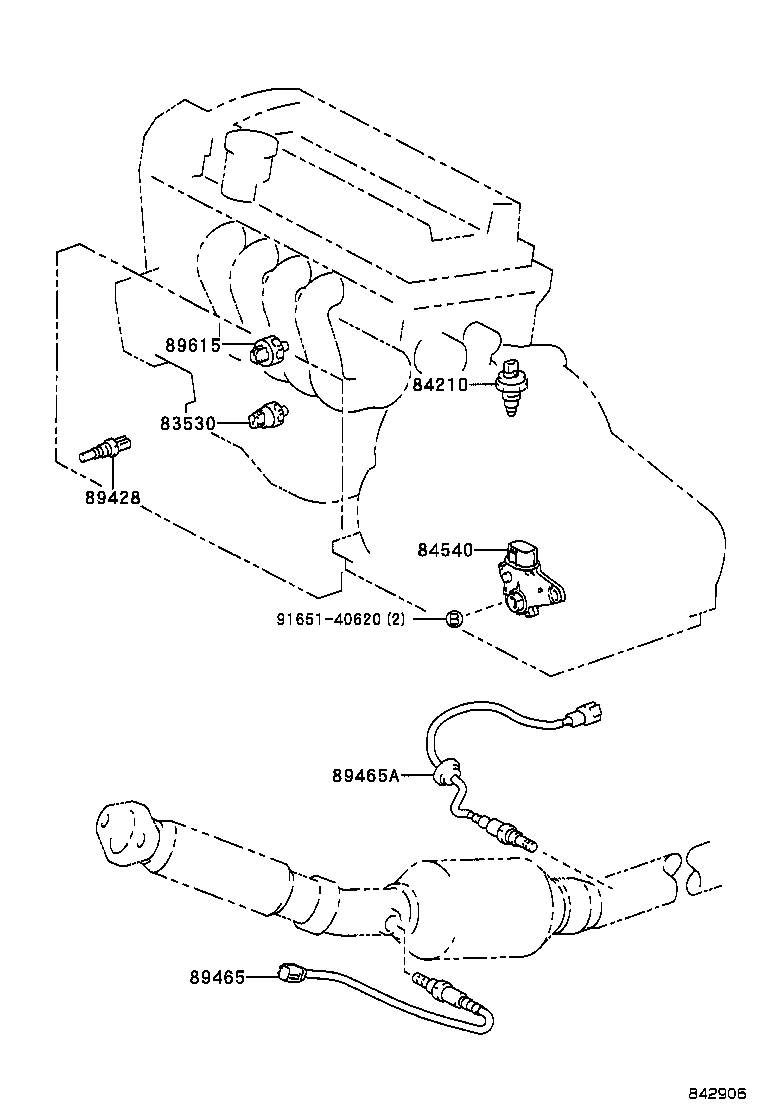

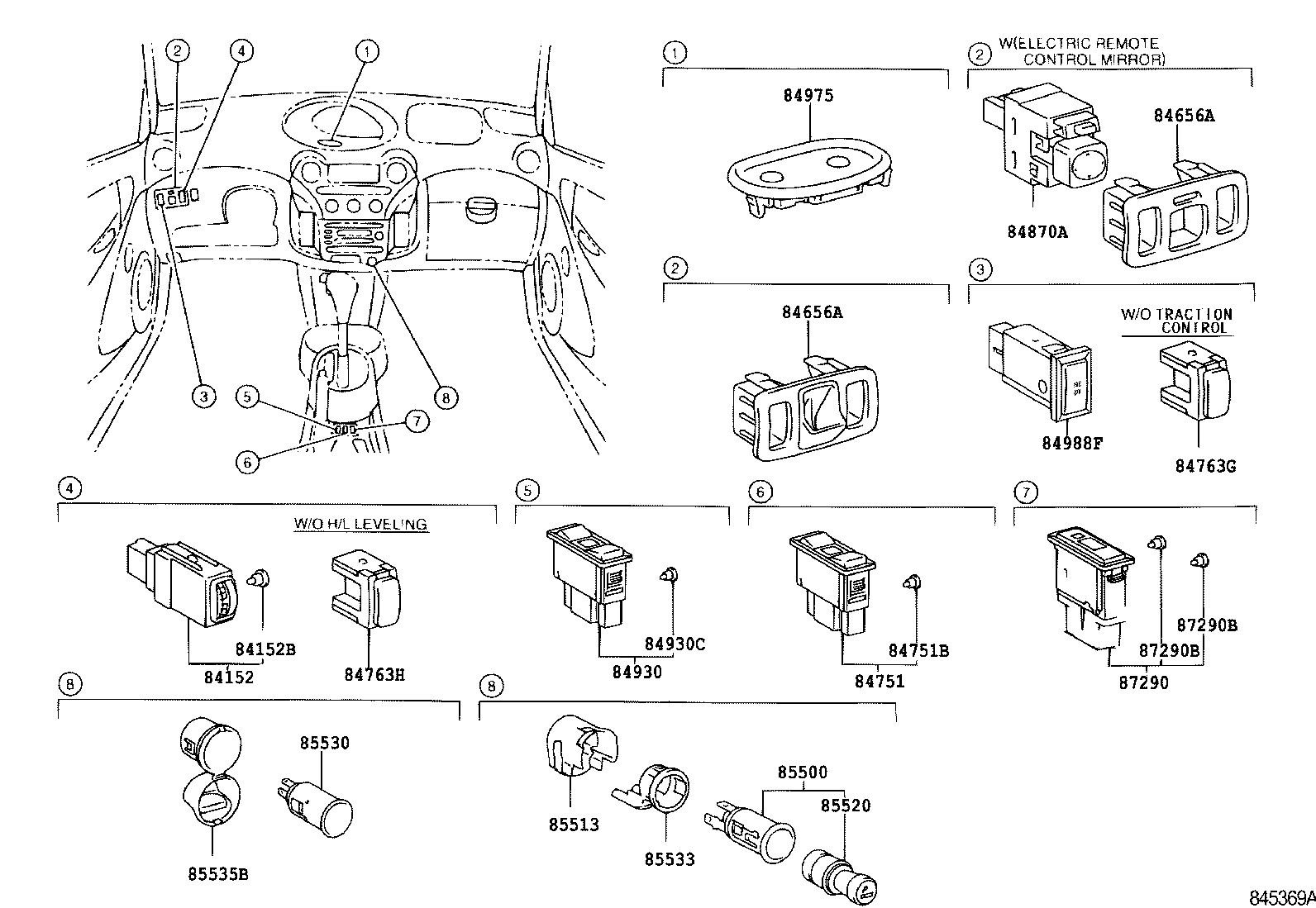

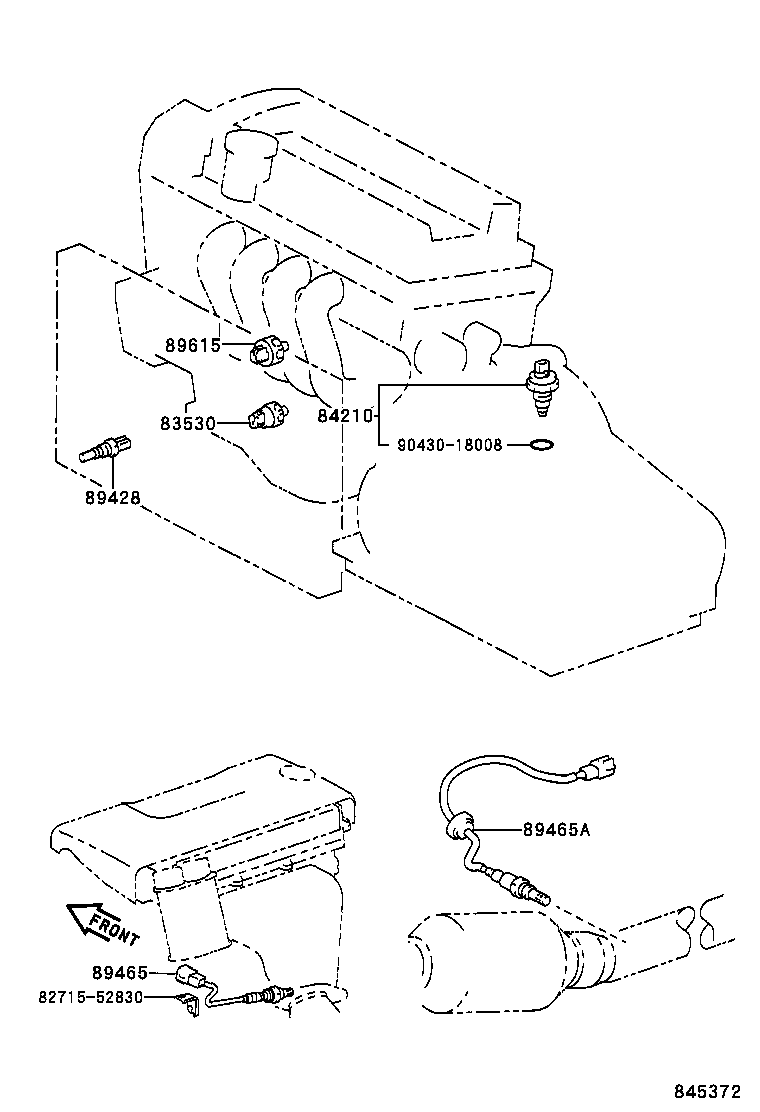

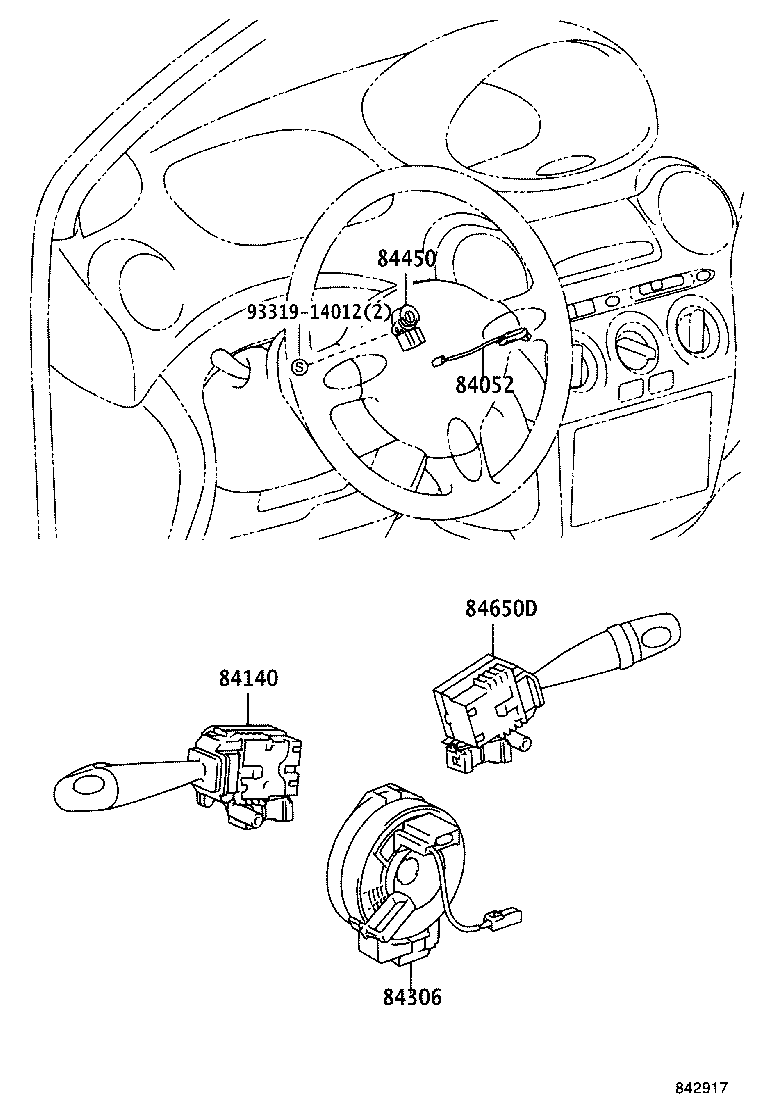

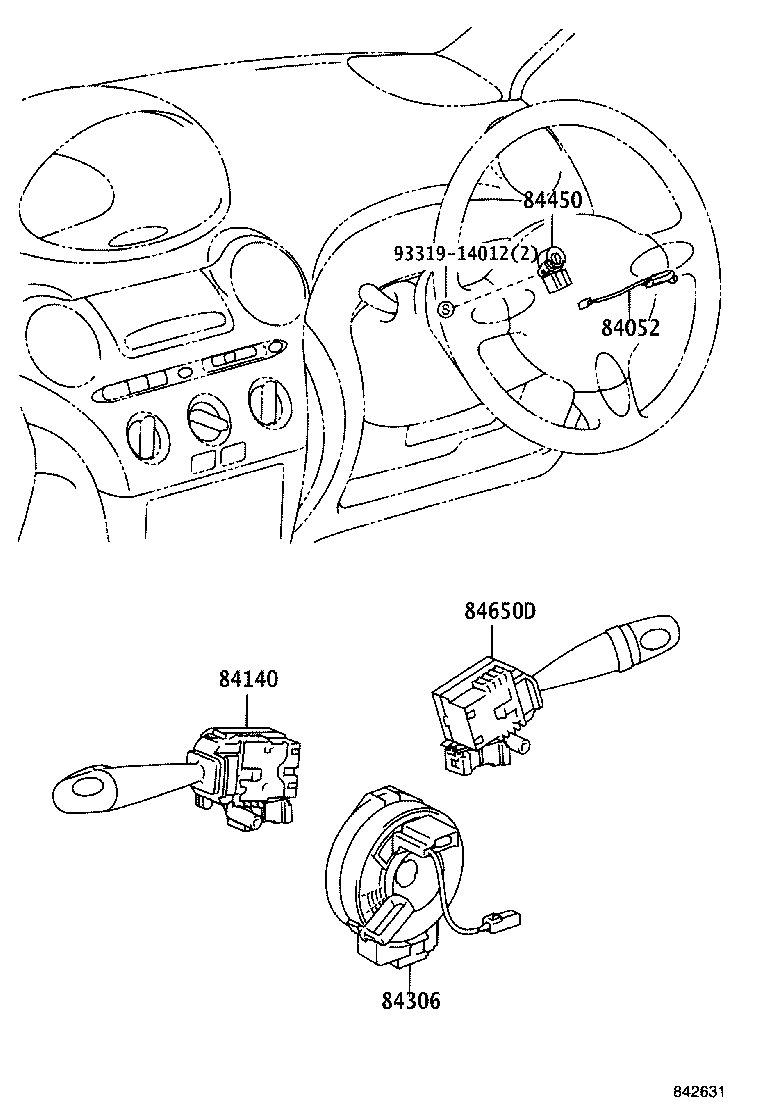

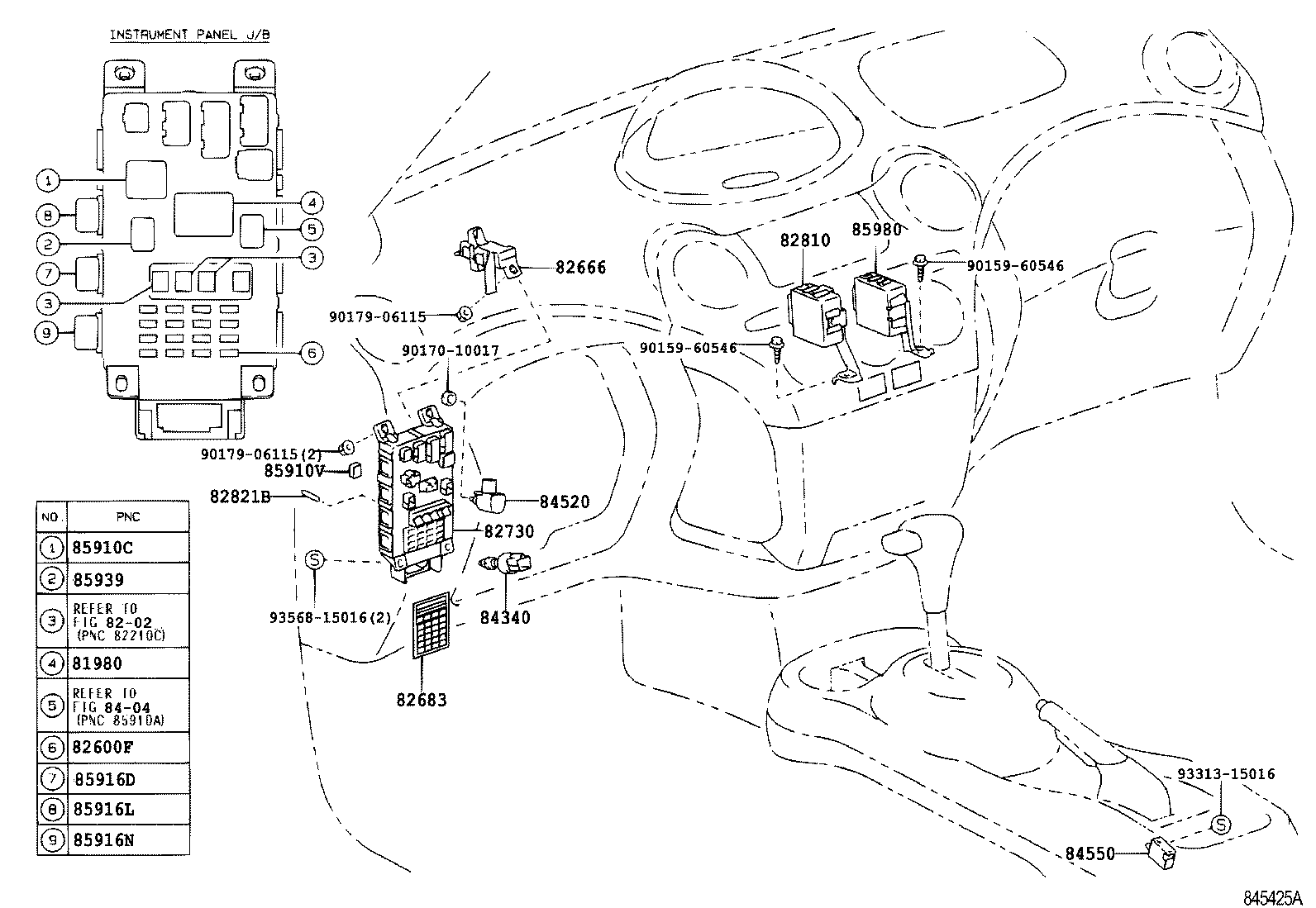

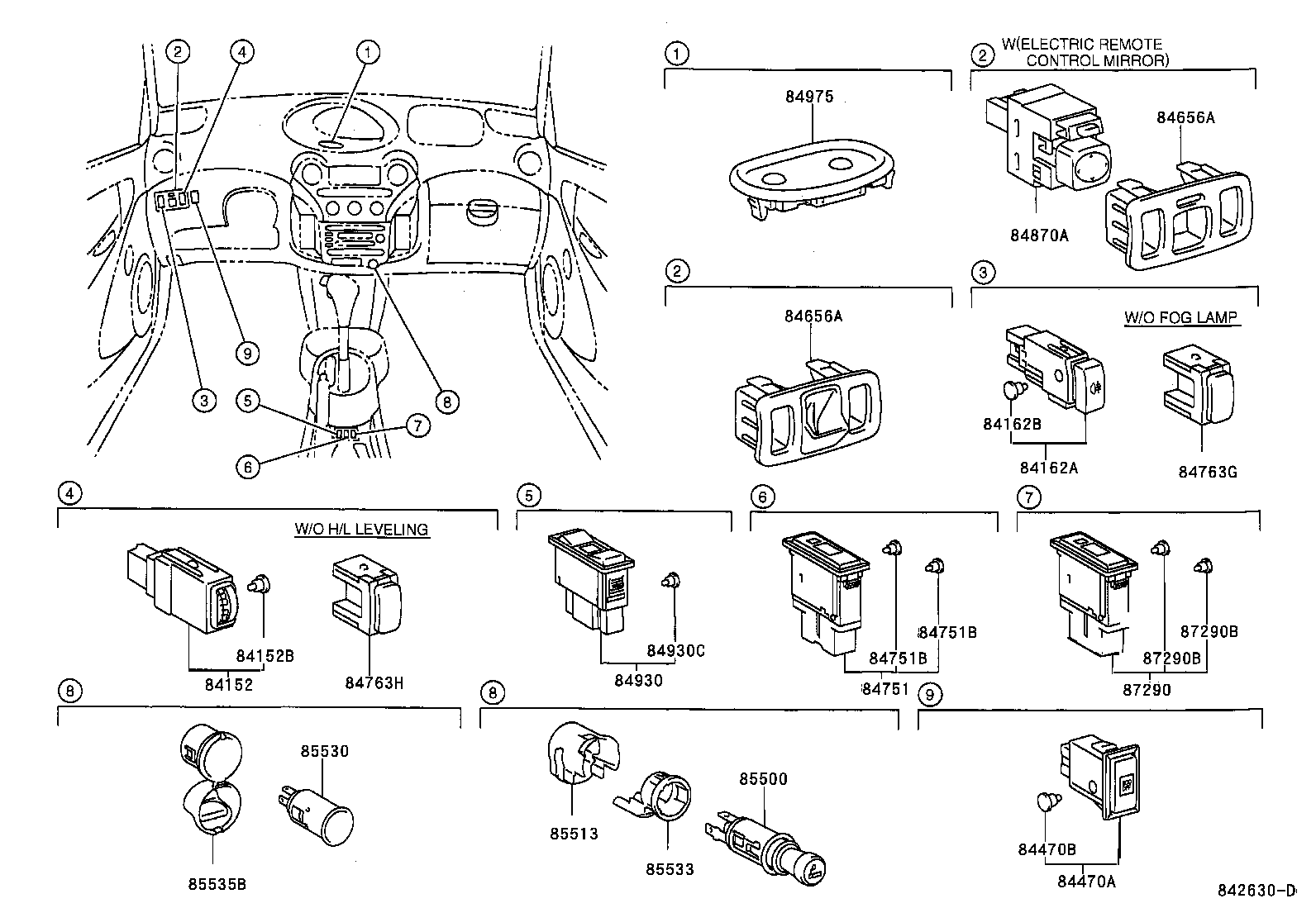

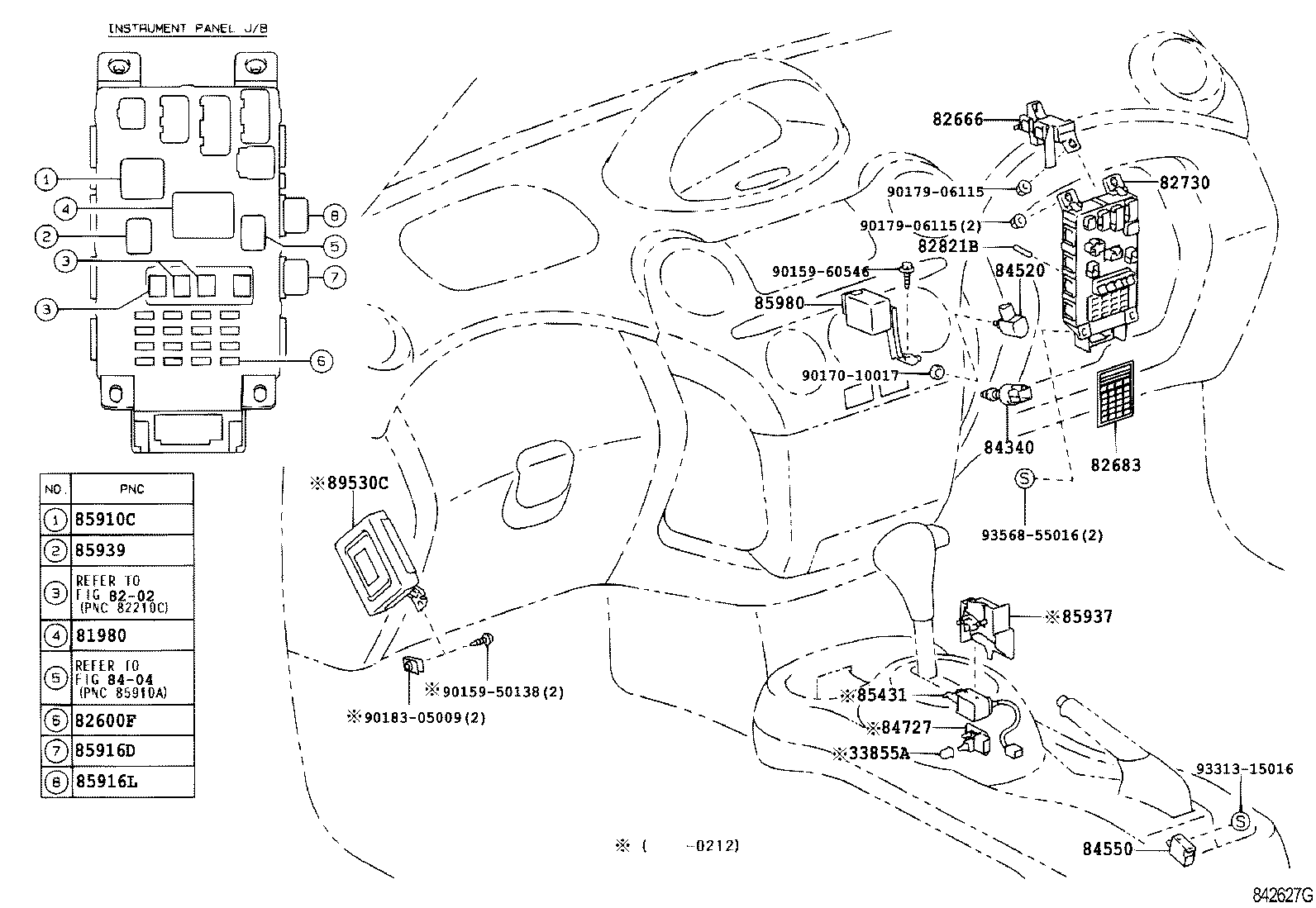

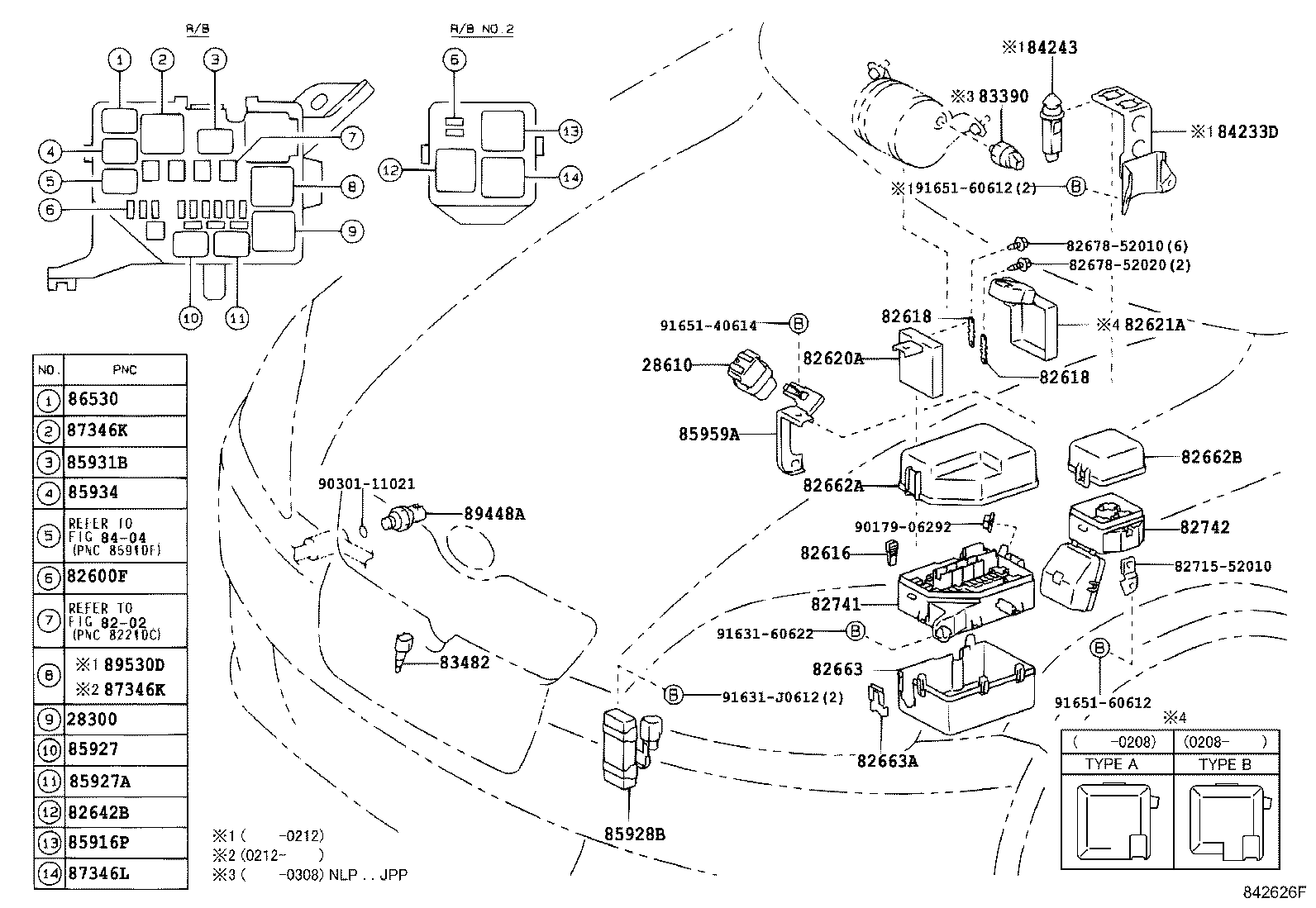

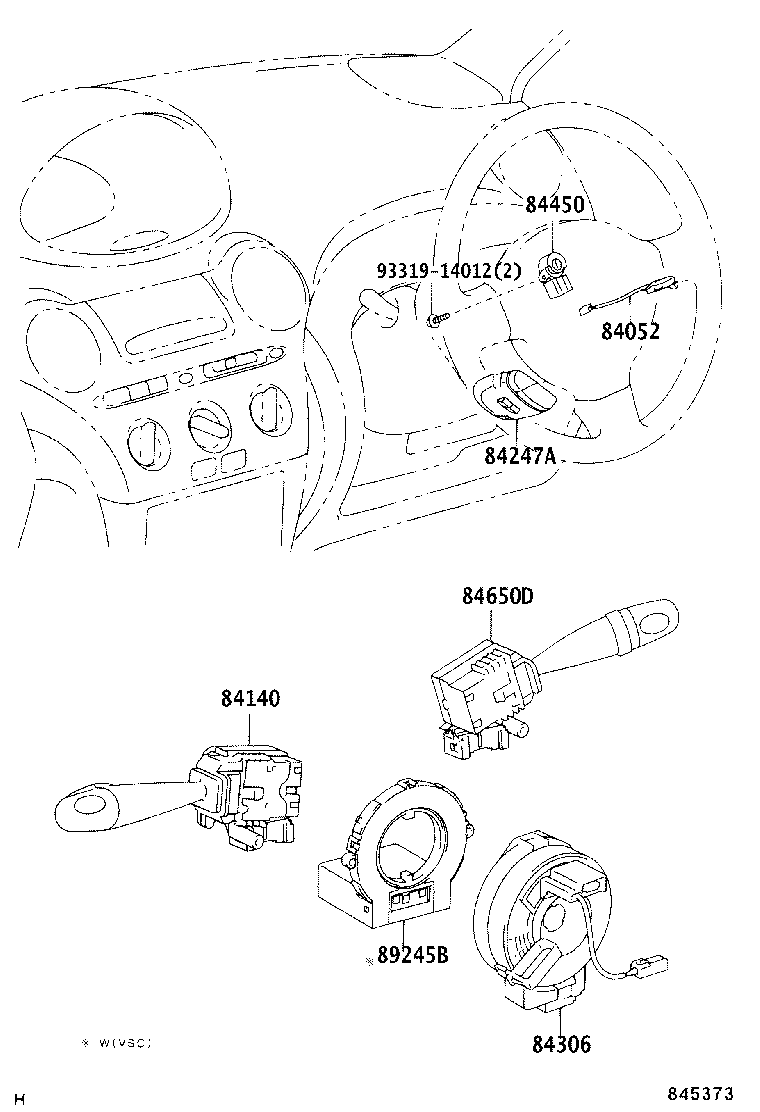

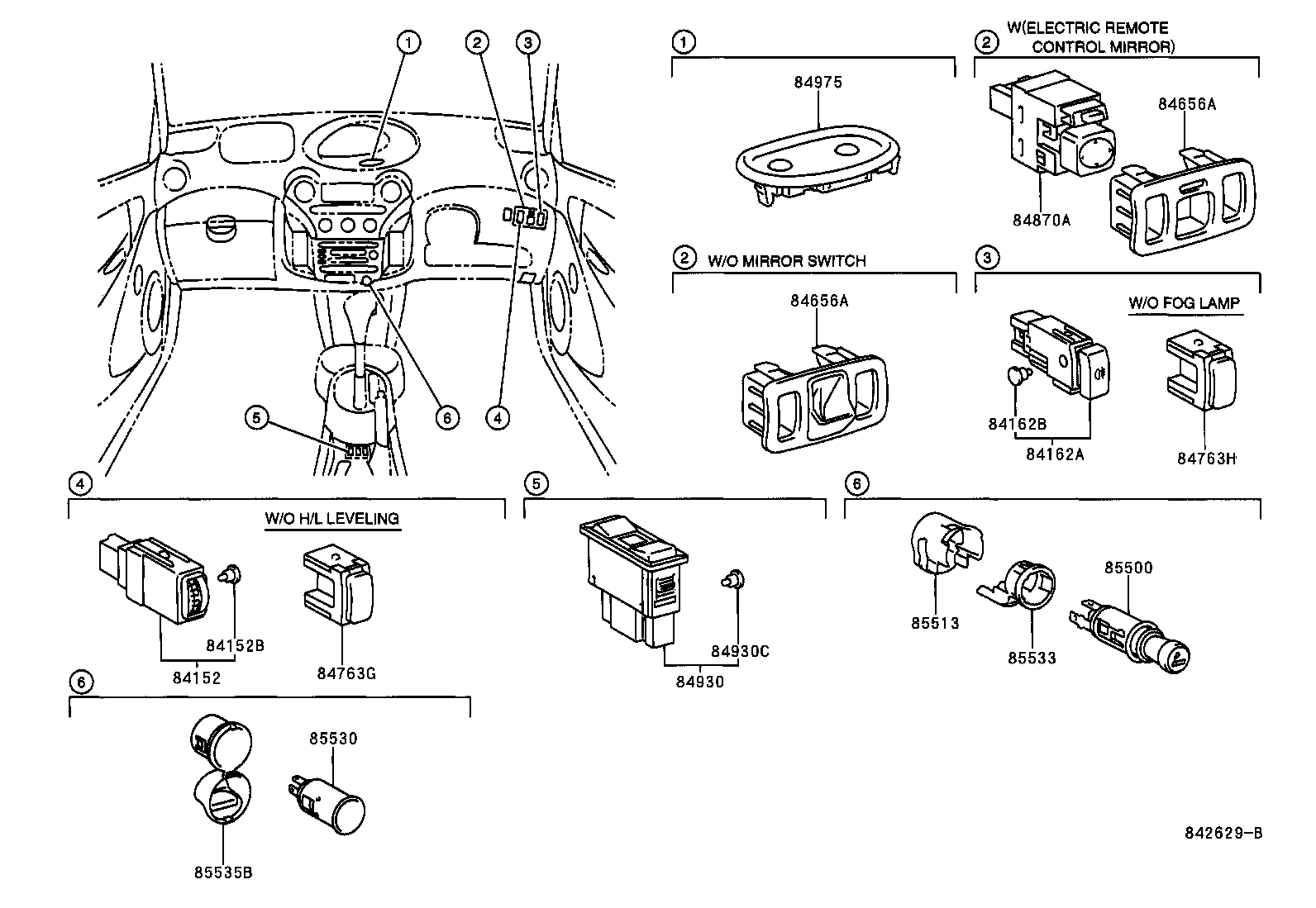

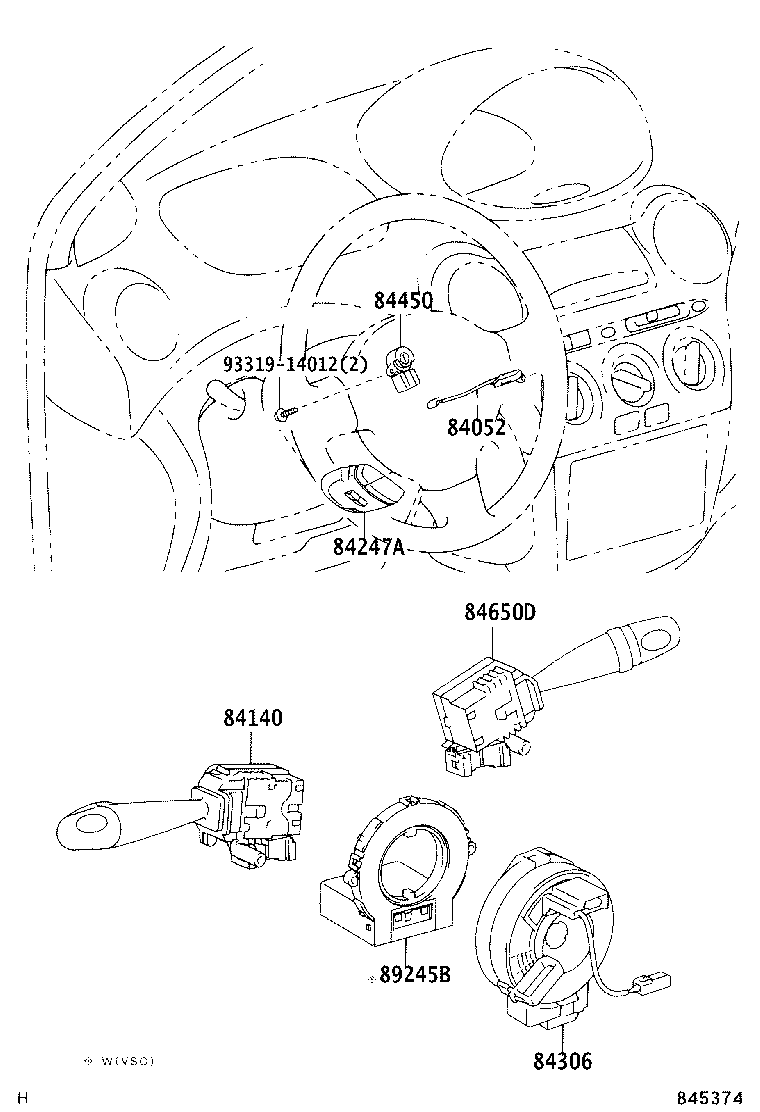

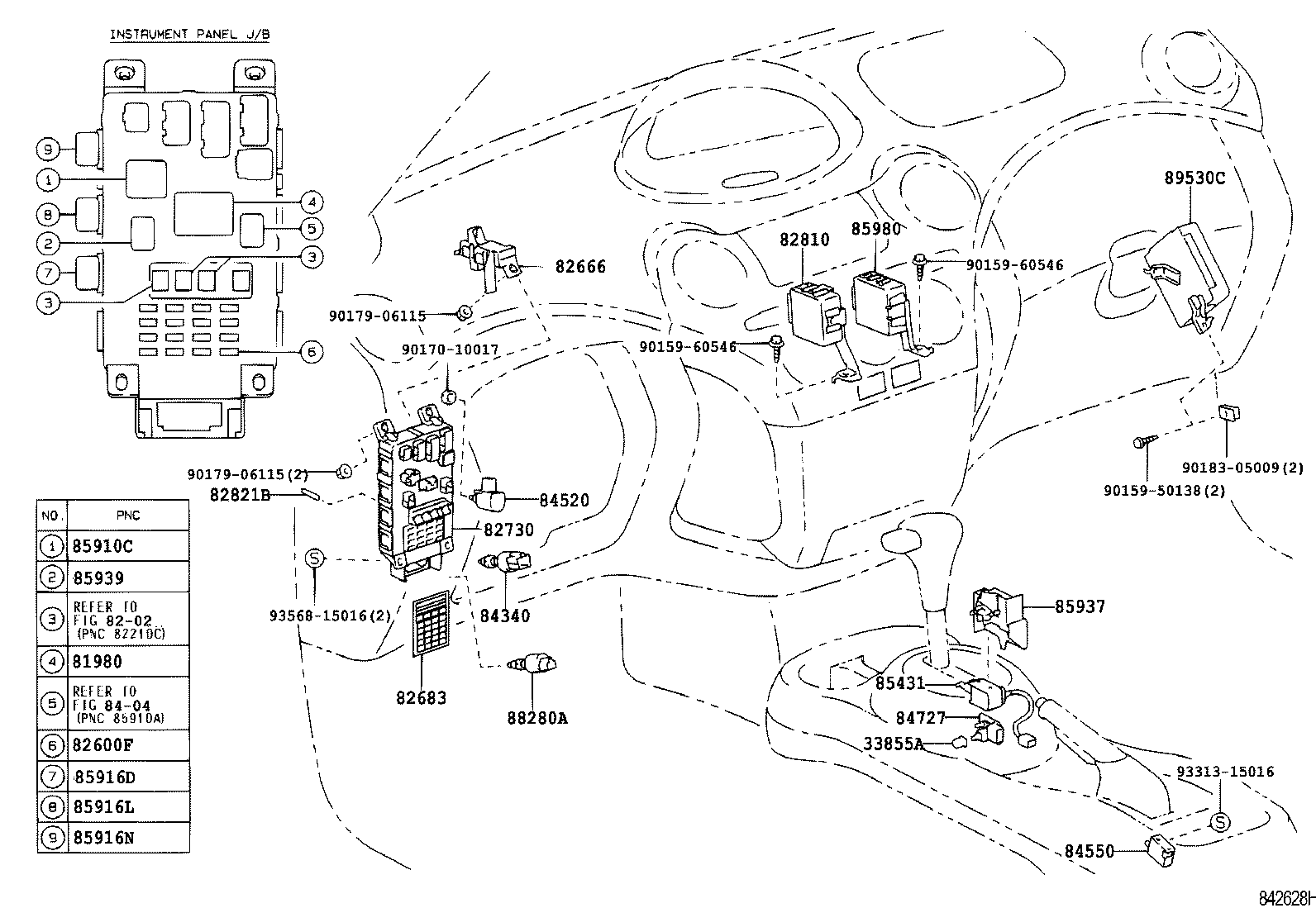

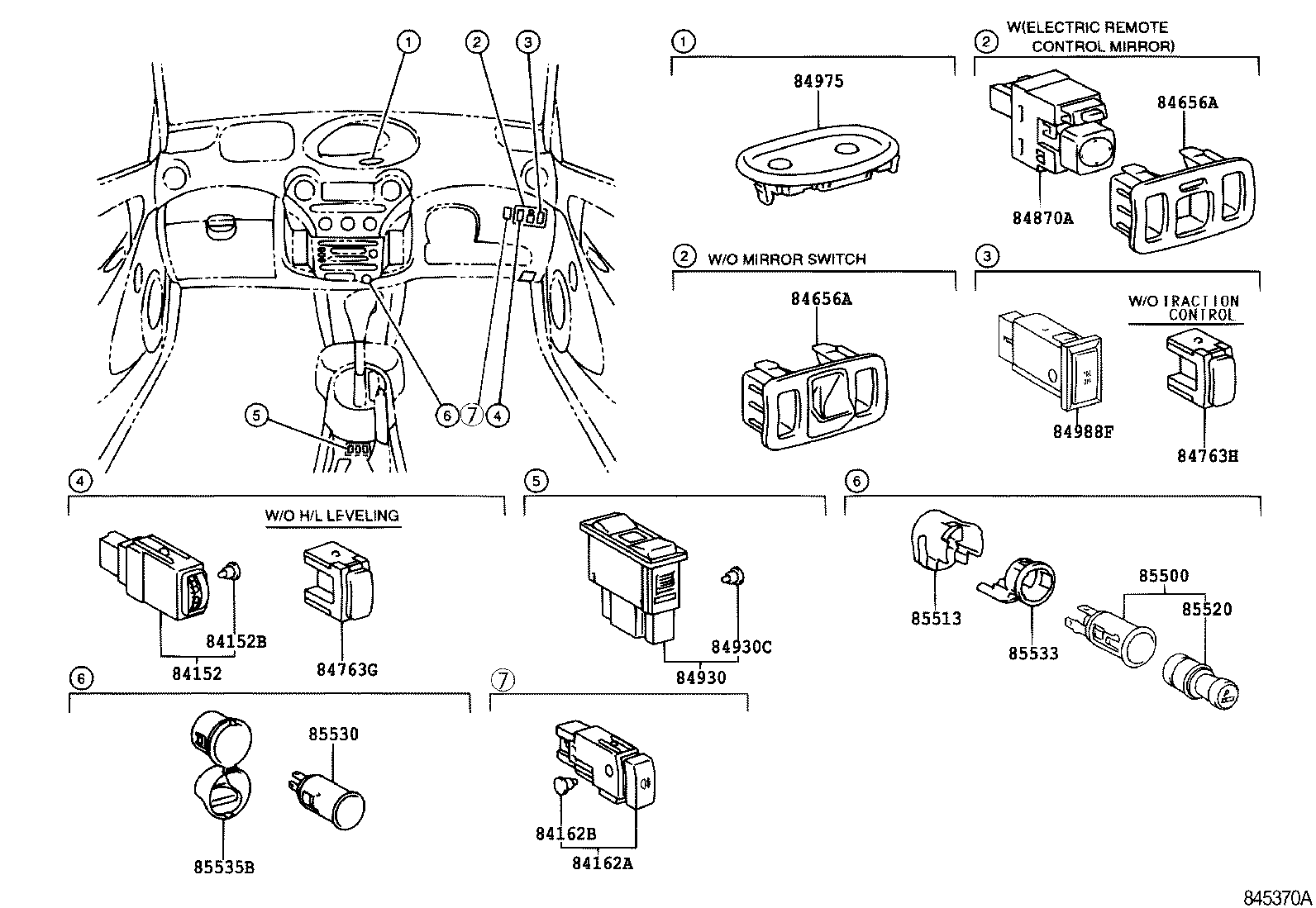

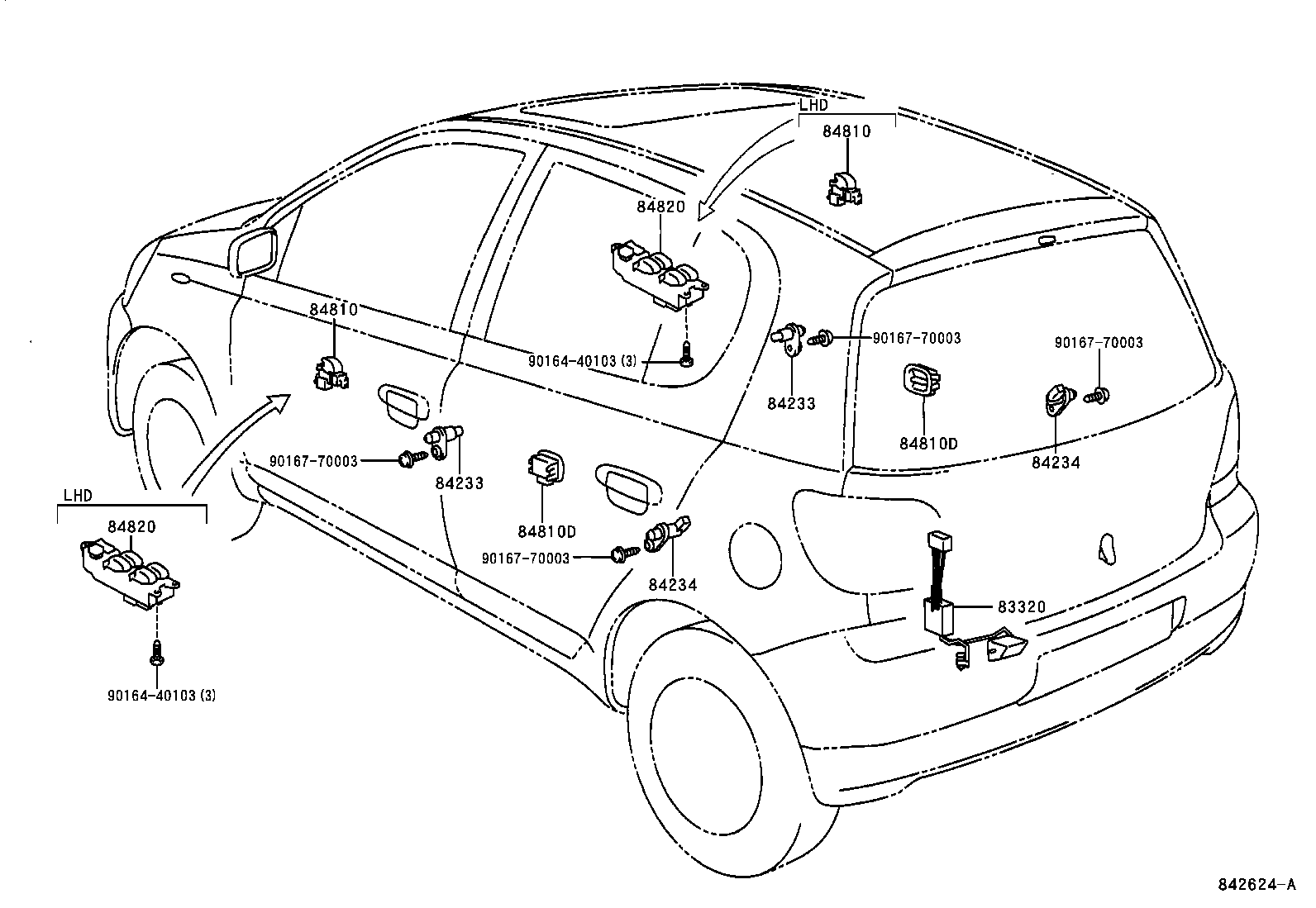

Figure 842625A 842625A 1999-01 → 2002-12 Figure 842906 842906 1999-08 → 2002-12 Figure 844485A 844485A 2001-10 → — Figure 845372 845372 2002-12 → — Figure 842626F 842626F 1999-01 → — Figure 842628H 842628H 1999-01 → 2002-12 Figure 842627G 842627G 1999-01 → — Figure 845425A 845425A 2002-12 → — Figure 842629B 842629B 1999-01 → 2002-12 Figure 842630D 842630D 1999-01 → 2002-12 Figure 845370A 845370A 2002-12 → — Figure 845369A 845369A 2002-12 → — Figure 842631A 842631A 1999-01 → 2002-12 Figure 842917B 842917B 1999-01 → 2002-12 Figure 845373A 845373A 2002-12 → — Figure 845374A 845374A 2002-12 → — Figure 842624A 842624A 1999-01 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28610 Relay Assy, Intake Heater OR Glow Plug
33117H Protector, Transmission Case
33855A Cover, Shift Lock Unit
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82616 Puller, Fuse
82618 Fuse, Fuse Block
82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82642B Relay, Day Time Running Light, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82666 Holder, Connector
82683 Plate, Fuse Block Caution
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82810 Relay Assy, Running Light
82821B Cover, Connector
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83482 Sensor, Outer Ambient Temperature
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162A Switch, Rear Fog Lamp
84162B Bulb, Fog Lamp Switch
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233D Bracket, Engine Hood Switch
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84243 Switch, Engine Hood
84247A Switch, Steering Pad, LH
84306 Cable Sub-assy, Spiral
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84470B Bulb, Ecorun Cancell Switch
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84540D Switch Assy, Neutral Start
84540E Gasket, Neutral Start Switch
84540F Gasket, Neutral Start Switch
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84727 Switch, Shift Lock Control
84751 Switch, Seat Heater
84751B Bulb, Seat Heater Switch
84763G Cover, Hole NO.1
84763H Cover, Hole NO.2
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84930C Bulb(FOR DOOR CONTROL SWITCH)
84975 Switch, Trip
84988F Switch, Traction Control
85431 Solenoid, Shift Lock
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910V Relay, Seat Heater
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85931B Relay, Fuel Heater
85934 Relay, Magnet-clutch
85937 Protector, Shift Lock Control
85939 Relay, Power Window
85959A Holder, Relay
85980 Relay Assy, Door Control
86530 Relay Assy, Horn
87290 Switch Assy, Heater
87290B Bulb (FOR HEATER SWITCH)
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
88280A Switch Assy, Clutch
89245B Sensor, Steering
89413A Sensor, Transmission Revolution
89428 Switch, Temperature Detect, NO.2
89448A Sensor, Power Steering Oil Pressure
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89530C Computer Assy, Transmission Control
89530D Relay, Auto Clutch
89615 Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
