Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

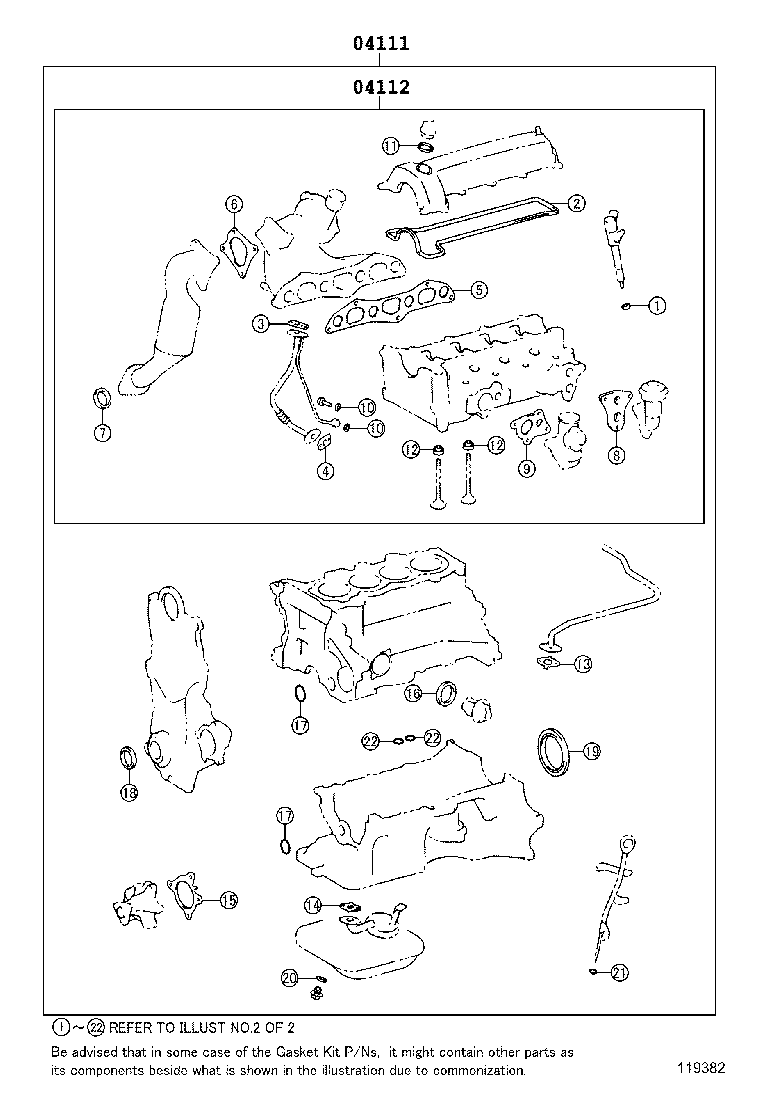

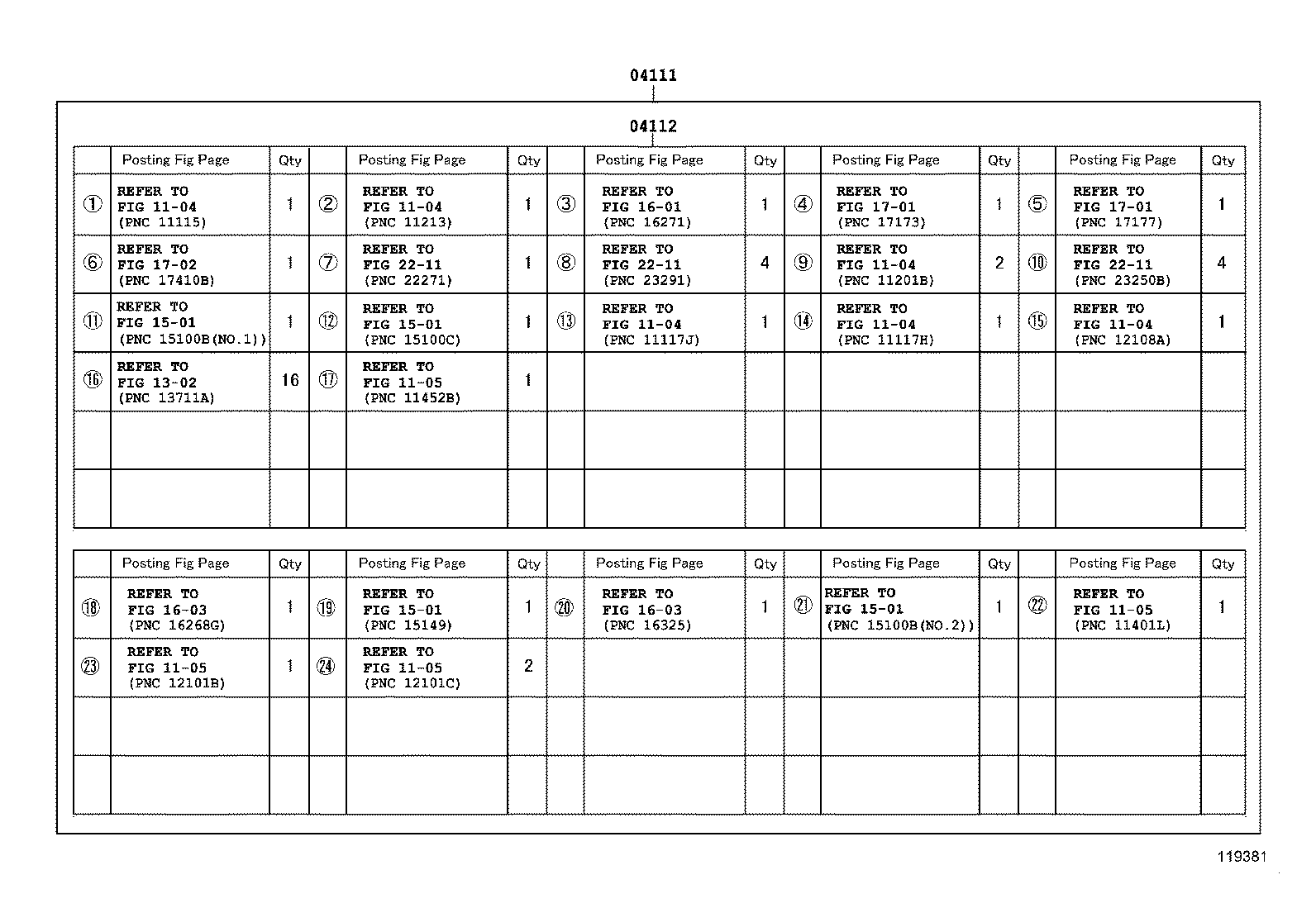

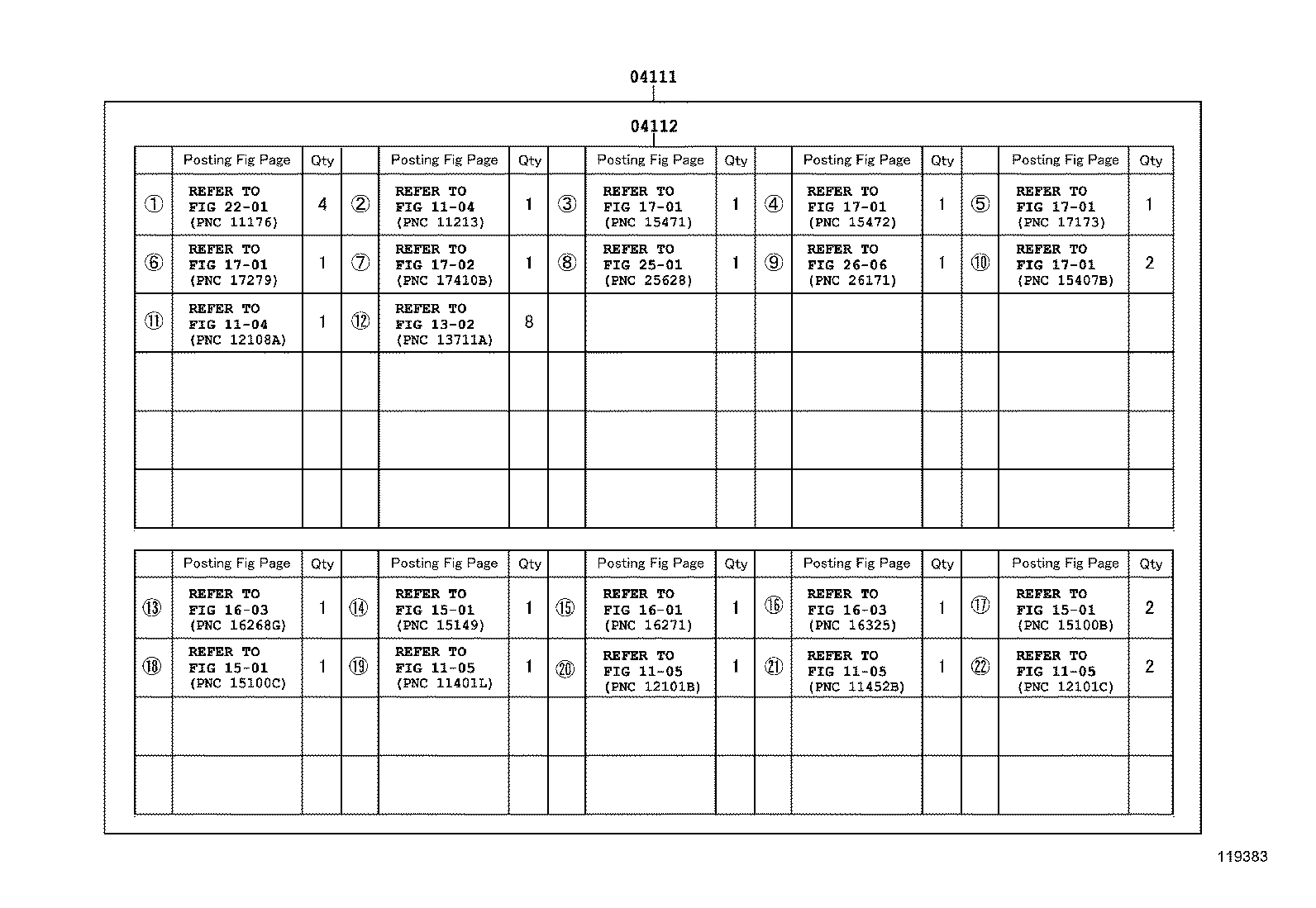

Figure 119380 119380 1999-08 → 2005-09 Figure 119381 119381 1999-08 → 2005-09 Figure 119382 119382 2001-10 → 2005-09 Figure 119383 119383 2001-10 → 2005-09

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
