Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 2 illustrations

Illustrations

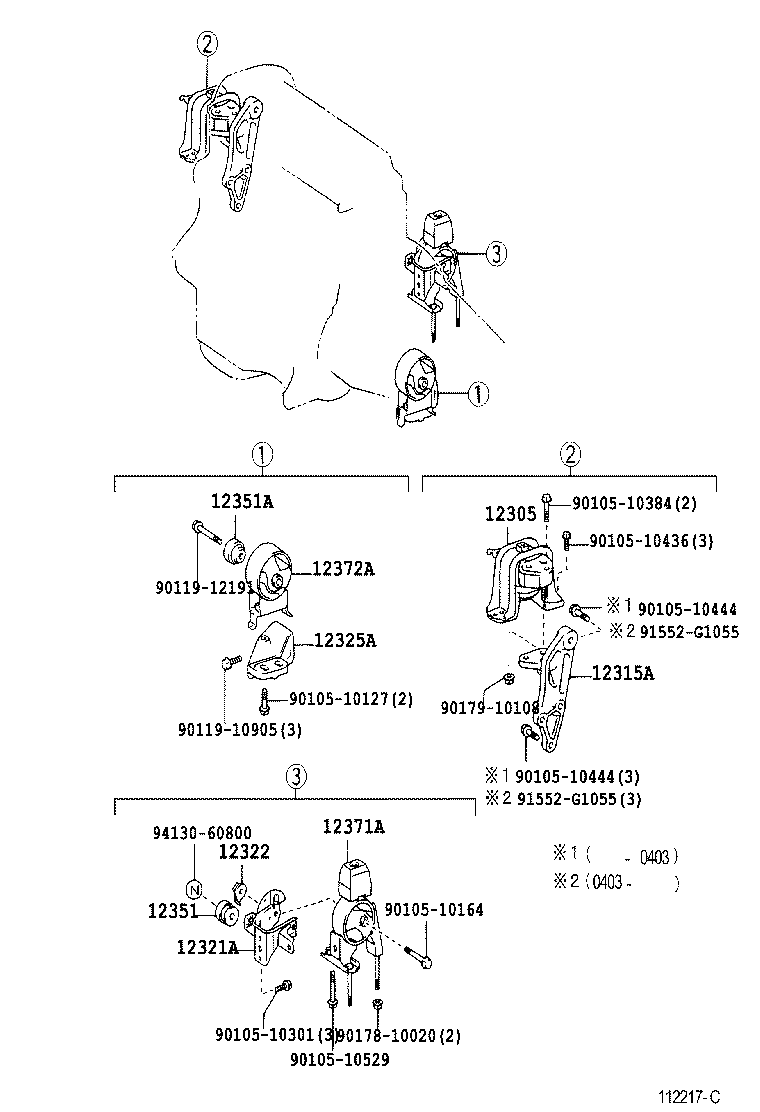

Figure 111505G 111505G 1999-08 → — Figure 112217C 112217C 2001-10 → —

Part groups

PNCDescription
12303 Bracket Sub-assy, Engine Mounting, Rear
12305 Insulator Sub-assy, Engine Mounting, RH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12321B Insulator Sub-assy, Drive Shaft Heat
12322 Bracket, Engine Mounting, Rear NO.2
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
