Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

22 part groups · 2 illustrations

Illustrations

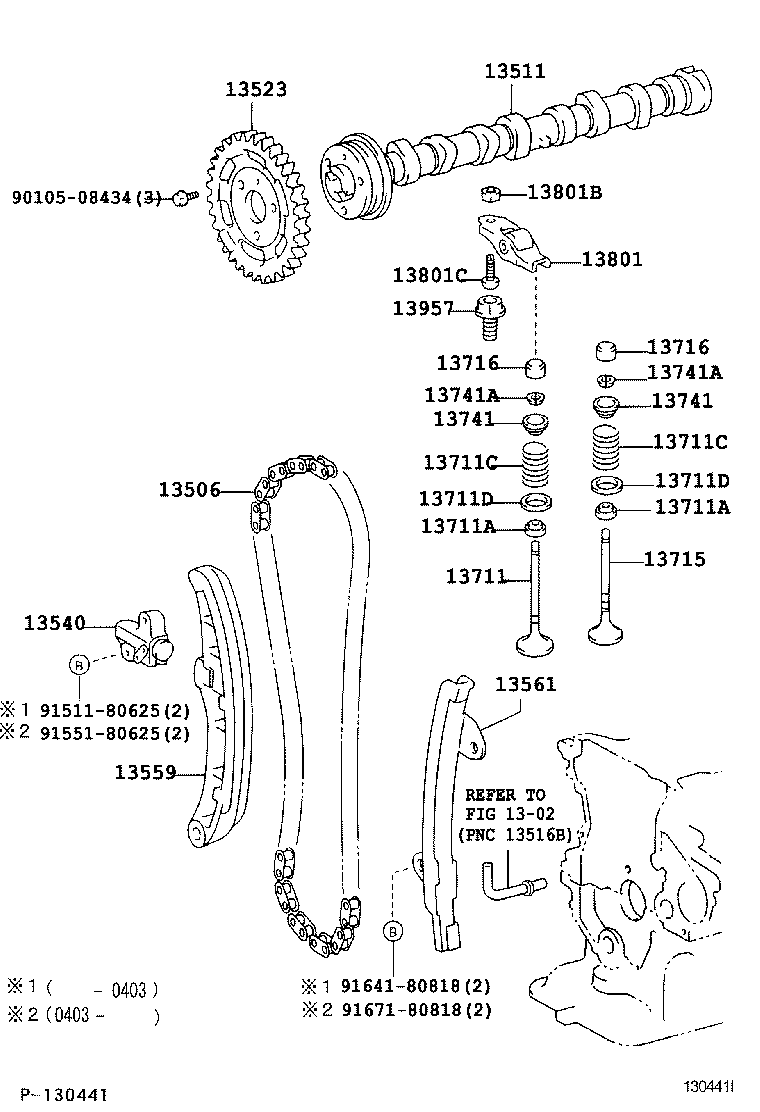

Figure 130285Q 130285Q 1999-08 → — Figure 130441I 130441I 2001-10 → —

Part groups

PNCDescription
13050 Gear Assy, Camshaft Timing
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13523 Gear OR Sprocket, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13559 Slipper, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711C Spring, Compression(FOR OUTER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13716 Cap, Valve Stem
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13801 Arm Sub-assy, Valve Rocker, NO.1
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13957 Pivot, Valve Rocker Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
