Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

17 part groups · 3 illustrations

Illustrations

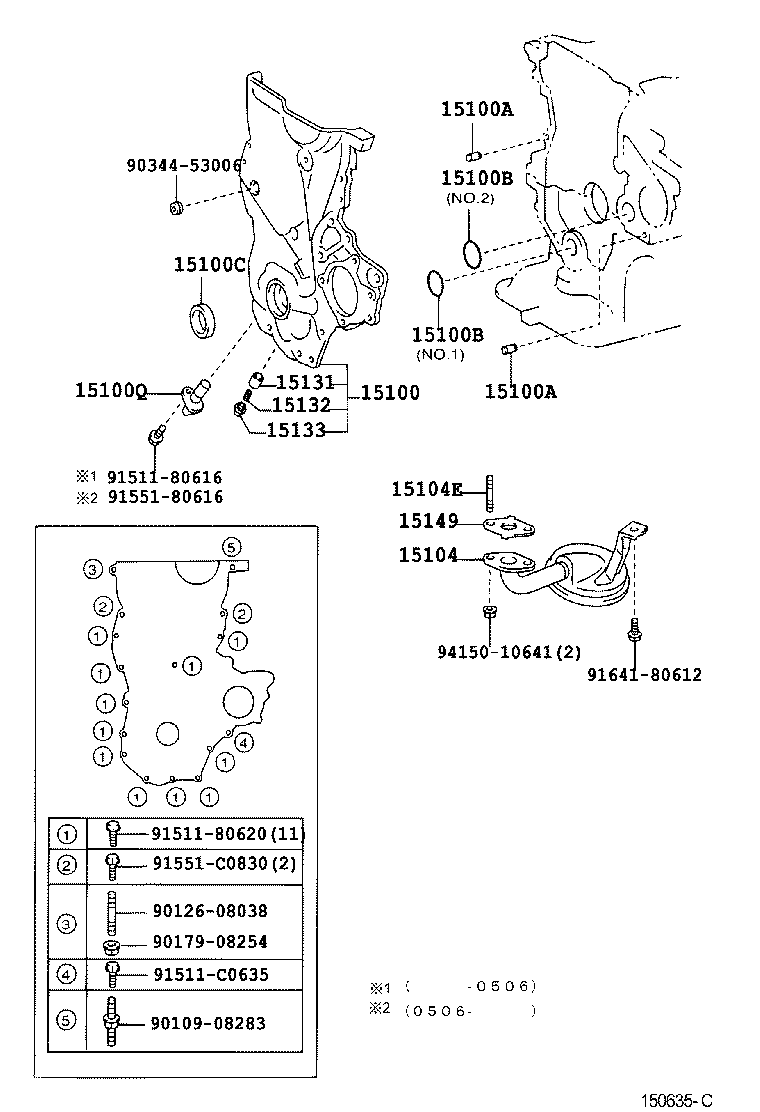

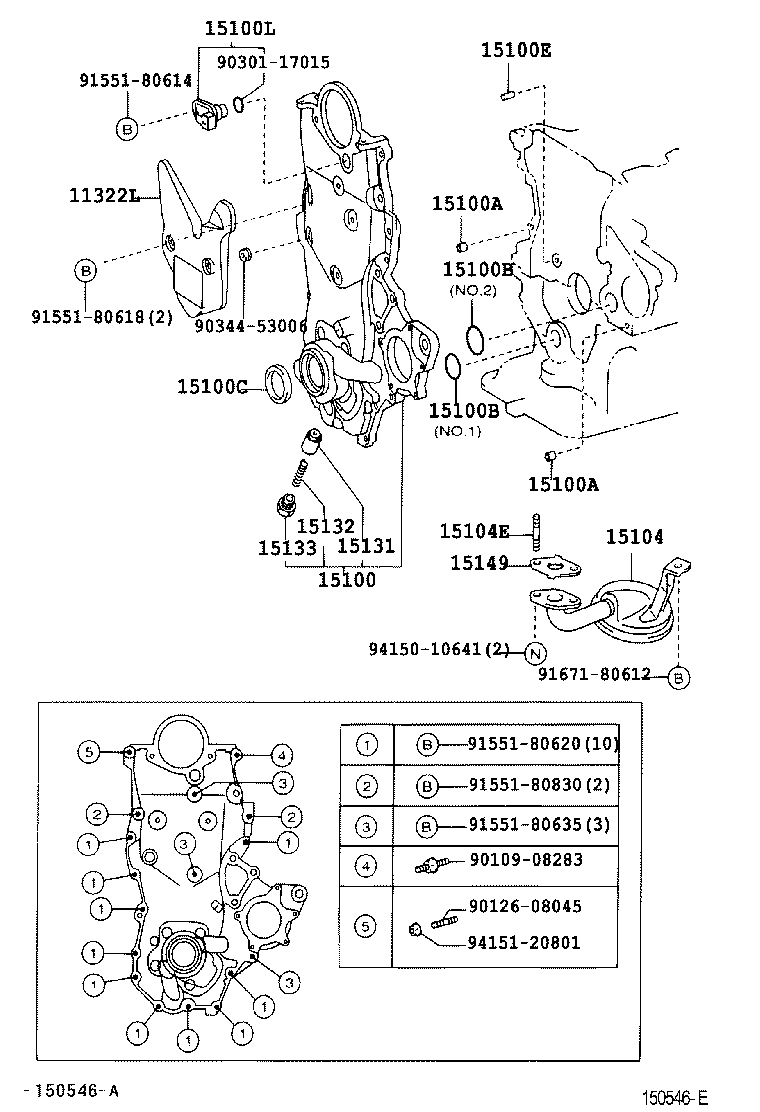

Figure 150400C 150400C 1999-08 → 2002-11 Figure 150635C 150635C 2002-11 → — Figure 150546E 150546E 2001-10 → —

Part groups

PNCDescription
11322L Cover, Timing Chain, NO.2
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100E Pin, Straight (FOR OIL PUMP SET)
15100L Sensor, Cam Position
15100Q Sensor, Crank Position
15101 Body Sub-assy, Oil Pump
15103 Gear Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
