Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

25 part groups · 2 illustrations

Illustrations

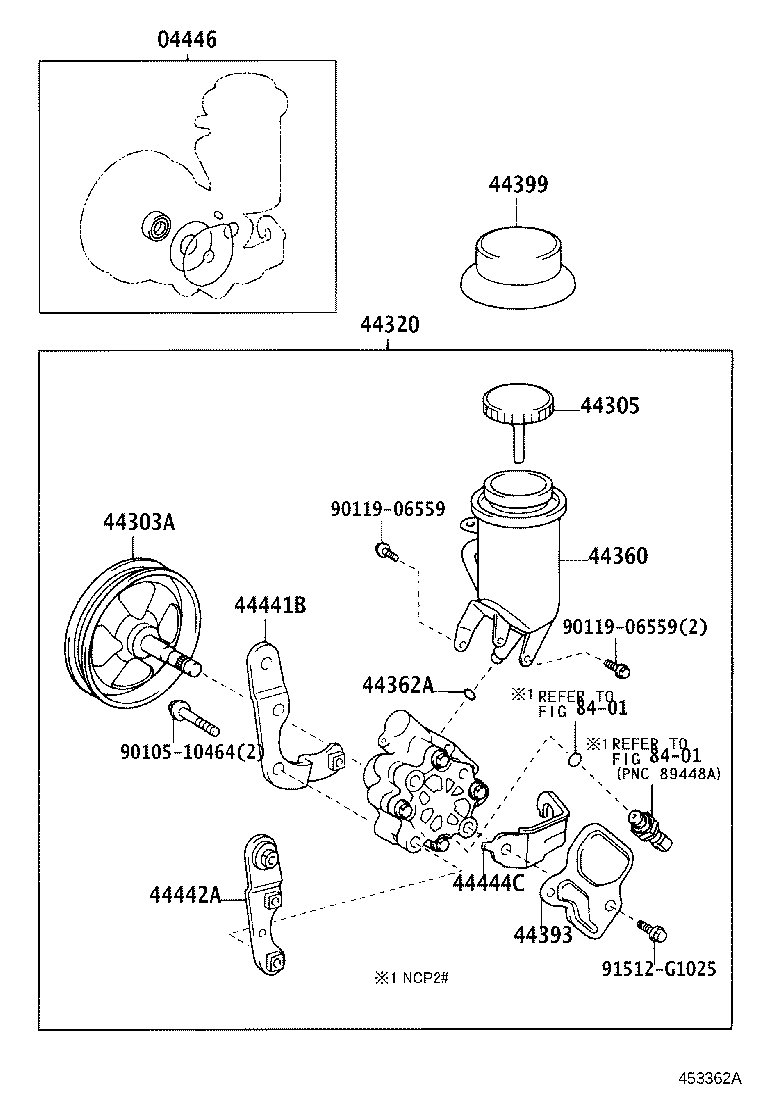

Figure 452007A 452007A 1999-08 → 2002-11 Figure 453362A 453362A 2002-11 → 2005-09

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44302 Housing Sub-assy, Vane Pump, Front
44302A Seal, Oil, NO.1(FOR VANE PUMP HOUSING)
44303A Shaft Sub-assy, W/Pulley
44304 Housing Sub-assy, Vane Pump, Rear
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44312B Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
44313 Rotor, Vane Pump
44320 Pump Assy, Vane
44324C Ring, O(FOR PUMP HOUSING REAR)
44326 Ring, Cam(FOR VANE PUMP)
44330 Valve Assy, Flow Control
44330A Spring, Compression(FOR FLOW CONTROL VALVE)
44338A Ring, O(FOR PRESSURE PORT UNION)
44341 Plate, Vane Pump Side, Front
44341A Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
44345B Plate, Vane Pump
44360 Reservoir Assy, Vane Pump Oil
44362A Ring, O(FOR VANE PUMP OIL RESERVOIR)
44393 Insulator, Power Steering Pump Heat
44399 Cover, Vane Pump Oil Reservoir
44441B Bracket, Pump, Front
44442A Bracket, Vane Pump, Rear
44444C Stay, Vane Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
