Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

50 part groups · 9 illustrations

Illustrations

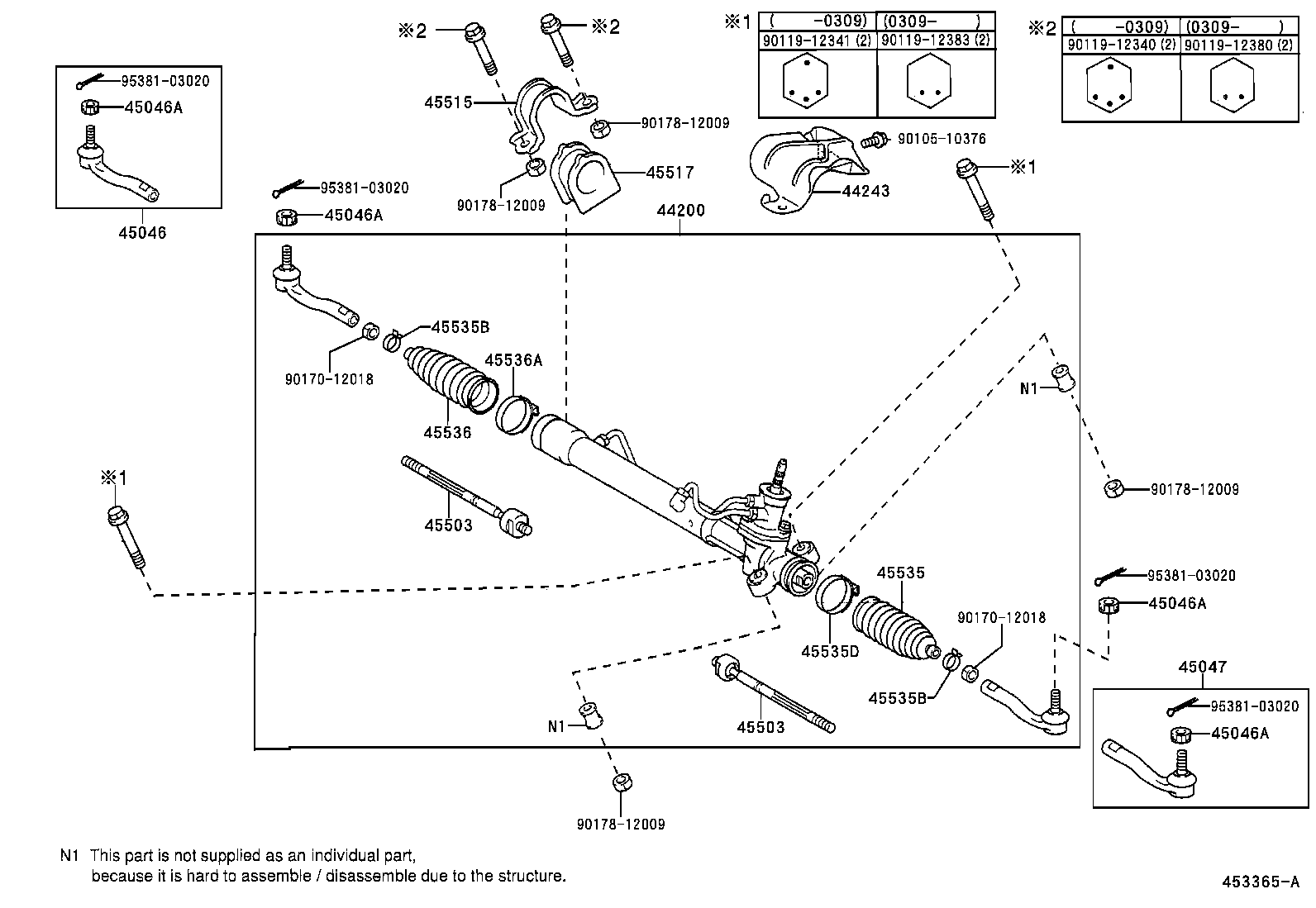

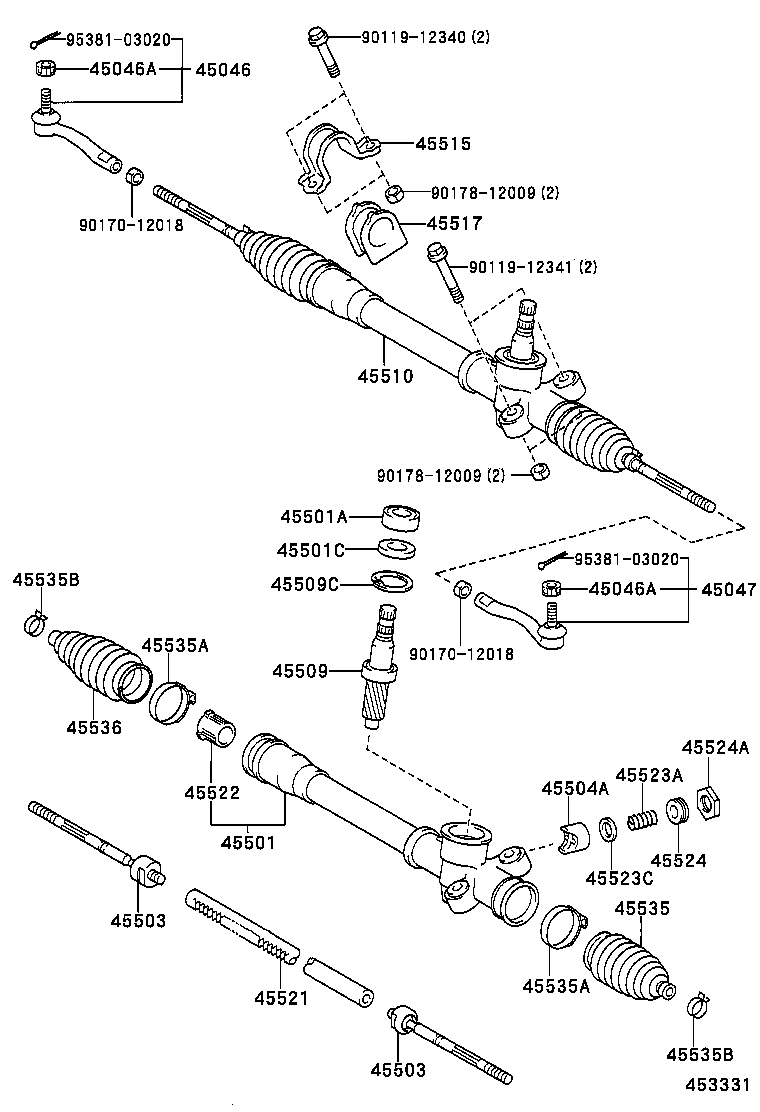

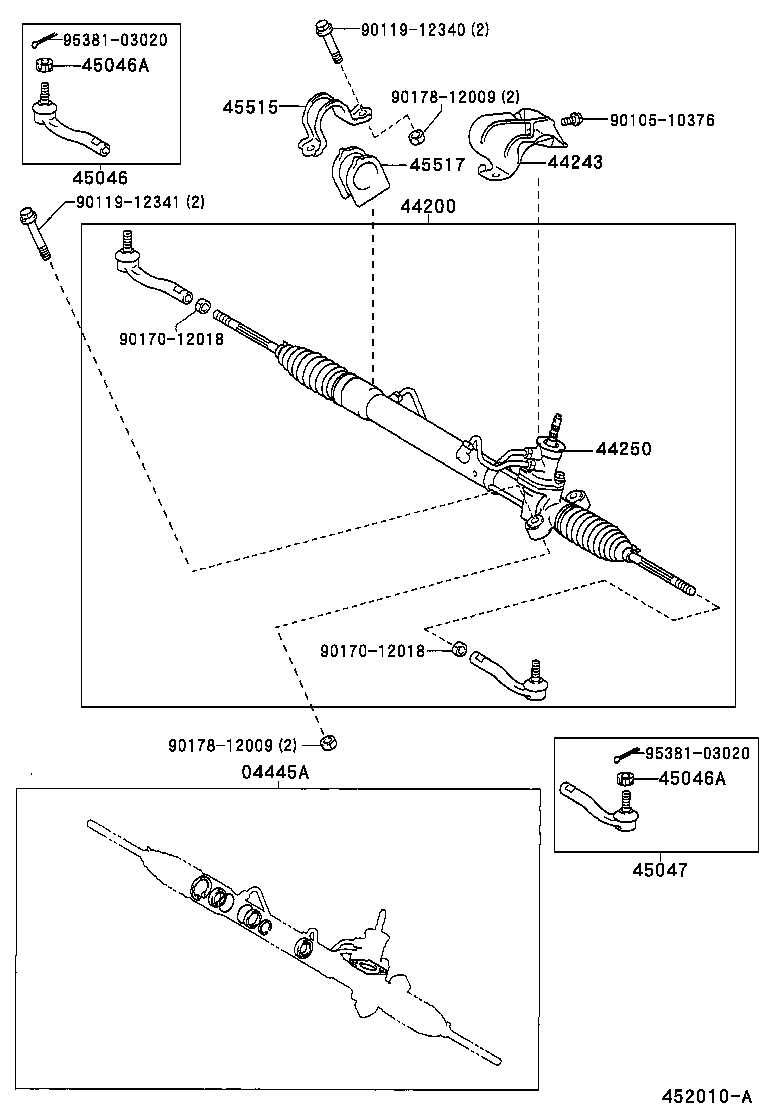

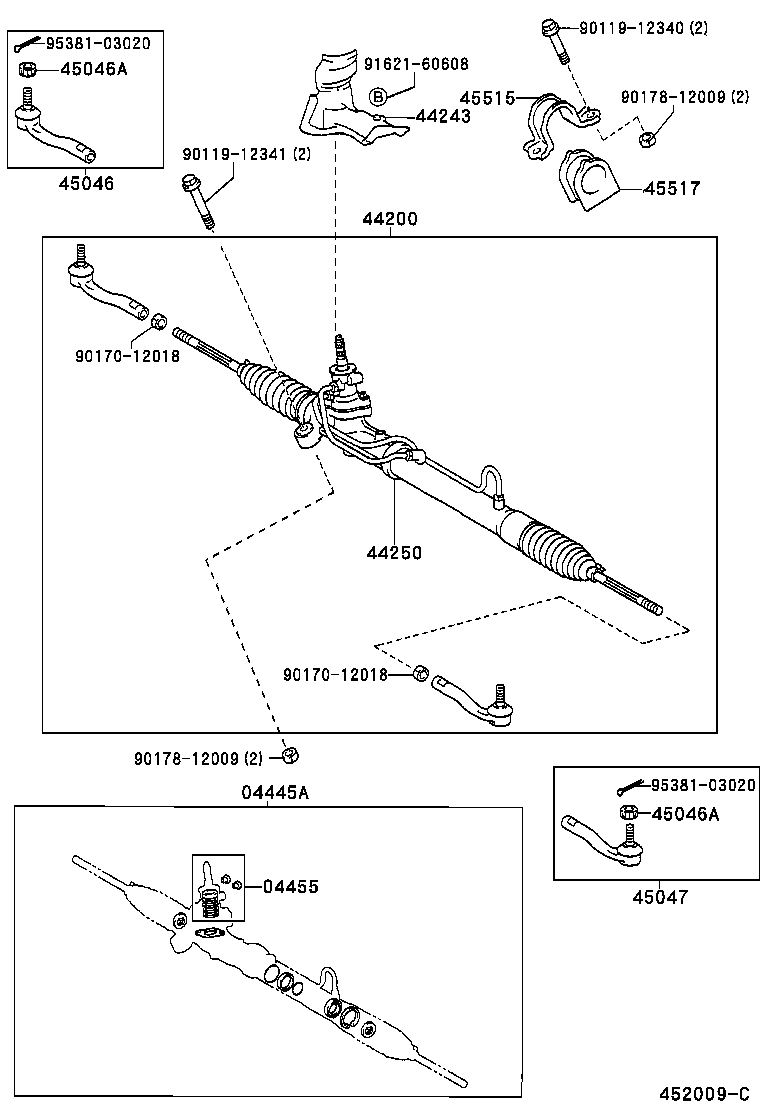

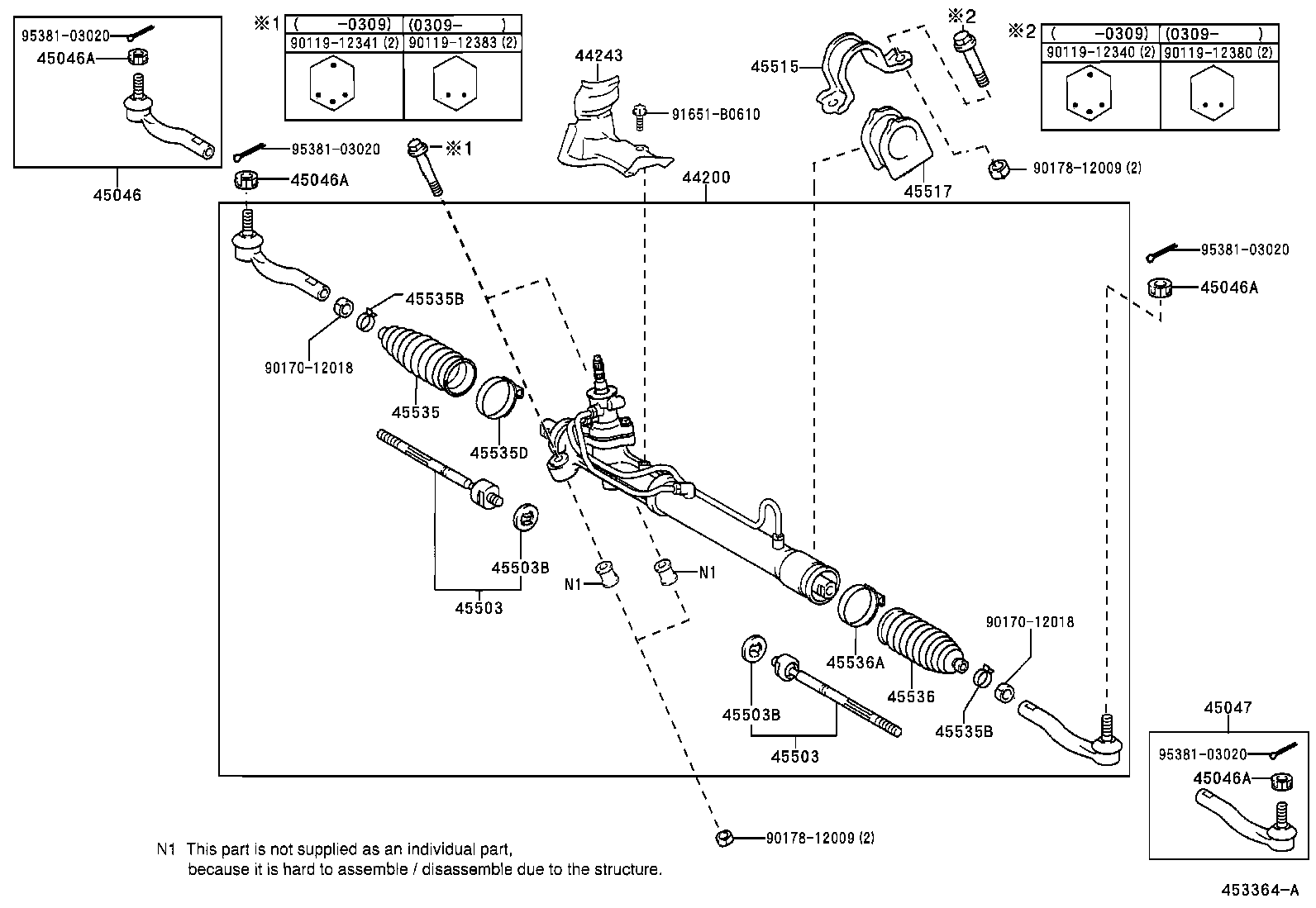

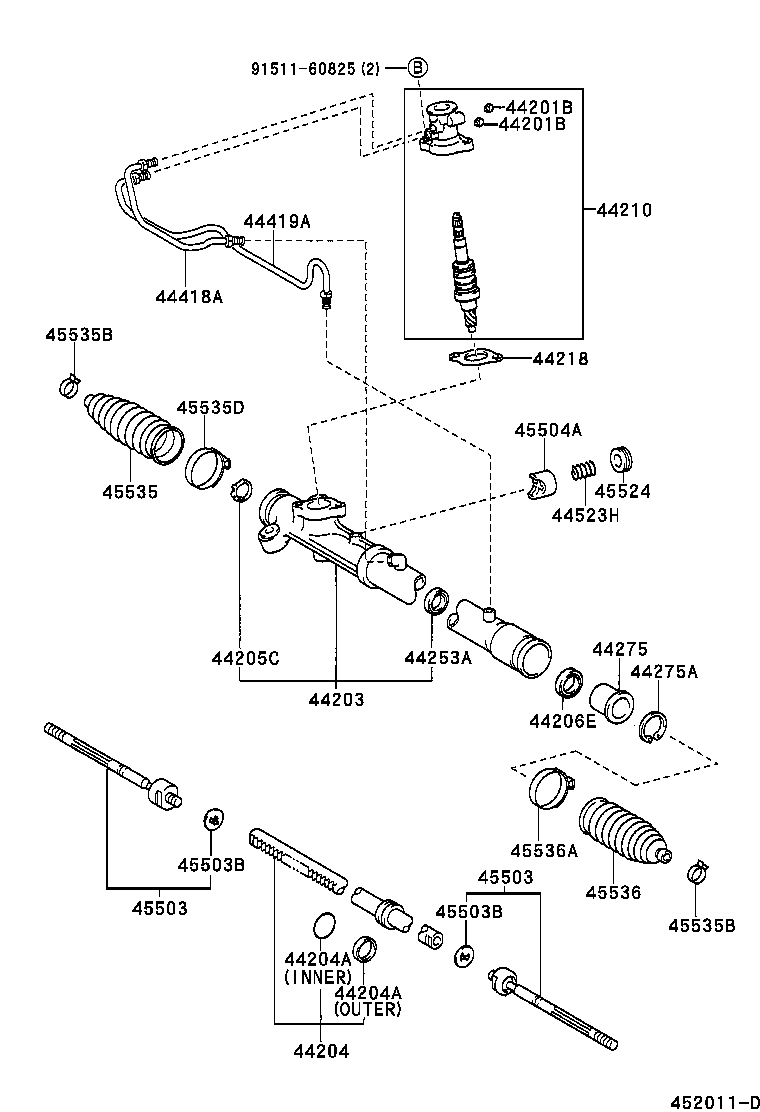

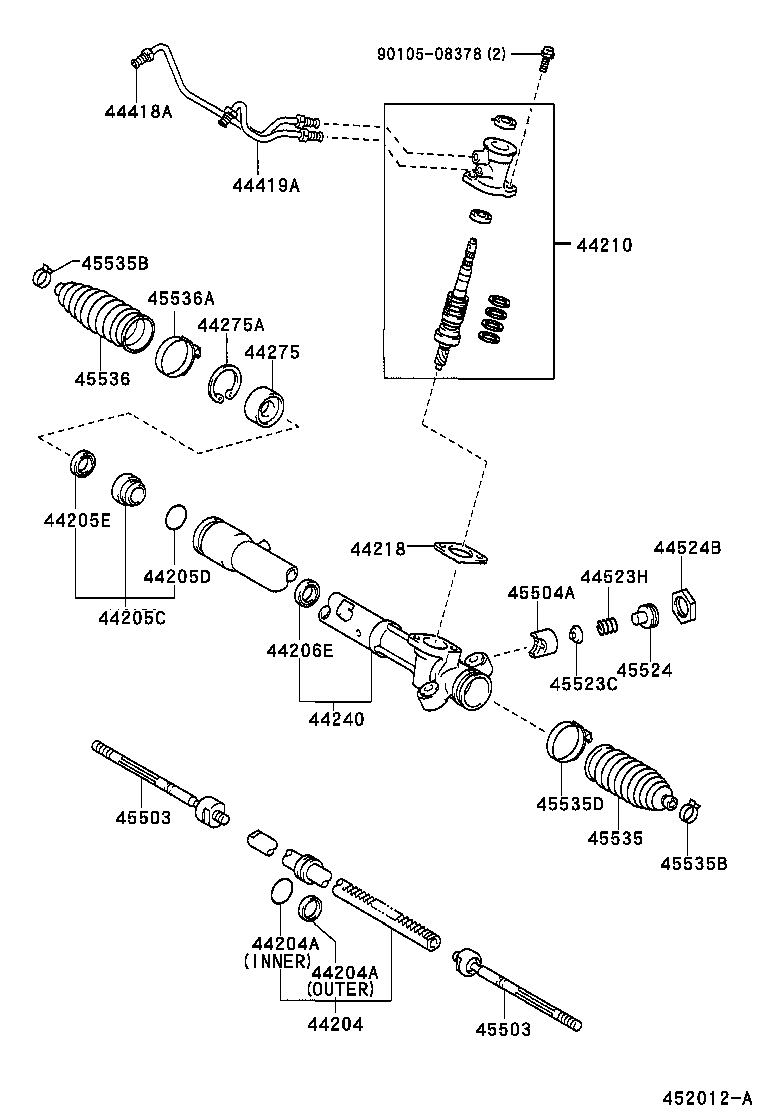

Figure 452008 452008 1999-08 → 2002-11 Figure 453331 453331 1999-08 → 2002-11 Figure 452009C 452009C 1999-08 → 2002-11 Figure 452010A 452010A 1999-08 → 2002-11 Figure 452011D 452011D 1999-08 → 2002-11 Figure 452012A 452012A 1999-08 → 2002-11 Figure 453364A 453364A 2002-11 → — Figure 453365A 453365A 2002-11 → — Figure 453366 453366 2002-11 → —

Part groups

PNCDescription
04445A Gasket Kit, Power Steering Gear(FOR RACK & PINION)
04455 Gasket Kit, Power Steering Control Valve Overhole
44200 Link Assy, Power Steering
44201B Spacer(FOR POWER STEERING CONTROL VALVE)
44203 Housing Sub-assy, Power Steering Rack
44204 Rack Sub-assy, Power Steering
44204A Ring(FOR RACK STEERING PISTON)
44205C Bush Sub-assy, Power Steering Rack
44205D Ring, O(FOR POWER STEERING RACK BUSH)
44205E Seal, Oil(FOR POWER STEERING RACK BUSH)
44206E Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE)
44210 Valve Assy, Power Steering Control
44218 Gasket, Valve Housing
44240 Housing Assy, Power Steering Rack
44243 Insulator, Power Steering Rack Housing Heat
44250 Gear Assy, Power Steering(FOR RACK & PINION)
44253A Seal, Oil(FOR POWER STEERING RACK HOUSING)
44275 Stopper, Cylinder End
44275A Ring, Hole Snap(FOR CYLINDER END STOPPER)
44418A Tube, Steering Right Turn Pressure
44419A Tube, Steering Left Turn Pressure
44523H Spring(FOR POWER STEERING RACK GUIDE)
44524B Nut(FOR POWER STEERING RACK GUIDE CAP)
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45319A Insulator, Steering Gear Heat
45501 Housing Sub-assy, Steering Rack
45501A Seal, Type T Oil(FOR STEERING RACK HOUSING)
45501C Spacer(FOR STEERING RACK HOUSING)
45503 End Sub-assy, Steering Rack
45503B Washer, Claw(FOR STEERING RACK END)
45504A Guide Sub-assy, Rack
45509 Pinion Sub-assy, Steering
45509C Ring, Hole Snap(FOR STEERING PINION)
45510 Gear Assy, Steering
45515 Bracket, Steering Rack Housing, NO.2
45517 Grommet, Steering Rack Housing, NO.2
45521 Rack, Steering
45522 Bush, Steering Rack
45523A Spring(FOR STEERING GEAR RACK GUIDE)
45523C Spacer(FOR RACK GUIDE)
45524 Cap, Steering Rack Guide Spring
45524A Nut(FOR STEERING RACK GUIDE SPRING CAP)
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
