Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

13 part groups · 4 illustrations

Illustrations

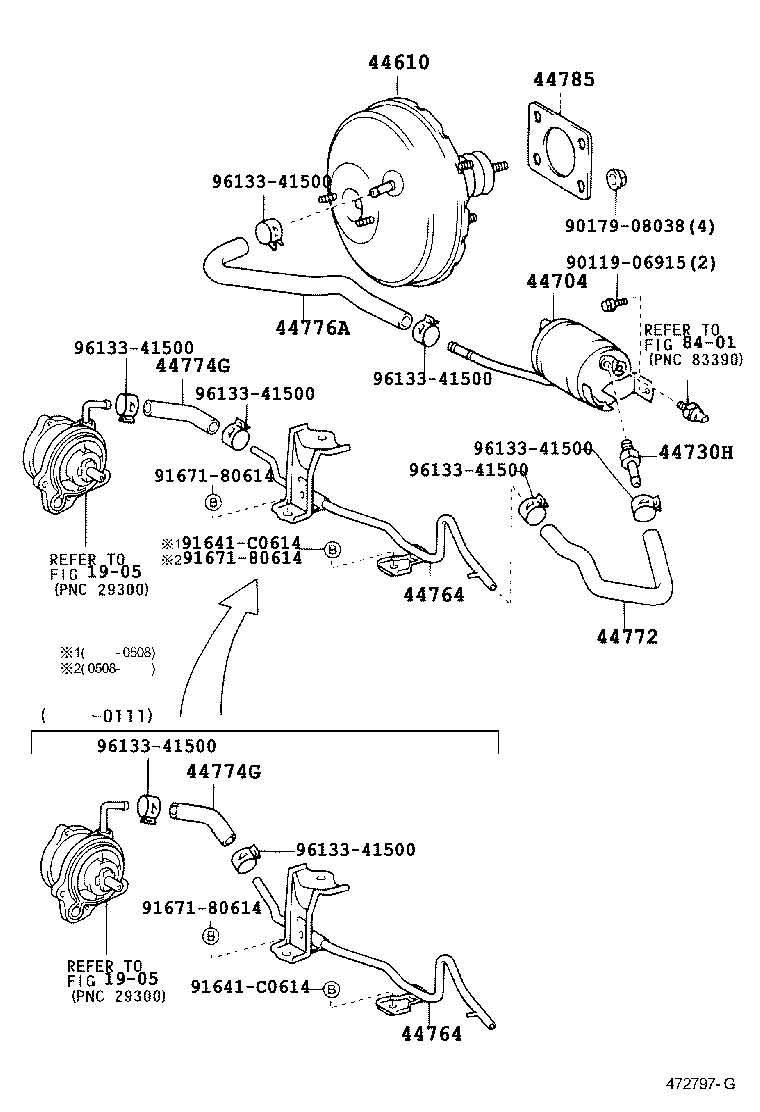

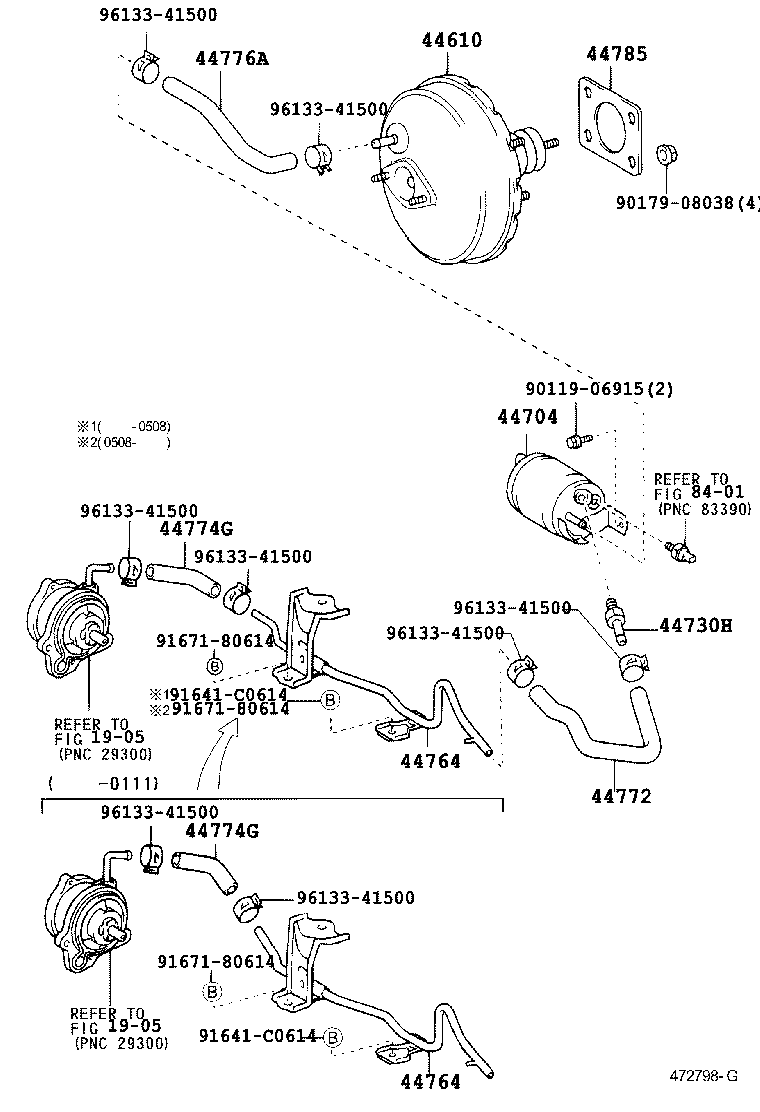

Figure 471812E 471812E 1999-08 → 2005-09 Figure 471813D 471813D 1999-08 → 2005-09 Figure 472797G 472797G 2001-10 → 2005-09 Figure 472798G 472798G 2001-10 → 2005-09

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44763 Tube, Booster Vacuum
44764 Tube, Booster Vacuum
44772 Hose, Check Valve TO Connector Tube
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774G Hose, Union TO Solenoid
44776A Hose, Vacuum Reservoir TO Brake Booster
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
