Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 2 illustrations

Illustrations

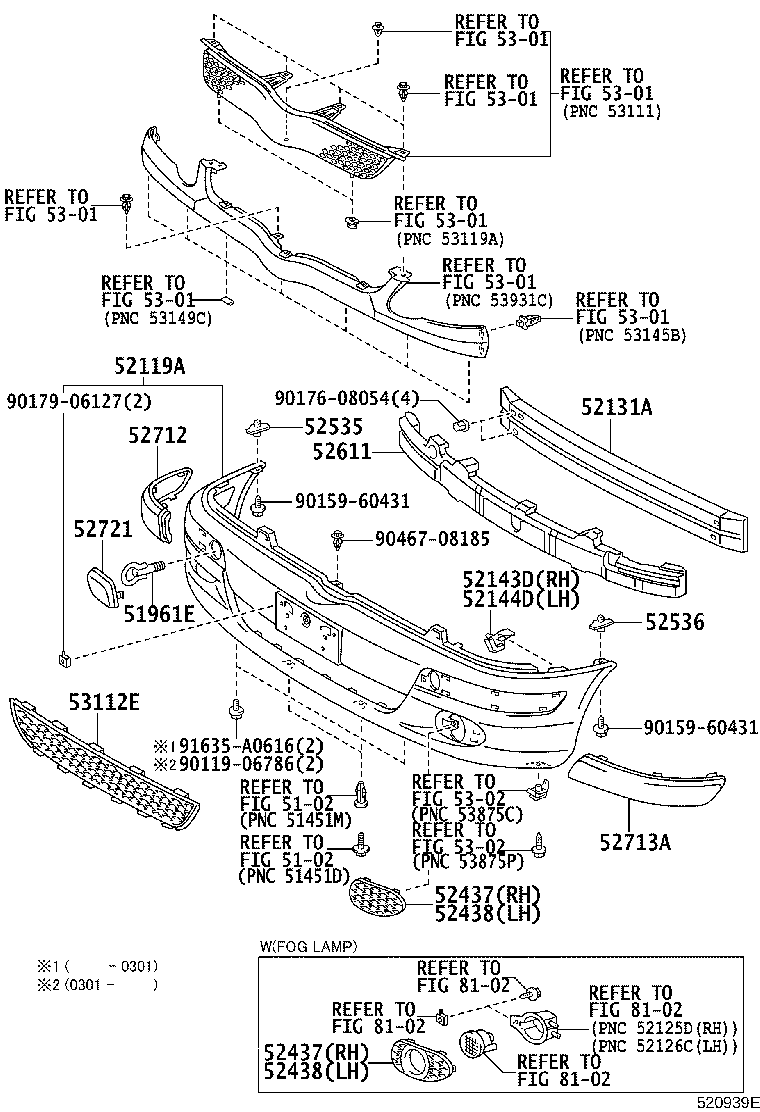

Figure 520565F 520565F 1999-08 → 2002-11 Figure 520939E 520939E 2002-11 → —

Part groups

PNCDescription
51961E Hook, Front
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52127C Cover, Front Bumper Hole
52131A Reinforcement, Front Bumper
52143D Bracket, Front Bumper Side, RH
52144D Bracket, Front Bumper Side, LH
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
52721 Moulding, Front Bumper Extension, RH
53112E Grille, Radiator, Lower NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
