Rear Bumper & Bumper Stay

10 part groups · 2 illustrations

Illustrations

Figure 520566D

520566D 1999-08 → 2002-11

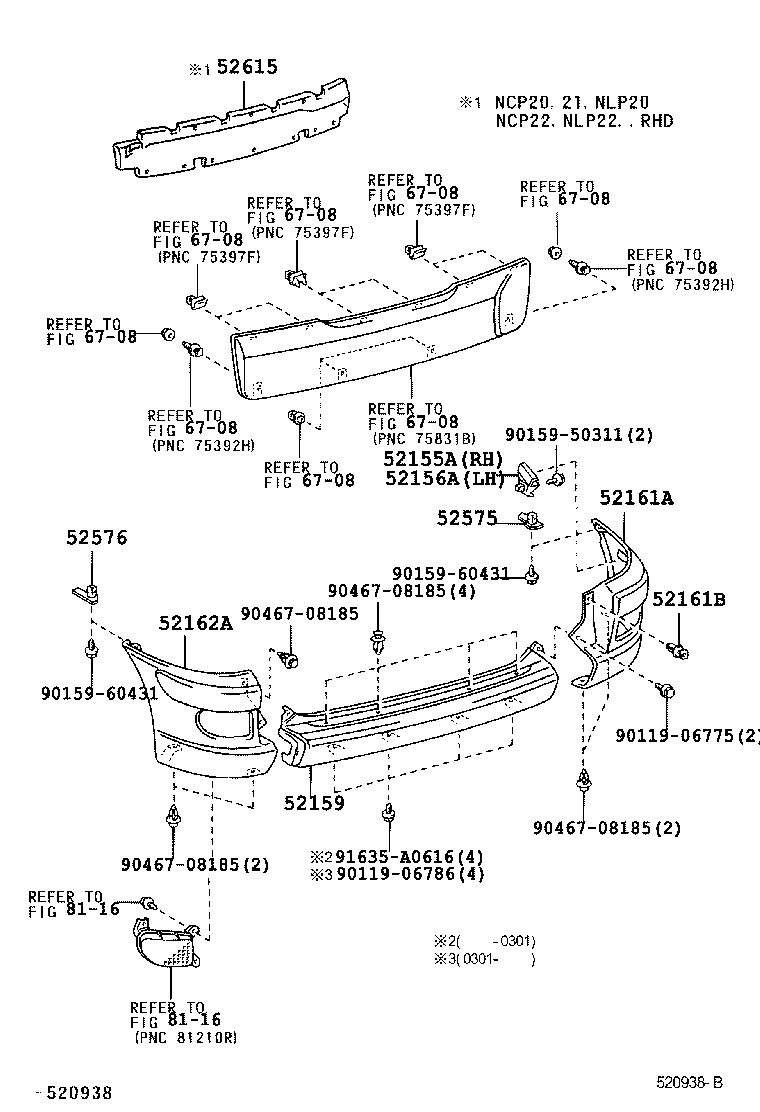

Figure 520938B

520938B 2002-11 → —

Part groups

PNC	Description
52155A	Support, Rear Bumper Side, RH
52156A	Support, Rear Bumper Side, LH
52159	Cover, Rear Bumper
52161A	Piece, Rear Bumper, RH
52161B	Piece, Rear Bumper
52162A	Piece, Rear Bumper, LH
52188B	Spacer, Rear Bumper Mounting
52575	Retainer, Rear Bumper Side, RH
52576	Retainer, Rear Bumper Side, LH
52615	Absorber, Rear Bumper Energy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
