Toyota Yaris/Echo Verso
1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe
Discontinued model
Data version 2006-01
Hood & Front Fender
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53153K | Guide, Radiator Grille Side Air, RH |
| 53154L | Guide, Radiator Grille Side Air, LH |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53393B | Protector, Hood, Front |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827B | Protector, Front Fender Side Panel |
| 53828B | Protector, Front Fender Side Panel, LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |

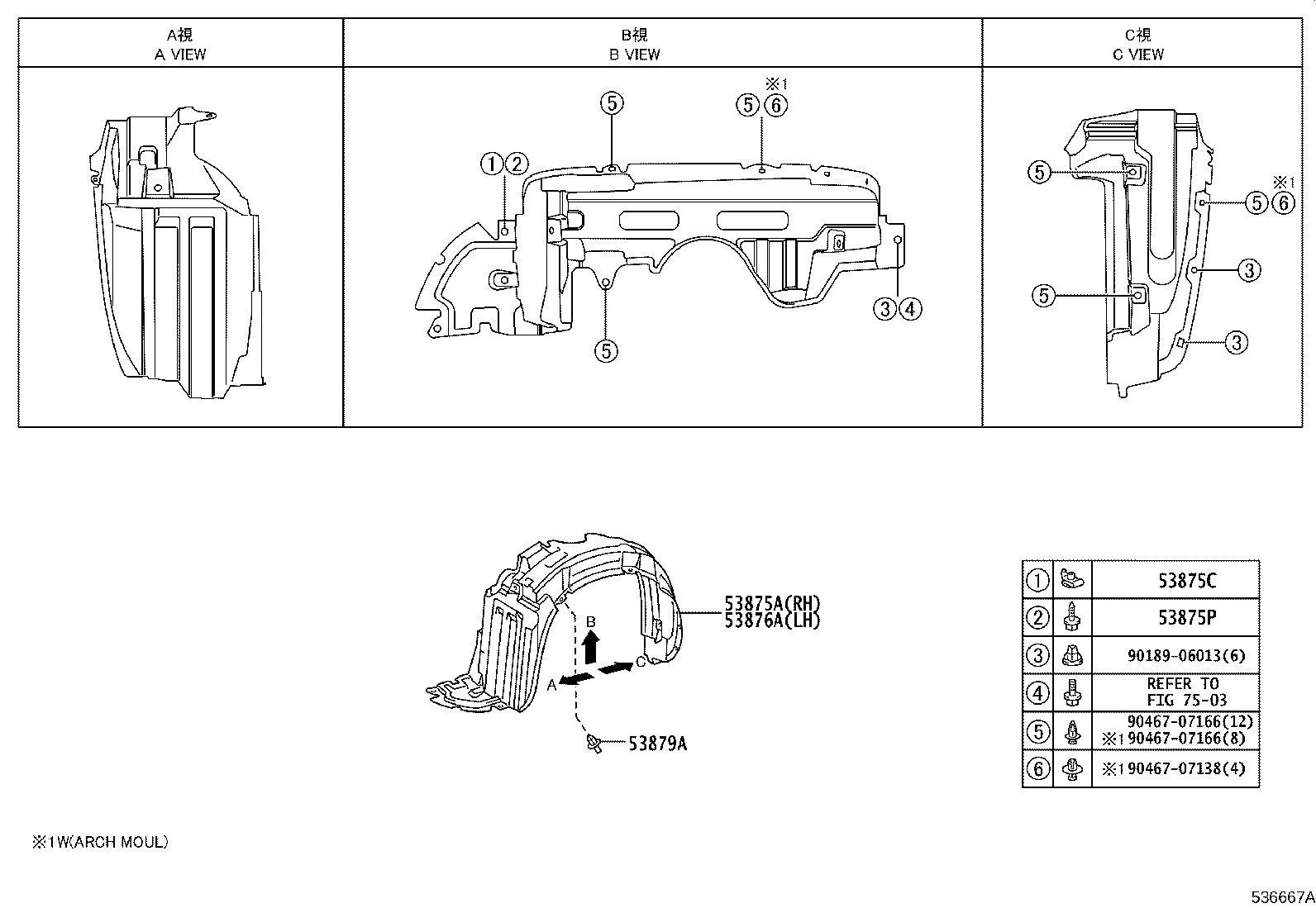

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875P | Screw, NO.1 |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882F | Seal, Front Fender |
| 55083D | Duct Sub-assy, Front Ventilator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
