Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

41 part groups · 14 illustrations

Illustrations

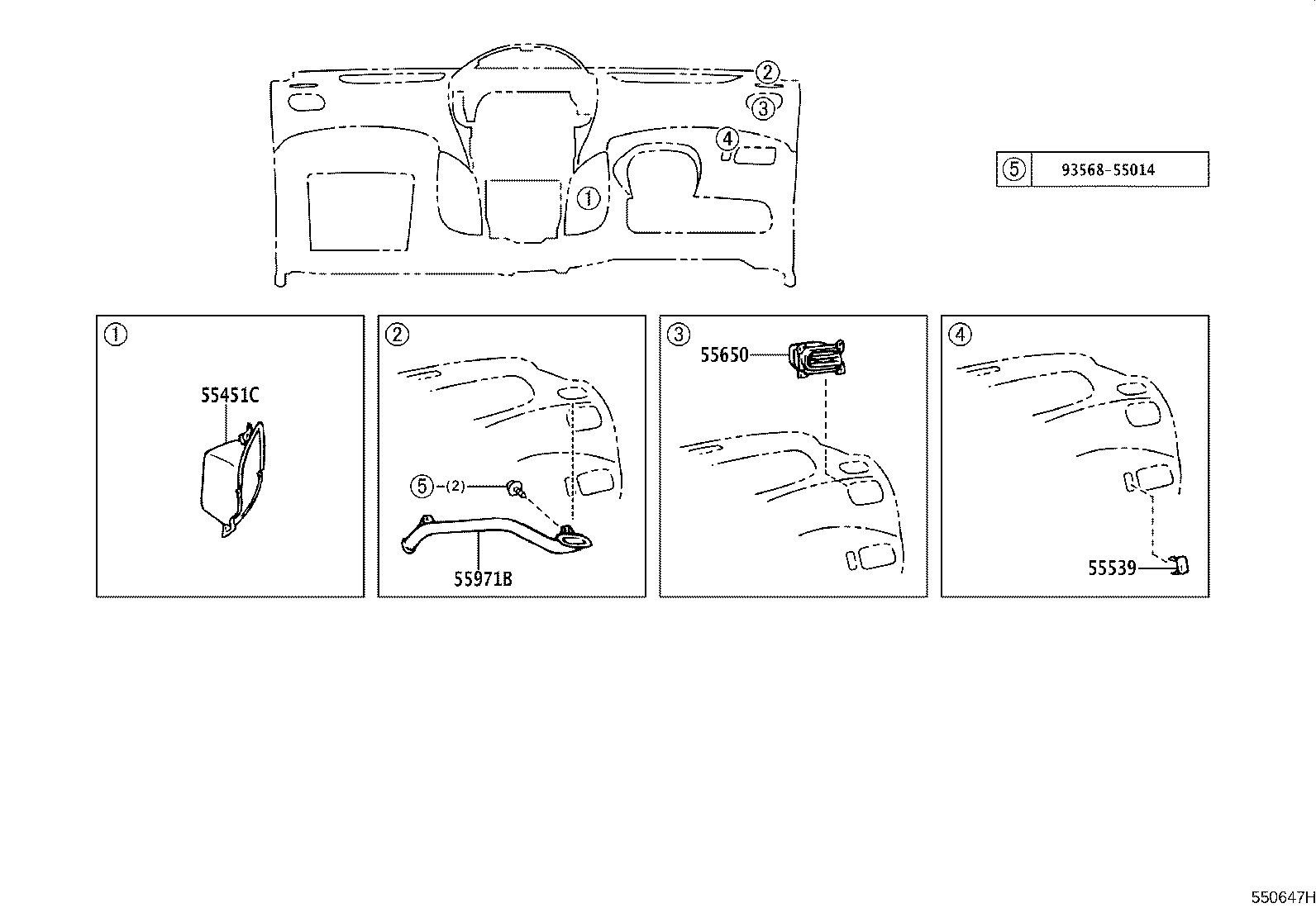

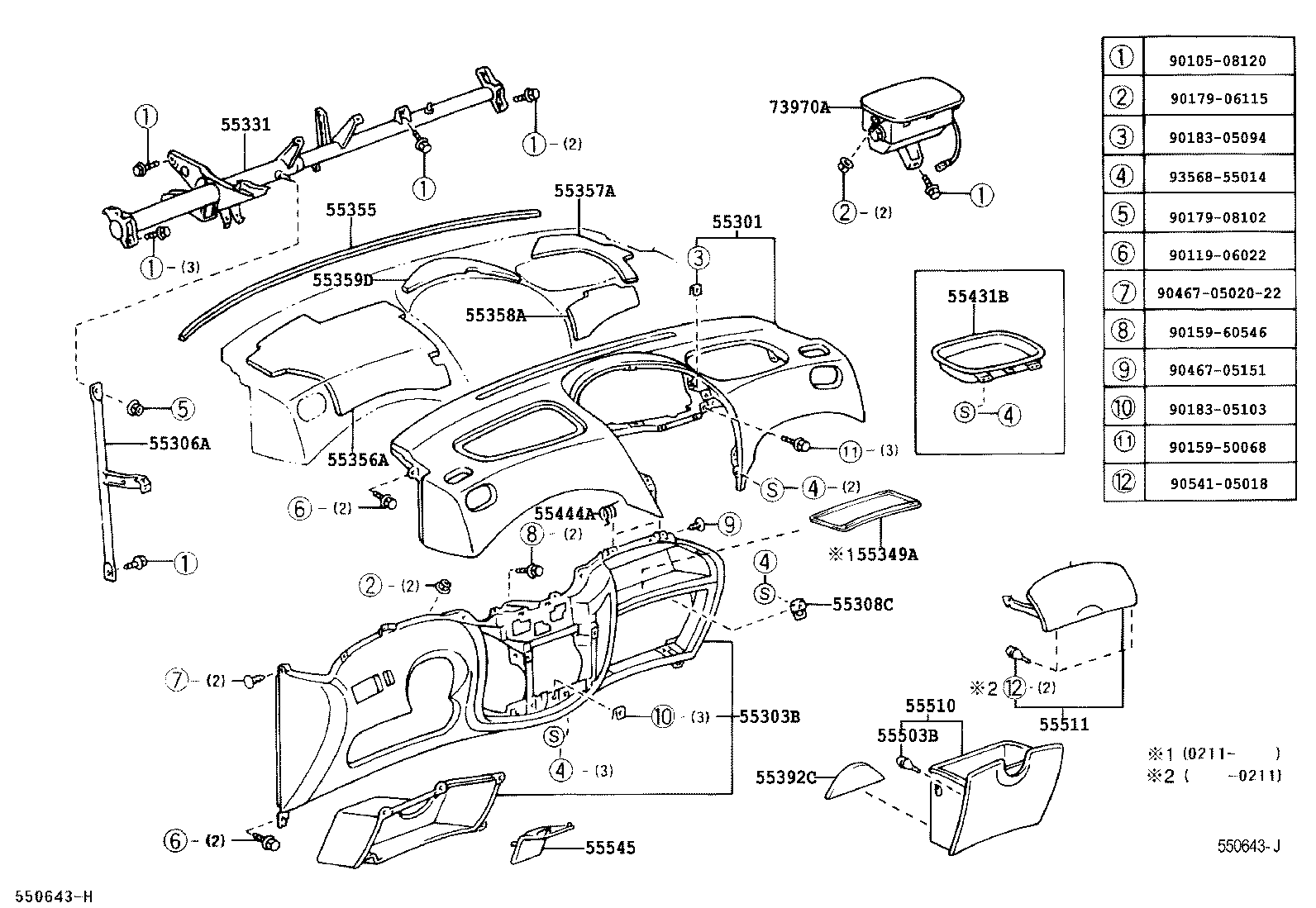

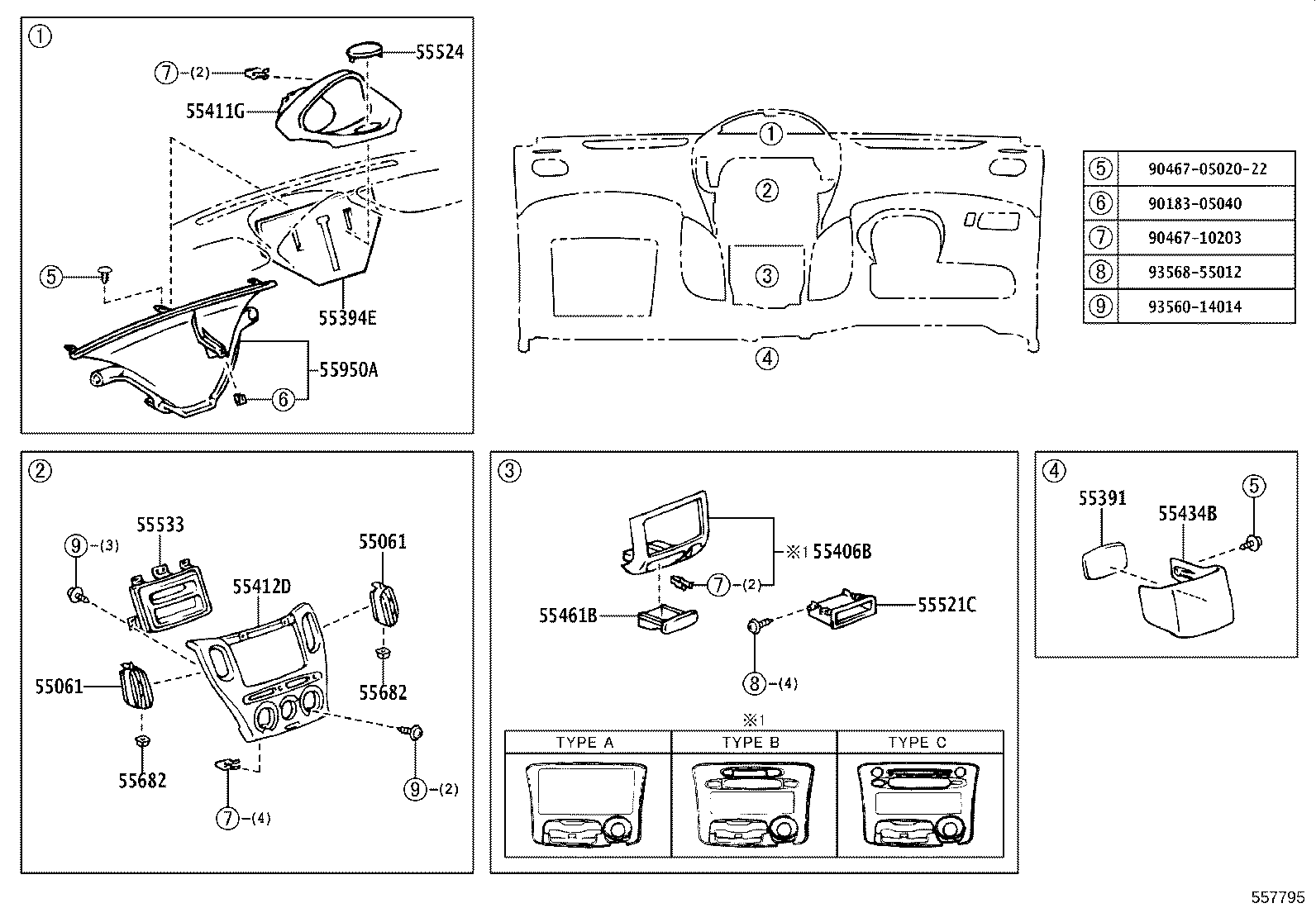

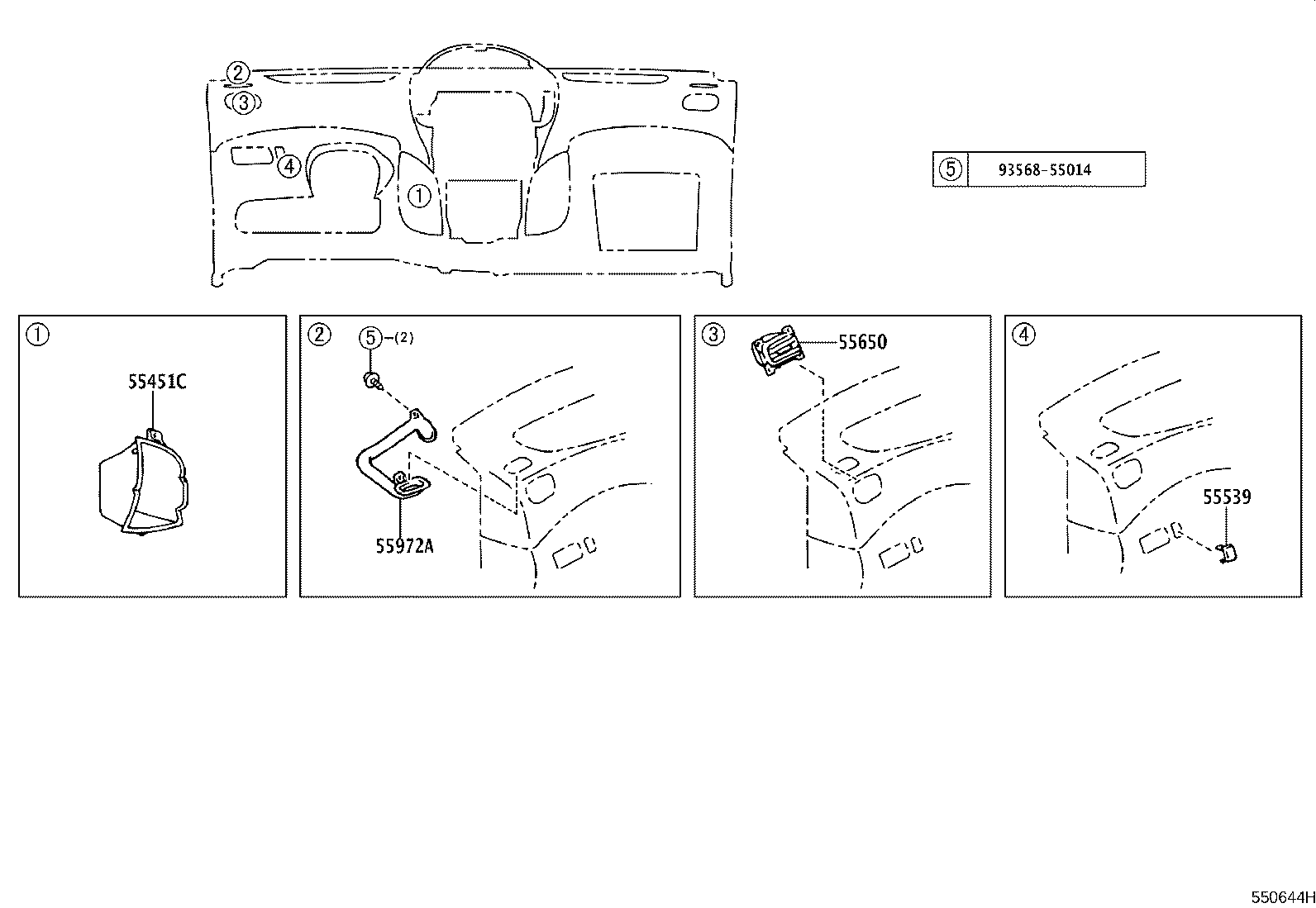

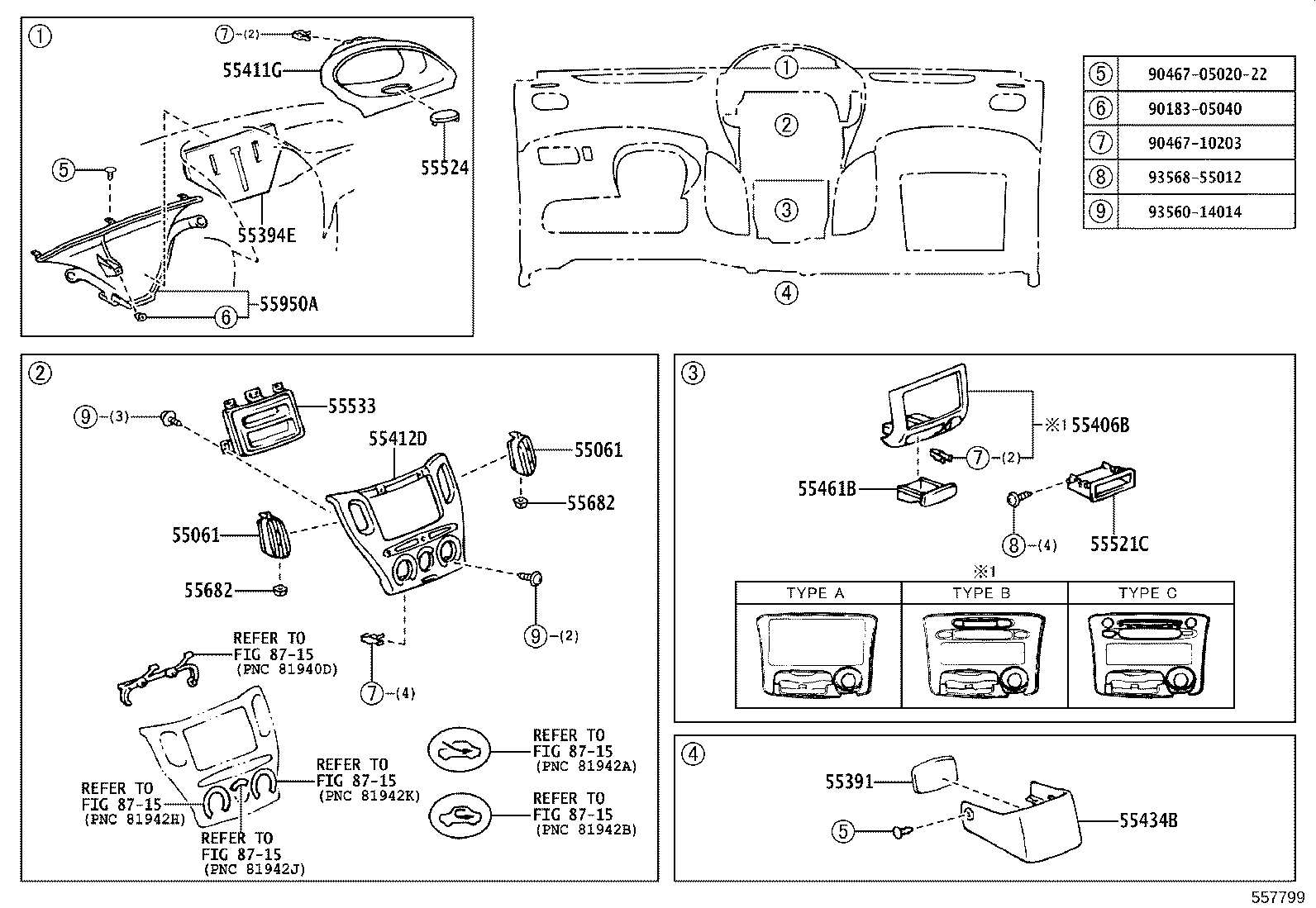

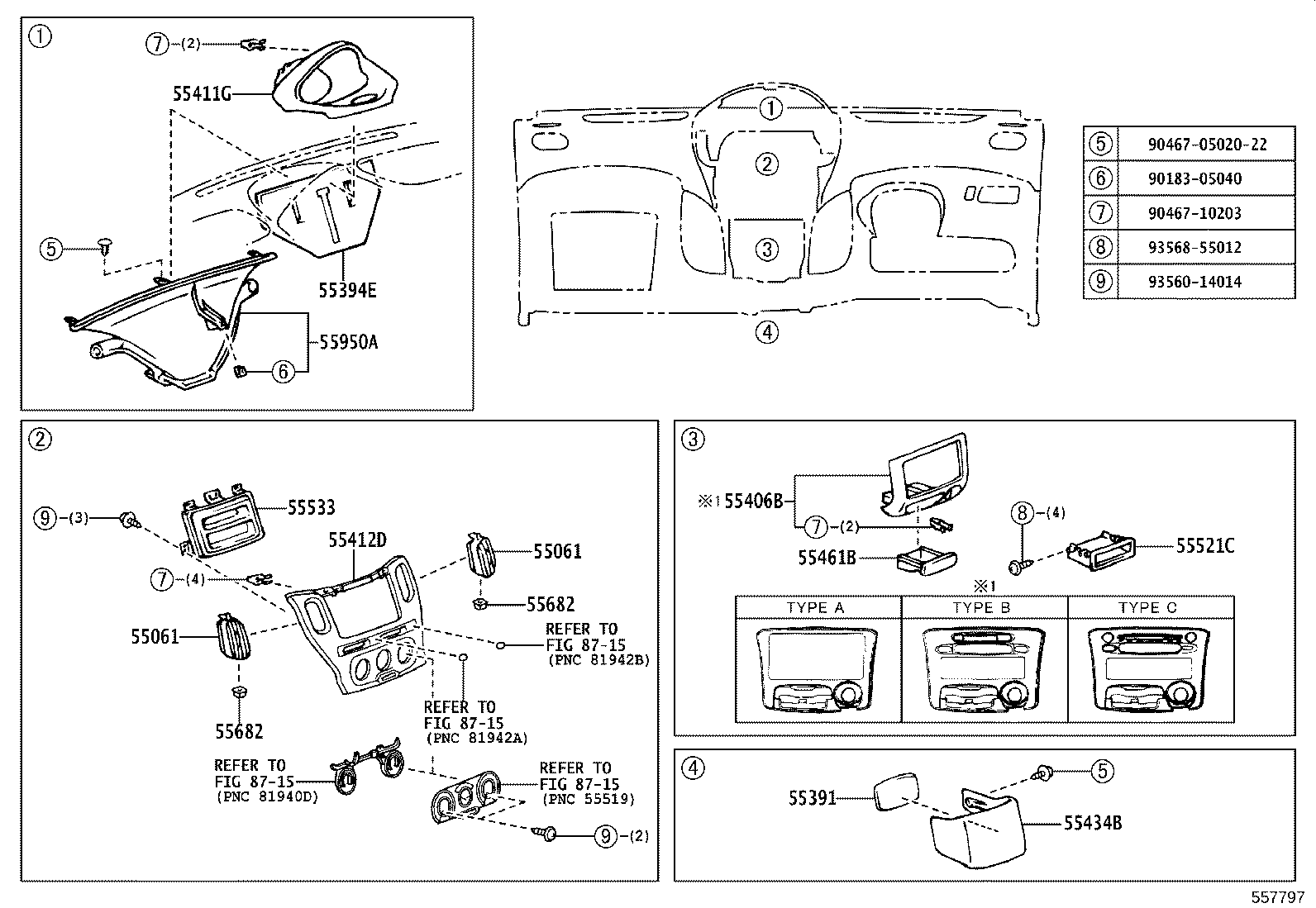

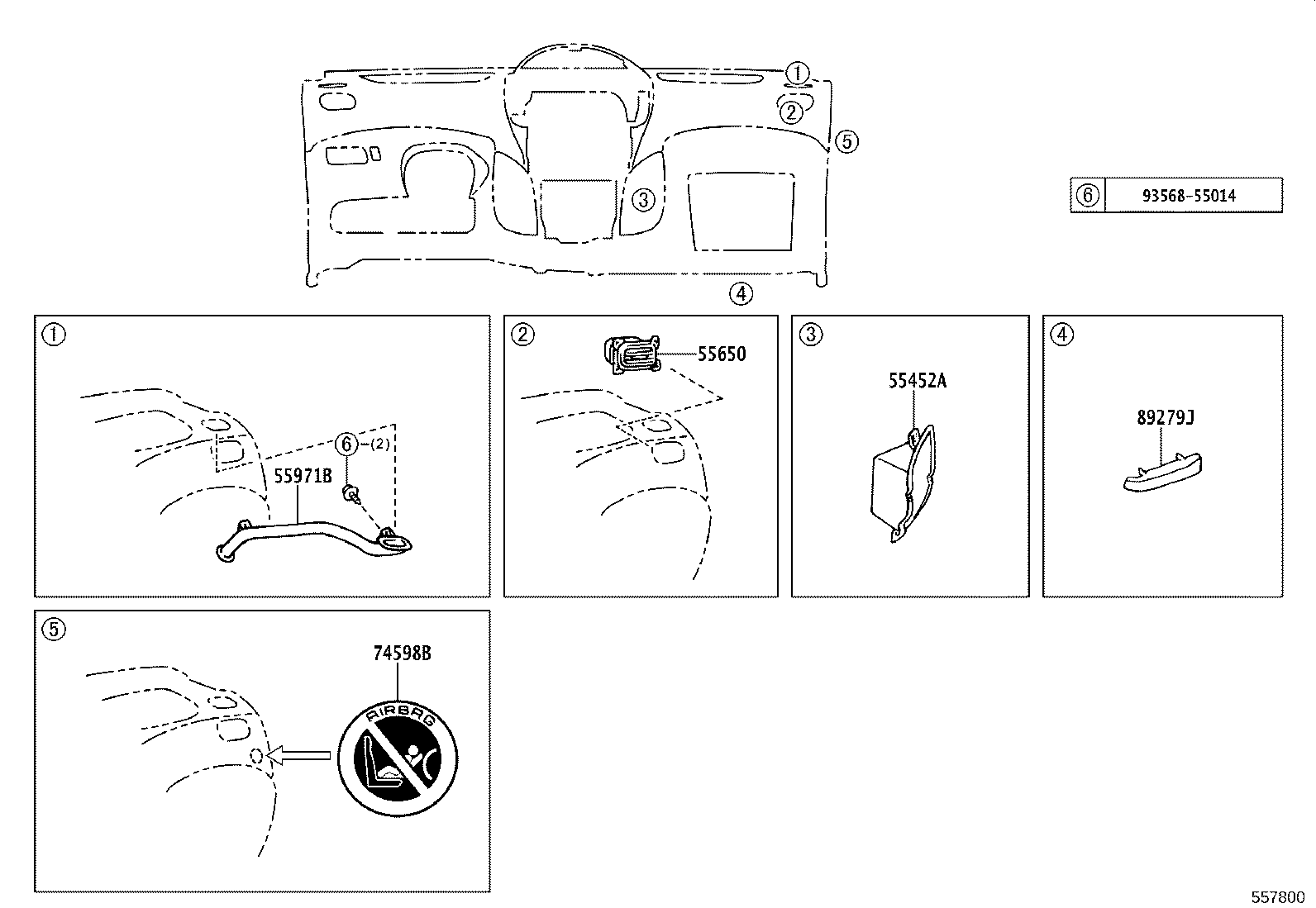

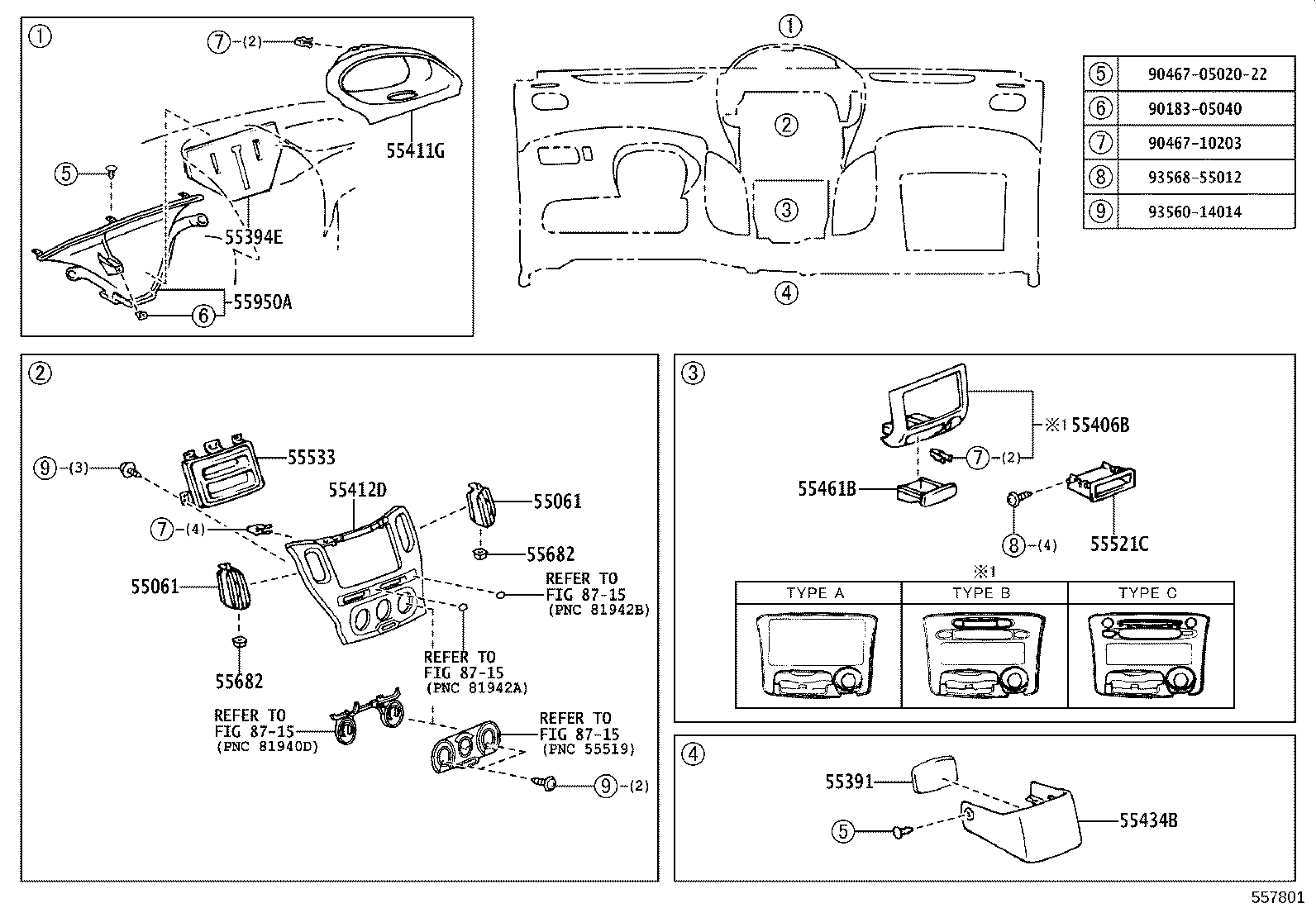

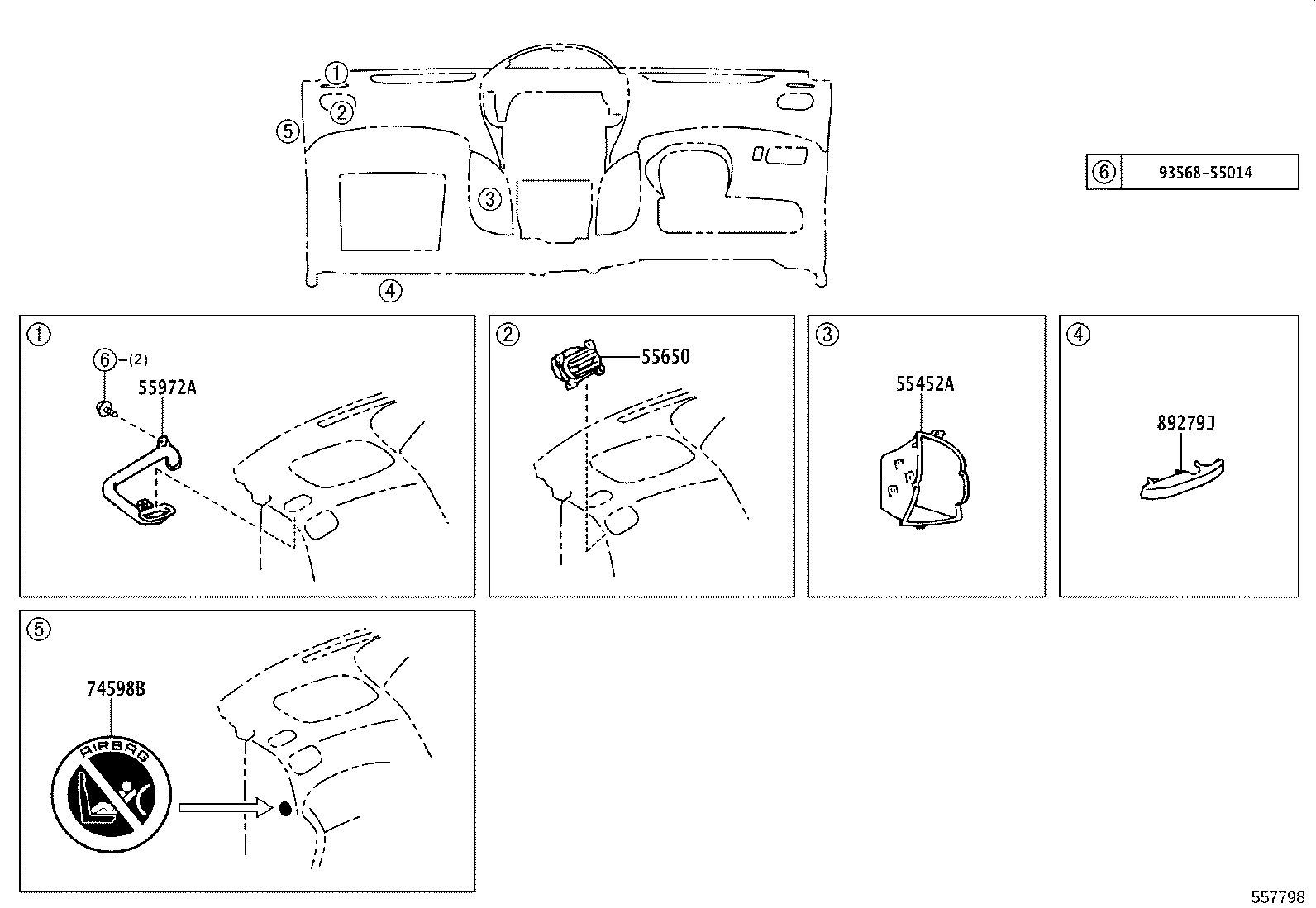

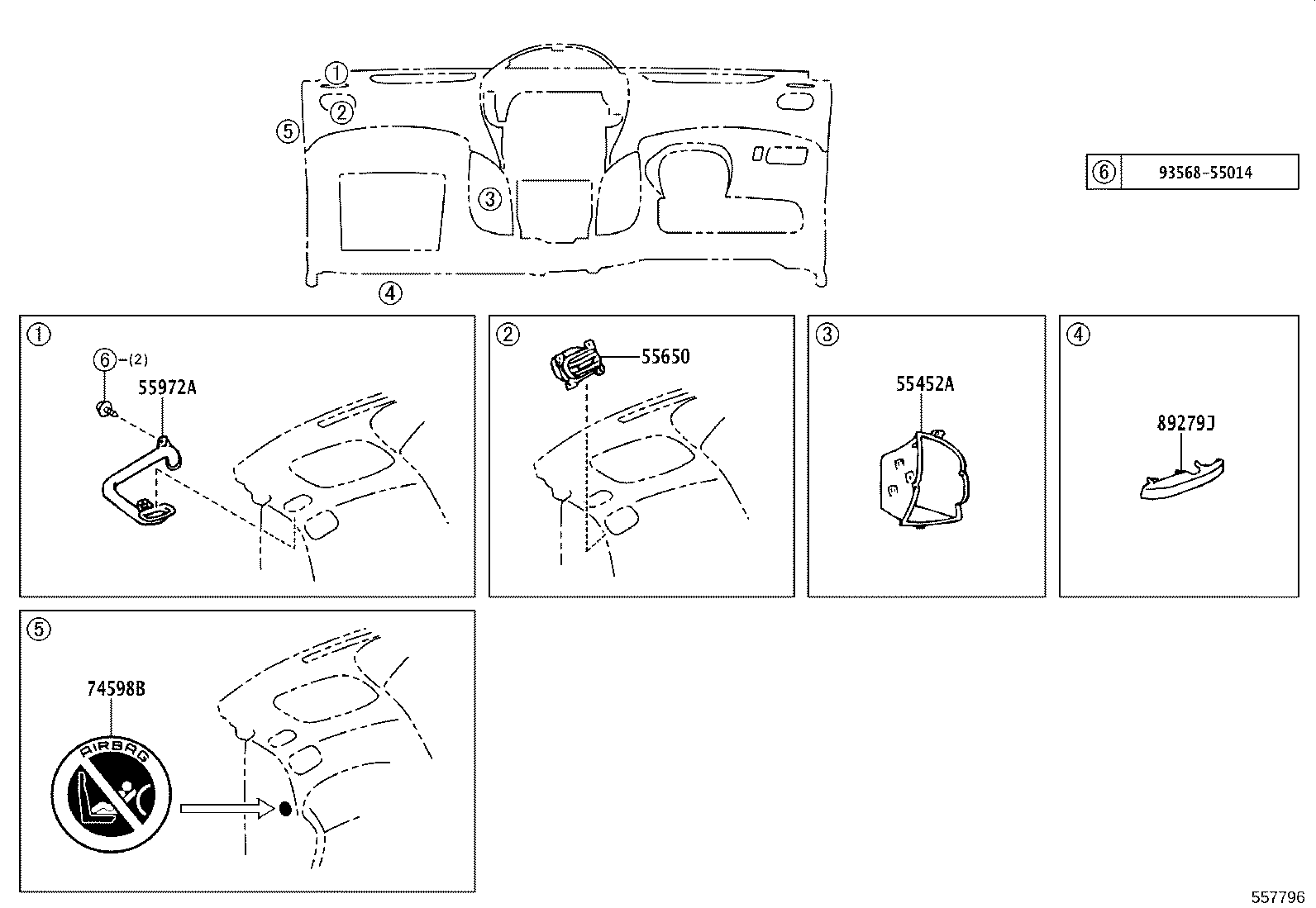

Figure 550648K 550648K 1999-08 → — Figure 550643J 550643J 1999-08 → — Figure 550647H 550647H 1999-08 → 2002-11 Figure 557795 557795 1999-08 → 2002-11 Figure 557796 557796 1999-08 → 2002-11 Figure 551075B 551075B 2002-11 → — Figure 557797 557797 2002-11 → — Figure 557798 557798 2002-11 → — Figure 550644H 550644H 1999-08 → 2002-11 Figure 557799 557799 1999-08 → 2002-11 Figure 557800 557800 1999-08 → 2002-11 Figure 551074B 551074B 2002-11 → — Figure 557801 557801 2002-11 → — Figure 557802 557802 2002-11 → —

Part groups

PNCDescription
55061 Register Sub-assy, Instrument Panel, NO.1
55301 Panel Sub-assy, Instrument
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55308C Bracket Sub-assy, Instrument Panel, Center
55331 Reinforcement, Instrument Panel
55349A Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356A Plate, Instrument Panel, Lower
55357A Protector, Edge, NO.1
55358A Protector, Edge, NO.2
55359D Cushion, Instrument Panel, NO.5
55376 Bracket, Instrument Panel Mounting, NO.1
55391 Cushion, Instrument Panel, Lower NO.1
55392C Cushion, Instrument Panel, Lower NO.2
55394E Cushion, Instrument Panel, Lower NO.4
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55411G Panel, Instrument Cluster Finish, NO.1
55412D Panel, Instrument Cluster Finish, Center
55431B Panel, Instrument Panel Finish, Upper
55434B Panel, Instrument Panel Finish, Lower Center
55444A Spring, Instrument Panel Box
55451C Box, Instrument Panel, NO.1
55452A Box, Instrument Panel, NO.2
55461B Box, Instrument Panel, Center
55503B Cushion(FOR GLOVE COMPARTMENT)
55510 Door Assy, Glove Compartment
55511 Door, Glove Compartment
55521C Cover, Stereo Opening
55524 Cover, Switch Bace Hole
55533 Cover, Auto Clock Hole
55539 Cover, Spare Switch Hole
55545 Cover, Fuse Box Opening
55650 Register Assy, Instrument Panel, NO.1
55682 Spring, Instrument Panel Register Support
55950A Nozzle Assy, Defroster
55971B Duct, Side Defroster Nozzle, NO.1
55972A Duct, Side Defroster Nozzle, NO.2
73970A Airbag Assy, Instrument Panel Passenger
74598B Label, Passenger Airbag Caution
89279J Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
