Toyota Yaris/Echo Verso
1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe
Discontinued model
Data version 2006-01

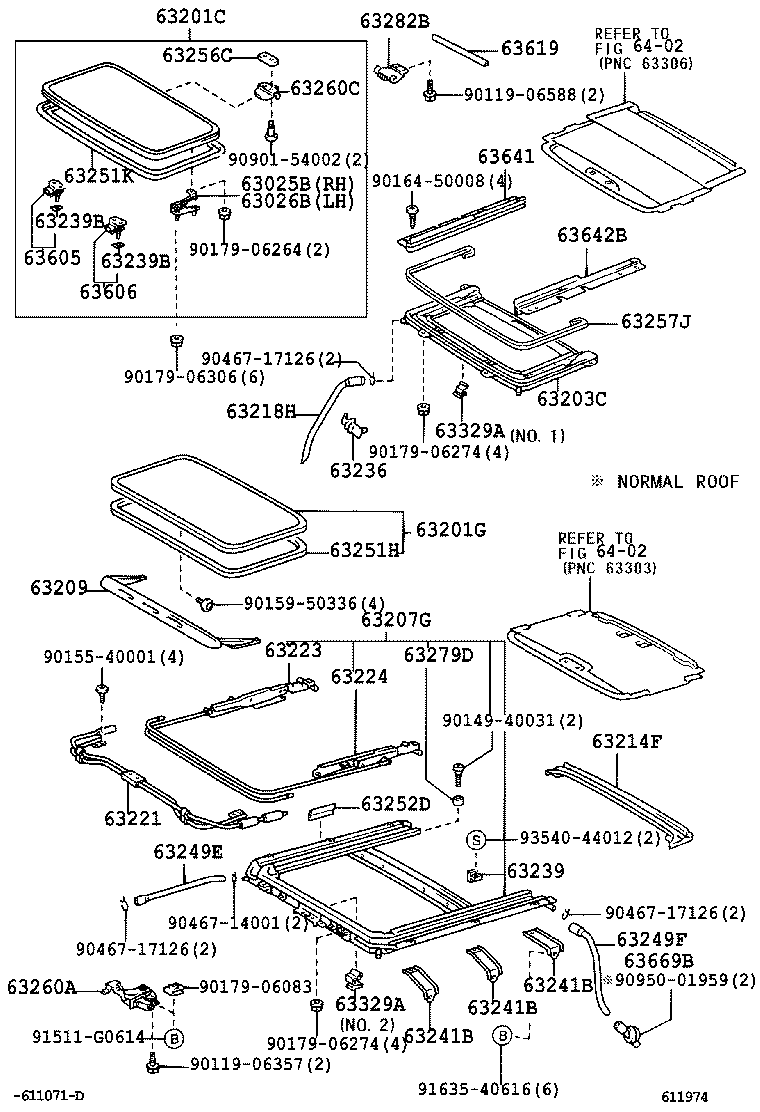

Roof Panel & Back Window Glass
50 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61824A | Plate, Noise Control, NO.1 |
| 63025B | Link Sub-assy, Tilt Roof, RH |
| 63026B | Link Sub-assy, Tilt Roof, LH |
| 63102 | Reinforcement Sub-assy, Roof Panel, Front |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63132 | Panel, Windshield Header, Inner |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63185D | Bracket, Roof Rack, Front |
| 63187A | Bracket, Roof Rack, Rear |
| 63189A | Bracket, Roof Rack, Center |
| 63201C | Glass Sub-assy, Tilt Roof |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203C | Housing Sub-assy, Tilt Roof |
| 63207G | Rail Sub-assy, Sliding Roof Guide |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63218H | Hose, Sliding Roof Drain |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63239 | Stopper, Sliding Roof Panel |
| 63239B | Pad, Tilt Roof Glass |
| 63241B | Bracket, Sliding Roof Housing, NO.1 |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63251K | Weatherstrip, Tilt Roof |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63256C | Seal, Tilt Roof Glass |
| 63257J | Seal, Tilt Roof Housing |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63260C | Handle Assy, Tilt Roof Lock |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63282B | Striker, Tilt Roof Lock |
| 63329A | Stopper, Sunshade Lock |
| 63460B | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63605 | Hinge Sub-assy, Tilt Roof, RH |
| 63606 | Hinge Sub-assy, Tilt Roof, LH |
| 63619 | Cover, Tilt Roof Panel |
| 63641 | Rail, Sunshade, NO.1 Front RH |
| 63642B | Rail, Sunshade, NO.1 Front LH |
| 63669B | Grommet, Sliding Roof Drain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
