Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

27 part groups · 3 illustrations

Illustrations

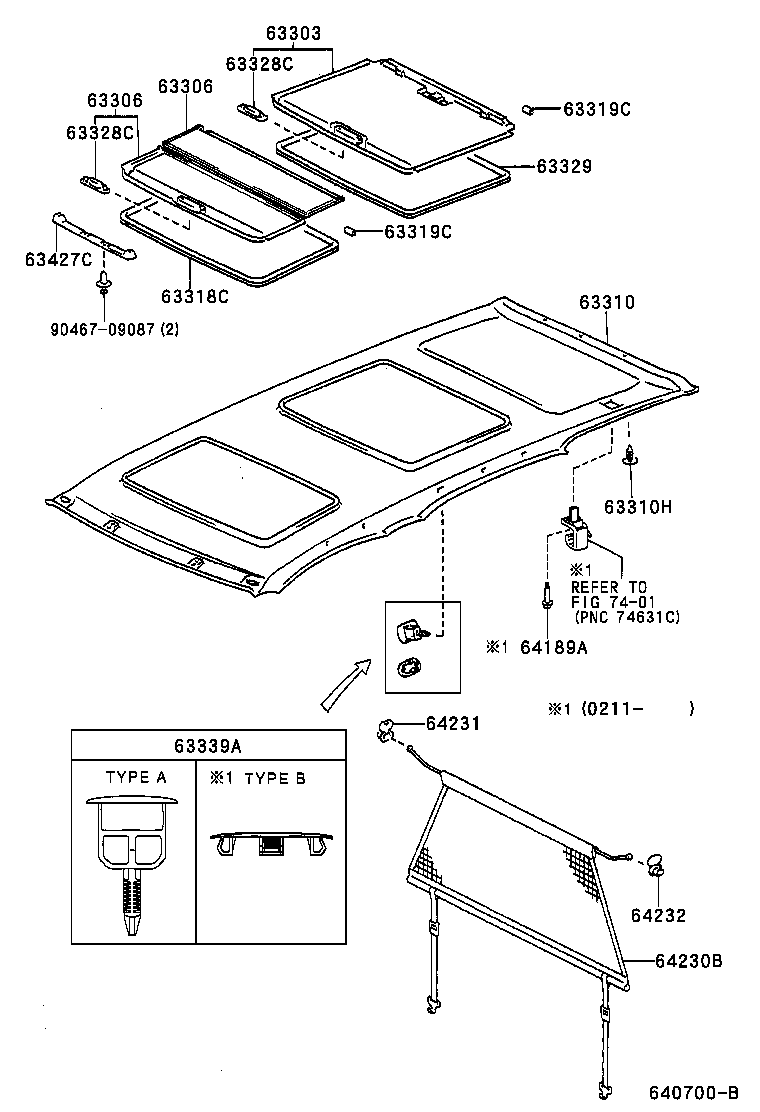

Figure 640697B 640697B 1999-08 → — Figure 640700B 640700B 1999-08 → — Figure 640703D 640703D 1999-08 → —

Part groups

PNCDescription
58967D Spring, Roof Console Door Stopper
62587E Stopper, Roof Console Box
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63319C Joint, Sun Roof Opening Trim
63328C Knob, Sunshade Trim
63329 Moulding, Sun Roof Opening Trim, NO.2
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63427C Bracket, Room Rack, Upper Front
63651C Box, Roof Console
63661A Cover, Roof Headlining Trim, RH
63662A Cover, Roof Lining Trim, NO.2
64189A Bolt, Rear Body Mounting
64230B Net Assy, Room Partition
64231 Hook, Room Partition Net, Front RH
64232 Hook, Room Partition Net, Front LH
73936 Knob, Rear Shelf Lock
73937 Pin, Rear Shelf Lock
74651 Panel, Shelf
74654 Panel, Shelf, Inner NO.1
74655E Panel, Shelf, Inner NO.2
74661 Stay, Shelf, NO.1
74662 Stay, Shelf, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
