Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

18 part groups · 3 illustrations

Illustrations

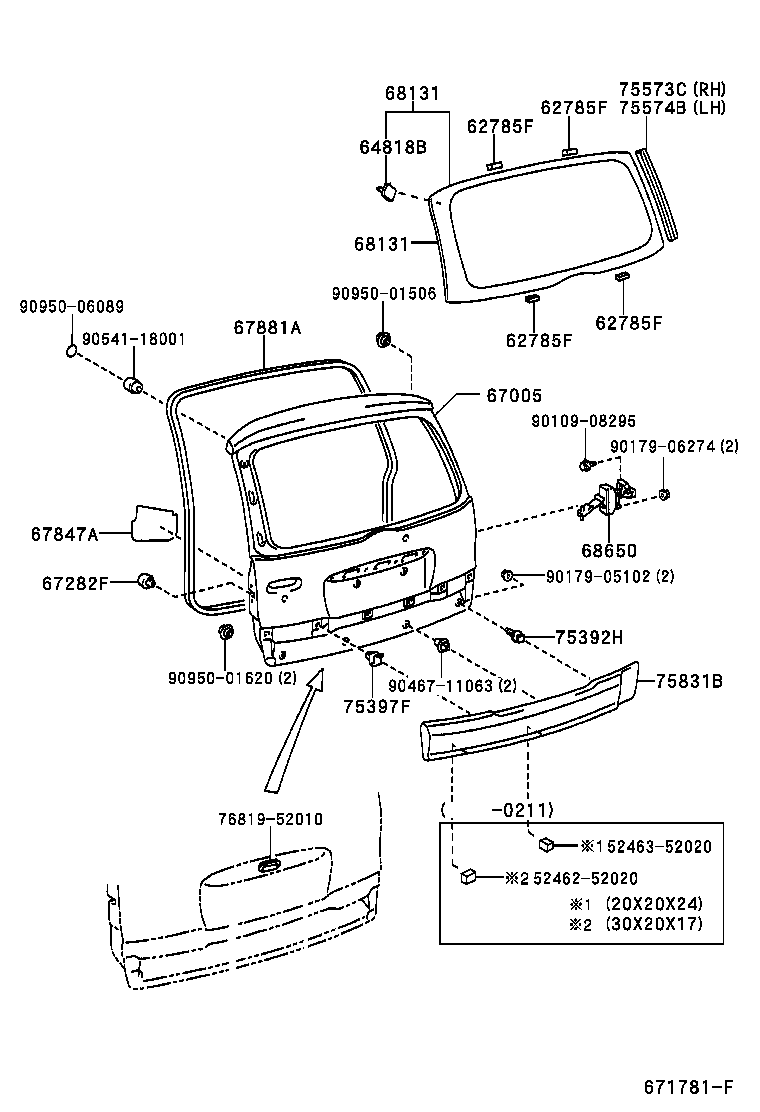

Figure 671767A 671767A 1999-08 → — Figure 671781F 671781F 1999-08 → — Figure 671786 671786 1999-08 → 2002-11

Part groups

PNCDescription
47256B Grommet, Cap
62785F Spacer, Back Door Glass
64818B Spacer, Back Door Glass, NO.1
67005 Panel Sub-assy, Back Door
67282F Stopper, Back Door, Lwr LH
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67751B Retainer(FOR BACK DOOR TRIM BOARD)
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68650 Check Assy, Back Door
74811D Handle, Door Pull
75392H Retainer, Outside Moulding
75397F Clip, Outside Moulding, NO.3
75573C Moulding, Back Window, Outside
75574B Moulding, Back Window, Outside LH
75831B Panel, Back Door Finish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
