Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 2 illustrations

Illustrations

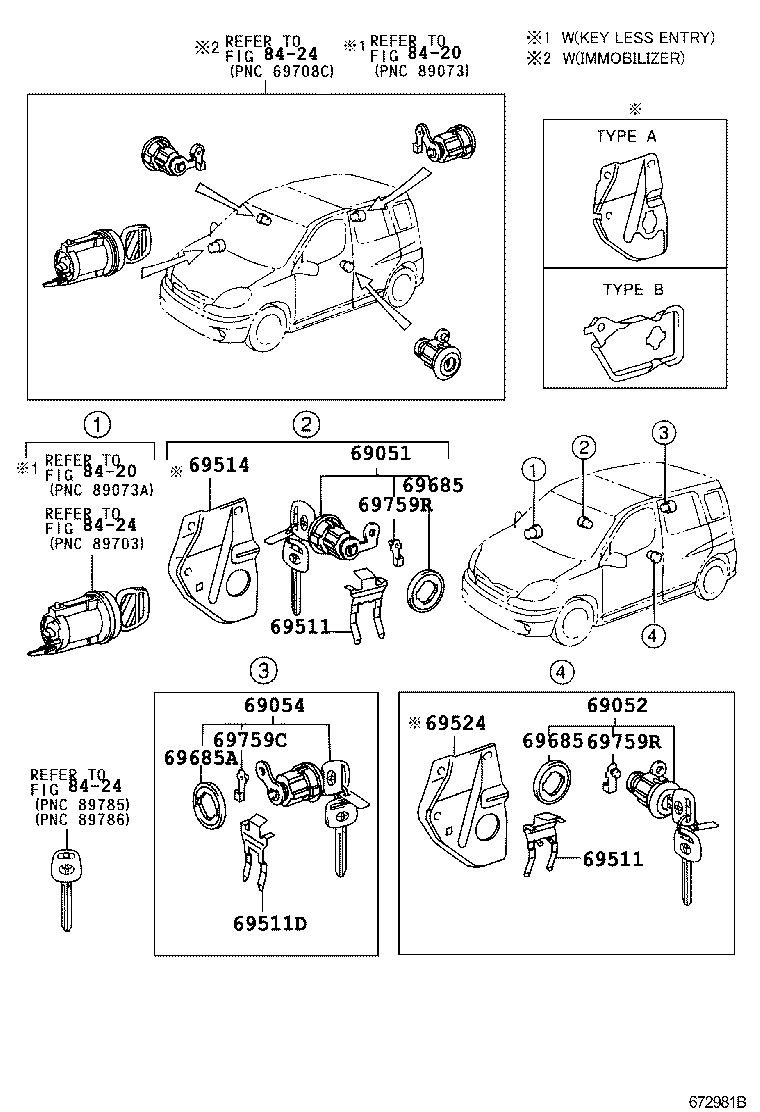

Figure 671769D 671769D 1999-08 → 2002-11 Figure 672981B 672981B 2002-11 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69511D Retainer, Back Door Lock Cylinder
69514 Support, Front Door Lock Cylinder, RH
69524 Support, Front Door Lock Cylinder, LH
69685 Pad, Lock Cylinder
69685A Pad, Lock Cylinder
69759C Snap, Back Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
