Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

17 part groups · 2 illustrations

Illustrations

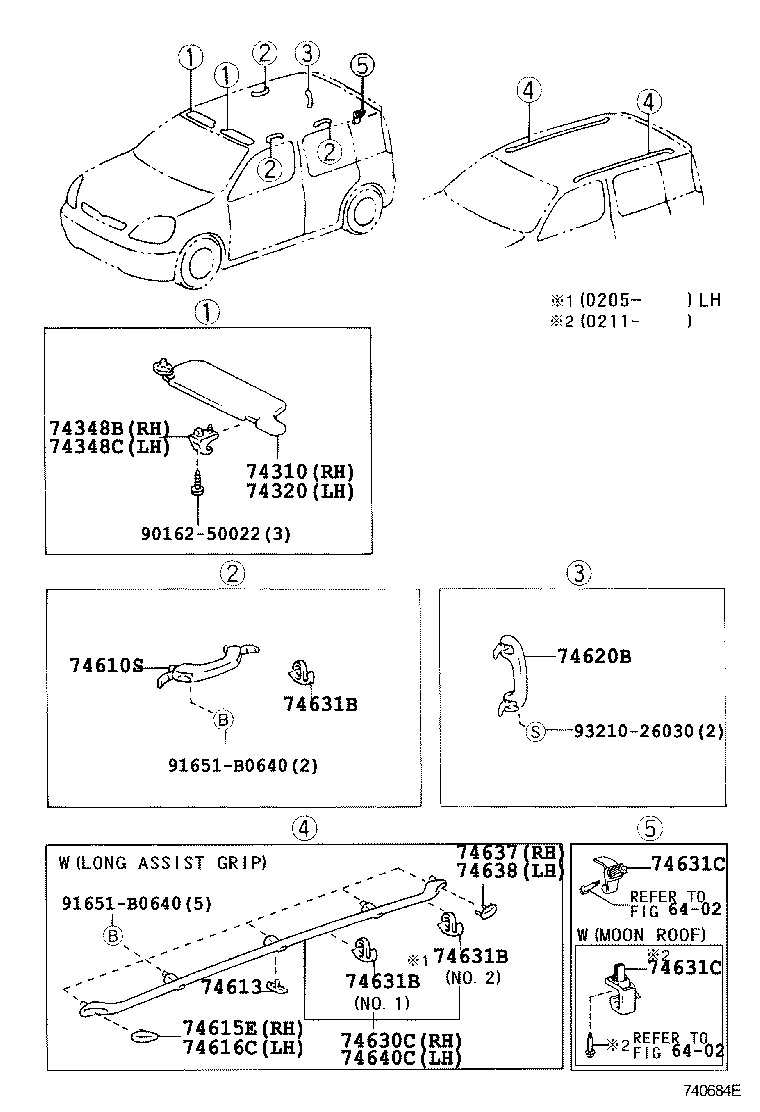

Figure 742895A 742895A 1999-08 → — Figure 740684E 740684E 1999-08 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74610S Grip Assy, Assist
74613 Plug, Assist Grip
74615E Plug, Front Assist Grip, NO.1 RH
74616C Plug, Front Assist Grip, NO.1 LH
74620B Grip Assy, Assist, Rear
74630C Grip Assy, Door Assist, RH
74631B Hook, Coat
74631C Hook, Coat
74637 Plug, Assist Grip, NO.2 RH
74638 Plug, Assist Grip, NO.2 LH
74640C Grip Assy, Door Assist, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
