Toyota Yaris/Echo Verso
1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe
Discontinued model
Data version 2006-01

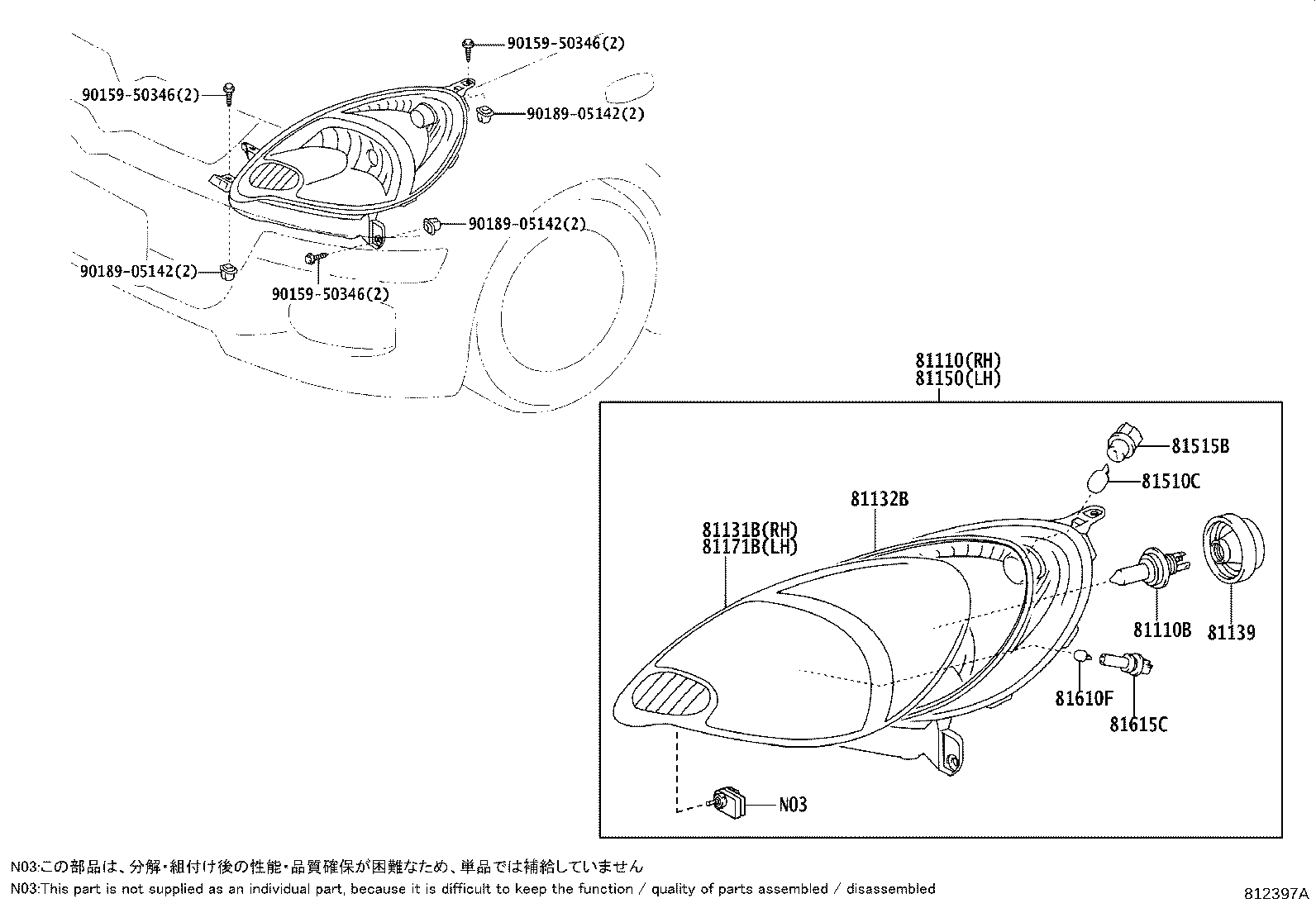

Headlamp
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81139 | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81171B | Head Lamp Lens, LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615C | Socket & Wire, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
