Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 2 illustrations

Illustrations

Figure 811261A

811261A 1999-08 → 2002-11

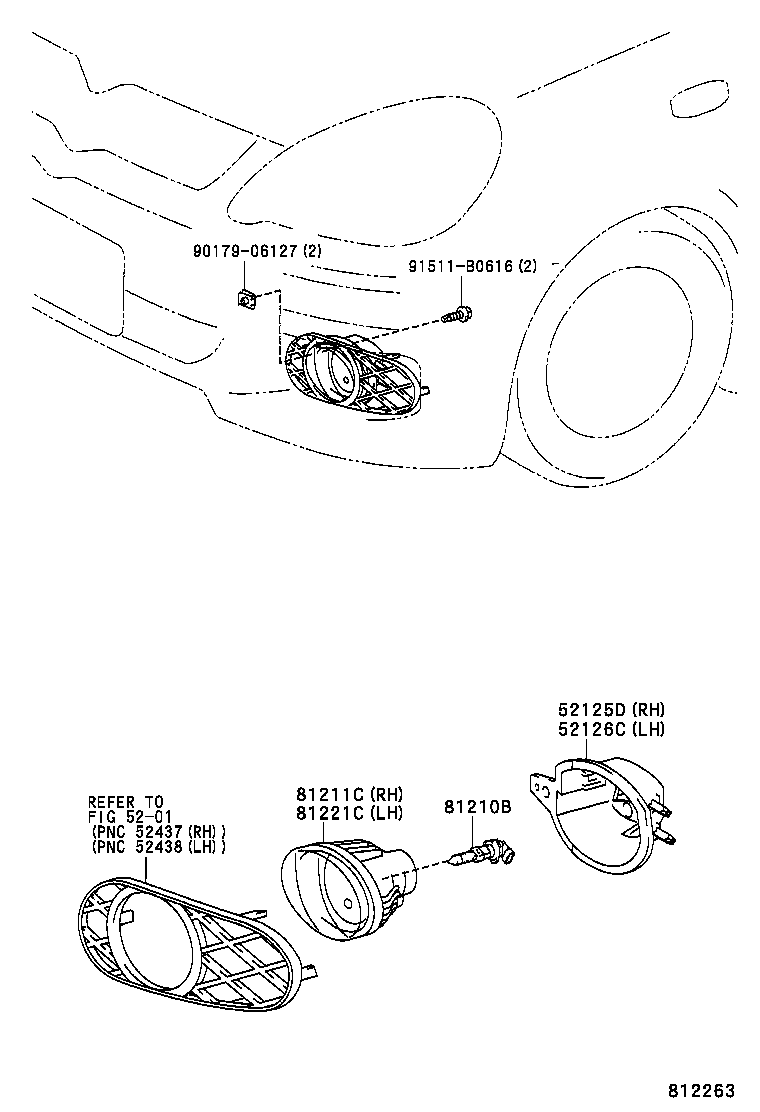

812263 2002-11 → 2005-09

Part groups

PNC	Description
52125D	Bracket, Fog Lamp Mounting, RH
52126C	Bracket, Fog Lamp Mounting, LH
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
